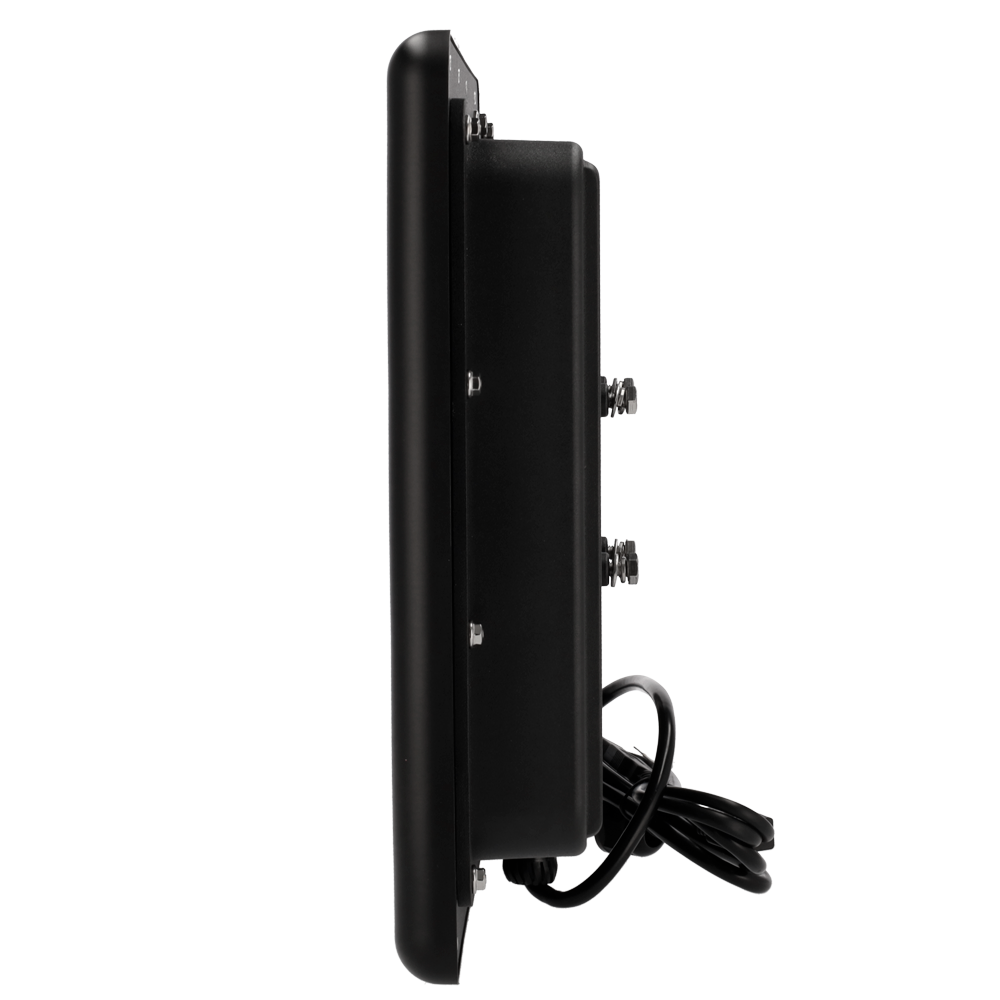

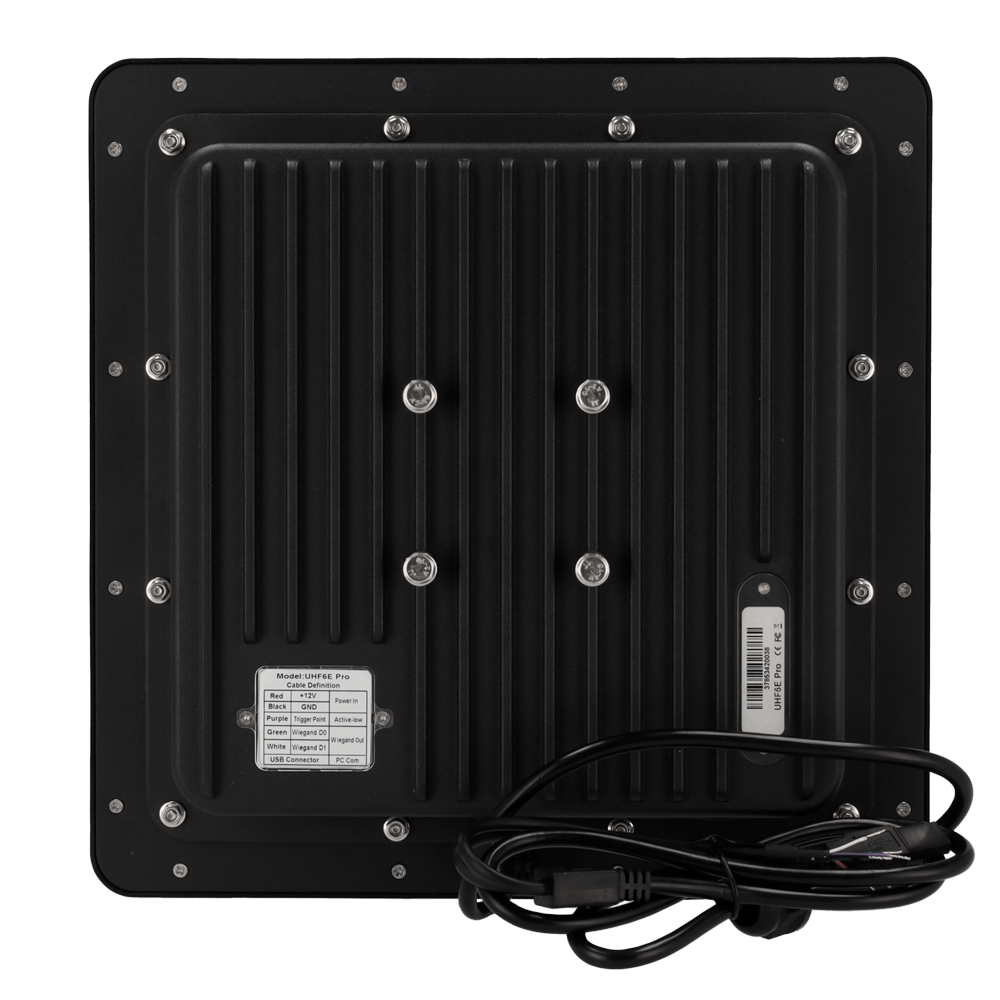

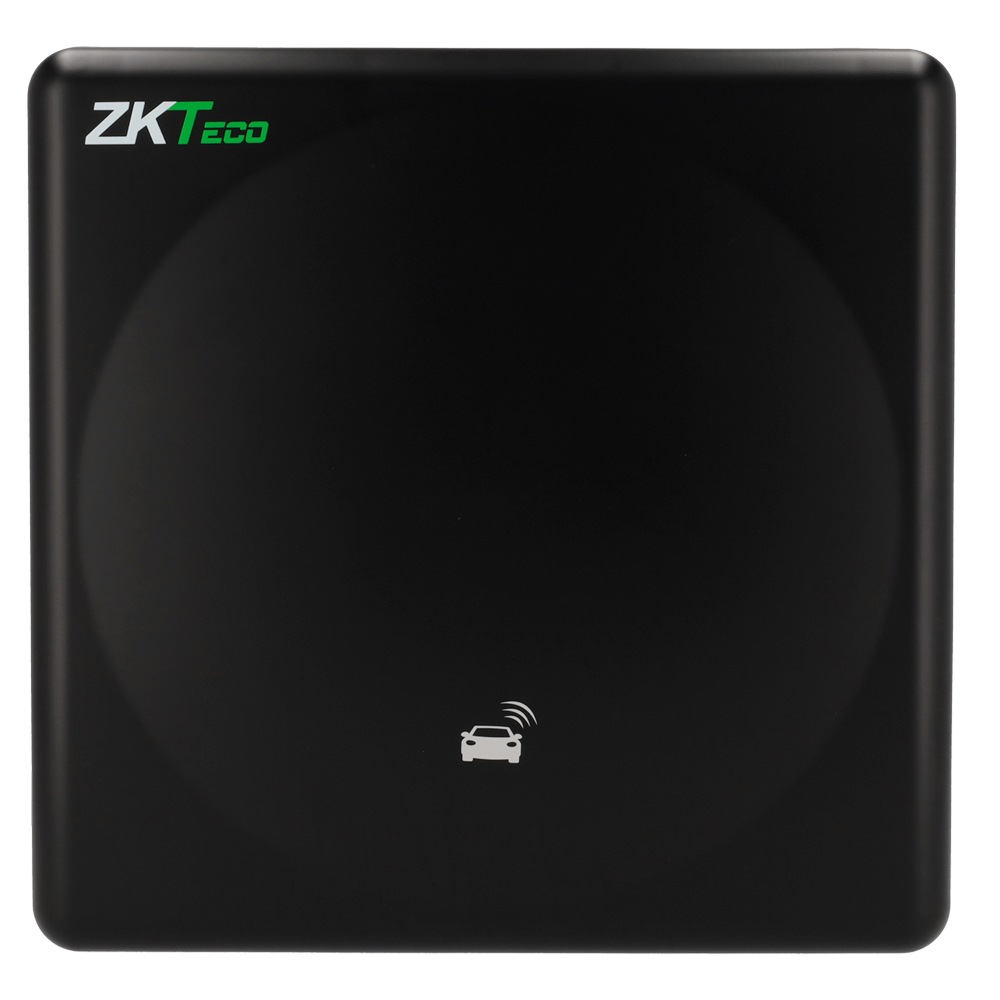

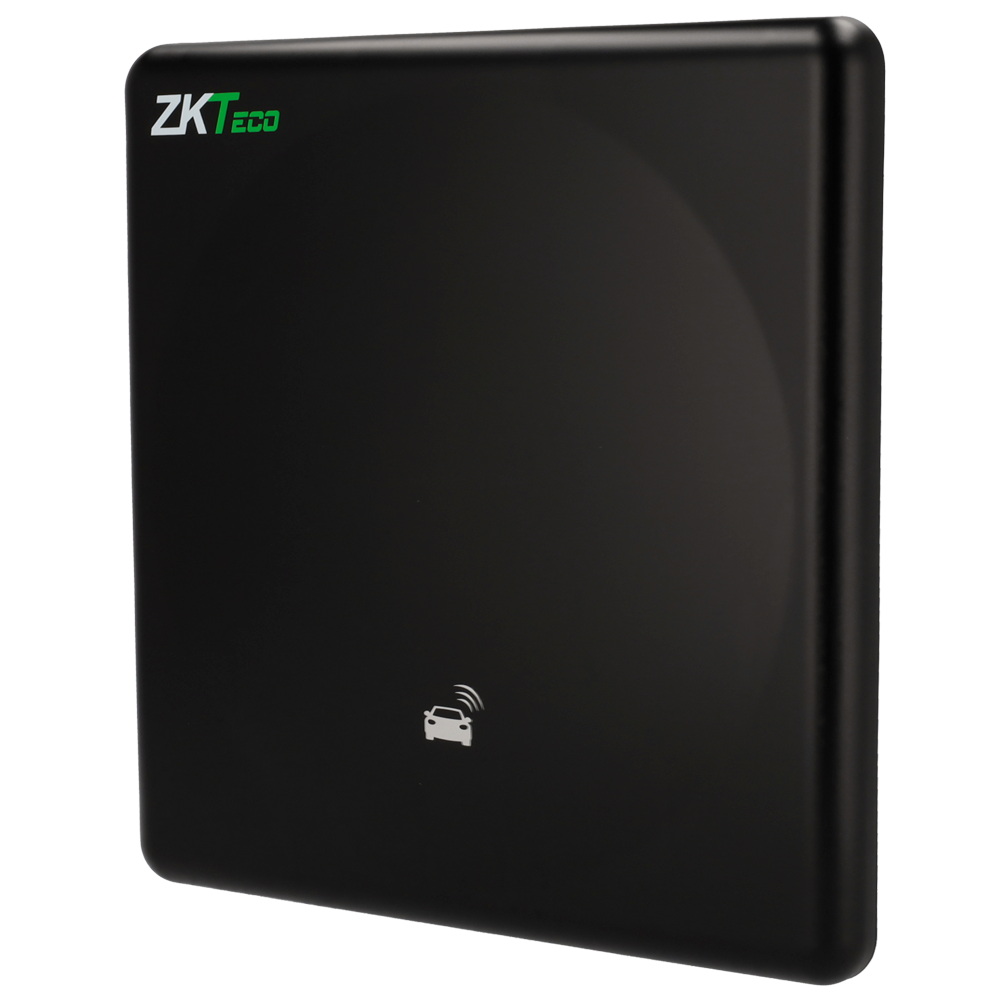

ZK-UHF6-18E-PRO
Ga direct naar de productinformatie
ZK-UHF6-18E-PRO
- Access reader
- Access with UHF
- Adjustable range up to 18 m
- Wiegand 26/34 | USB for configuration
- Compatible with ZKTeco controllers
- Configuration software | Exterior IPx5
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.
This reader allows identification through cards or key fobs with UHF 865 ~ 868 MHz technology.
The connection to the controllers is made via Wiegand. This protocol allows a secure connection in the outdoor installation with its IPx5 grade.
- ZKTeco
- Access reader for controller
- Access with UHF
- Suitable for vehicle and personnel management
- Wiegand 26/34
- Suitable for exterior IPx5
- Compatible with ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series controllers
Specifications
| Brand | ZKTeco |
| Model | ACC-ER-UHF6-18E-PRO |
| Reading distance | Adjustable up to 18 m |
| Identification modes | UHF TAG (865 ~ 868 MHz) |

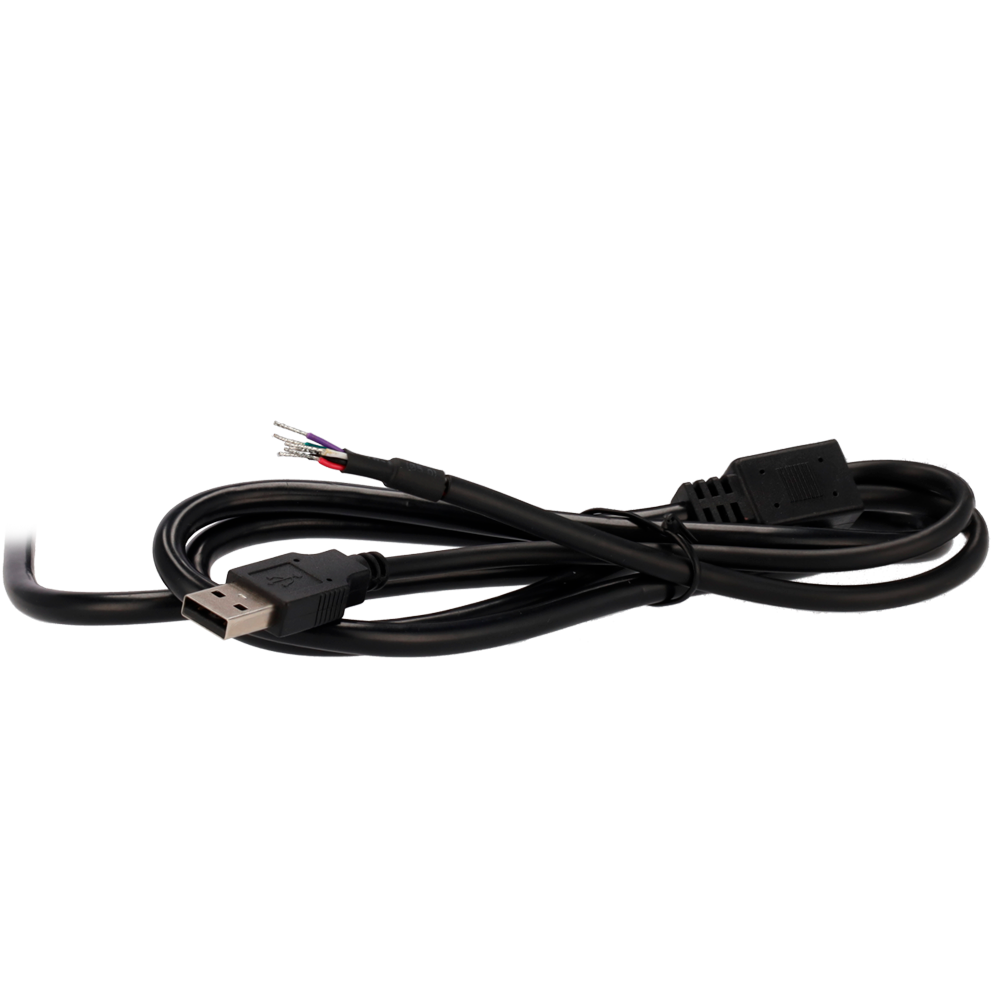

| Communication | Wiegand 26/34 USB for PC connection |
| Compatibility | ZKTeco ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series Controllers |
| Power | DC 9 ~ 12 V / 1.2 A max. |
| Degree of protection | Suitable for exterior IPx5 |
| Material | ABS |
| Temp. operation | -20 ºC ~ +60 ºC |
| Dimensions | 310 (W) x 310 (H) x 90 (D) mm |
| Weight | 3.75 kg |
In the box
- ZKTeco access reader
- Mounting material
- User instructions
