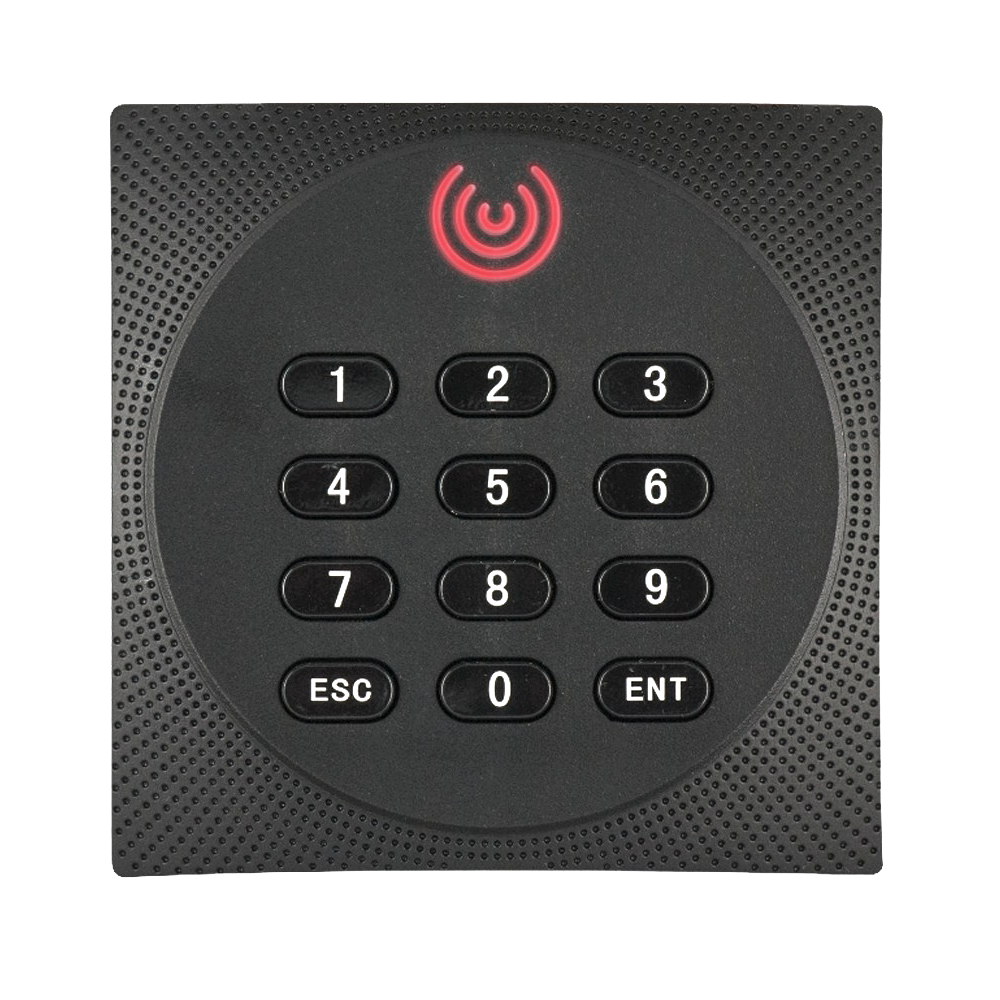

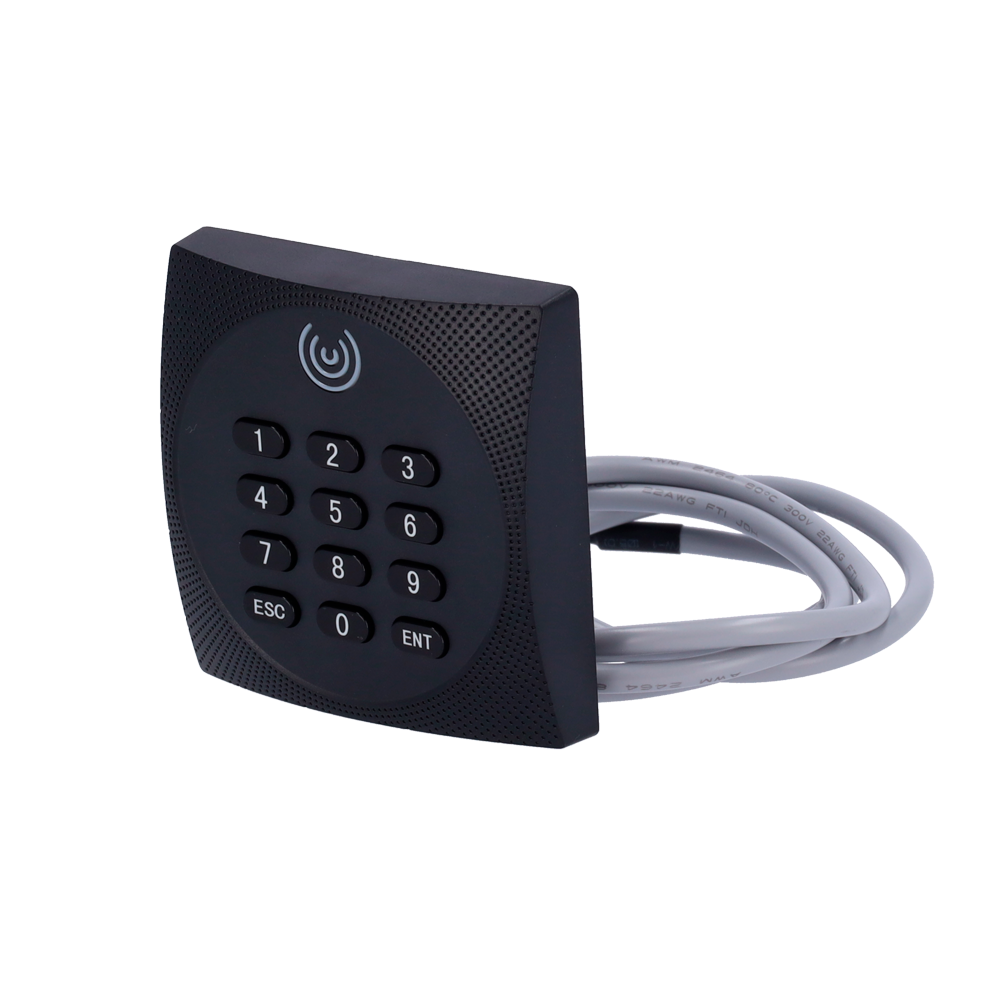

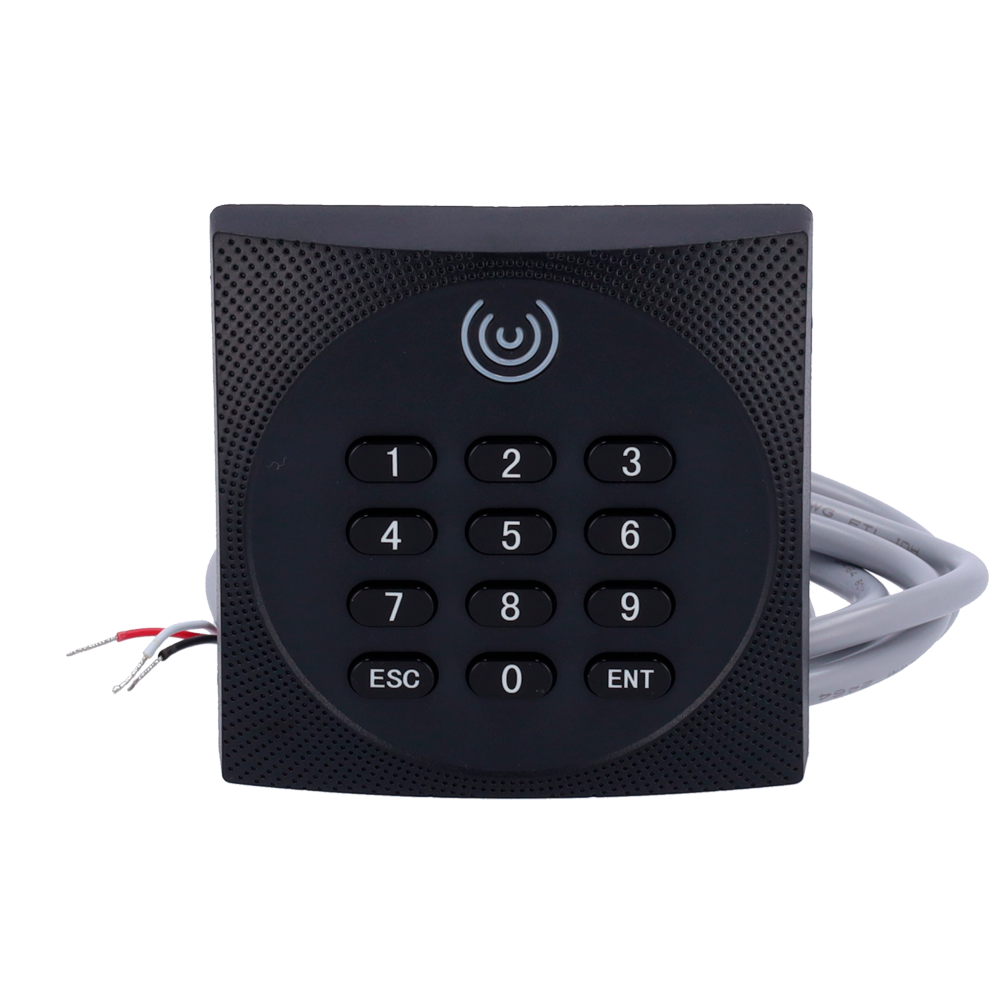

ZK-KR614-OSDP
- Access reader
- EM/MF DESFire card and PIN access
- LED and acoustic indicator
- RS485 ZKTeco | OSDP
- Compatible with ZKTeco controllers
- Suitable for exterior IP64
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.
This reader allows identification through cards or key fobs with RFID EM technology of 125 kHz, MF of 13.56 MHz and MF DESFire of 13.56 MHz, as well as keypad for numeric codes.

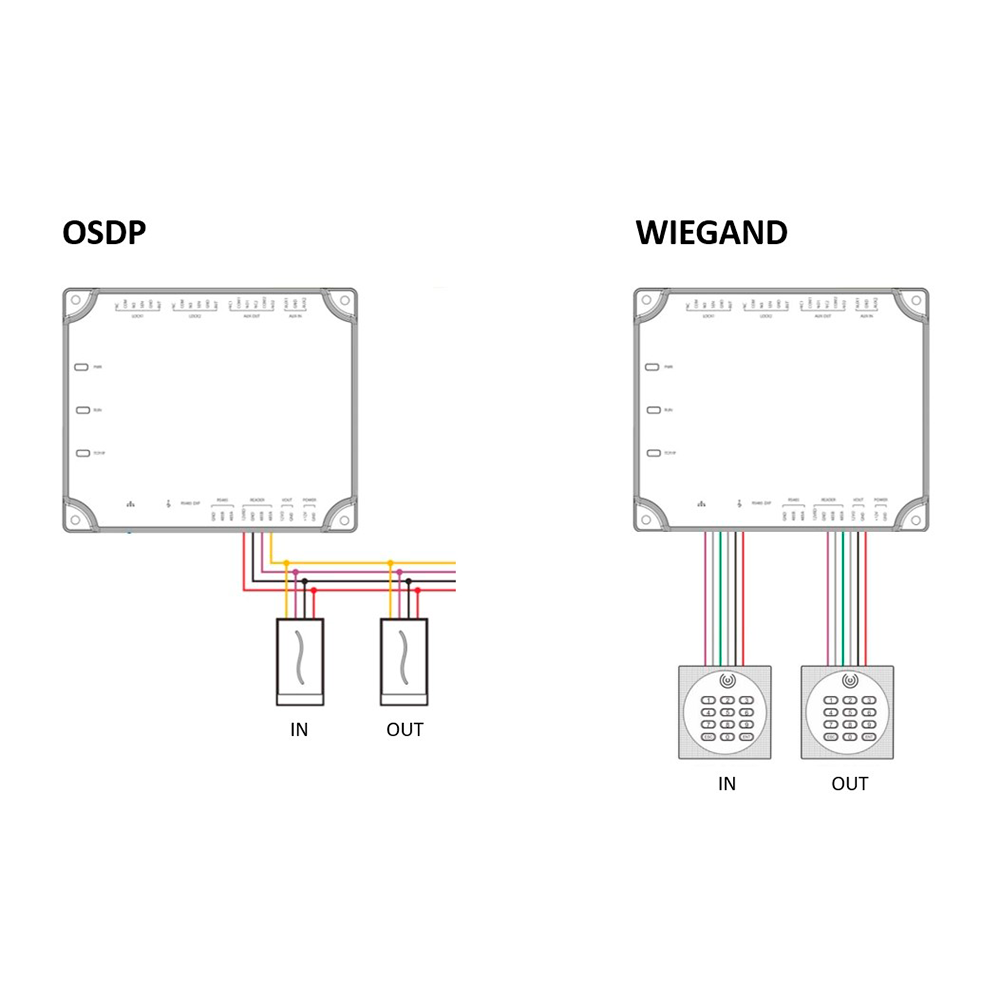

The connection to the controllers is made through RS485 or OSDP. These protocols allow a secure connection in the outdoor installation with their IP64 grade.
- ZKTeco
- Access reader for controller
- Access by EM/MF DESFire card and password
- LED indicator
- Communication OSDP and ZKTeco RS485
- Suitable for exterior IP64
- ZKTeco ZK-INBIO PRO, ZK-C2-260 and ATLAS Series Controllers
Specifications
| Brand | ZKTeco |
| Model | ACC-ER-KR614-OSDP |
| Reading distance | Up to 10 cm |
| Read time | < 300ms |
| Identification modes | Card (RFID EM 125 kHz and MF DESFire 13.56MHz) and keypad |
| Outputs | RS485 ZKTeco OSDP |
| Compatibility | ZKTeco ZK-INBIO PRO, ZK-C2-260 and ATLAS Series Controllers |
| Power | DC 6 ~ 14 V / 70 mA max. |
| Degree of protection | Suitable for exterior IP64 |
| Temp. operation | -20 ºC ~ +65 ºC |
| Dimensions | 86 (W) x 86 (H) x 16 (D) mm |
| Weight | 50 g |
In the box
- ZKTeco access reader
- Mounting material
