YOK-DB312
Ga direct naar de productinformatie
YOK-DB312

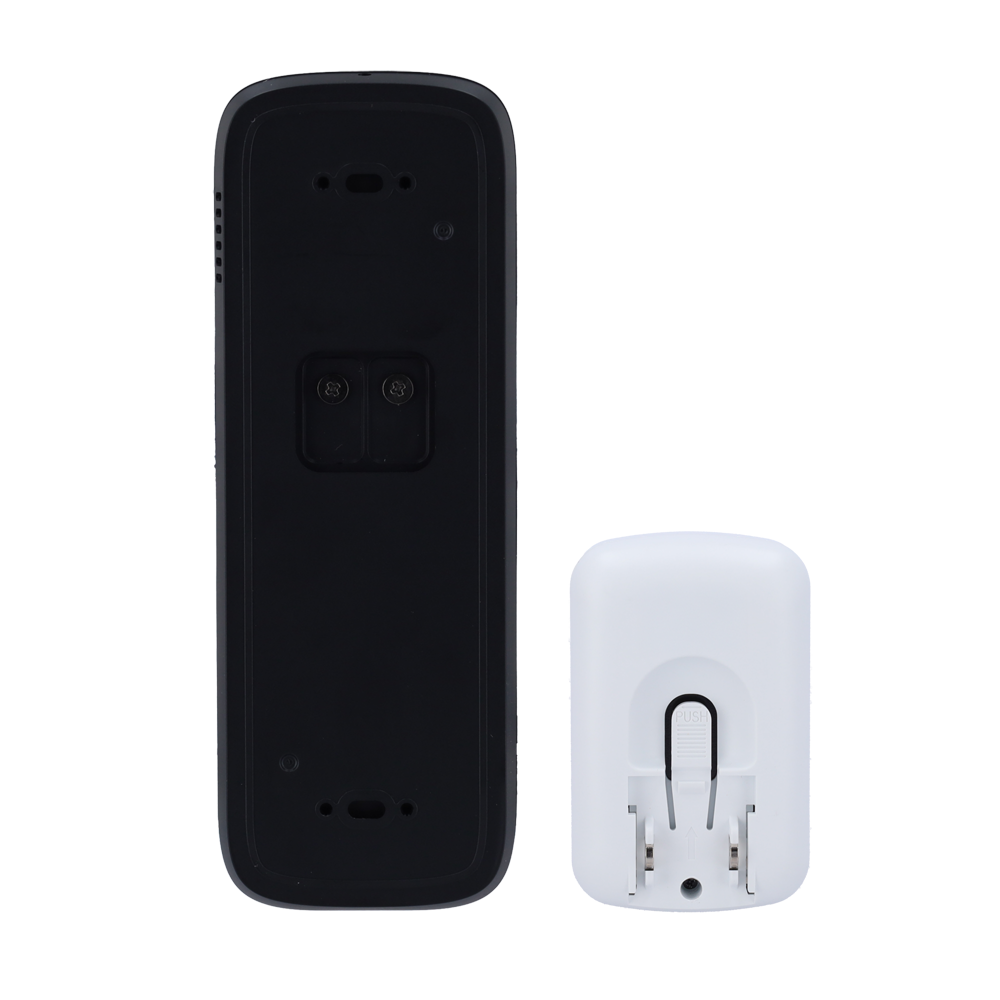

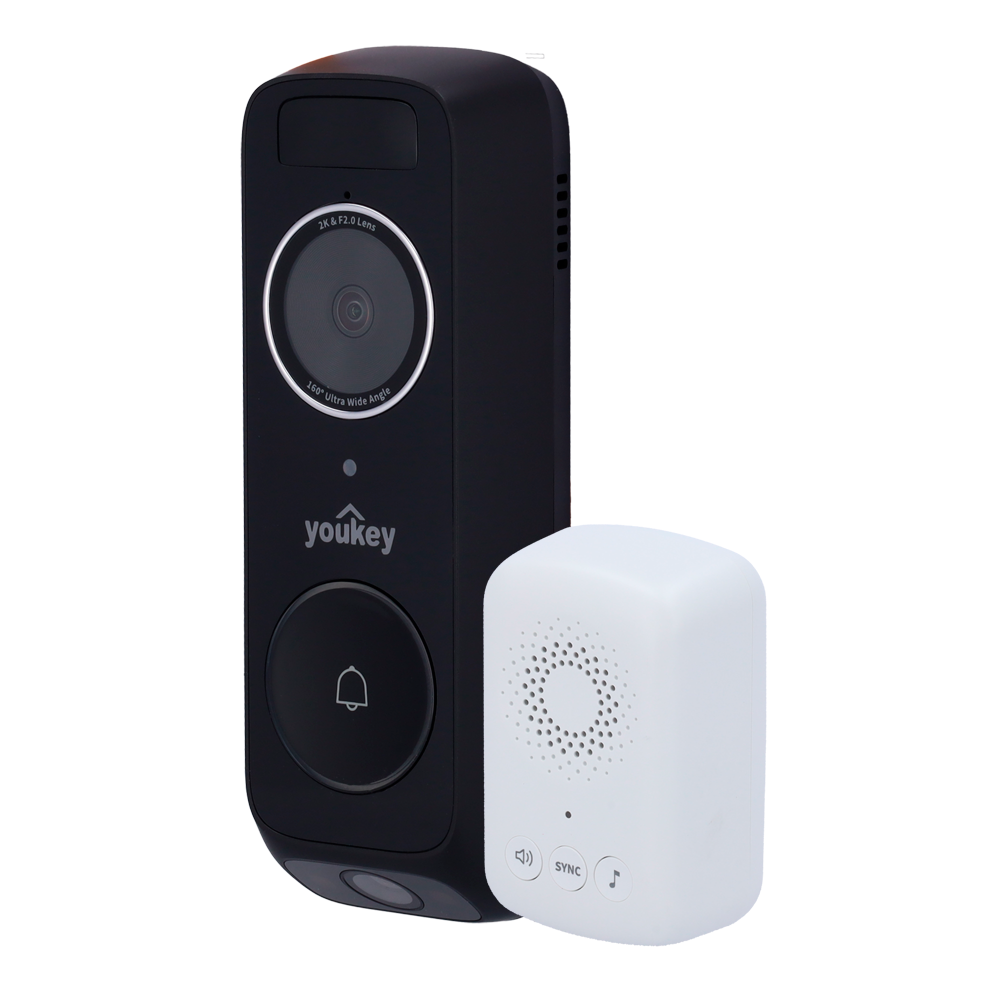

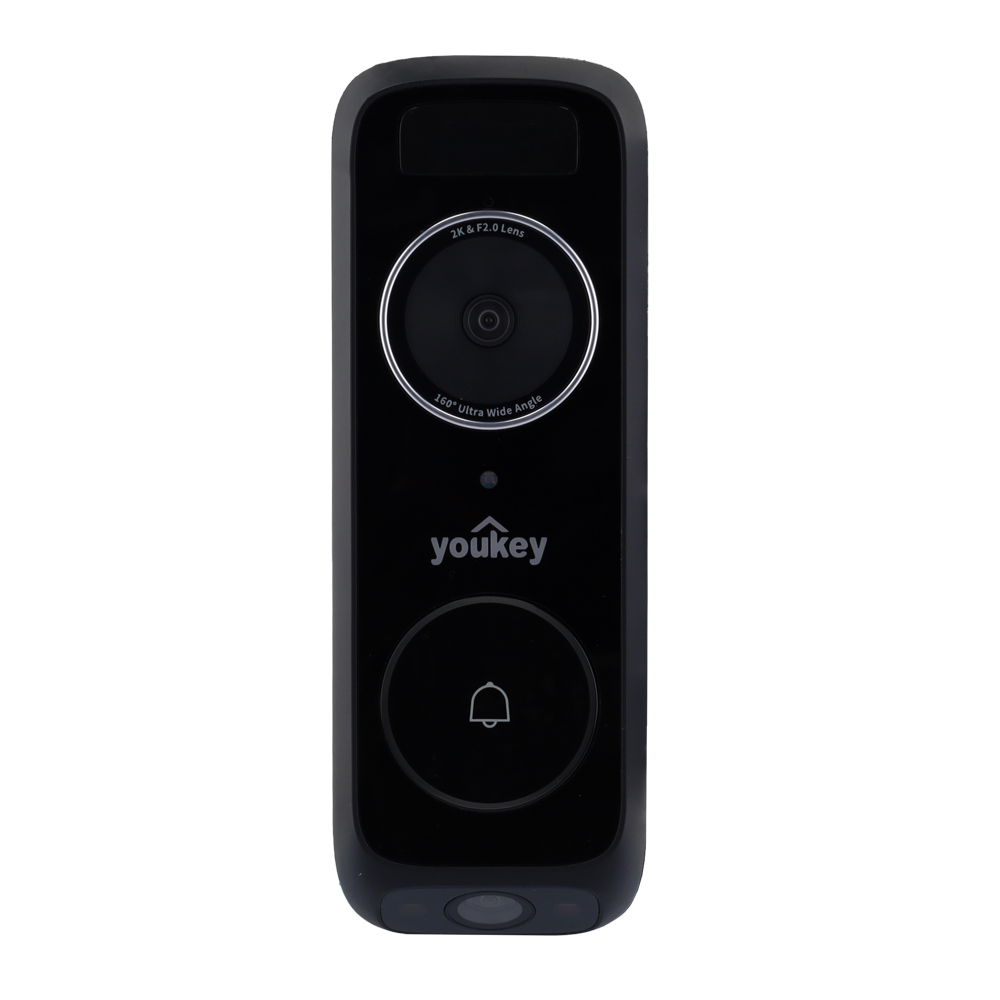

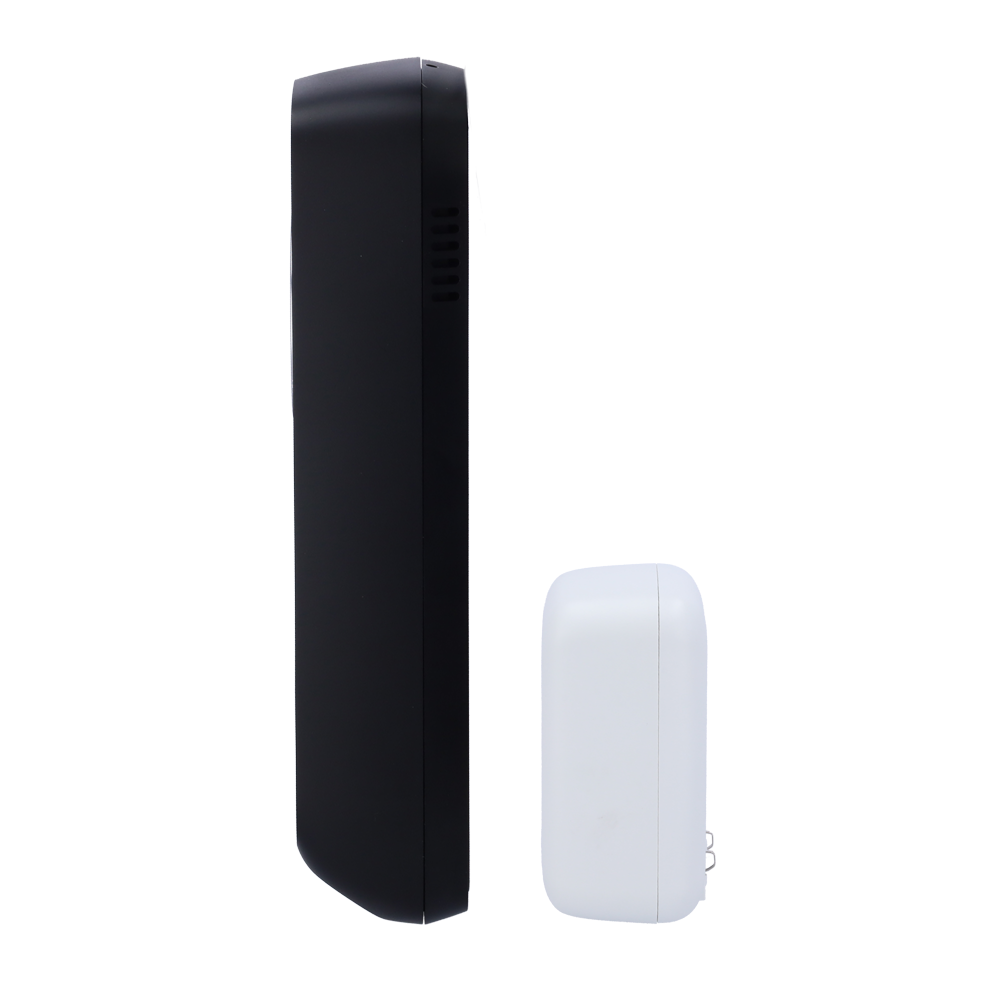

- Youkey Dual Cam Wi-Fi Video Doorbell
- Top lens: 3 MP | 2.4 mm | 160º
- Lower lens: 2 MP | 2.4 mm | 101º
- Sensor PIR | IR 5 m | Luz blanca 2 m
- Human/package detection
- Wi-Fi 6 | 6400 mAh | IP65
- Youkey
- IP Video Doorbell
- Upper chamber: 3 Megapixel (1920 x 1440)
- Lens size 2.4 mm Wide Angle (160º)
- IR Range 5m
- Lower chamber: 2 Megapixel (1920 x 1080)
- Lens size 2.4 mm Wide Angle (101º)
- White light 2 m
- WiFi 6
- Wifi 2.4 GHz and 5 GHz
- Two-way quality audio
- Real PIR detector
- Lithium battery 6400 mAh (rechargeable)
- Intelligent detection of people, vehicles, pets, areas of interest, and packages.
- When connected to Hub, video analytics are enabled
- Recording to internal storage 8GB (events only) and the cloud
- Smartphone App (Youkey life)
- Weatherproof IP65

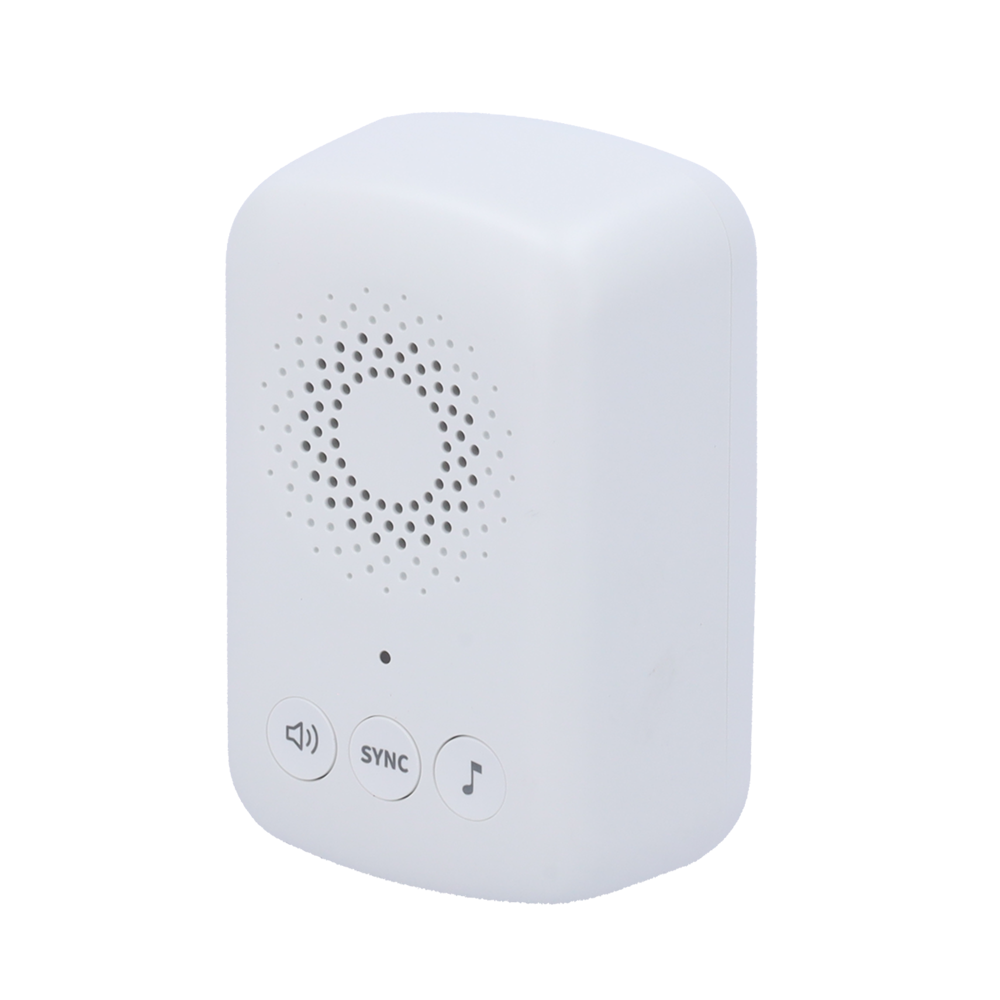

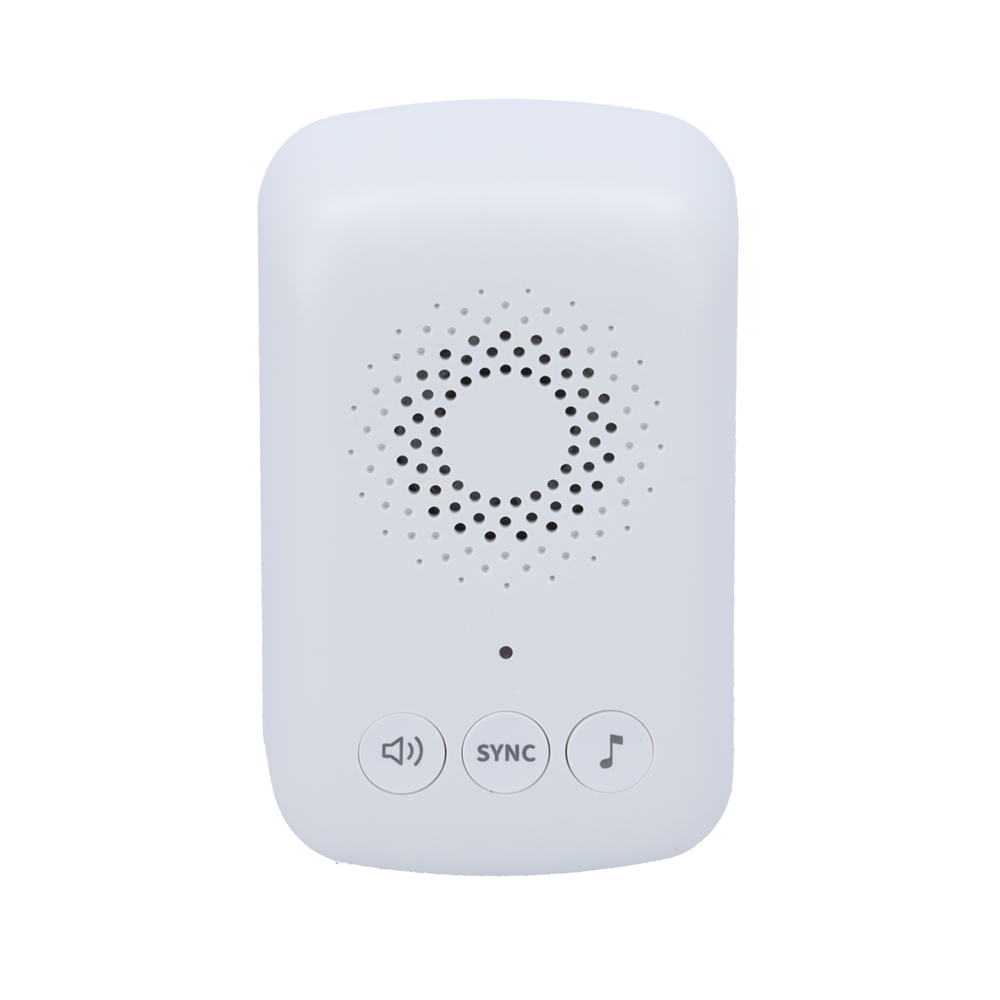

- Includes an indoor doorbell.
Specifications
| Brand | YouKey |
| Model | DB312 |
| Maximum resolution | 3 Megapixel (1920 x 1440) 2 Megapixel (1920 x 1080) |
| Lens | 2.4 mm |
| FOV | Upper chamber: 160º Lower chamber: 101º |
| Infrared lighting | Upper chamber: IR 5m Lower chamber: White light 3 m |
| Communication | WiFi 6 Wi-Fi 2.4 GHz / 5 GHz IEEE802.11 b/g/n/ac/ax |
| Interior bell | Wireless 868 MHz (150m in the open field) |
| Detection | Call button, with in-app notification and communication Real PIR sensor, triggers camera video and notification Motion Detection Human body detection Packet detection |
| Facial recognition | Enabled when connected to the Hub |
| Audio | Two-way audio, built-in microphone and speakerphone |
| Cloud Service | Cloud storage (subject to subscription plans) |
| Remote access | Youkey life app |
| Battery | Rechargeable Li-ion battery with a capacity of 6400 mAh |
| Use | Indoor and outdoor camera/ impermeable IP65 |
| Temp. operation | -20º C ~ +50º C |
| Dimensions | Doorbell: 55.8 (W) x 156.5 (H) x 31.7 (D) mm Interior bell: 53.9 (W) x 85.9 (H) x 60.6 (D) mm |
| Power | Doorbell: AC 12 ~ 24 V USB Type-C 5V/2A Interior bell: AC 100 ~ 240 V |
In the box
- Doorbell
- Indoor doorbell
- Installation quick guide
- Micro USB cables
