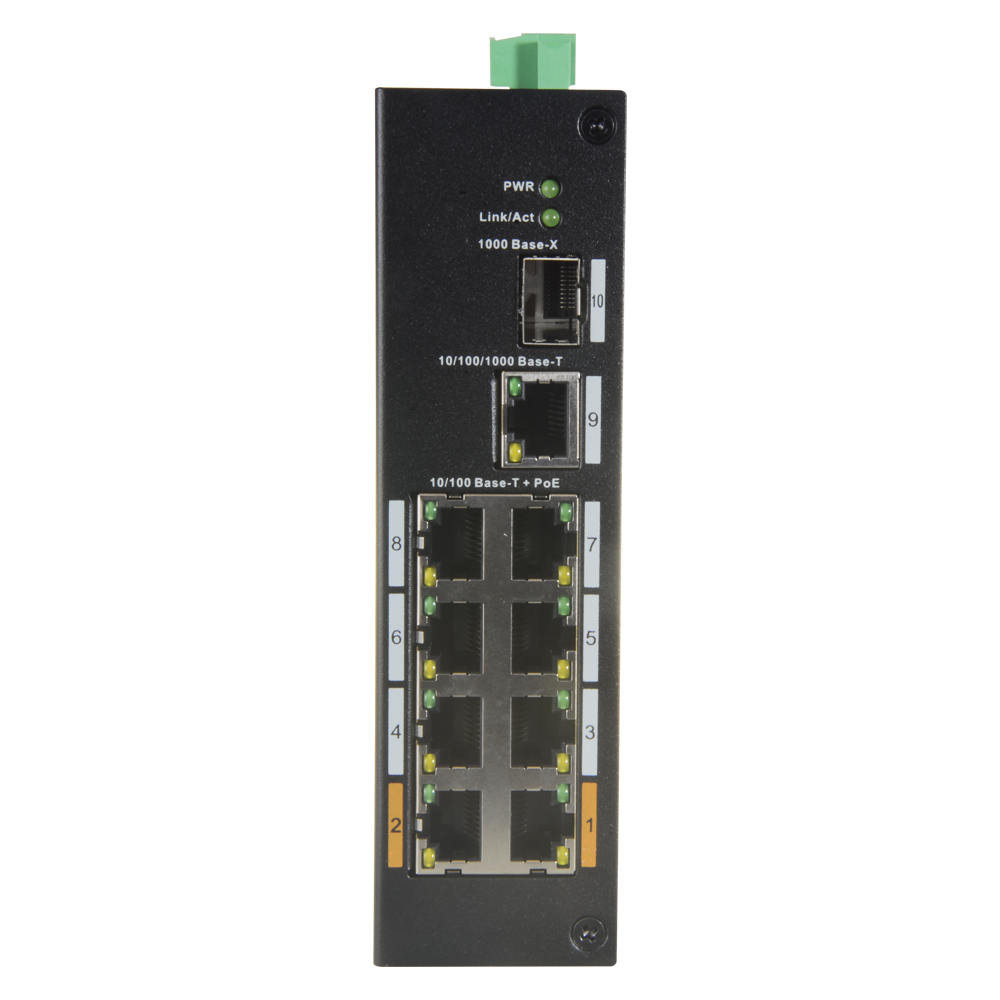

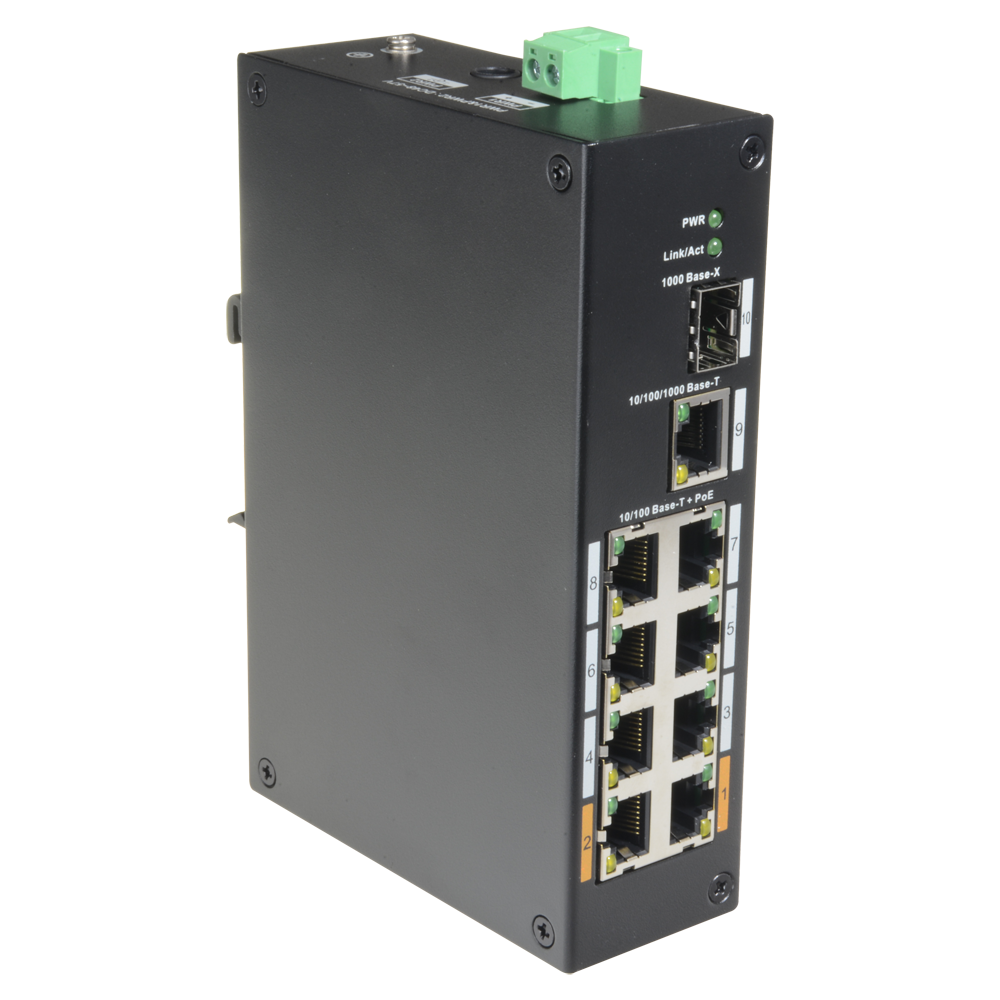

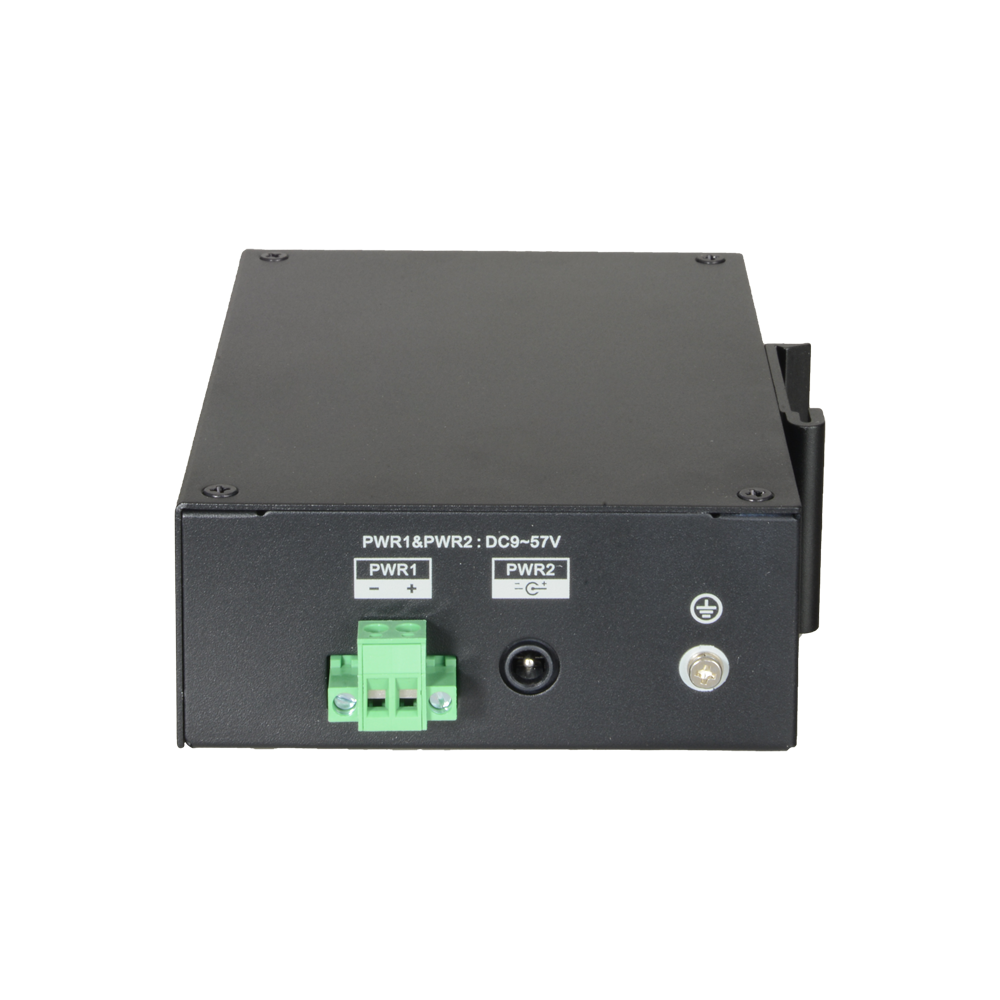

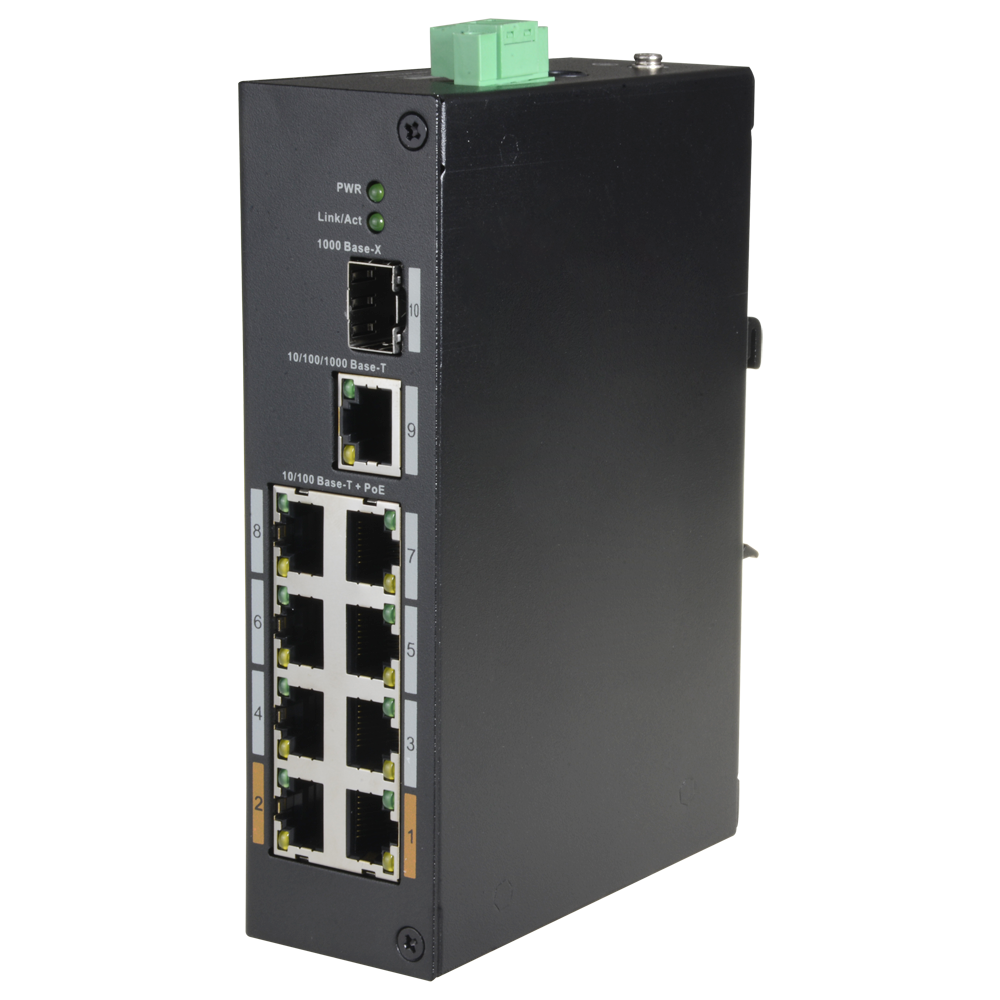

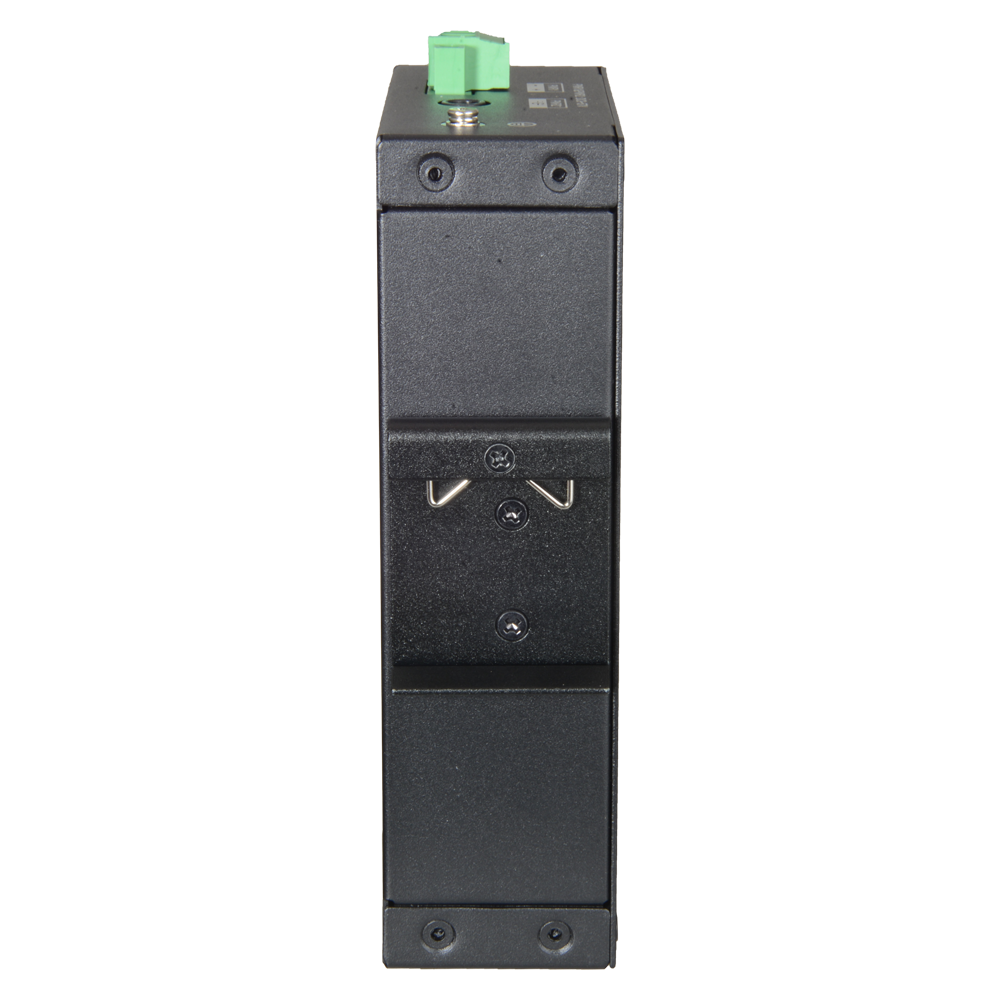

XS-SW1008POE-96-DIN

• X-Security PoE Switch
• 8 PoE port(s) + 1 Up-link port(s)
• Speed 10/100Mbps
• Power 30 W per port
• Total maximum power 96 W
• Norm IEEE802.3at (PoE) / af (PoE+)

The X-Security XS-SW1008POE-96-DIN is an industrial switch designed for video surveillance and control nodes that require unwavering reliability without complex configurations. Its architecture is designed to provide 8 PoE+ ports with a capacity of 30W per channel, making it ideal for powering fixed cameras, mid-sized dome cameras, or wireless access points. The inclusion of a Gigabit Combo port (RJ45/SFP) provides the flexibility to choose between a copper or fiber-optic backbone link, ensuring that data traffic flows to the recorder or server without bottlenecks.

Built to withstand the rigors of an industrial environment, its metal chassis IP30 passively dissipates heat, operating quietly and efficiently within a temperature range of -30°C to 65°C. PoE Watchdog's built-in intelligence adds a layer of proactive maintenance by detecting when a connected device has stopped transmitting data and automatically resetting it via a power cycle. This is a "set-and-forget" device, protected against voltage surges of up to 6 kV, ensuring uninterrupted service in electrical cabinets and production facilities.

• X-Security
• Desktop Switch
• 8 ports RJ45 10/100 Mbps + 1 Gigabit Combo Port
• 8 PoE ports (ports 1~8)
• Supports PoE power supply up up 96W in total for all ports
• Compatible with PoE IEEE802.3af/at

Specifications

In the box

• X-Security PoE Switch
• AC/DC Power adaptor
• User instructions
