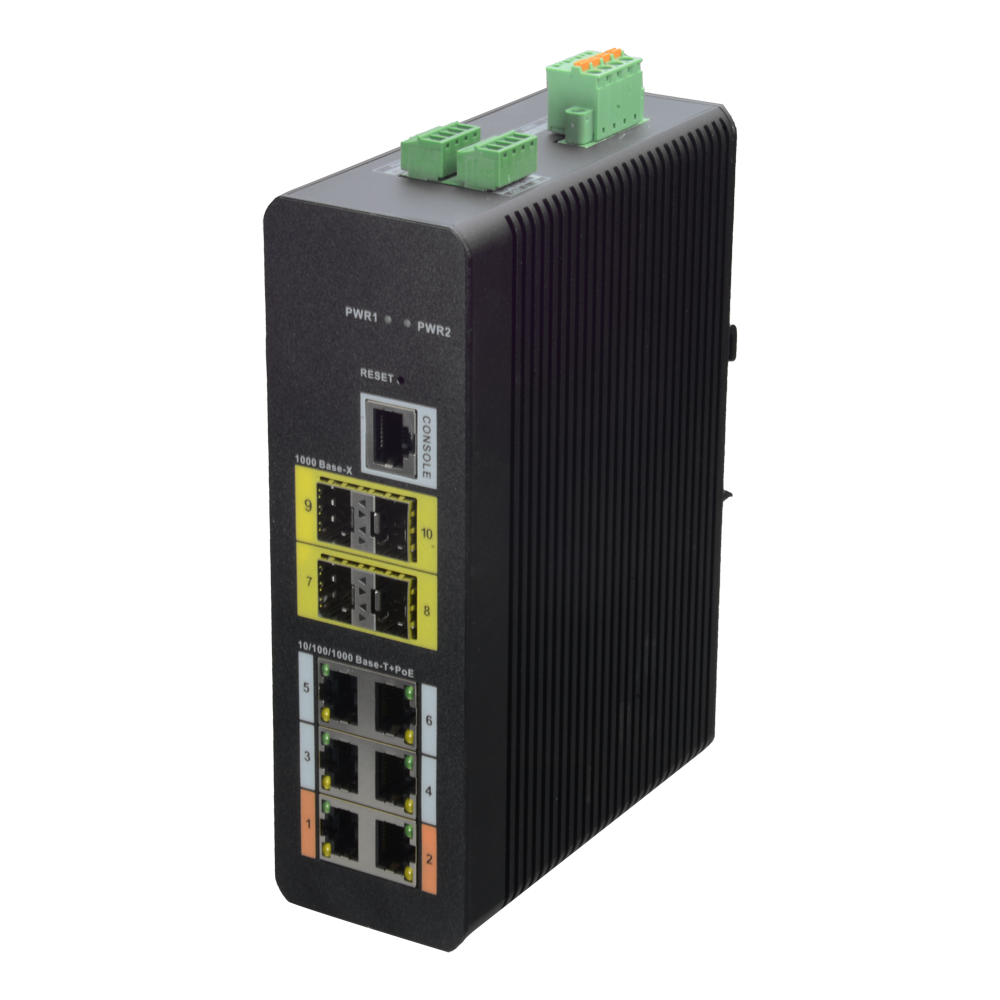

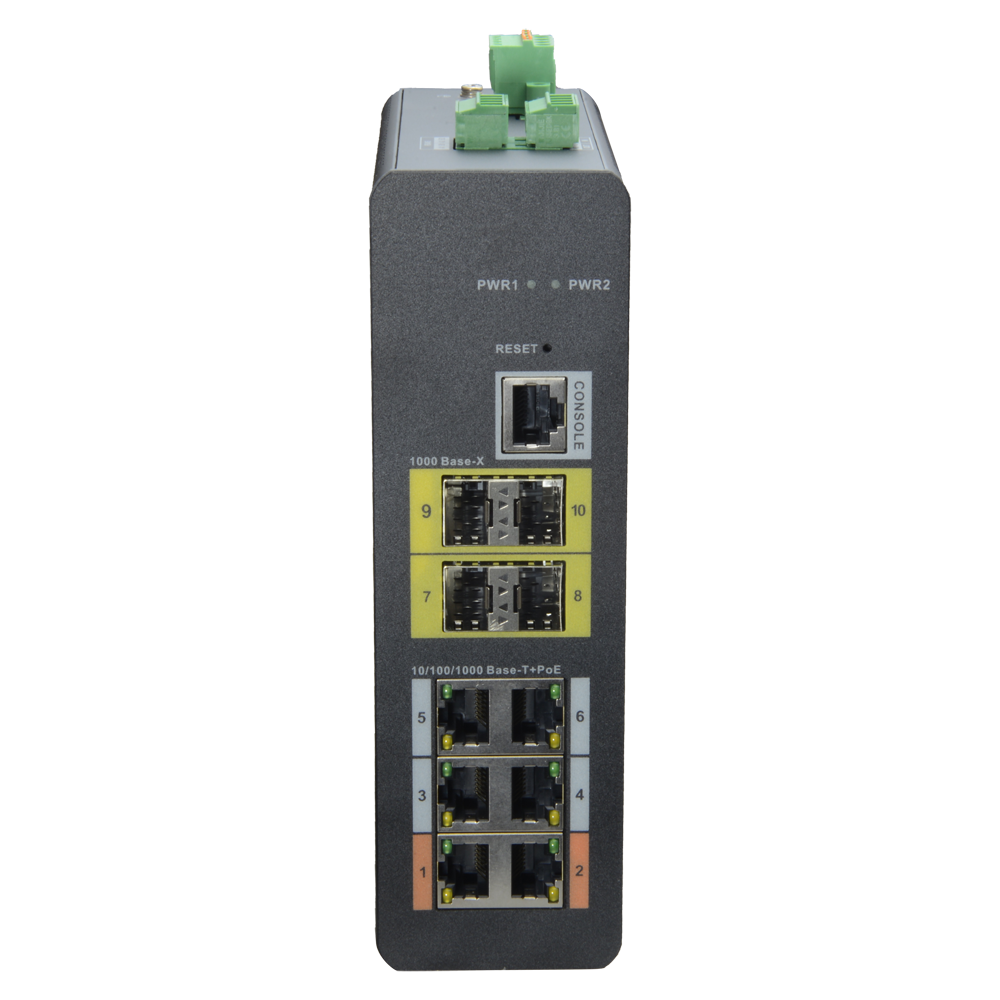

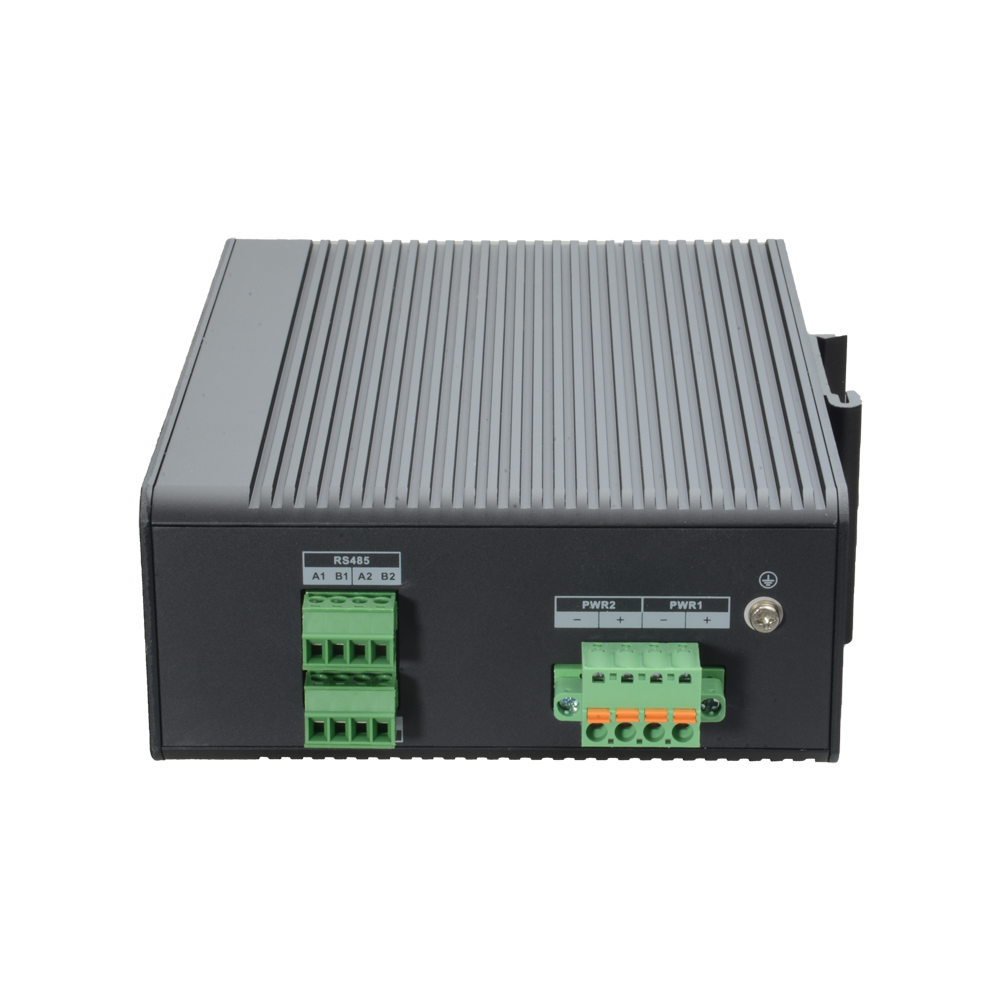

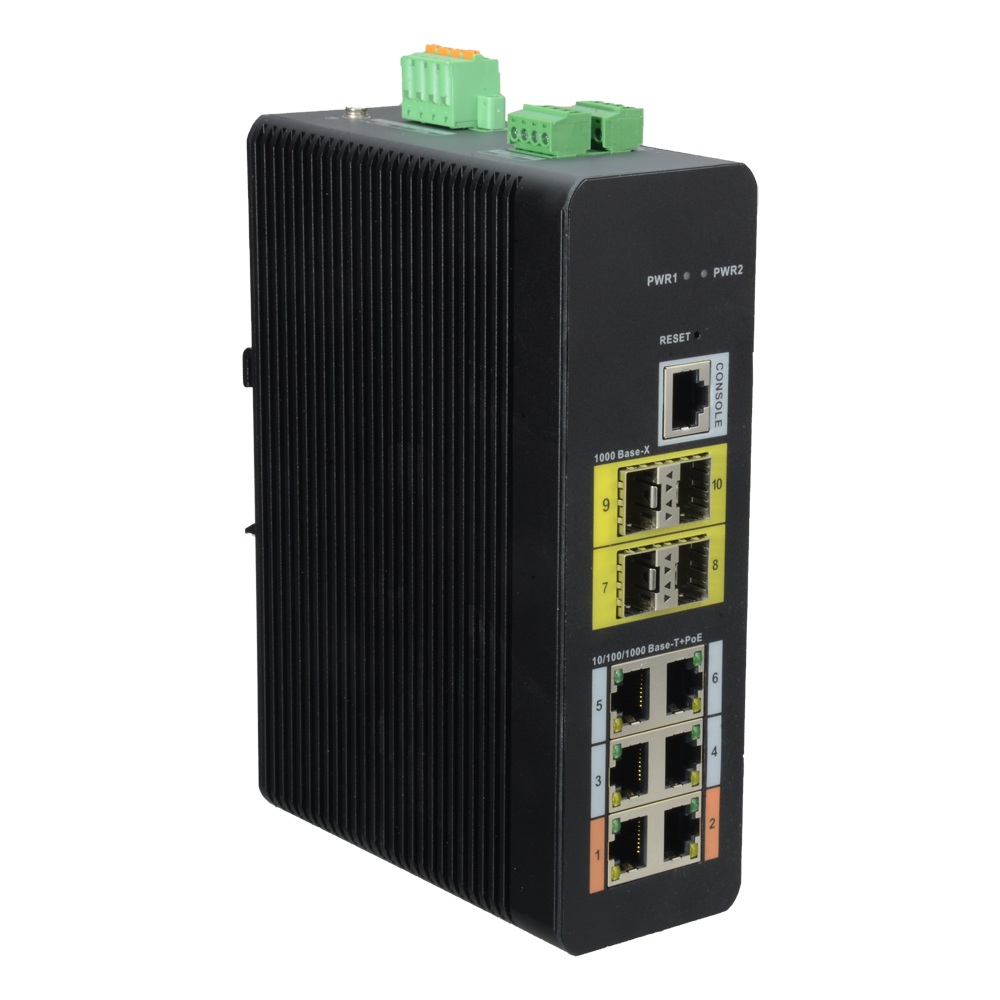

XS-SW1006HIPOE-MFG-120-DIN
Ga direct naar de productinformatie
XS-SW1006HIPOE-MFG-120-DIN
- X-Security HiPoE Switch
- 6 PoE ports (RJ45) + 4 Uplink port (SFP)
- Speed 10/100/1000Mbps
- 2 Hi-PoE Ports / Maximum Consumption 120W
- VLAN/STP/RSTP/MSTP/ACL/QoS/802.1X
- LACP/Static LAG/DHCP Snoop/DHCP Server
- X-Security
- Manageable industrial switch
- 6 RJ45 10/100/1000 Mbps ports + 4 SFP port Gigabait Uplink
- 2 HiPoE Port
- Manageable CAPA 2
- Compatible with PoE IEEE802.3af/at and Hi-PoE
- Total Consumption 120W

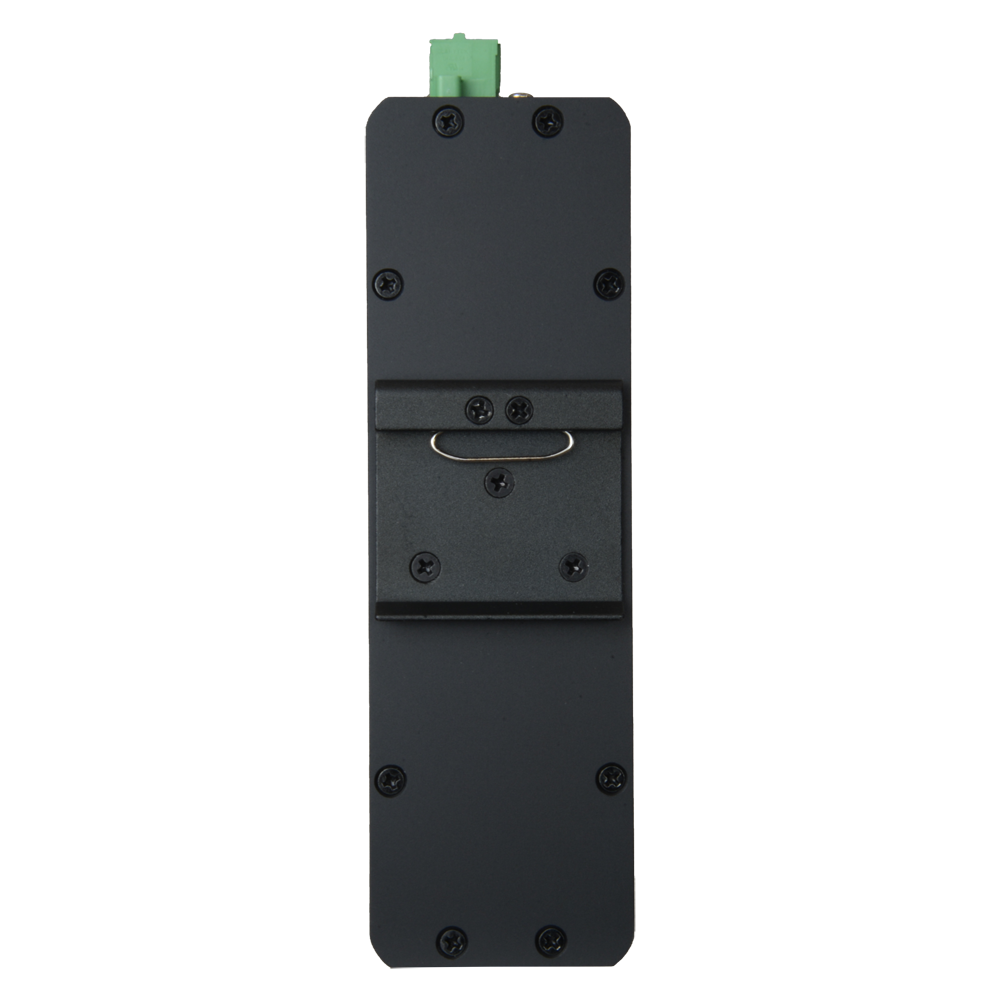

- DIN rail mount
Specifications
| Interface | 6 PoE ports RJ45 + 4 SFP Uplink ports 1 RS232 + 1 RS485 |
| Port speed | 6 x 10/100/1000 Mbps BaseT /4 x 100/1000 Mbps BaseX |
| Power supply | Up to 60W (Hi-POE) in the port 1 and 2 (120 W for the whole device) |
| PoE features | Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Installation | DIN rail |
| Redundancy | STP/RSTP/MSTP/ERPS |
| Management Protocols | Web/CLI/SSH/Telnet/SNMP V1/V2/V3 |
| Power | DC 9 V - 57 V/ PoE: 48 V-57 V |
| Operating temperature | -40º C ~ 75º C |
| Dimensions | 125 (D) x 53.5 (H) x 175 (W) mm |
In the box
- X-Security PoE Switch
- User instructions
