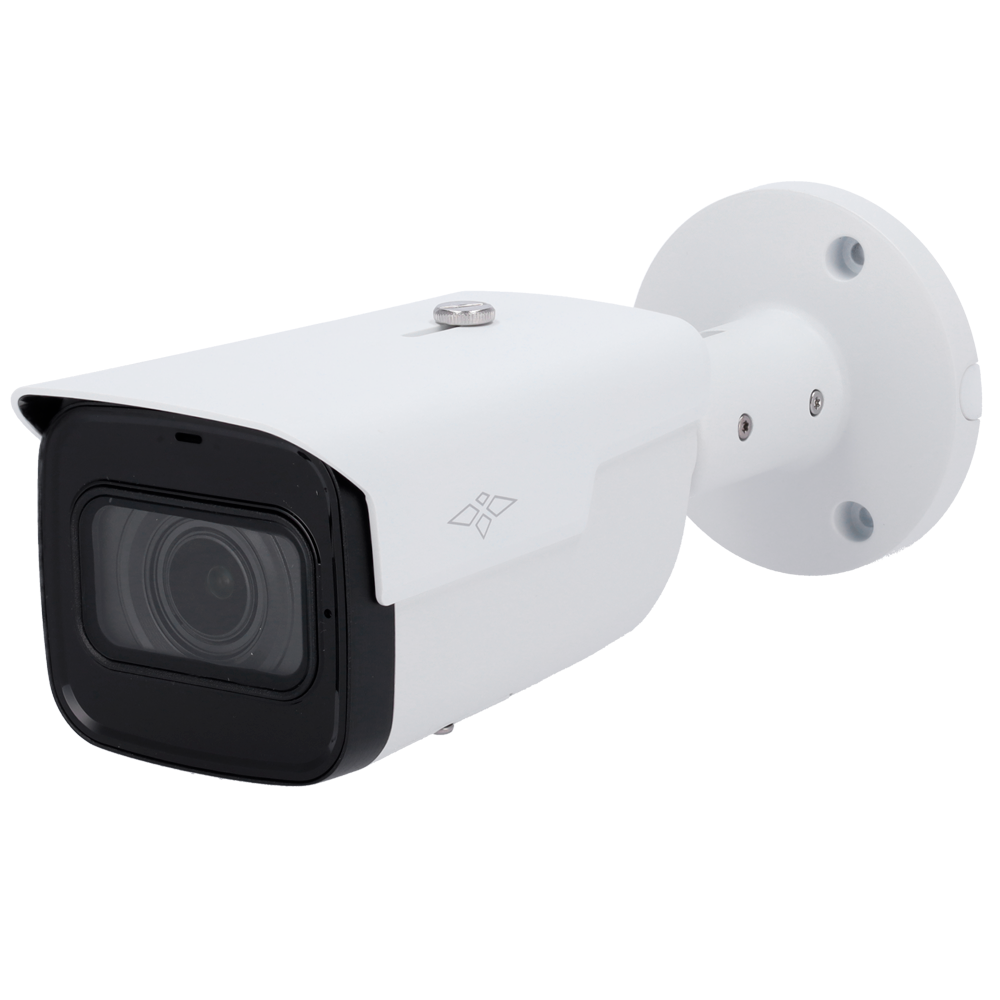

XS-IPB830ZCA-8P
Ga direct naar de productinformatie
XS-IPB830ZCA-8P
- 8Mpx IP PRO Camera
- 1/2.7” Progressive CMOS
- 2.7~13.5 mm Motorised Varifocal Lens
- 3D-NR | WDR
- Alarms | IR LEDs Range 60 m | SMD Plus
- Weatherproof IP67
- X-Security
- IP Bullet Camera
- 1/2.7" Progressive CMOS
- 8 Megapixel (3840×2160)
- 2.7~13.5 mm motorised varifocal autofocus lens
- 0.008 Lux
- IR Array Range 60 m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- WDR (120 dB)
- IR Cut
- SD card recording
- Intelligent detection: line crossing, intrusion
- SMD Plus
- WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
- ONVIF Compatible
- Weatherproof IP67
Specifications
| Brand | X-Security |
| Image sensor | 1/2.7” Progressive CMOS |
| Maximum resolution | 8 Megapixel (3840×2160) |
| Main Stream rate | 8Mpx @(1–20 fps) / 2688 × 1520@ (1–25/30 fps) |
| Extra Stream rate | 704×576, 704×480 (1 25/30fps) ~ [%VAR%] |
| Compression | H.265+/H.265/H.264+/H.264 |
| Bitrate | H.264: 32 kbps ~ 8192 kbps H.265: 12 kbps ~ 8192 kbps |
| Lens | 2.7~13.5mm motorized HF |
| Minimum illumination | 0.008Lux/F1.4 |
| Infrared lighting | 0 Lux / IR LEDs Array (60 m) |
| Image improvements | WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking, SMD Plus, ROI |
| Video analysis | Line crossing | Area intrusion |
| Day / Night | Removable mechanical ICR filter |
| Network interface | Ethernet 10/100 BaseT |
| Internal memory | Slot for MicroSD card, Max 128 GB |
| Remote access | Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR |
| Interoperability | ONVIF |
| Alarms | 1 Input / 1 Relay |
| Audio | Integrated microphone |
| Power | DC 12 V / 2.7 W, PoE IEEE802.3af 3.6 W |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 238.5 × 90.7 × 90.7 mm |
| Weight | 1.01 Kg |
In the box
- X-SECURITY IP camera
- 3 plugs and 3 screws for mounting
- Installation template
- User instructions
- CD with software and instructions
