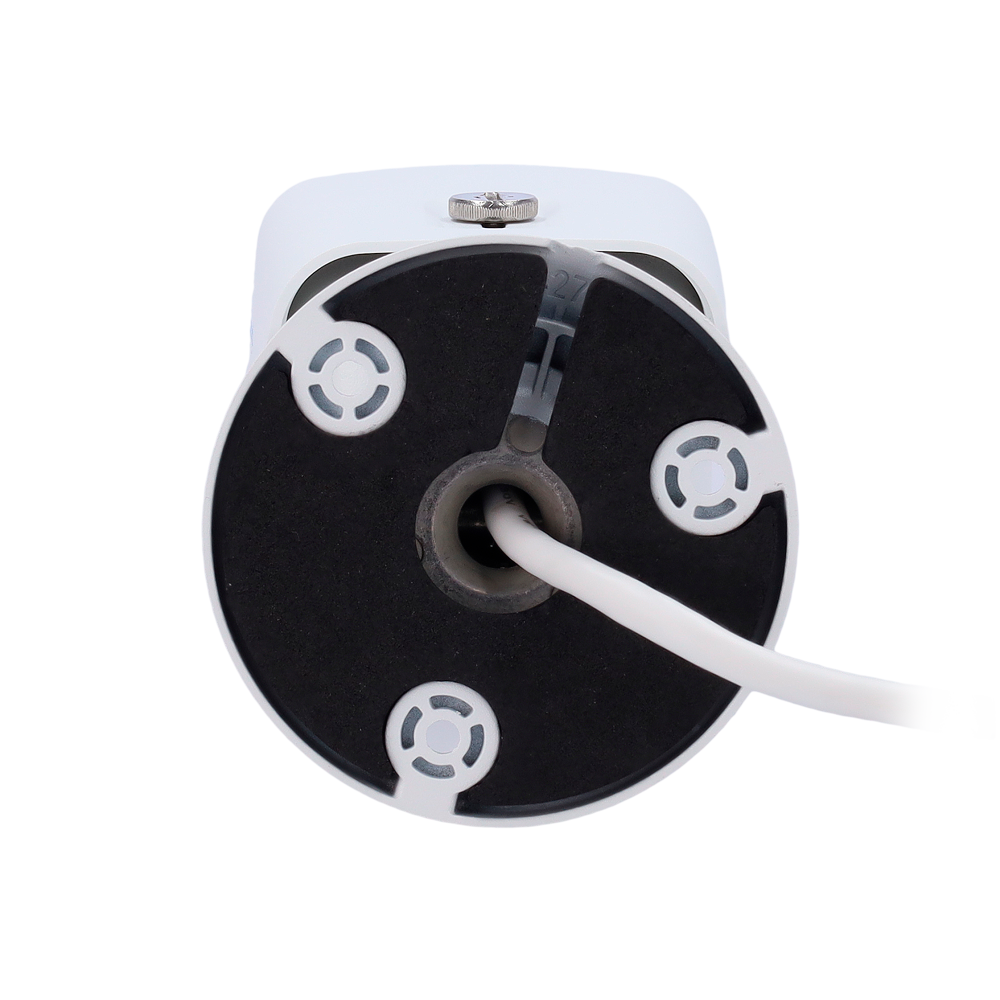

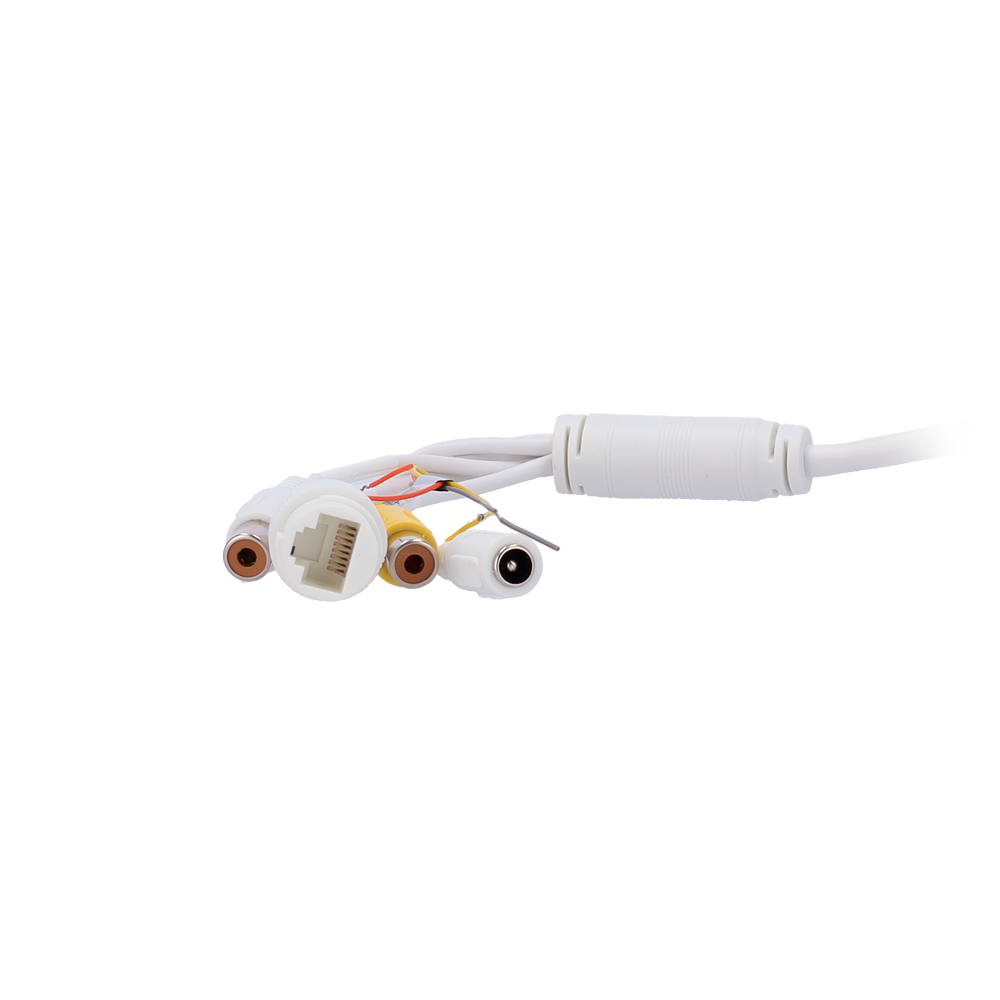

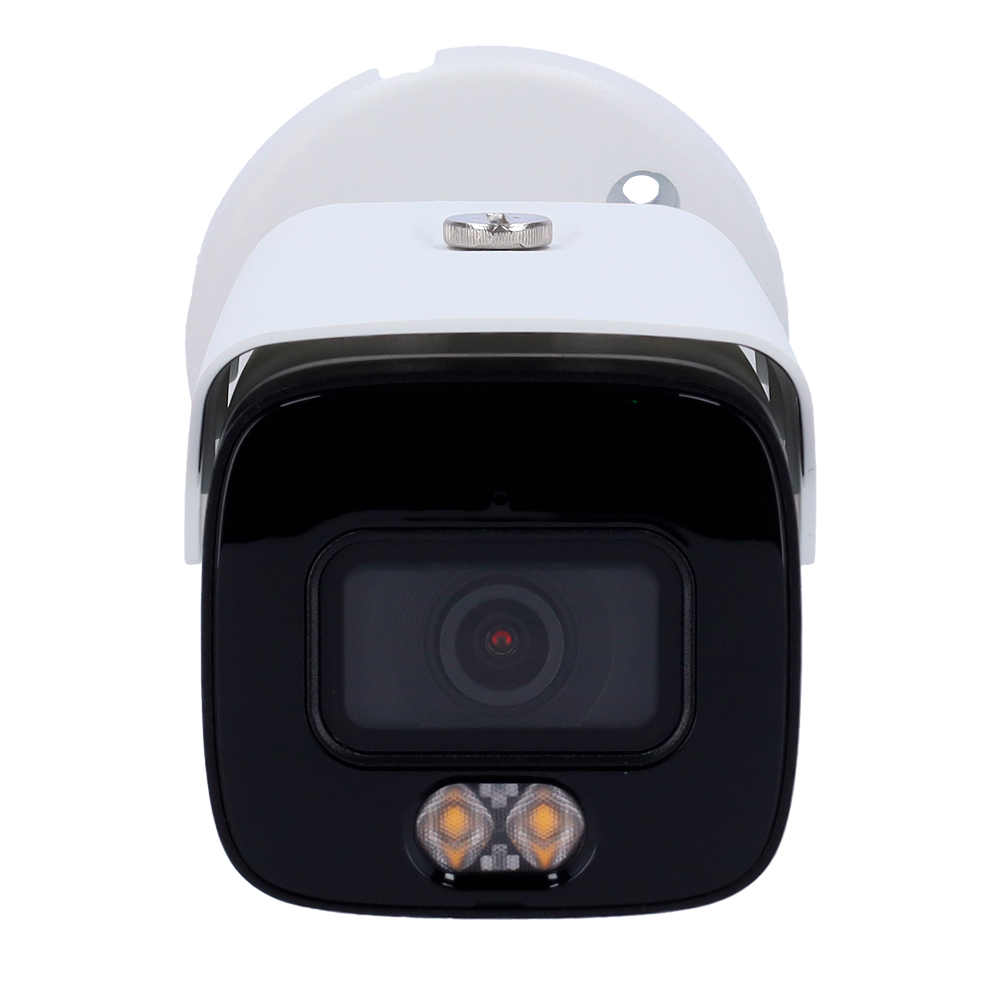

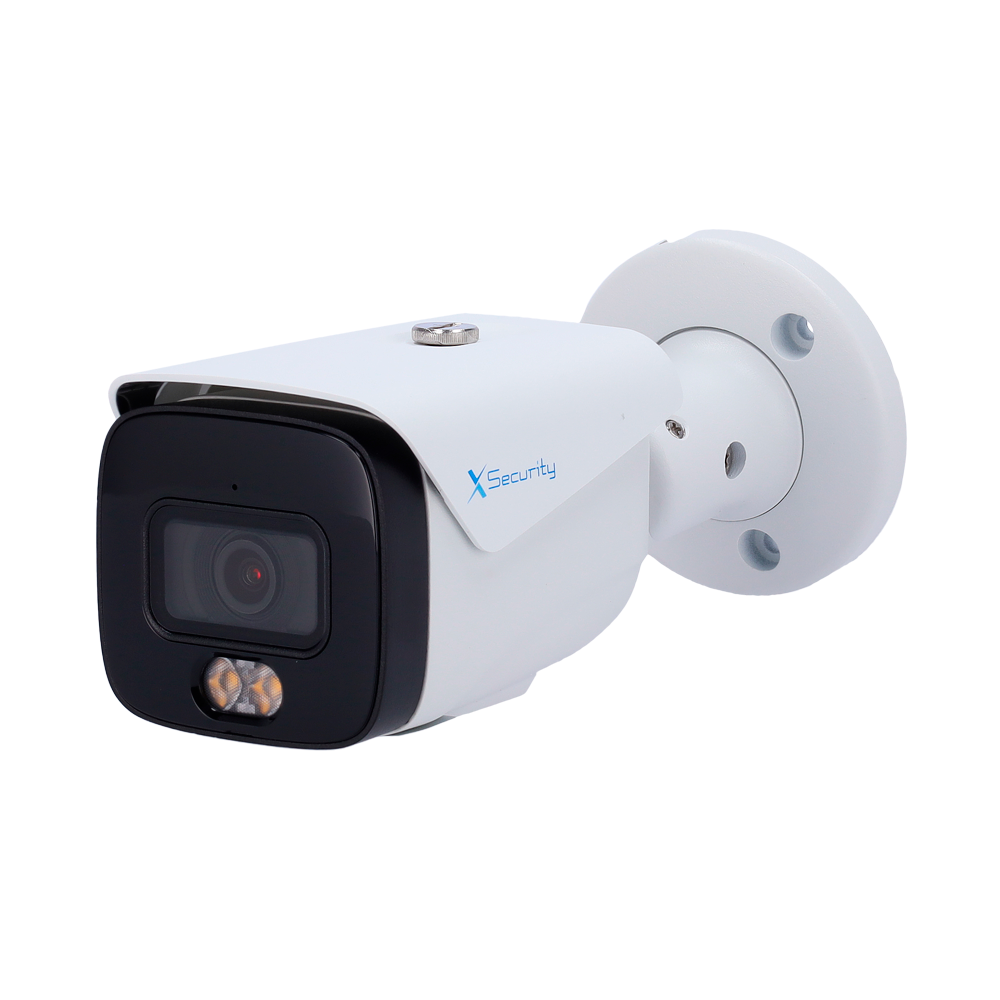

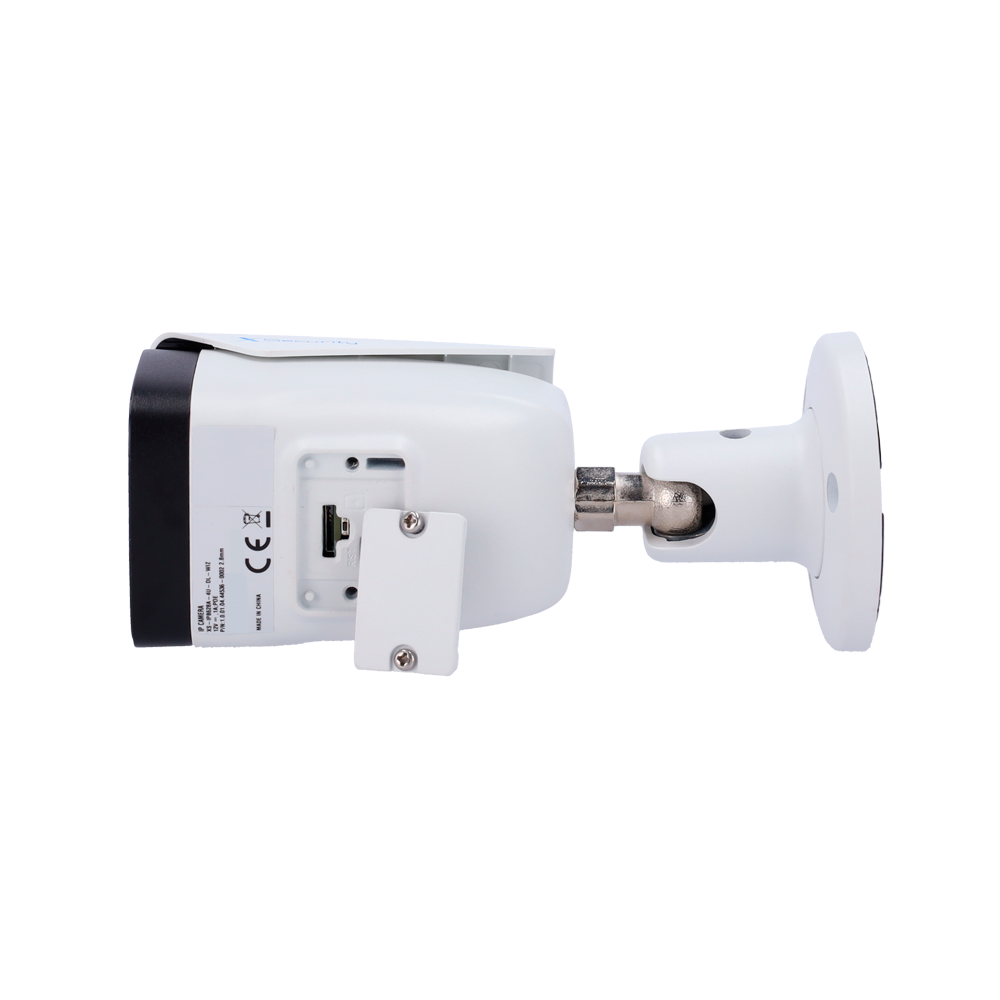

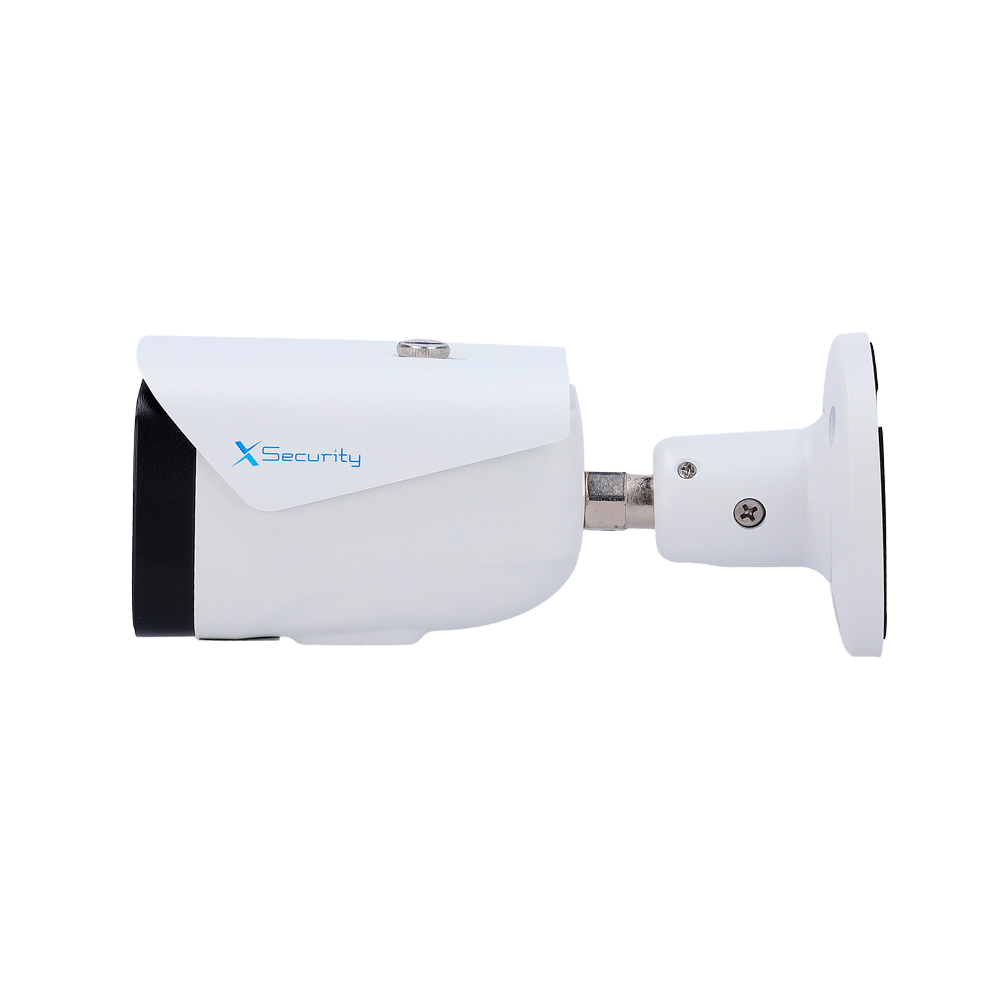

XS-IPB628A-4U-DL-WIZ
Ga direct naar de productinformatie
XS-IPB628A-4U-DL-WIZ
- X-Security IP Bullet Camera
- 4 Megapixel (2688x1520)
- 2.8mm lens
- WDR 120dB | Dual Light(IR 50m and White Light 50m)
- WizSense, with human and vehicle classification
- MicroSD 512GB IP67
- X-Security
- IP Bullet Camera with Dual Light
- PRO Range
- 1/2.9" Progressive CMOS
- 4 Megapixel (2688×1520)
- 2.8mm lens
- Minimum illumination 0.005 lux@F1.4 (Color, 30 IRE) | 0.0005 lux@F1.4 (B/W,30 IRE) | 0 lux with IR
- IR and White Light range of 50 m
- Compression H.265; H.264; H.264H; H.264B; MJPEG
- RJ-45 10/100 BaseT
- SMD Plus
- WizSense: classification of human and vehicle
- Intelligent search
- Built-in microphone
- Audio
- Alarms
- WDR 120dB
- IR Cut
- MicroSD up to 512GB
- PoE IEEE802.3af
- Weatherproof IP67
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Image sensor | 1/2.9” Progressive CMOS |
| Lens | 2.8 mm |
| Main Stream rate | 2688 × 1520@(1–25/30 fps) |
| Extra Stream rate | 1920 × 1080@(1–25/30 fps) |
| Third Stream Rate | 1920 × 1080@(1–25/30 fps) |
| Bread/Tilt | Pan: 0º ~ 360º Tilt: 0º ~ 90º |
| FOV | 100º(H), 56º(V), 117º(D) |
| Range performance | D: 61.6 m O: 24.6 m R: 12.3 m I: 6.2 m |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W,30 IRE) 0 lux with IR |
| IR range | 50 m |
| White Light Scope | 50 m |
| Image improvements | WDR 120 dB, BLC, HLC, 3D-NR, ROI , Smart IR |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| Network interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone / 1 Input / 1 Output |
| Alarms | 1 Input / 1 Relay |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| MicroSD slot | 512 GB |
| Material | Metallic |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 3W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 192.7 (D) x 70.5 (W) x 66.4(Al) mm |
| Weight | 610 g |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
