XS-IPB619CA-8PS-FC-AI-BLACK
Ga direct naar de productinformatie
XS-IPB619CA-8PS-FC-AI-BLACK

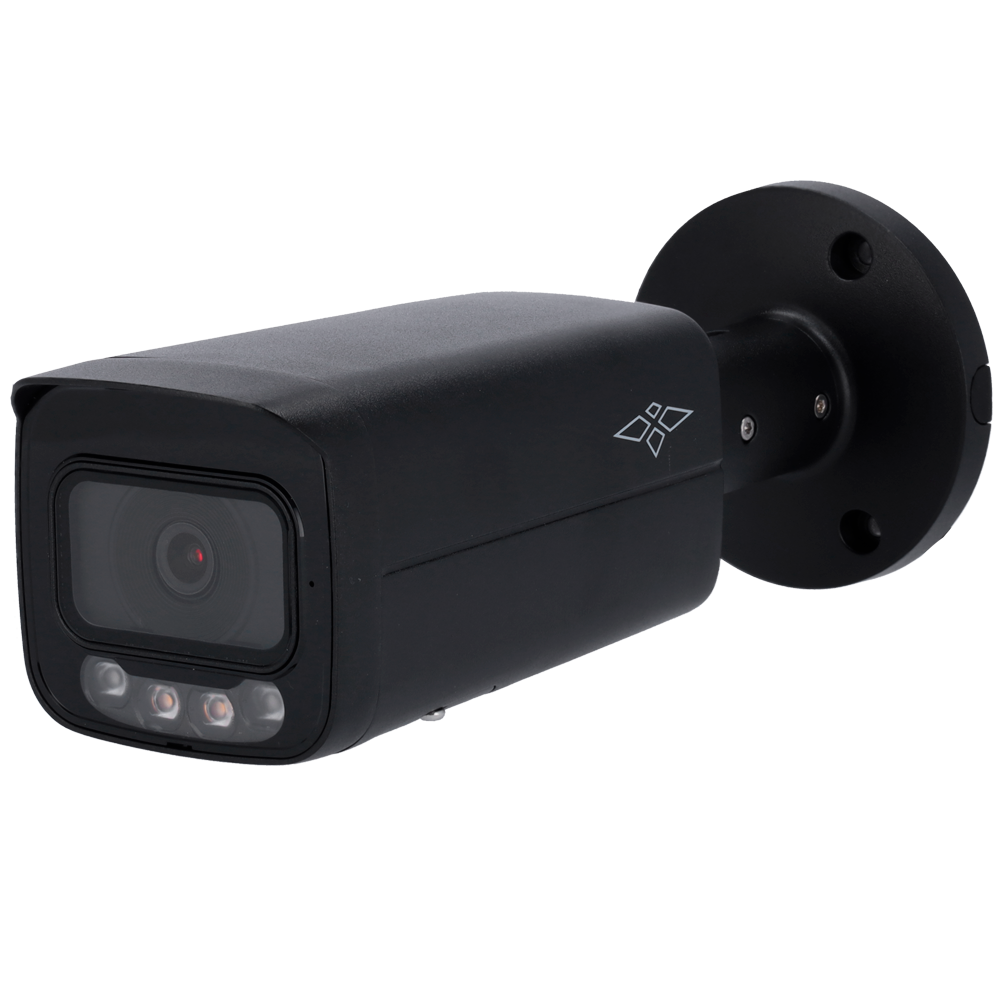

- Pro range IP Bullet Camera
- Resolution 8 MP (3840x2160)
- 3.6 mm Lens
- Dual Light: IR (60 m) + white light (50 m)
- Built-in microphone | Audio | Alarms | MicroSD
- Smart Features: IVS, SMD | IP67 | Black
- X-Security
- IP Bullet Camera
- PRO Range
- 1/2.7" Progressive CMOS
- 8 Megapixel (3840x2160)
- 3.6 mm Lens
- Full-Color Starlight
- 0.008 Lux
- Dual Light: IR and white light
- IR range of 60 m
- White light range 50 m
- IVS Perimeter protection
- Intelligent search
- Compression H.265/H.264/H.264H/H.264B
- RJ-45 10/100 BaseT
- Built-in microphone
- Audio
- Alarms
- WDR (120 dB)
- 3D DNR
- IR Cut
- MicroSD card slot up to 256 GB
- WEB, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone and NVR interface
- ONVIF Compatible
- PoE IEEE802.3af
- Waterproof IP67- Color black
Specifications
| Brand | X-SECURITY |
| Image sensor | 1/2.7” Progressive CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 3840x2160 (1~20fps) 2688×1520 (1~25/30fps) |
| Extra Stream rate | 704×576 (1~25fps) 704×480 (1~30fps) |
| Compression | H.265/H.264+/H.264H/H.264B/MJPEG (supported by the extra stream) |
| Video bitrate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Lens | 3.6 mm |
| Viewing Angle (FOV) | H: 87°; V: 49°; D: 100° |
| Range performance | 98.7 m (D), 39.5 m (O), 19.7 m (R), 9.9 m (I) |
| Lens Adjustment | 3-axis |
| Minimum illumination | 0.008 Lux @(F1.6, AGC ON) 0 light with dual light |
| Dual Light | IR Range 60m / Warm Light Range 50m |
| Day / Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/3 s–1/100.000 s |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-DNR, ROI, Smart Light, Flip, Mirror function, Privacy mask |
| SMD (Smart Motion Detection) | Advanced motion detection |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Can work in conjunction with NVR to refine intelligent search, event extraction and merging with video events |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output / Built-in microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Internal memory | MicroSD card slot up to 256 GB |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Network interface | Ethernet 10/100 BaseT |
| Interoperability | ONVIF |
| Power | DC 12 V / 8.3 W max PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 238.5 mm (D) × 90.7 mm (H) ×90.7 mm (W) |

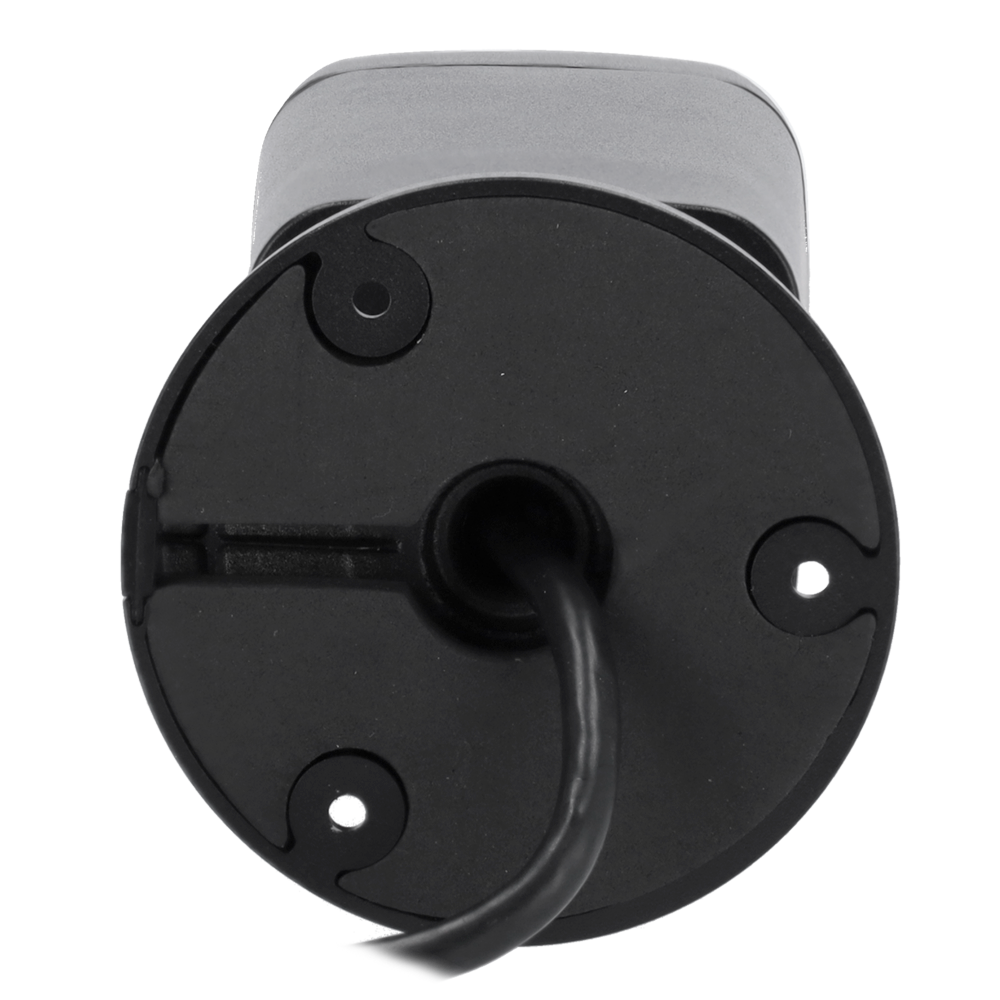

| Base dimensions | Ø base 90.7 mm / Ø between bolts 70 mm / 3 bolts |
| Weight | 720 g |
| Colour | Black |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
