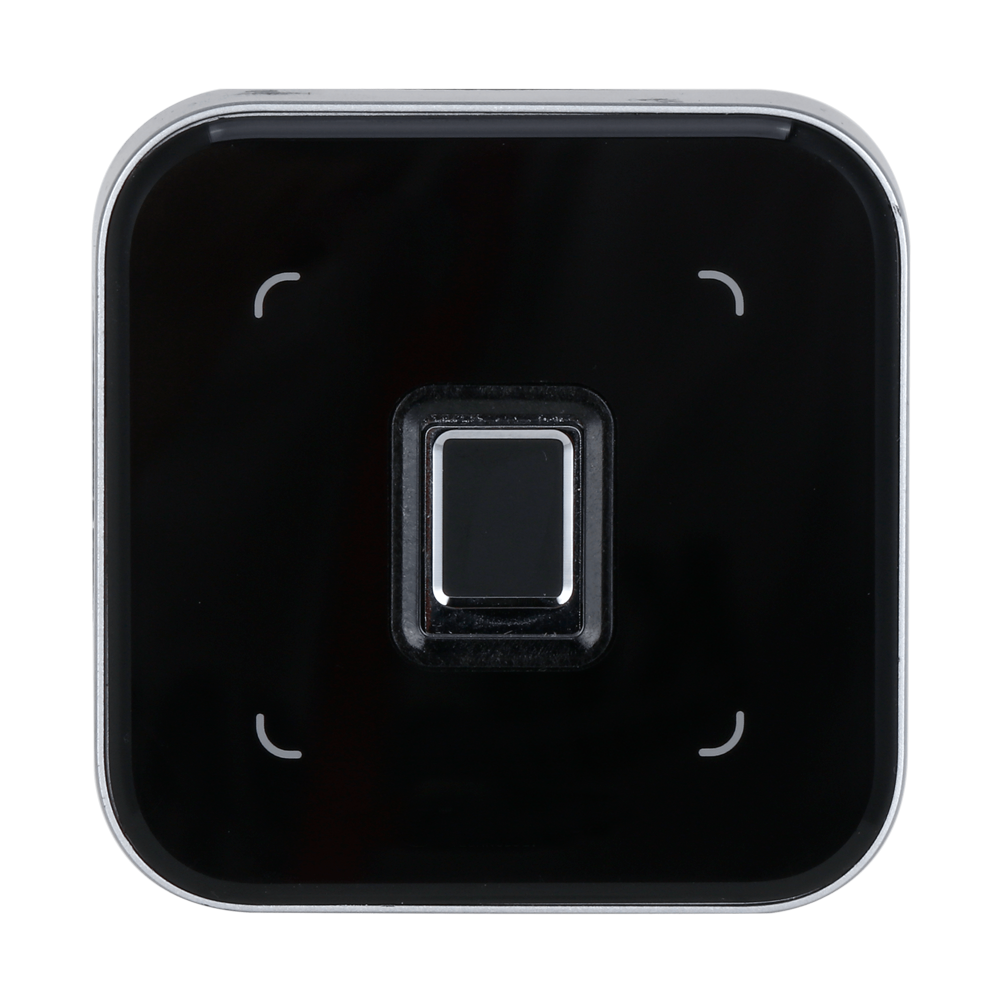

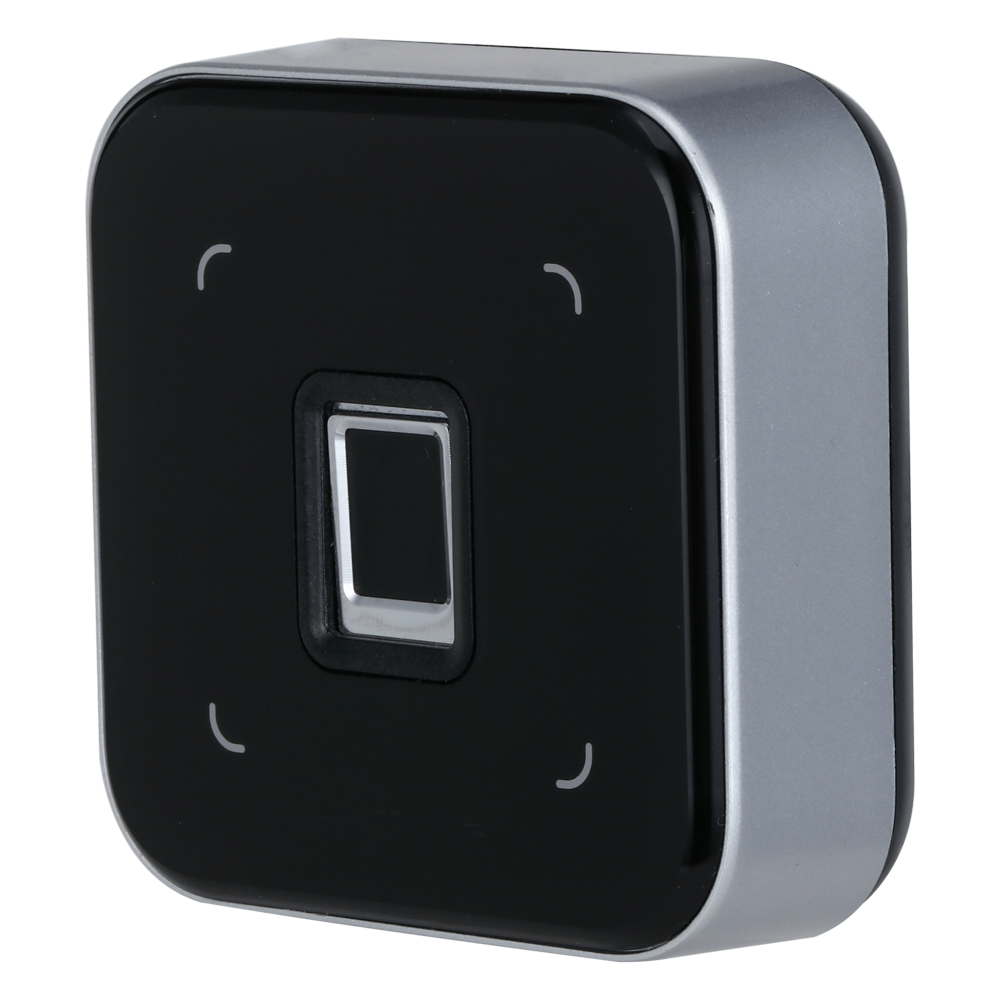

XS-AC2102RE-FMF
Ga direct naar de productinformatie
XS-AC2102RE-FMF
- Access reader
- Fingerprint and MF card access
- LED and acoustic indicator
- RS485
- Compatible with X-Security controllers
- Suitable for exterior IP65
- X-Security
- Access reader for controller
- Fingerprint and MF card access
- Capacitive sensor
- LED indicator
- RS485
- Suitable for exterior IP65
- Compatible with X-Security controllers
Specifications
| Brand | X-Security |
| Model | XS-AC2102RE-FMF |
| Sensor | Capacitive fingerprint module |
| Capacity | 3.000 fingerprints |
| Activation sensor | Self-activation by contact |
| Read time | < 1.5 sec |
| Card reading distance | 0 ~ 5 cm |
| Identification modes | Footprint and card (MF 13.56 MHz) |
| Outputs | RS485, buzzer for status indication, tamper |
| Compatibility | X-Security Controllers XS-AC2200 Series and XS-AC1200 Series |
| Power | DC 12 V / 500 mA máx. |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 70 (W) x 70 (H) x 28 (D) mm |
| Weight | 170 g |
In the box
- X-Security biometric reader
- Mounting material
- User instructions
