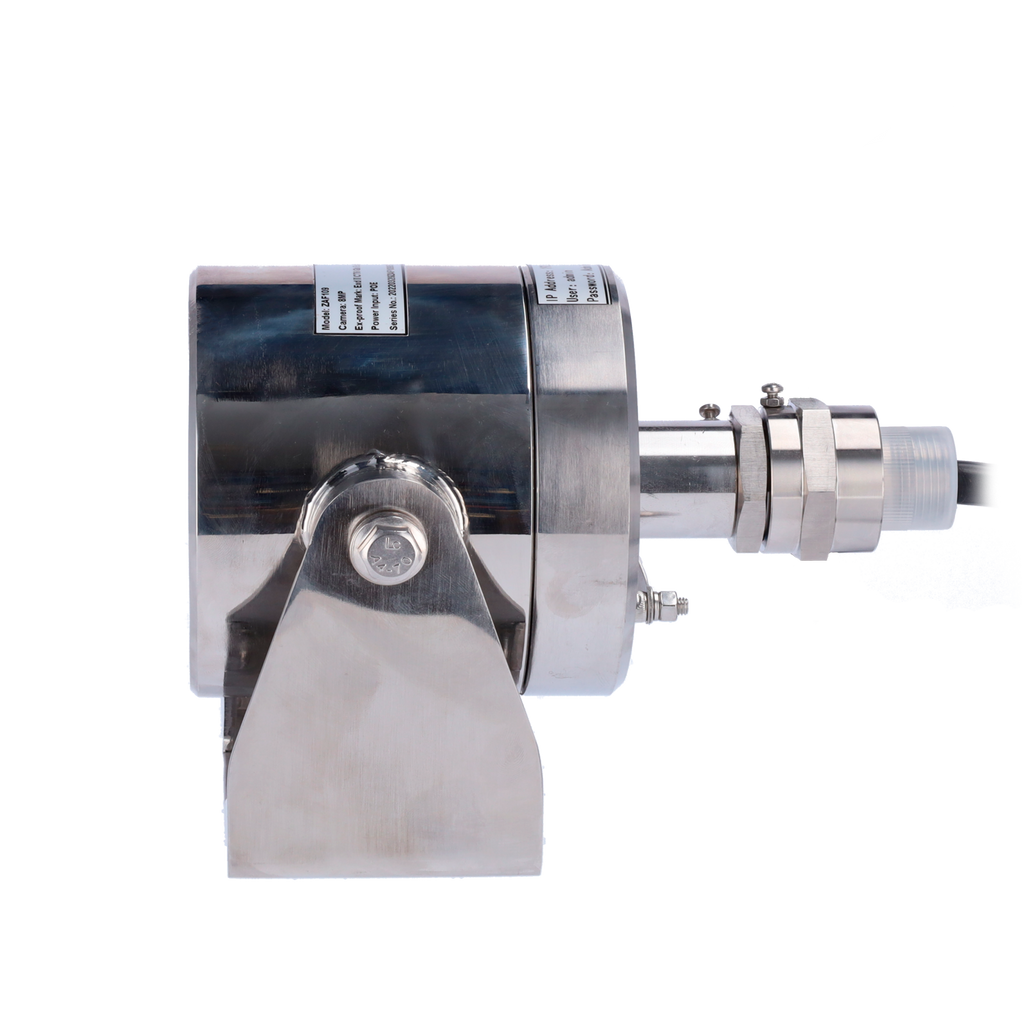

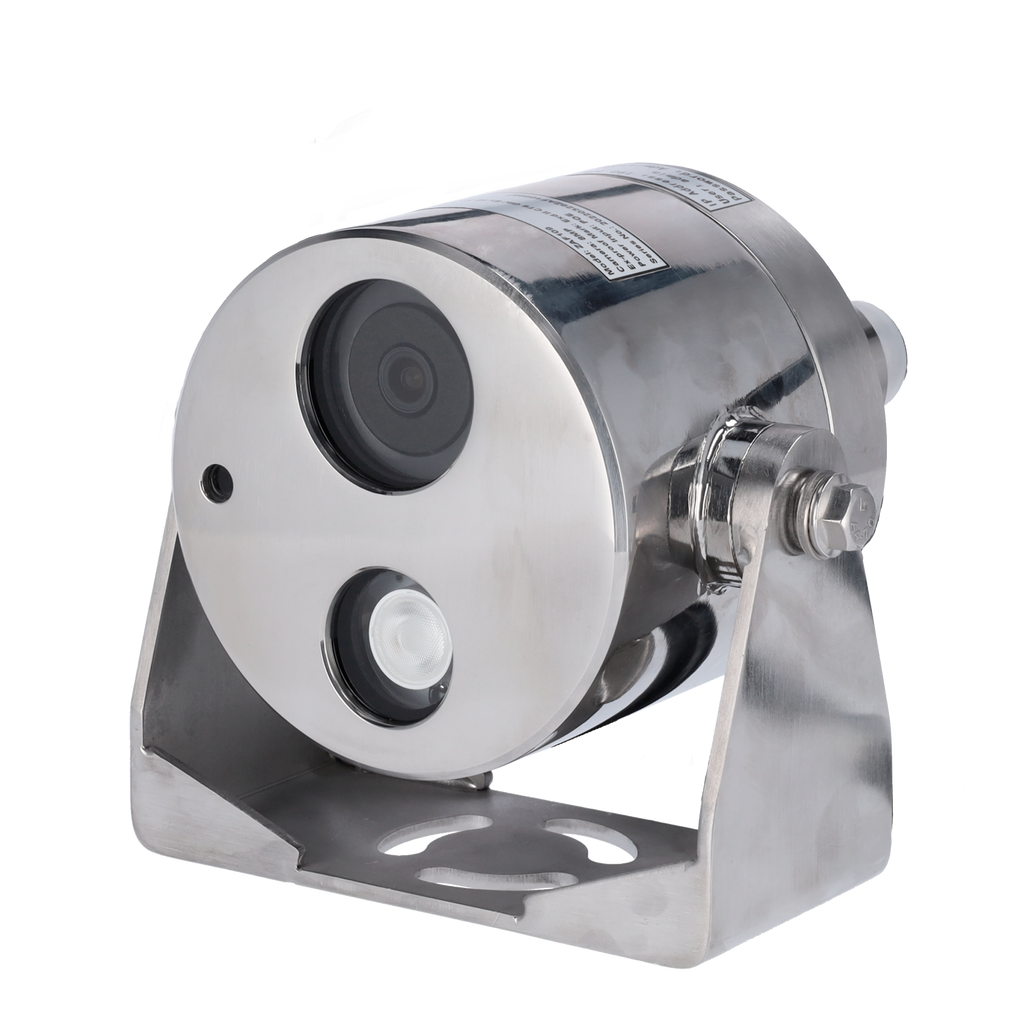

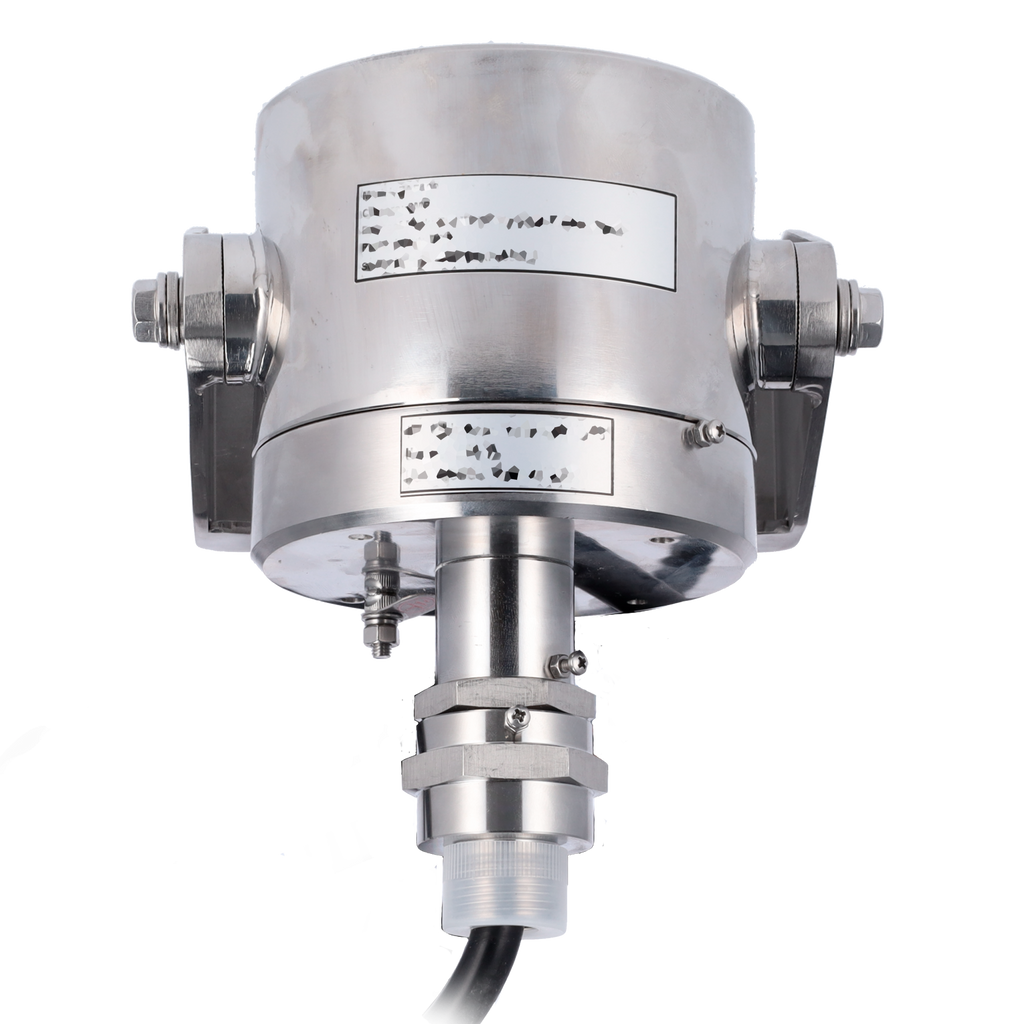

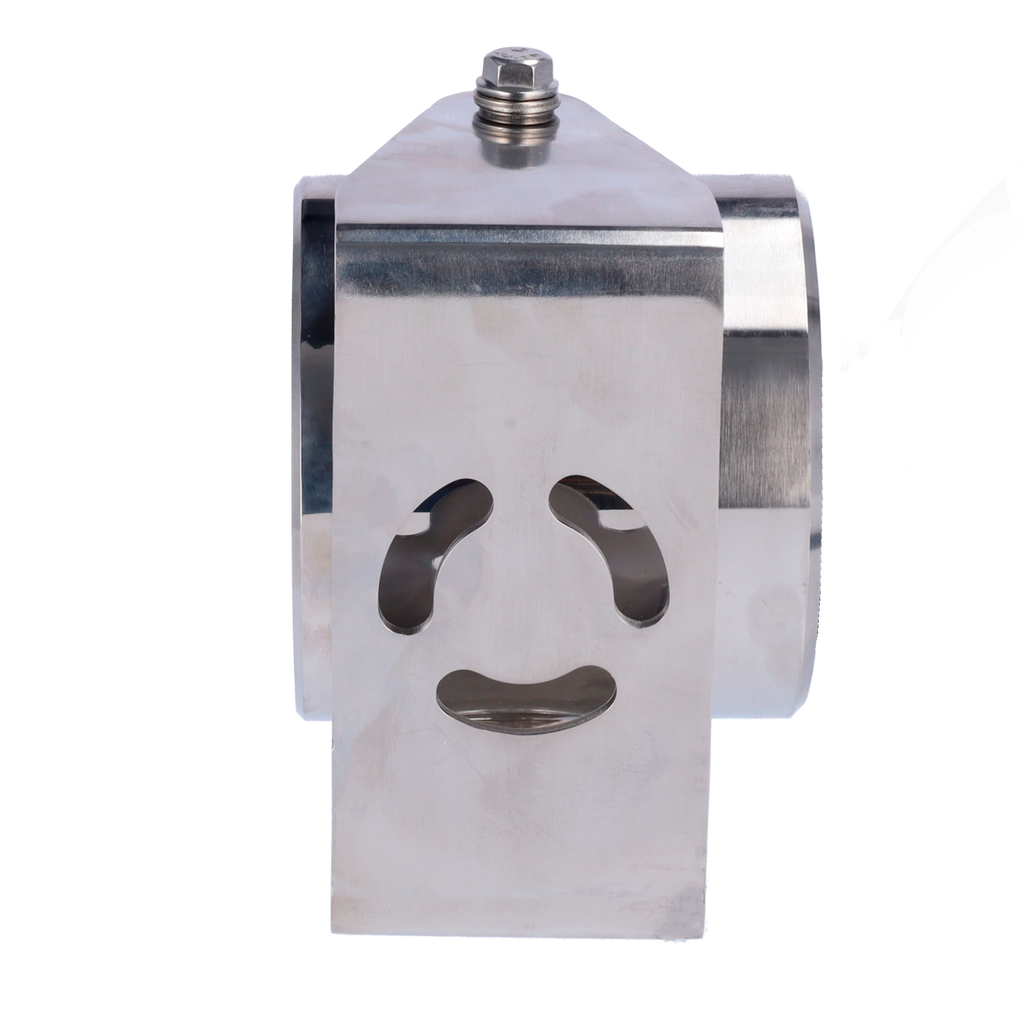

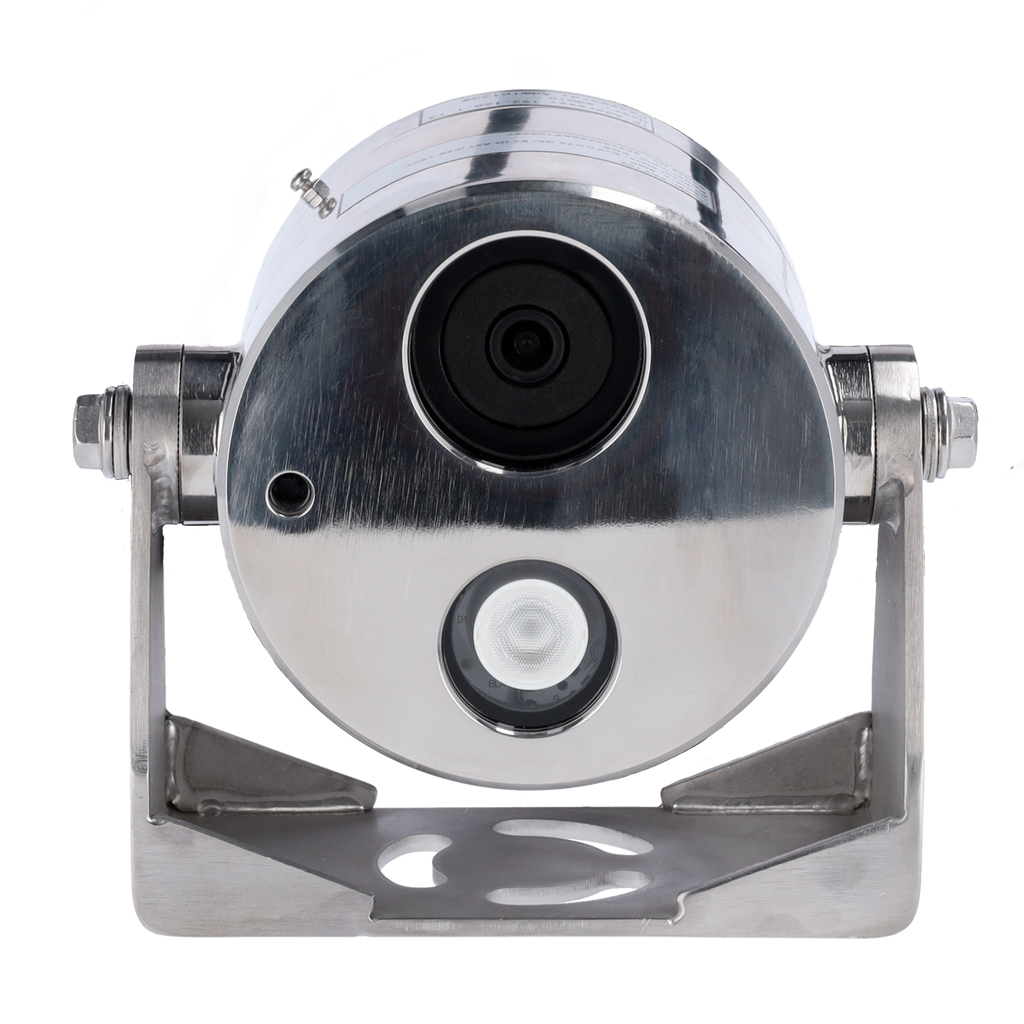

UV-ZAF109S-IPC3618-CNEX
- Explosion Proof IP Camera 8 Mpx
- 1/2.7" Progressive Scan CMOS
- 4.0mm motorised lens
- IR LEDs Range 30 m
- Stainless steel housing 304 corrosion resistant
- Waterproof IP68
- Uniview
- Turret Explosion Proof IP Camera
- Pro range
- 1/2.7" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 4.0mm lens
- 0 Lux
- IR Range 30 m
- Compression Ultra265/H.265/H.264
- PoE IEEE 802.3af
- IR Cut
- WDR 120dB
- Intelligent functions
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Housing IP68
- Stainless steel
- CNEX
Specifications
| Brand | UNIVIEW |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 8MP (3840*2160)@20fps; 5MP (3072*1728)@30fps; 4MP (2560*1440)@30fps; 1080P (1920*1080)@30fps; |
| Extra Stream rate | 1080P (1920*1080)@30fps; 720P (1280*720)30fps; D1 (720*576)@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps; |
| Compression | H.265+ / H265 /H.264+ / H264 / MJPEG |
| Lens | 4.0 mm |
| Minimum illumination | 0.005 Lux / IR 30 m |
| Image improvements | WDR (120 dB), BLC, 3D-NR, AWB, Privacy Masking, ROI |
| Day / Night | Removable mechanical ICR filter |
| Communication Interface | Ethernet 10/100M BaseT | 1 RS485 |
| Remote access | Web browser, Safire Control Center Smartphone App and PC Software |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), API |
| Power | DC 24 V / 8 W, Poe IEEE 802.3af |
| Degree of protection | IP 68 |
| Housing | Stainless steel housing 304 corrosion resistant |
| Certified | CNEX |
| Temp. operation | -25º C ~ +60º C |
| Dimensions | Φ150*168mm |
| Weight | 4 kg |
In the box
- Uniview IP Camera
- Explosion Proof CNEX Housing
