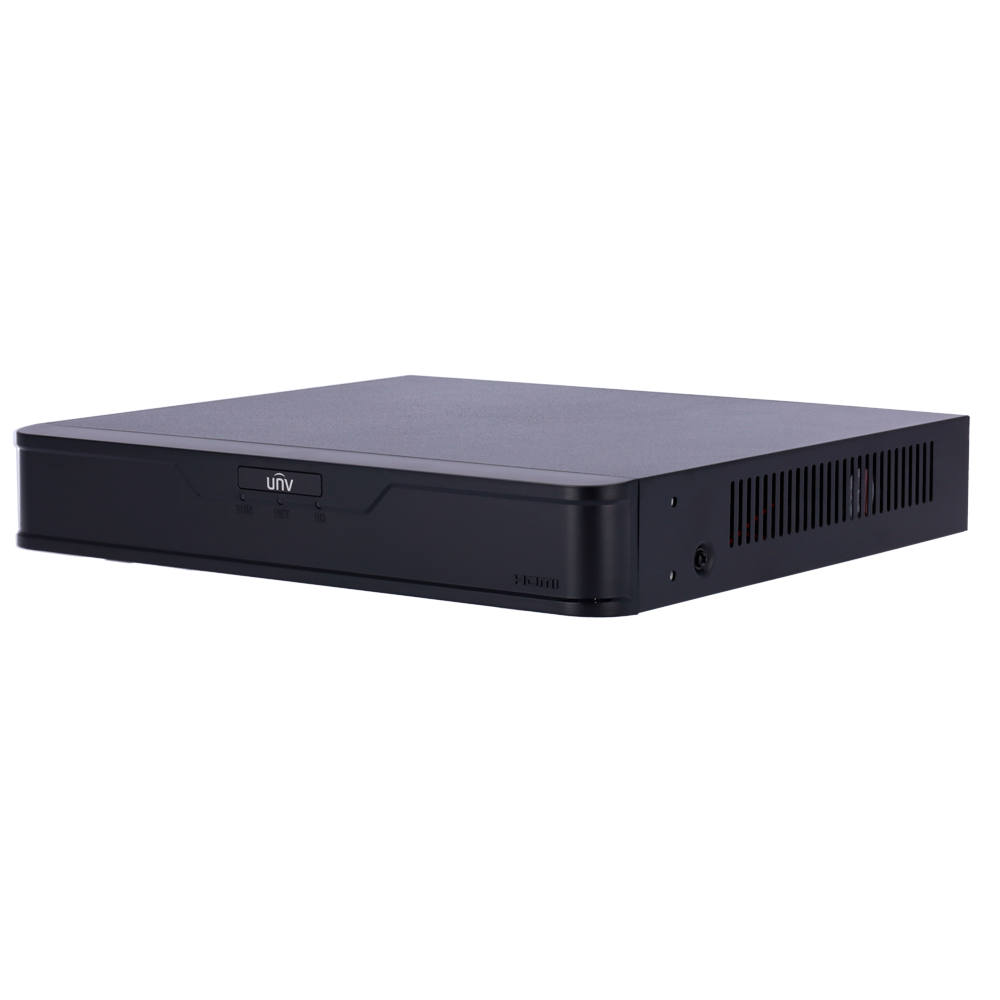

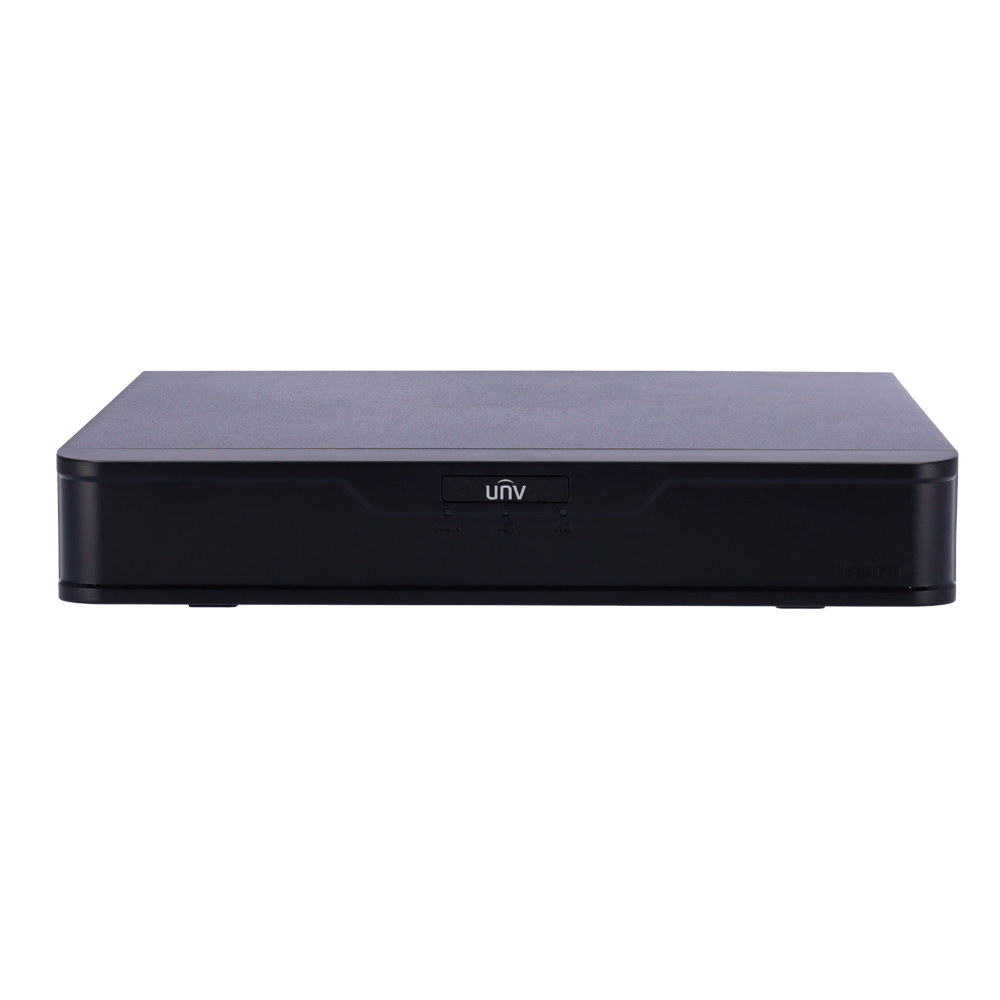

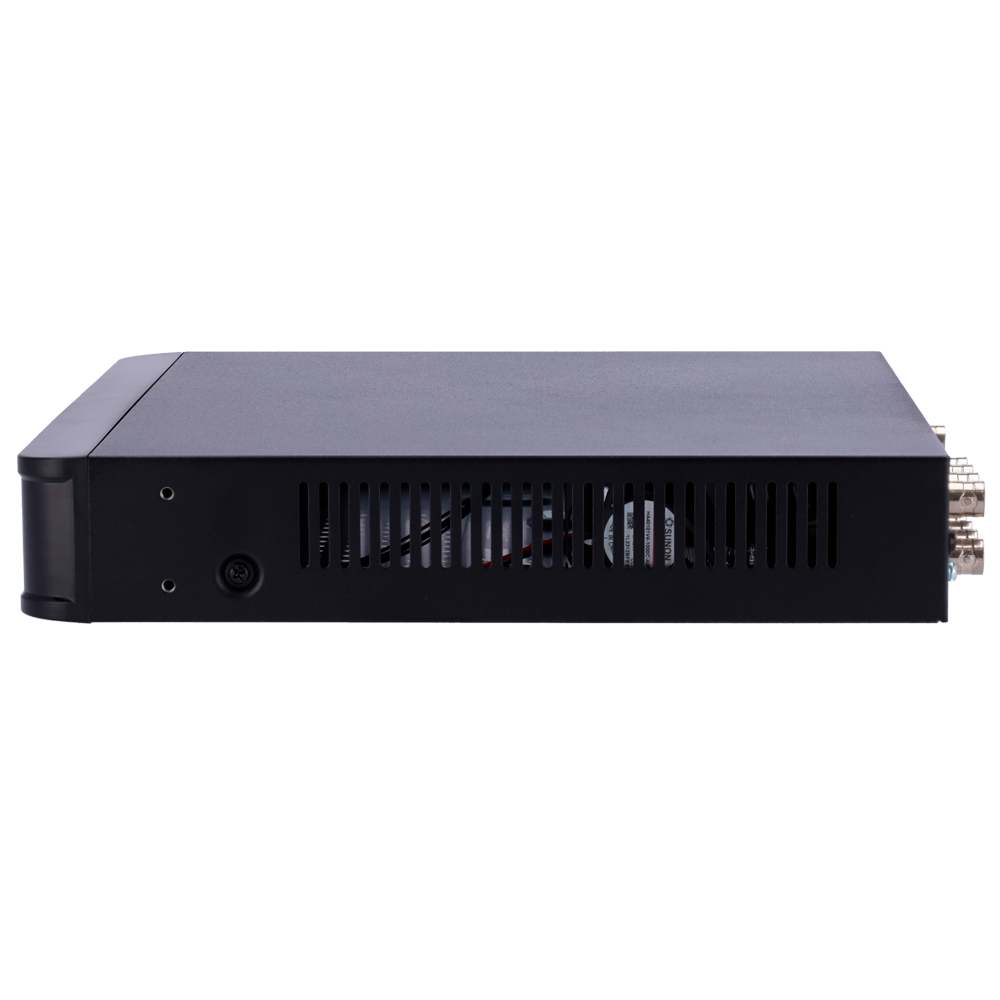

UV-XVR301-08U3
Ga direct naar de productinformatie
UV-XVR301-08U3
- 5n1 Uniview recorder
- Easy range
- 8 CH HDTVI / HDCVI / AHD / CVBS + 8 extra IP
- Ultra Motion Detection (UMD)
- Supports 1 hard drives
- 80 Mbps bandwidth supported
- Uniview
- DVR 5n1
- Easy range
- 8 BNC video CH (IP-replaceable)
- 8 CH IP Extra
- AHD, TVI, CVI, CVBS, CVBS
- Ultra Motion Detection(UMD)
- 80 Mbps bandwidth supported
- Maximum analog resolution 8 Mpx
- Maximum IP resolution 8 Mpx
- 4 audio inputs
- HDMI and VGA output
- RS485
- 2 x USB 2.0
- Mouse
- Space for 1 HDD up to 8 TB
Specifications
| Brand | Uniview |
| Range | Easy |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8CH BNC |
| Hybrid configuration | 8 IP channels (IP only up to 16 channels) substituting all BNC channels |
| Video outputs | 1 HDMI, 1 VGA (1920x1080p) |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Maximum IP recording resolution | 4K |
| Analog cameras supported | AHD: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps,720P@30fps TVI: 8MP@15fps, 5MP@20ps, 4MP@30fps, 1080P@30fps, 720P@30fps CVI: 8MP@15fps, 5MP@25ps, 4MP@30fps, 1080P@30fps 720P@30fps |
| Main Stream recording encoding | Main Stream: 8MP@8fps, 5MP@12fps, 4MP@15fps, 1080P@25fps, 720P@30fps Sub-stream: D1@8fps, D1@12fps, D1@15fps, D1@25fps, D1@30fps |
| Decoding | Analogue: 8x8MP@8, 8x5MP@12, 8x 4MP@15, 8x1080P@25, 8x720@30 IP : 16x720P@30, 8x1080P@30, 4x4MP@30, 2x8MP@30 |
| Intelligent alarm | Ultra Motion Detection (UMD) for Analog: 8 channels Behavioral search |
| Internal memory | 2 HDD SATA 3.5" of up to 8TB (not included) |

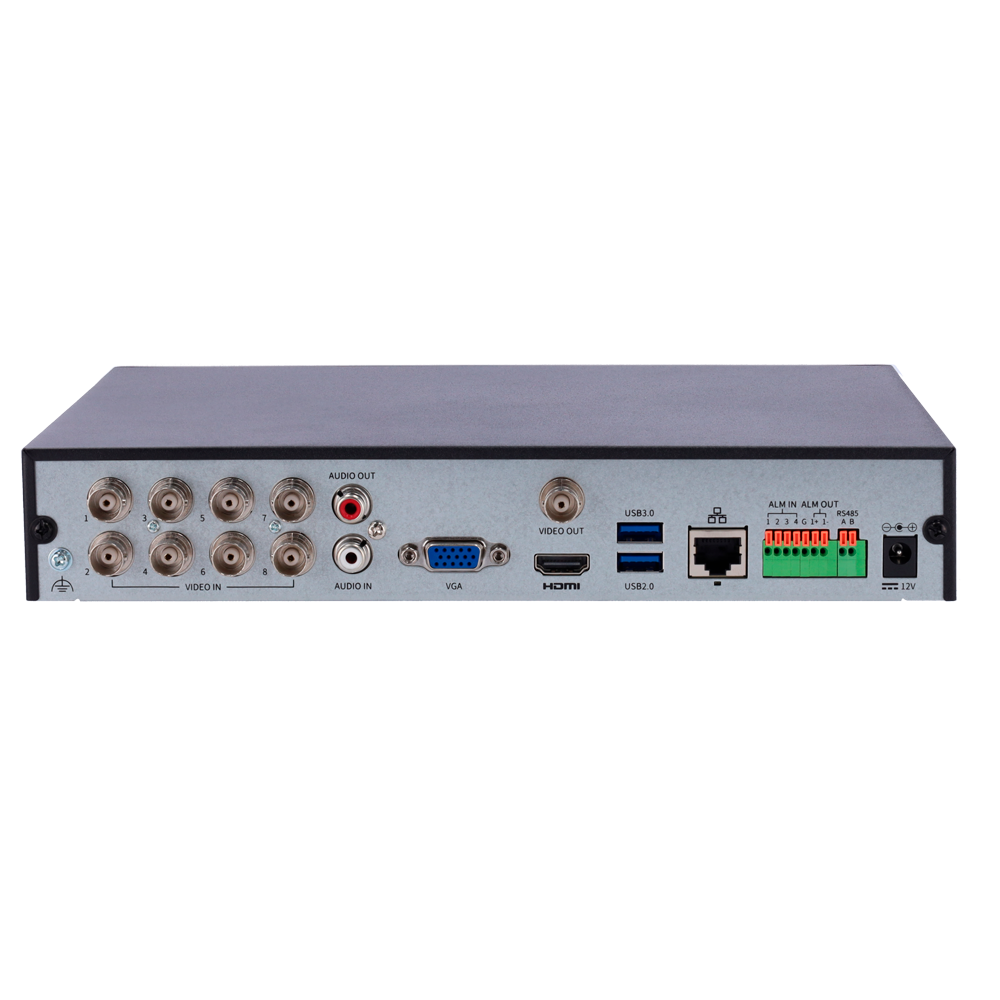

| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 12W |
| Dimensions / Weight | 380 mm × 326 mm × 53 mm / 2 kg |
In the box
- 5 in 1 Uniview recorder
- Mouse
- Power adapter
