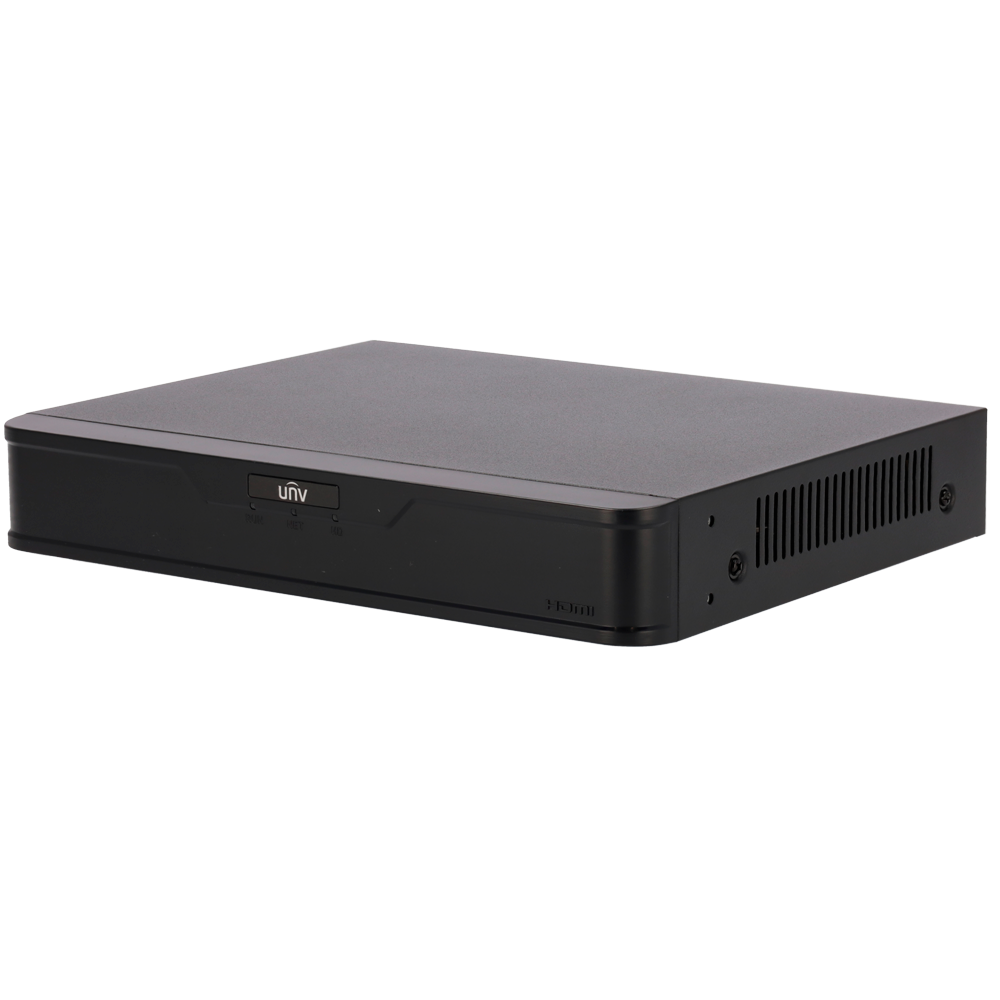

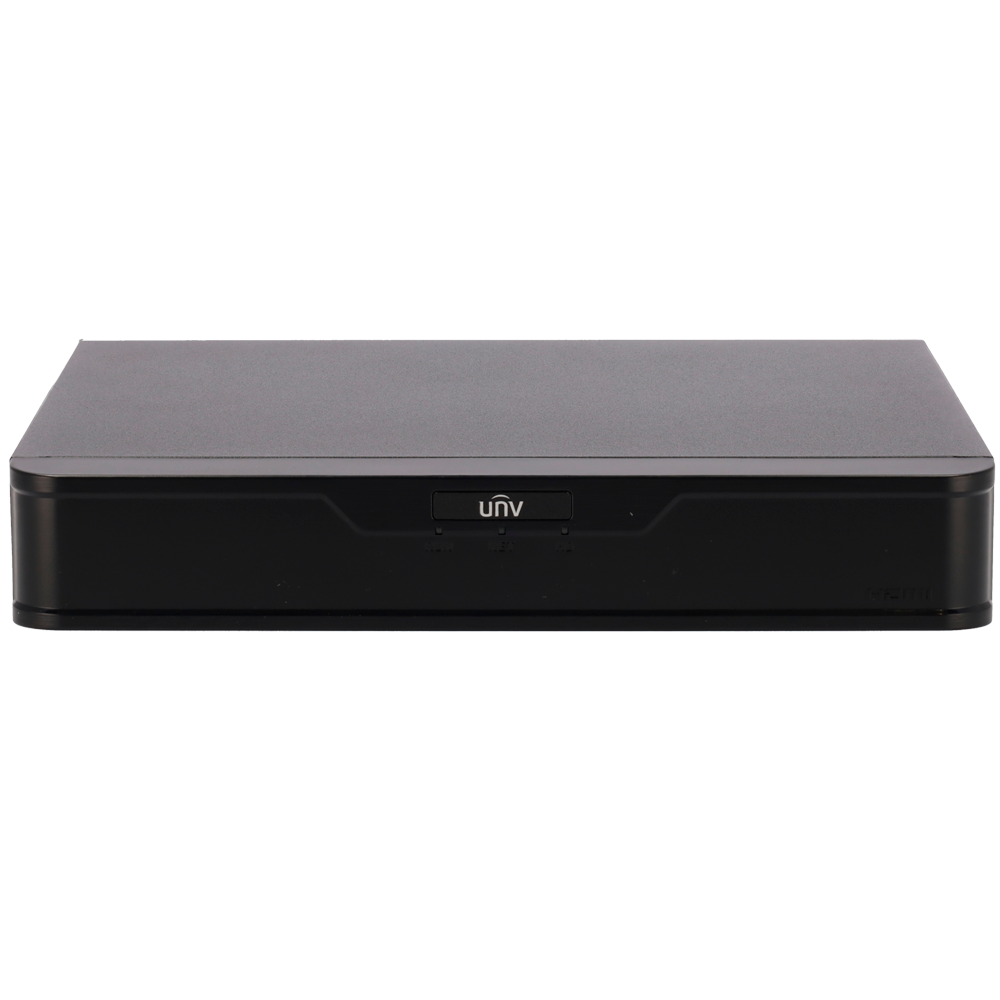

UV-XVR301-08Q3
Ga direct naar de productinformatie
UV-XVR301-08Q3
- 5n1 Uniview recorder
- Easy range
- 8 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP
- Audio / Alarms
- Supports 1 hard disk
- Uniview
- DVR 5n1
- Easy range
- 8 BNC video CH (IP-replaceable)
- AHD, TVI, CVI, CVBS, CVBS
- 4 extra IP channels
- 64 Mbps bandwidth supported
- Maximum IP resolution 4K
- Maximum analog resolution 8 Mpx
- Audio
- Alarms
- HDMI and VGA output
- RS485
- 2 x USB 2.0
- Mouse
- Space for 1 HDD up to 8 TB
- WEB, CMS, Smartphone and NVR interface
Specifications
| Brand | Uniview |
| Range | Easy |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 CH BNC |
| Hybrid configuration | 4 IP channels Up to 12 IP channels substituting all BNC channels |
| Video outputs | 1 HDMI, 1 VGA (1920x1080p) |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Alarms | 4 inputs/ 1 outputs |
| Maximum IP recording resolution | 4K |
| Analog cameras supported | TVI / AHD: 8MP@12FPS (canal1-canal4); 5MP@20FPS; 4MP@30FPS; 3MP@30FPS (canal1-canal4); 1080P@30FPS; 720P@60FPS CVI: 8MP@15FPS(canal1-canal4); 4MP@30FPS; 1080P@30FPS; 720P@60FPS *For the correct live display, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. |
| Main Stream recording encoding | 8MPLite@8FPS (canal1-canal4); 5MPLite@12fps; 4MPLite@15FPS; 3MP@15FPS(canal1-canal4); 2MP@15FPS; 720P@30FPS |
| Extra Stream recording encoding | D1@30FPS |
| Incoming bandwidth | 40 Mbps (up to 56 Mbps after all analog channel conversion) |
| Outgoing bandwidth | 64 Mbps |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 SATA HDD 3.5" of up to 8 TB (not included) |

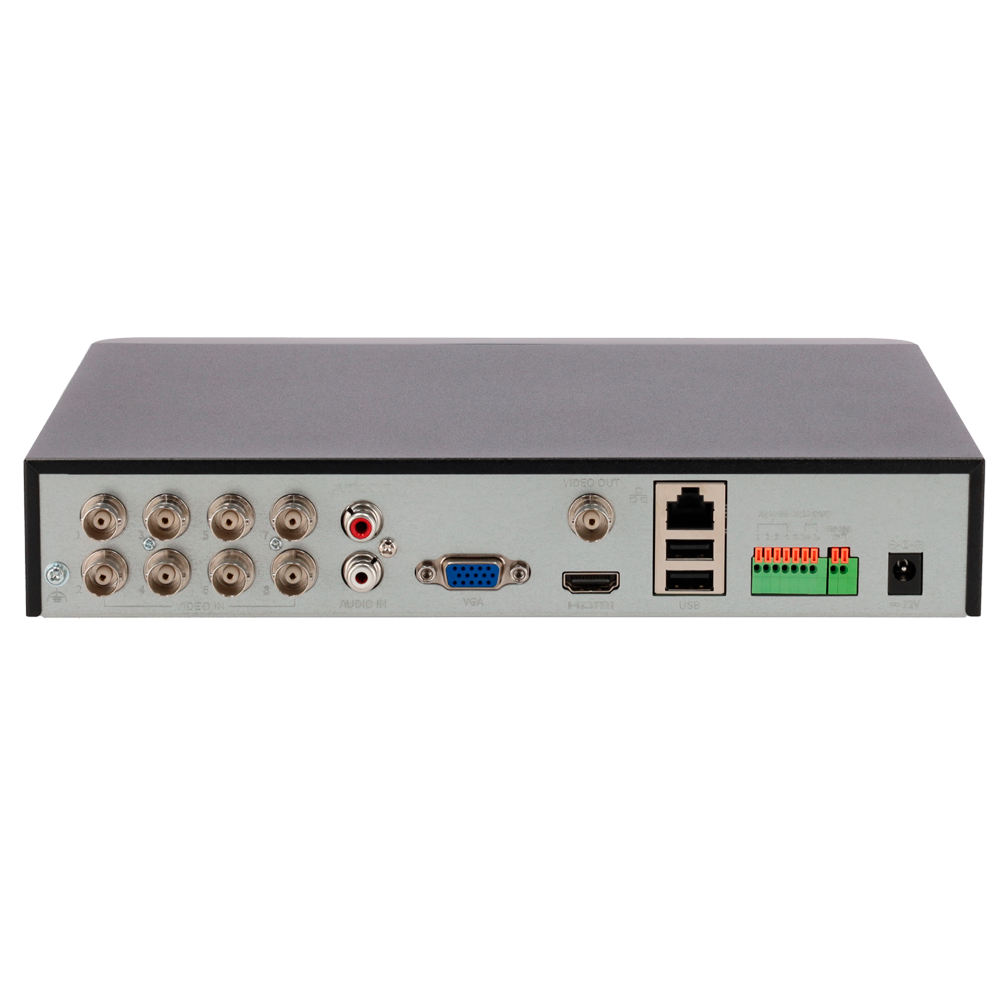

| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 12W |
| Dimensions / Weight | 47 (H) x 260 (W) x 226 (D) mm / 1.1 kg |
In the box
- 5 in 1 Uniview recorder
- Mouse
- Power adapter
