UV-XVR301-04G3
Ga direct naar de productinformatie
UV-XVR301-04G3
- Video recorder 5n1
- Uniview
- 4 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP
- Audio
- Supports 1 hard disk
- Uniview
- XVR 5n1
- Easy range
- 4 BNC video CH (IP replaceable) + 2 IP channels
- AHD, TVI, CVI, CVBS, CVBS
- 48 Mbps bandwidth supported
- Maximum IP resolution 4 Mpx
- Maximum analog resolution 5 Mpx
- Audio
- HDMI and VGA output
- 2 x USB 2.0
- Mouse
- Space for 1 HDD up to 8 TB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Video inputs | 4CH BNC |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Bandwidth | 48Mbps |
| Hybrid configuration | Up to 6 IP Channels (4Mpx) replacing all the BNC channels |

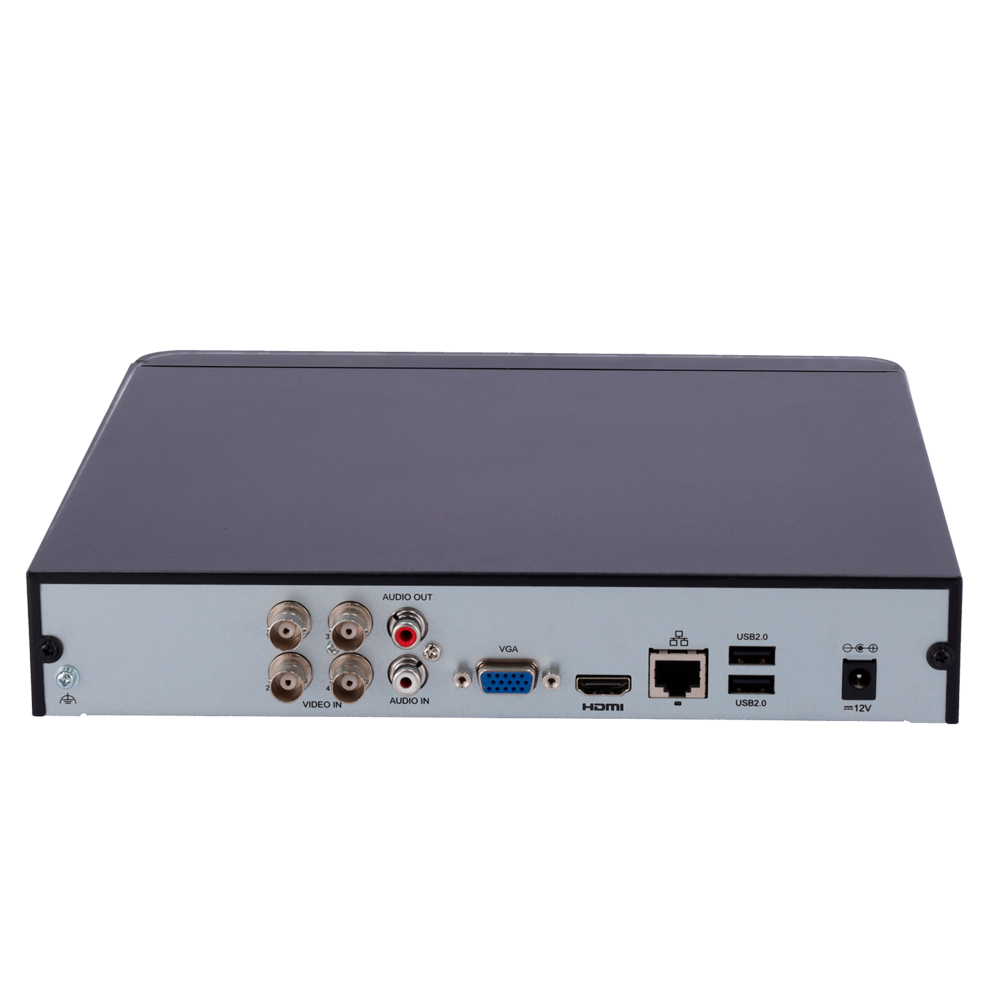

| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 4 Mpx |
| Analog recording resolution | TVI/AHD: 5MP@20FPS (first channel); 5MP@12fps; 4MP@30fps (first channel); 4MP@15fps; 1080P@30fps; 720P@60fps CVI:5MP@20fps(primer channel); 4MP@30fps (first channel); 4MP@15fps; 1080P@30fps; 720P@30fps Supports CVBS *For the correct live display, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. |
| Main Stream recording encoding | 5MP Lite@12fps; 4MP Lite@15fps; 1080P Lite@15fps; 1080P@15fps; 720P@30fps |
| Extra Stream recording encoding | D1@30FPS(máx) |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 HDD SATA 3.5" of up to 8TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 8W |
| Dimensions / Weight | 46 (H) x 260 (W) x 240 (D) mm / 1.1 kg |
In the box
- 5 in 1 Uniview recorder
- Mouse
- Power adapter
