UV-UAC-T115-AF40
Ga direct naar de productinformatie
UV-UAC-T115-AF40
- Uniview
- Bullet Camera 4n1 | Dolphin Range
- Resolution 5 Megapixel
- 4 mm Lens
- IR LEDs Range 20 m
- Weatherproof IP67
- Uniview

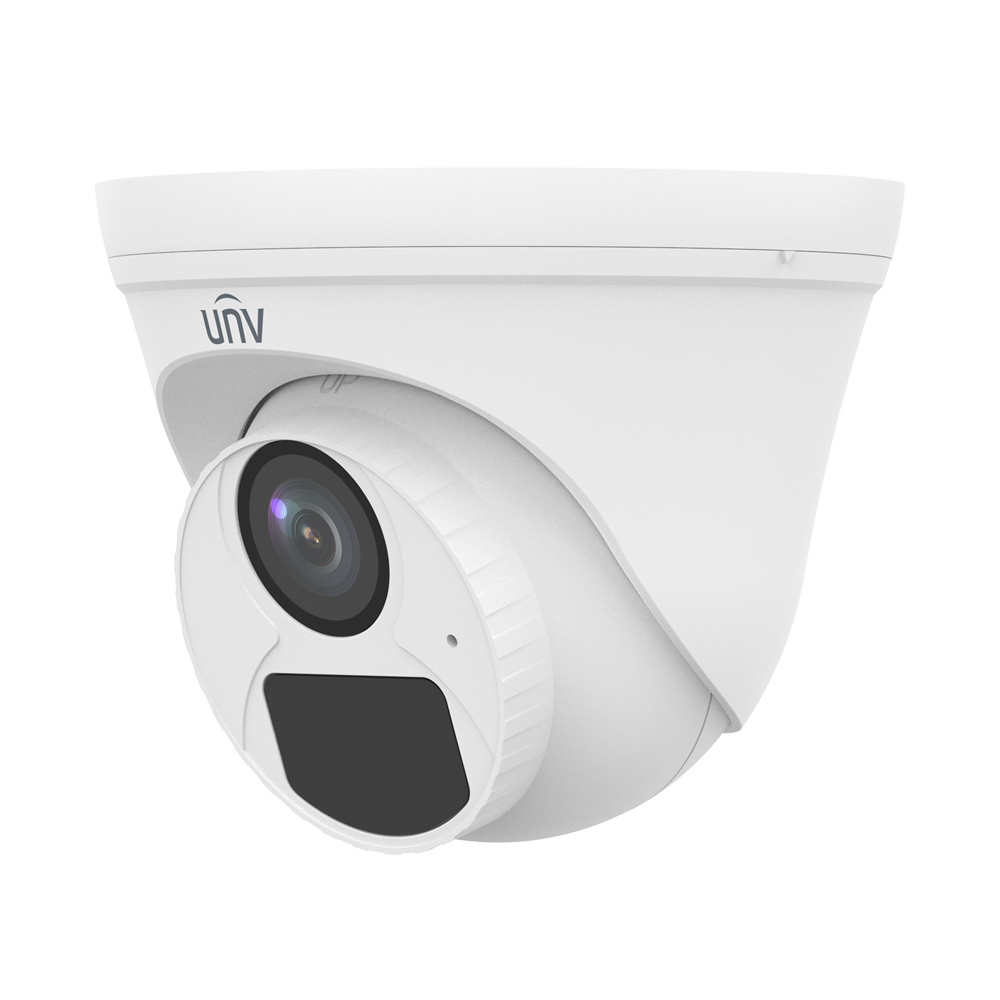

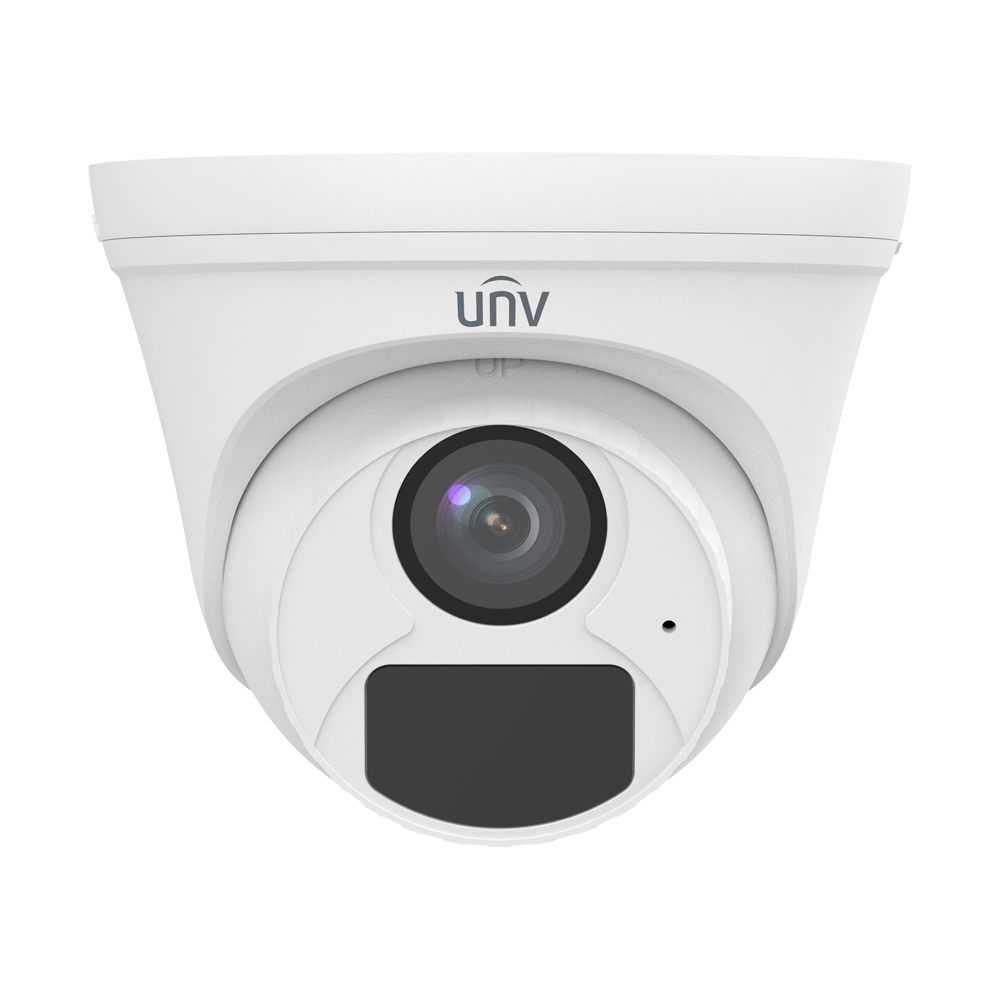

- Analog Turret Camera
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880x1620)
- 4 mm Lens
- 0.02 Lux
- IR Range 20 m
- IR Cut
- TVI/AHD/CVI/CVBS
- Built-in microphone - Waterproof IP67
Specifications
| Range | Uniview |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5MP |
| Main Stream rate | 5MP@25fps: 2880×1620; 5MP@20fps: 2592×1944; 5MP@12.5fps: 2592×1944 |
| Extra Stream rate | 4MP: 2560×1440, 2MP: 1920×1080 |
| Third Stream Rate | 1080P: 1920×1080 |
| Lens | 4 mm |
| Viewing Angle (FOV) | 110.0° (H), 57.0° (V), 130.0° (D) |
| Minimum illumination | 0.02 Lux (Colour) |
| Audio | Integrated microphone |
| Infrared range | 20 m |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR |
| Day / Night | 3 Modes (Auto / Day / Night) |
| Video output | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
| Interface | 5.5 mm |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Power | DC 12V / 3.3W |
| Dimensions | 118mm (Φ) * 96mm (H) |
| Weight | 183 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
