Name: TSOL-ESK800-PB
Brand: TSUN
SKU: TSOL-ESK800-PB
Price: 499.95 EUR
Availability: InStock

TSOL-ESK800-PB

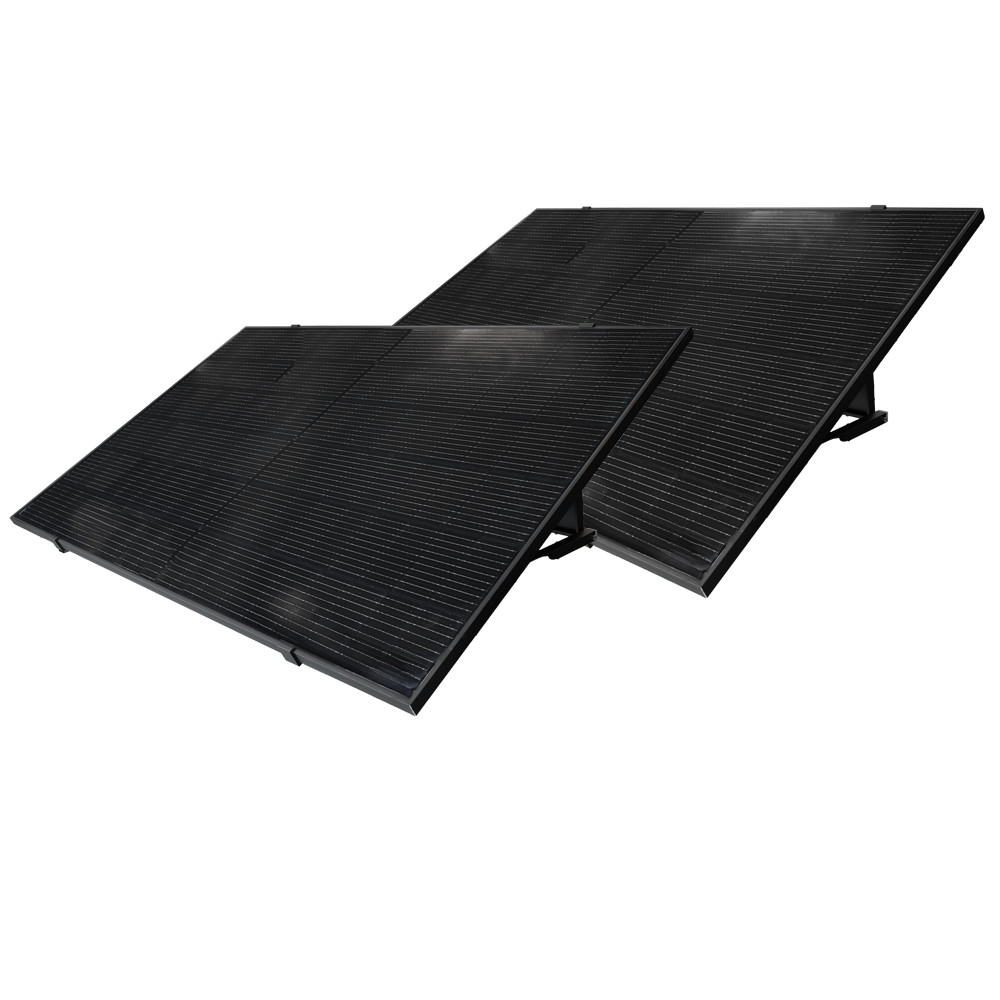

TSUN Solar Pop Up Kit
2 Full Black panels 420W
Microinverter 800W
Support for floor installation
WiFi connection
Allows connecting up to 11 kits together

TSUN's range of solar kits is a very practical solution for residential environments. Among its advantages are its DIY (Do It Yourself) philosophy, which makes its installation very simple, with no need for labor, its versatility (with different installation options) and its adjustable installation angle to maximize solar production.

These kits consist of a top quality solar panel, microinverter with WiFi connection for monitoring and Schuko outlet.

Specifically, Pop Up kits are valid for flat surfaces, such as floors, gardens or rooftops.

TSUN
Solar Kit

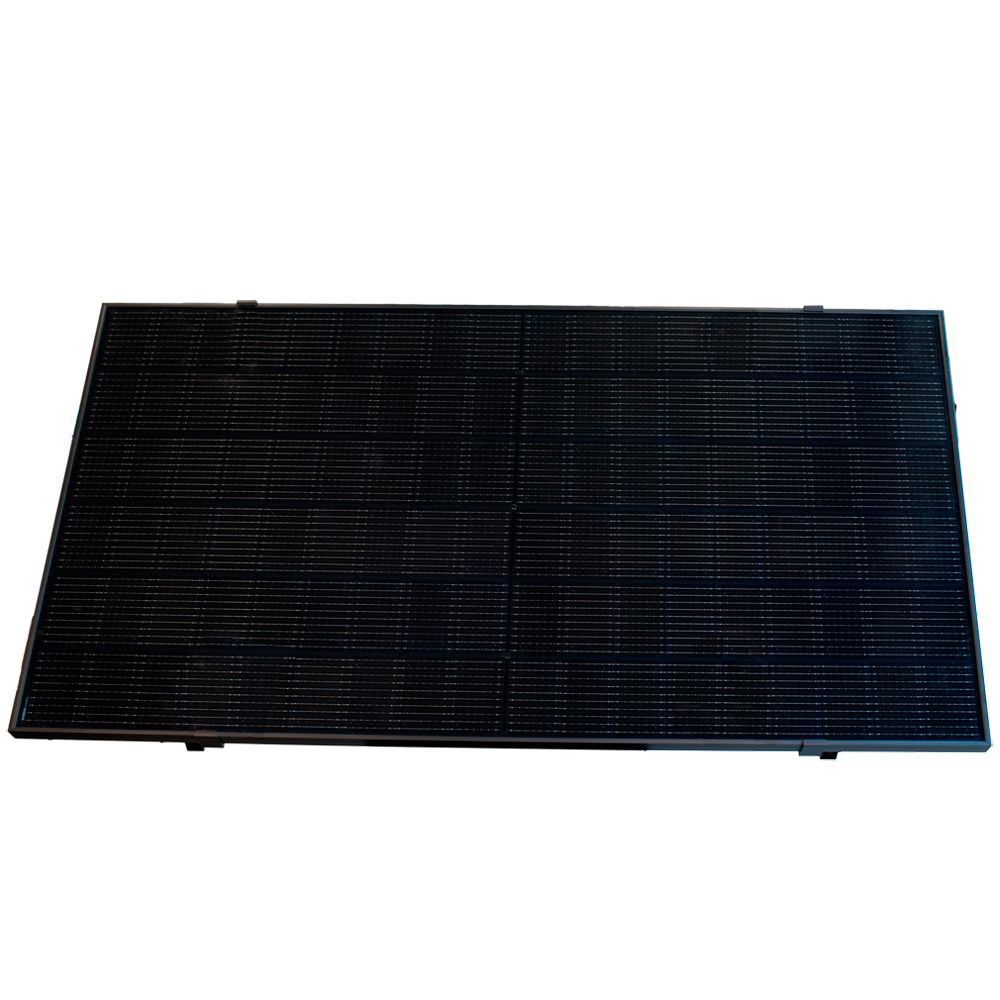

2x Full Black Solar Panel by 430W
Microinverter MS800 with an AC output power of 800W

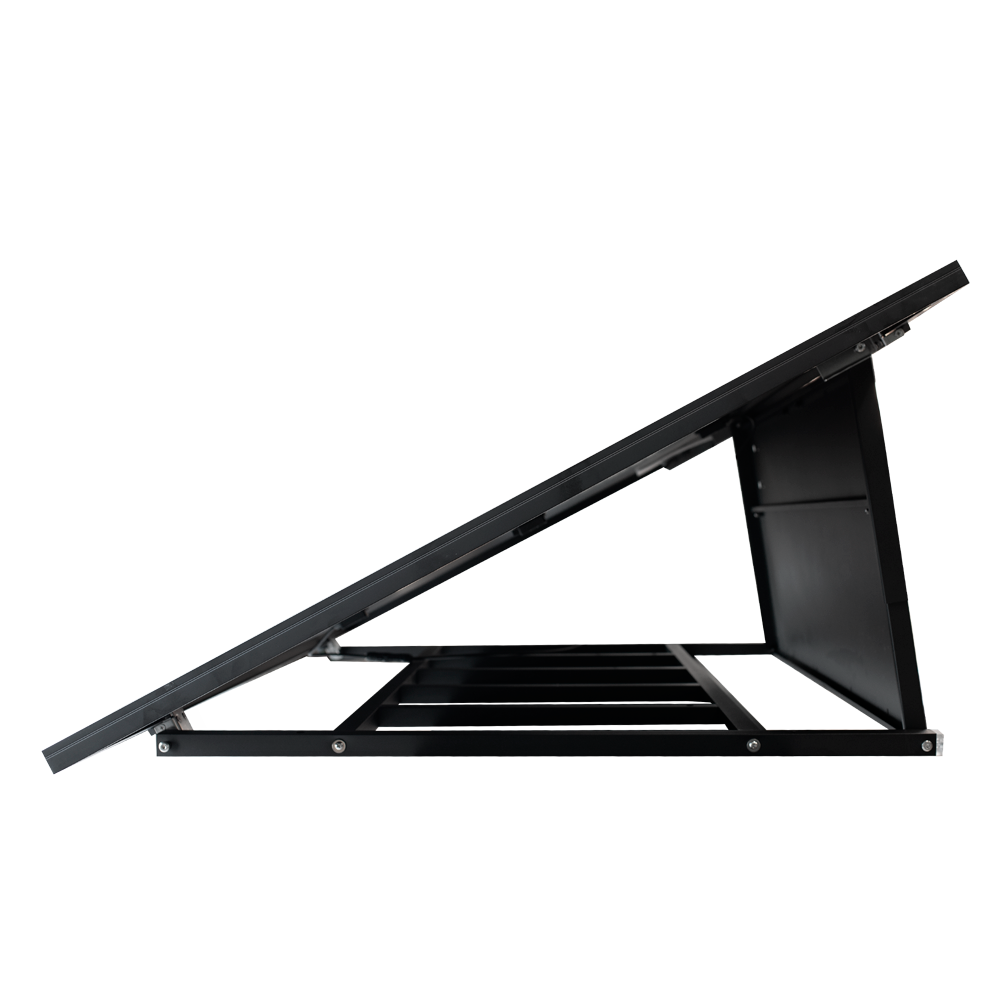

Pop Up support structure suitable for floor mounting
Black colour
Pre-assembled for easy installation
Adjustable installation angle
WiFi connection for control via smartphone APP

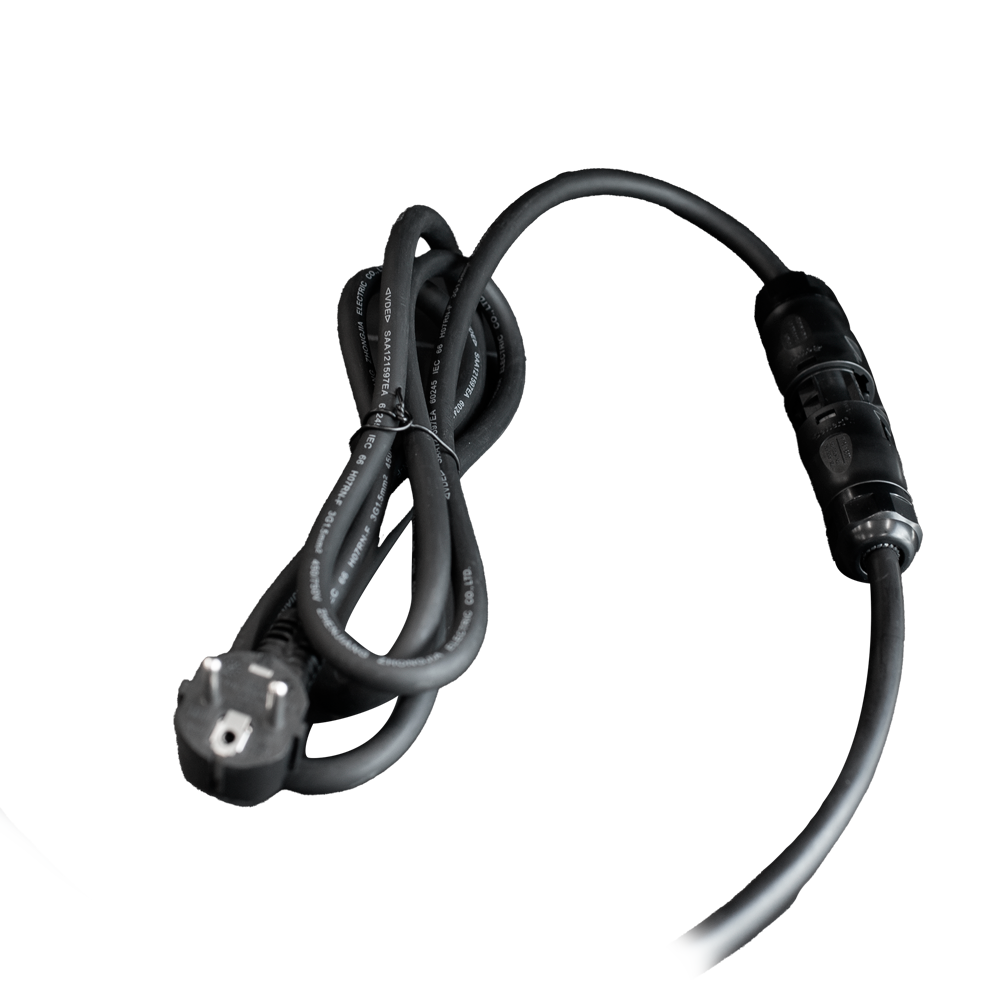

AC outlet to Schuko

Specifications

Photovoltaic Module
Power	2x 430 W
Efficiency	20.7%
Colour	Black
Temperature coefficient	-0.34%/ºC
Certification	CE, TUV, UL, CQC, IEC 61215,IEC 61730
Dimensions	2x (1722 × 1134 × 30 mm)
Microinverter
Model	MS800
Output power	800 W
Rated output voltage	220/230/240 V
Nominal frequency	50/60 Hz
Power factor	> 0.99
Harmonic current distortion	< 3%
AC cable length	5m
Connection	WiFi 2.4GHz
Certification	CE-LVD, CE-EMC, CE-RED, VDE 4105, EN 50549-1
Environmental Parameters
IP rating	IP67
Operating room temperature range	-25ºC to 65ºC
Operating relative humidity	0-100%
Maximum operating height	2000 m
Mechanical Parameters
Weight	59kg
Dimensions	2x 1724 x 1164 x 90 mm
Colour	Black
Bracket Certification	EN 10204:2017, EN 1090-1:2009+A1:2011
Warranty	12 years
