Name: TSOL-ESK400-PS
Brand: TSUN
SKU: TSOL-ESK400-PS
Price: 335.95 EUR
Availability: InStock

TSOL-ESK400-PS

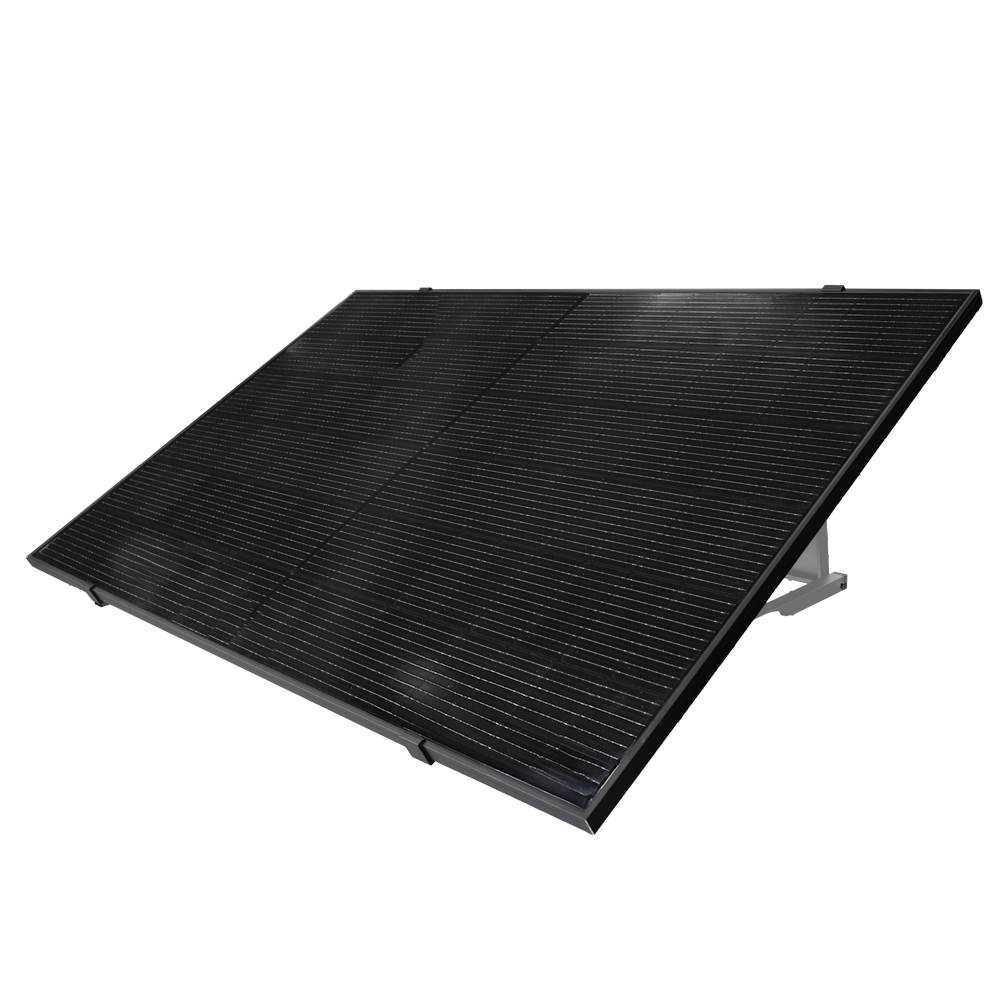

TSUN Solar Pop Up Kit
Full Black Panel 400W
Microinverter M400 400W
Support for floor installation
WiFi connection via Smart Plug
Allows connecting up to 11 kits together

TSUN's range of solar kits is a very practical solution for residential environments. Among its advantages are its DIY (Do It Yourself) philosophy, which makes its installation very simple, with no need for labor, its versatility (with different installation options) and its adjustable installation angle to maximize solar production.

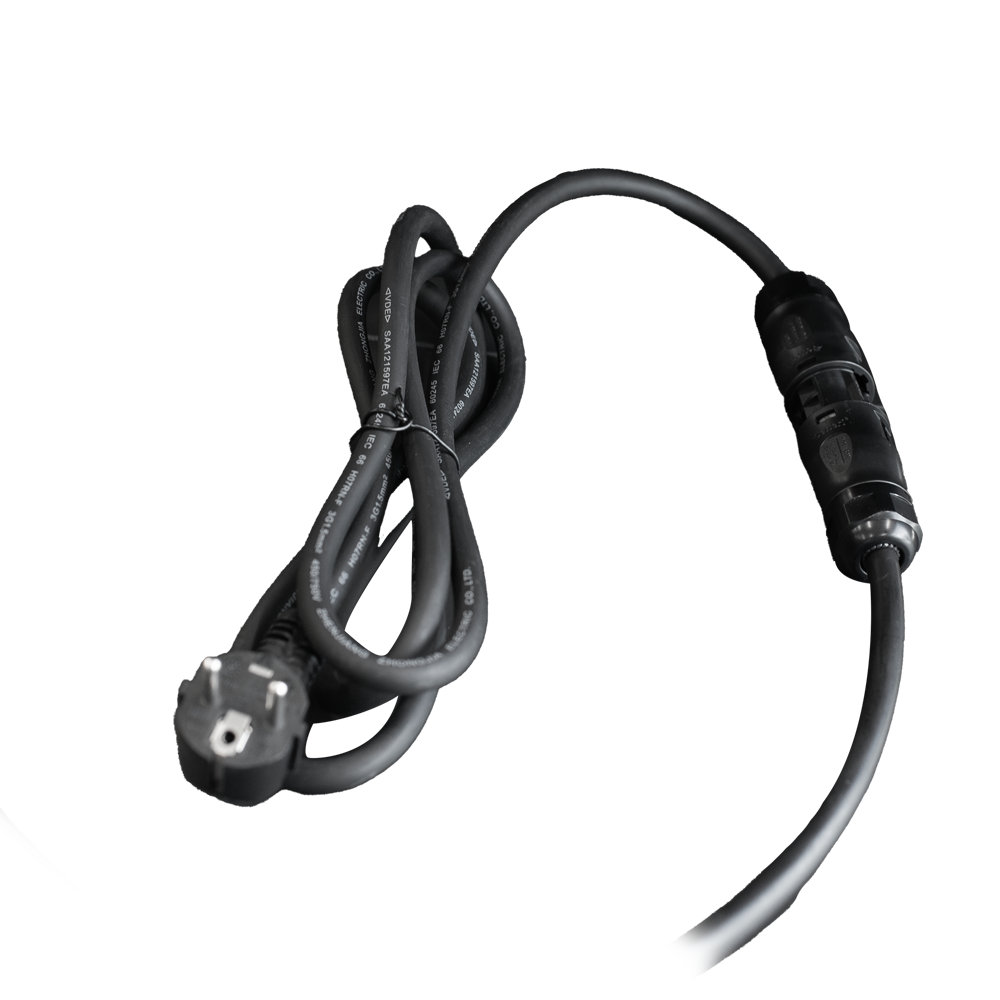

These kits consist of a top quality solar panel, microinverter, Schuko outlet and Smart Plug with WiFi connection for monitoring.

Specifically, Pop Up kits are valid for flat surfaces, such as floors, gardens or rooftops.

TSUN
Solar Kit

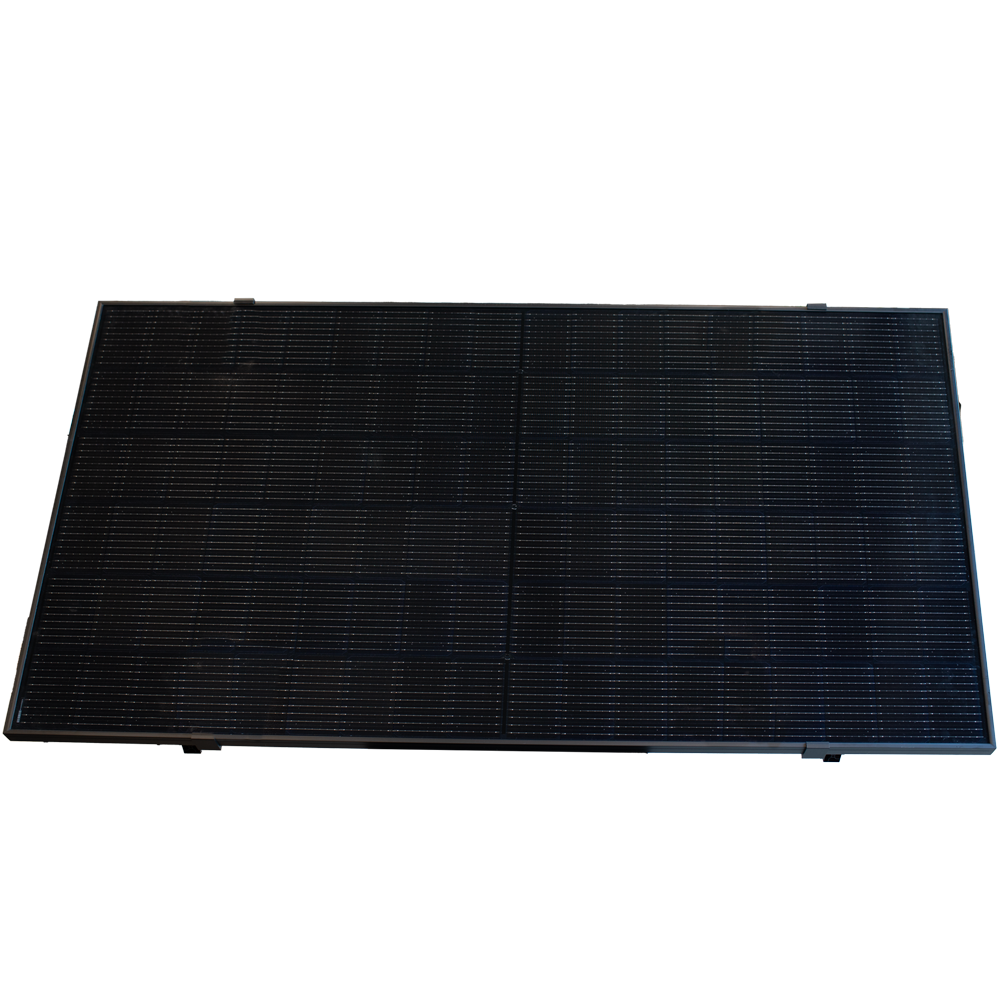

Full Black Solar Panel of 400W

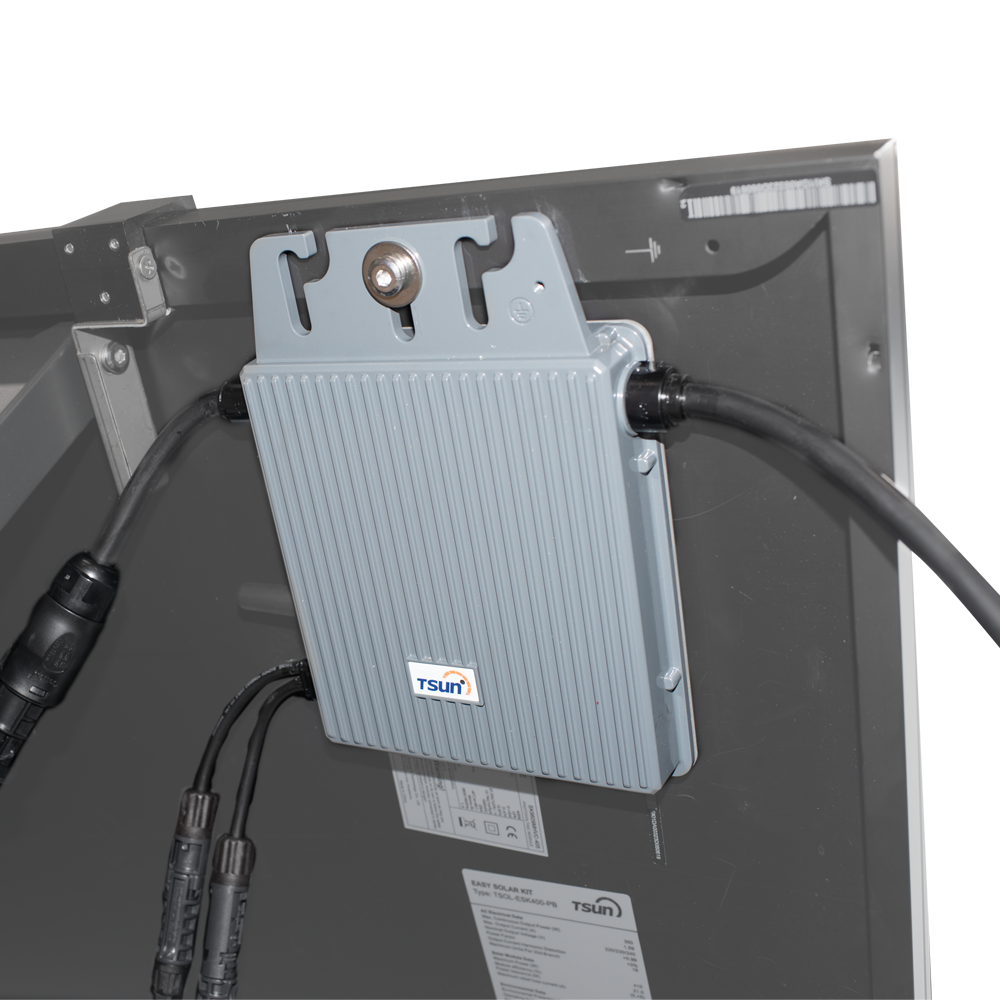

Microinverter M400 with an AC output power of 400W

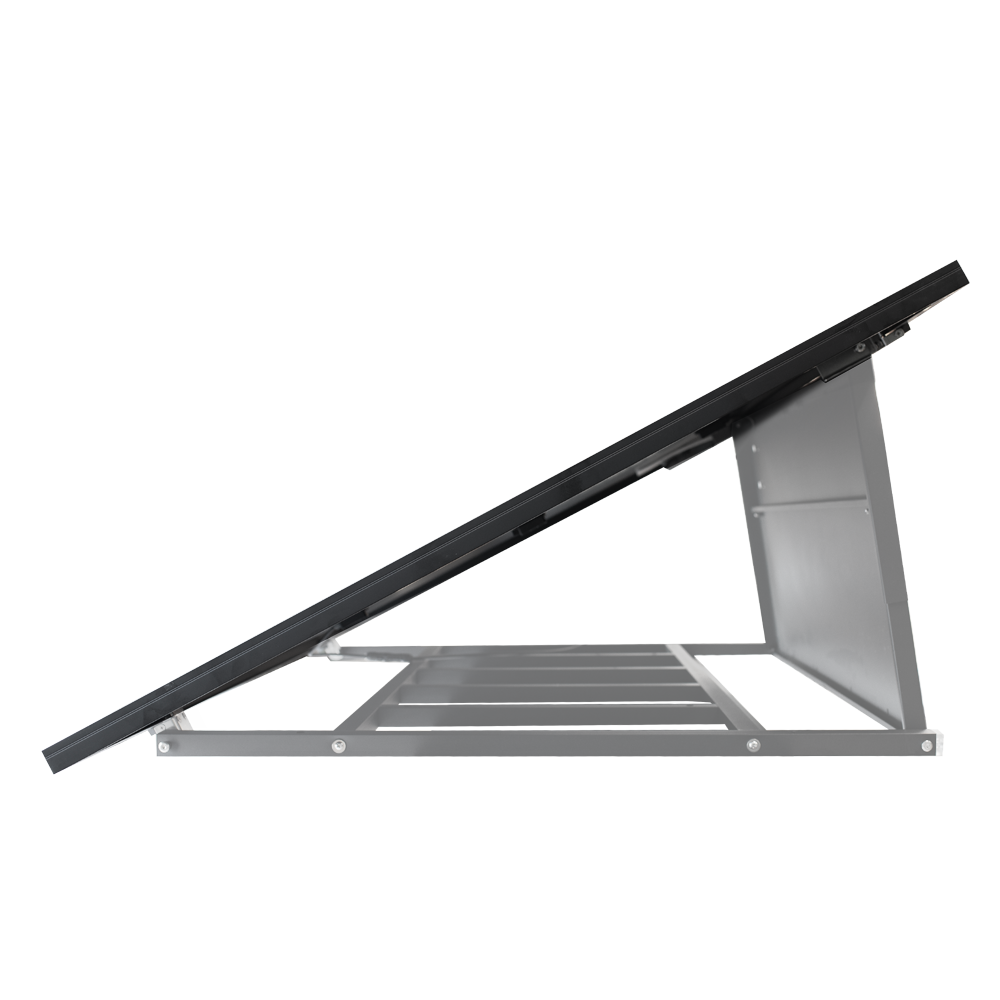

Pop Up support structure suitable for floor mounting
Silver color
Pre-assembled for easy installation

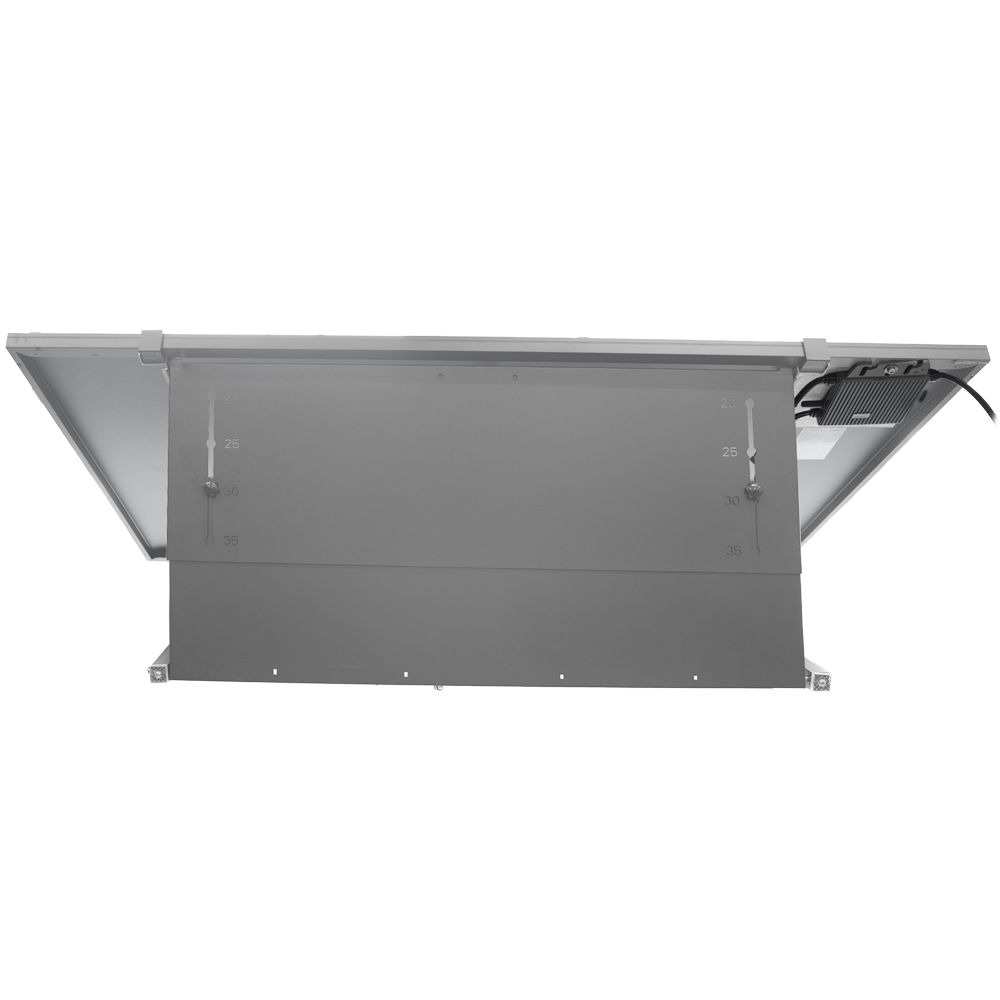

Adjustable installation angle
WiFi connection via Smart Plug for APP control for smartphones

Specifications

Photovoltaic Module
Power	400 W
Efficiency	20.7%
Colour	Black
Temperature coefficient	-0.35%/ºC
Number of modules	1
Cell type	Type P mono-crystalline
No. of cells	108
Dimensions	1722 × 1134 × 30 mm
Microinverter
Model	M400
Output power	400 W
Rated output voltage	220/230/240 V
Nominal frequency	50/50 Hz
Power factor	>0.99
Harmonic current distortion	<3%
Longitud de cable AC	5m
Conexión máxima de microinversores	Hasta 11 microinversores de 400W
Conexión	WiFi 2.4GHz
App	Tuya Smart Home
Parámetros Medioambientales
Grado de protección IP	IP67
Rango de temperatura ambiente de trabajo	-40ºC a 60ºC
Humedad relativa de funcionamiento	0-100%
Altura máxima de operación	2000 m
Parámetros Mecánicos
Peso	29.5 kg
Dimensiones	1724(An) x 1164(Al) x 90(Fo) mm
Display	Indicadores LED
Color	Plata
