Name: TSOL-ESK400-AIRV
Brand: TSUN
SKU: TSOL-ESK400-AIRV
Price: 378.95 EUR
Availability: InStock

TSOL-ESK400-AIRV

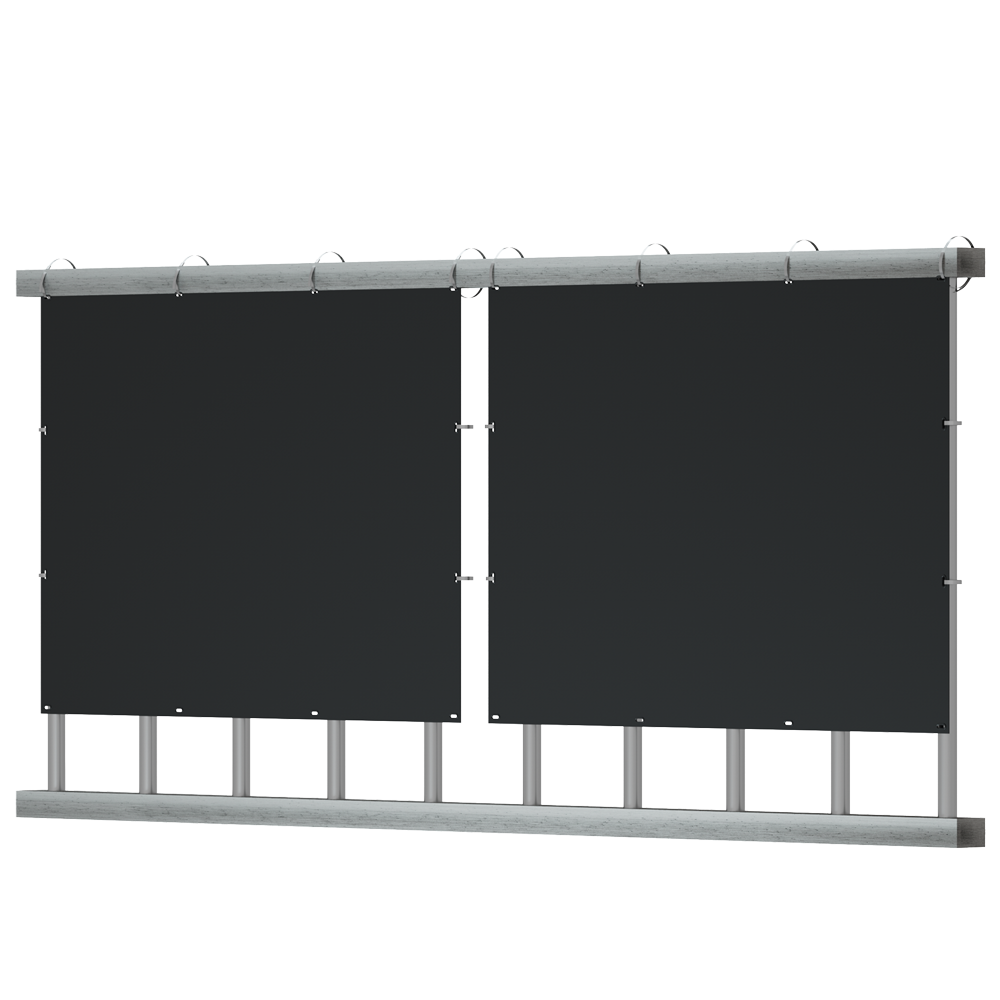

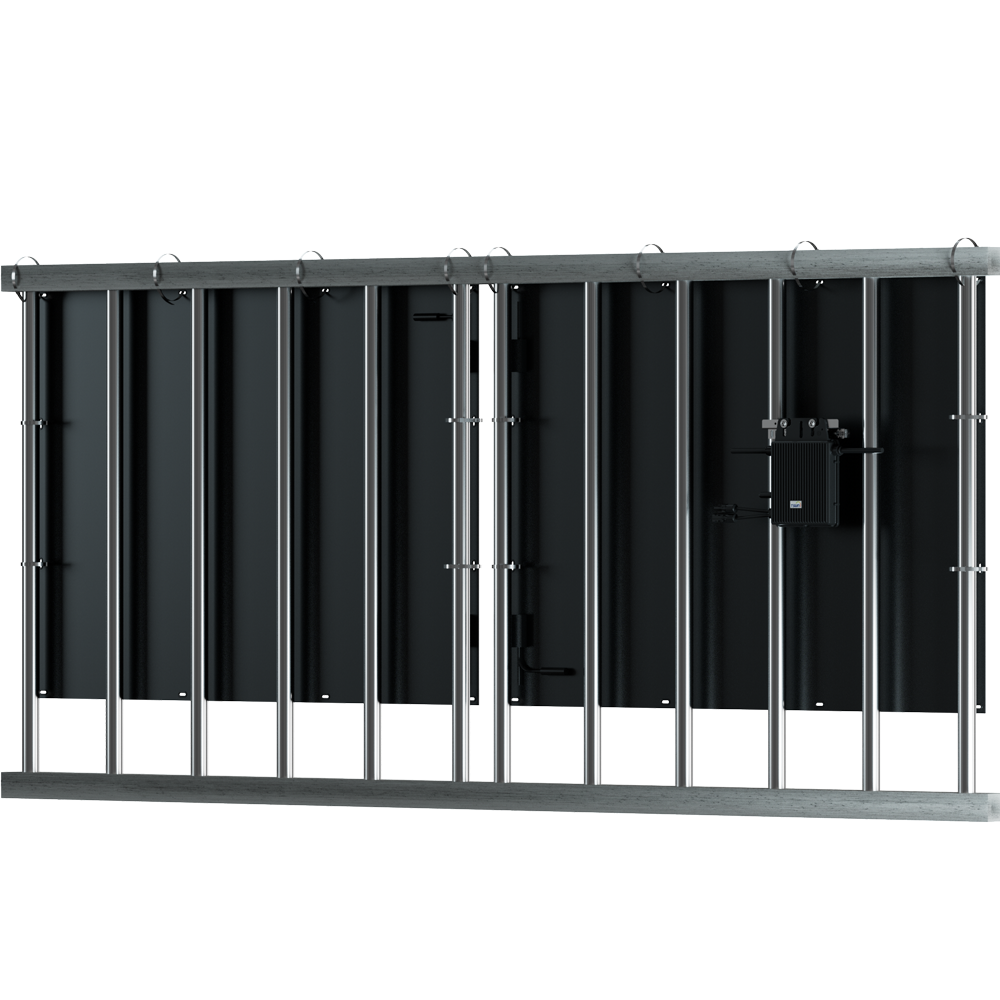

TSUN Solar Air Vertical Kit
2 lightweight panels 200W
Microinverter 400W
For balcony installation
WiFi connection
Allows connecting up to 11 kits together

TSUN's range of solar kits is a very practical solution for residential environments. Among its advantages are its DIY (Do It Yourself) philosophy, which makes its installation very simple, with no need for manual labor, and its versatility (with different installation options)

These kits consist of a top quality solar panel, microinverter with WiFi connection for monitoring and Schuko outlet.

In particular, the Air Vertical kits are ideal and valid for balconies, due to their lightness, their installation is even simpler.

TSUN
Solar Kit
2x Lightweight solar panel of 200W
Microinverter MS400 with an AC output power of 400W
Support structure suitable for balcony mounting
Black colour
Pre-assembled for easy installation
WiFi connection for control via smartphone APP
AC outlet to Schuko

Specifications

Photovoltaic Module
Power	2x 200 W
Efficiency	20.4%
Colour	Black
Temperature coefficient	-0.36%/ºC
Certification	CE, TUV, UL, CQC, IEC 61215,IEC 61730
Weight	2x 3.4 kg
Dimensions	2x (1270 x 900 x 2.5 mm)
Microinverter
Model	MS400
Output power	400 W
Rated output voltage	220/230/240 V
Nominal frequency	50/60 Hz
Power factor	> 0.99
Harmonic current distortion	< 3%
AC cable length	5m
Connection	WiFi 2.4GHz
Certification	CE-LVD, CE-EMC, CE-RED, VDE 4105, EN 50549-1
Environmental Parameters
IP rating	IP67
Operating room temperature range	-25ºC to 65ºC
Operating relative humidity	0-100%
Maximum operating height	2000 m
Mechanical Parameters
Weight	13kg
Dimensions	1340 x 960 x 65 mm
Colour	Black
Bracket Certification	EN 10204:2017, EN 1090-1:2009+A1:2011
Warranty	12 years
