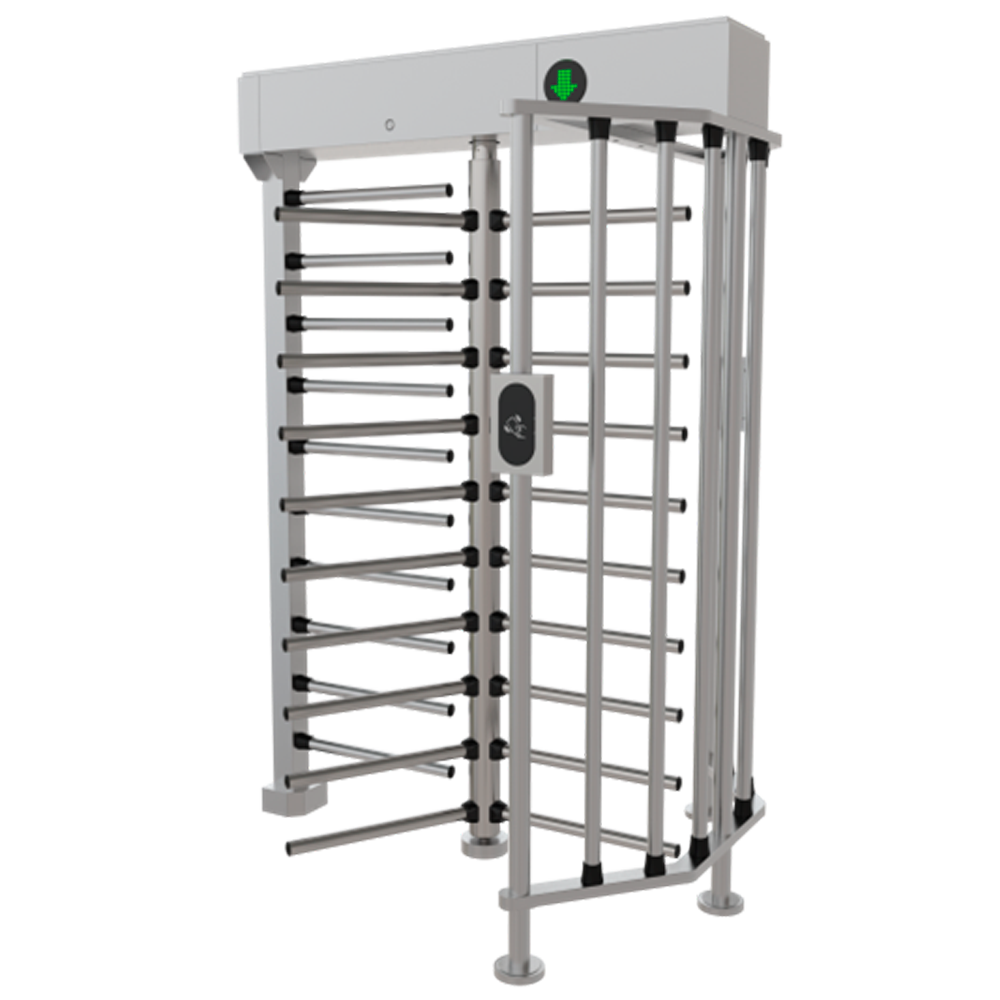

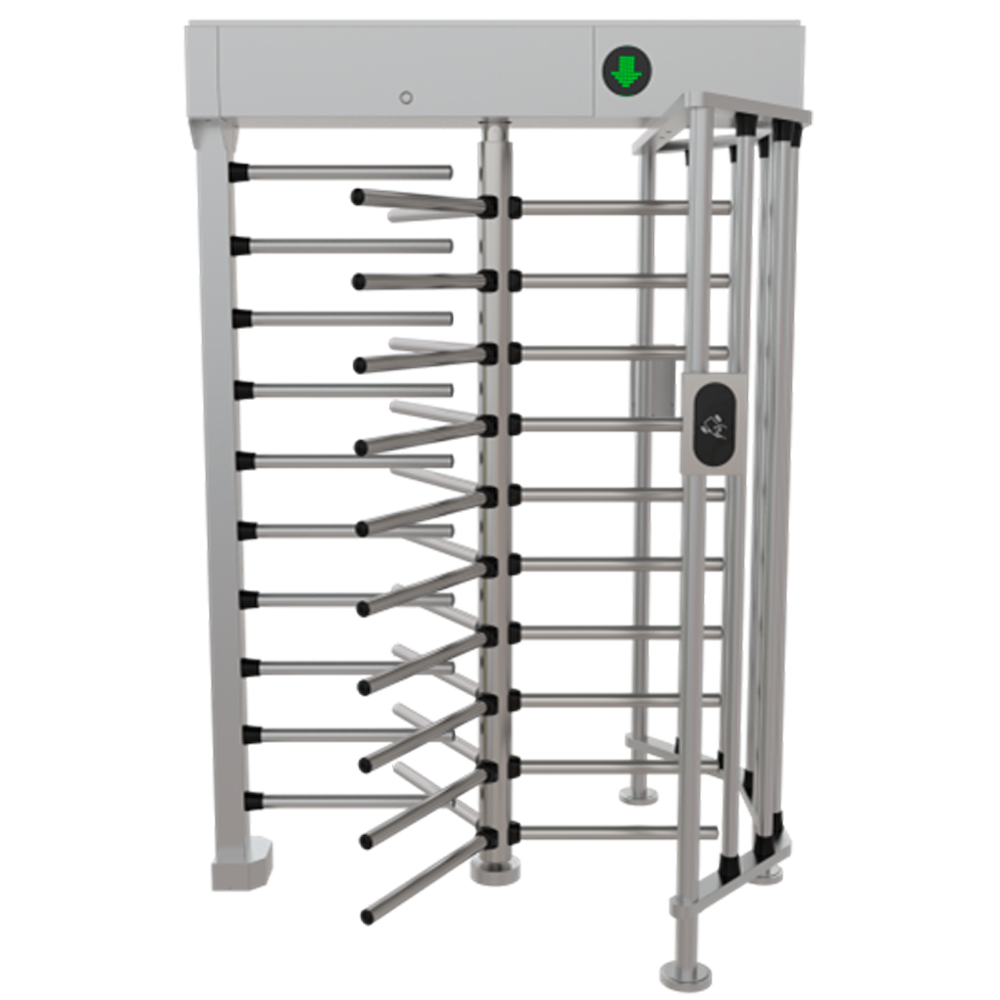

TS-FHT965
Ga direct naar de productinformatie
TS-FHT965
- Bidirectional access turnstile
- 10 detachable rotating arms
- Times, alarms and opening modes
- Pitch dimensions 600 mm | Adjustable strength
- Stainless steel SUS304 of 1.2 mm
- Outdoor certificate IP54
- Bidirectional single-access turnstile
- Semi-automatic rotary movement of the arms
- Heavy duty detachable arms
- Pitch width of 600 mm
- Led indicator
- Mechanical actuation force control system
- Emergency mode
- Main turnstile configuration board (opening times, counter, relay inputs)
- Made of stainless steel SUS304
- Configuration Modes: one- or two-way with Access Control, free passage in one or two directions
- Compatible with Plug & Play third-party access control systems
- Universal covers for card readers
- Suitable for exterior IP54
Specifications
| Model | TS-FHT965 |
| Controller | Turnstile control board compatible with any Access Control system |
| Led indicator | LED status indicator |
| Arm movement | Mechanic Rotation of the arms (pushed by the user) |
| Emergency mode | Emergency power loss arm release |
| Security | Trio of 10 arms/anti-tailgating safety Mechanical actuation force control system Detachable arms for easy installation |
| Compatibility | Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction mechanically configured |
| Manufacturing material | Stainless steel SUS304 of 1.2 mm thickness and PC covers |
| Passage speed | 30-35 persons/minute |
| Reliability | 5.000.000 of cycles |
| Power | AC 100/240 V / 50 W max. |
| Temp. operation | -20º C ~ +70º C |
| Lane Width | 600 mm |
| Dimensions of pass | 600 (w) x 1300 (d) mm |
| Dimensions | 2230 (H) x 1400 (W) x 1300 (D) mm |
| Weight | 115 kg |
| Protection | Suitable for exterior IP54 |
In the box
- Turnstile
- Mounting material
- User instructions
- Security keys
