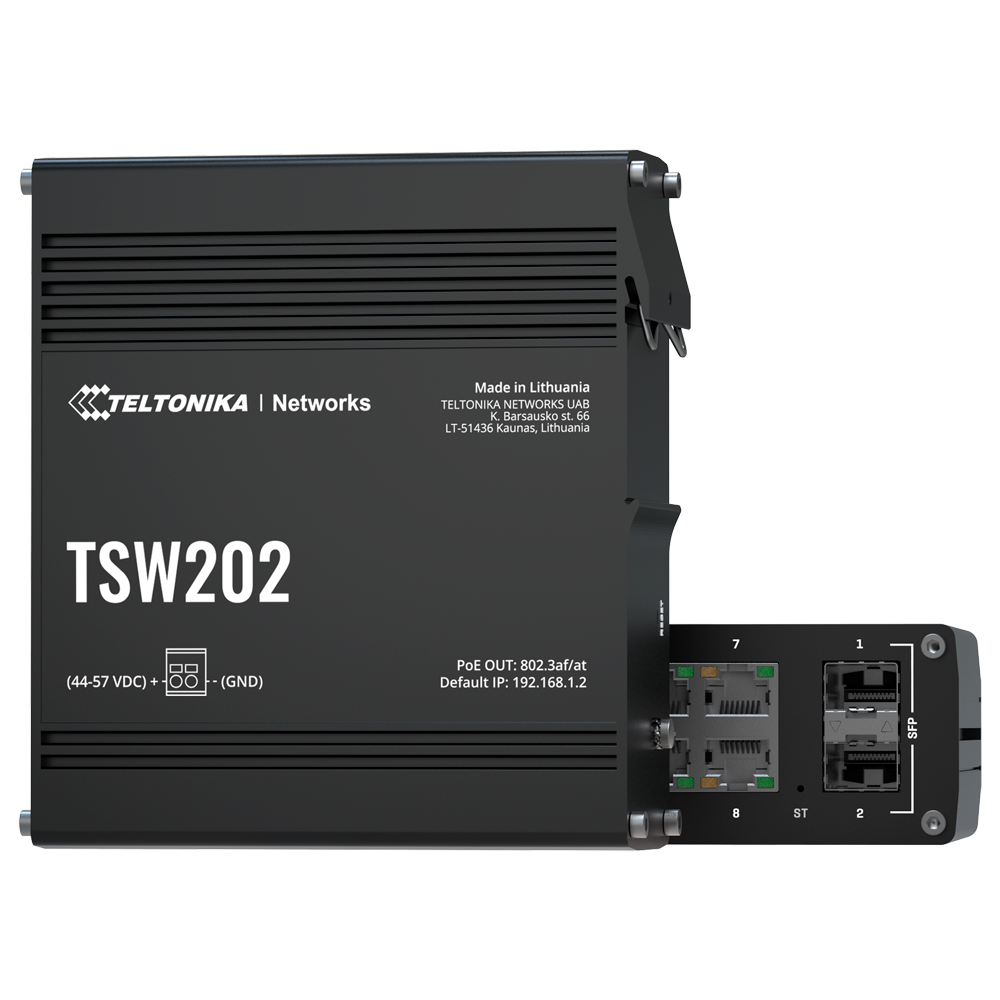

TK-TSW202
Ga direct naar de productinformatie
TK-TSW202
- Teltonika Industrial Manageable PoE Switch
- 8 Ethernet RJ45 Gigabit +2 SFP Gigabit ports
- 8 Ethernet PoE+ Ports 802.3af/at
- Up to 30W per PoE Port
- Up to 240W of PoE Power
- Ruggedized Aluminum Housing
- Teltonika
- Industrial Managed PoE Switch
- 8 Ethernet RJ45 Gigabit ports
- 2 SFP Ports
- 8 PoE+ Ports 802.3af/at
- Up to 30W per port
- Total PoE power 240W
- DC power connector of 2 industrial power supply pins
- DC 7 to 57V
- Status LEDs
Specifications
| Interface | 8 ports RJ45 10/100/1000 Mbps + 2 Gigabit SFP Ports |
| Operating System | TSWOS (Based on OpenWRT) |
| PoE | Ports 1~8 802.3af/at Up to 30 W per port |
| PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash |
| VLAN | 802.1Q to 4094 |
| Redundancy Protocols | Spanning Tree (STP, RTSP) MRP |
| Network Protocols and Technologies | LLDP Profinet (class B) Energy Efficient Ethernet 802.3az MRP client/manager role Forwarding table Jumbo Frame 10000 bytes Loop Prevention Port Mirroring Port Isolation SNMP v2/v3 |
| DHCP | Ipv4 Server and Client / Ipv6 Client |
| Routers | IPv4/IPv6 static routing, DHCPv6 client, static IPv6 address |
| QoS | Port priority DSCP priority 802.1p priority TOS Scheduling method SP/WFQ/WRR Bandwidth control Rate limiting, storm control Traffic Shaper Port-based shaping |
| Management protocols | Web/Cloud/CLI/FOTA |
| Power | DC connector 2 Industrial pins 7~57VDC without powering PoE devices and 44~57VDC powering PoE devices (Power supply not included) Maximum consumption 8W / 248W with PoE |
| Material | Anodized aluminum |
| Temp. operation | -40º C ~ +75º C |
| Operating humidity | 10 ~ 90 % (non-condensing) |
| Mounting kit | Rail Mounting Kit Compact Rail Mounting Kit (Optional) Surface Mount Kit (Optional) |
| Protection | IP30 |
| Dimensions | 44,2 (Al) x 132 (W) × 122,2 (D) mm |
| Weight | 610 g |
In the box
- Industrial Switch
- Quick Start Guide
