SW0504POE-G-60-OUT
Ga direct naar de productinformatie
SW0504POE-G-60-OUT
- Outdoor PoE switch IP65
- 4 RJ45 PoE + 1 Uplink RJ45 + 1 Uplink SFP
- 4 x 100/1000 Mbps 1 x Gigabit 1 x SFP
- 30W per port / Total maximum 60W
- Norm IEEE802.3af/at - PoE/PoE+

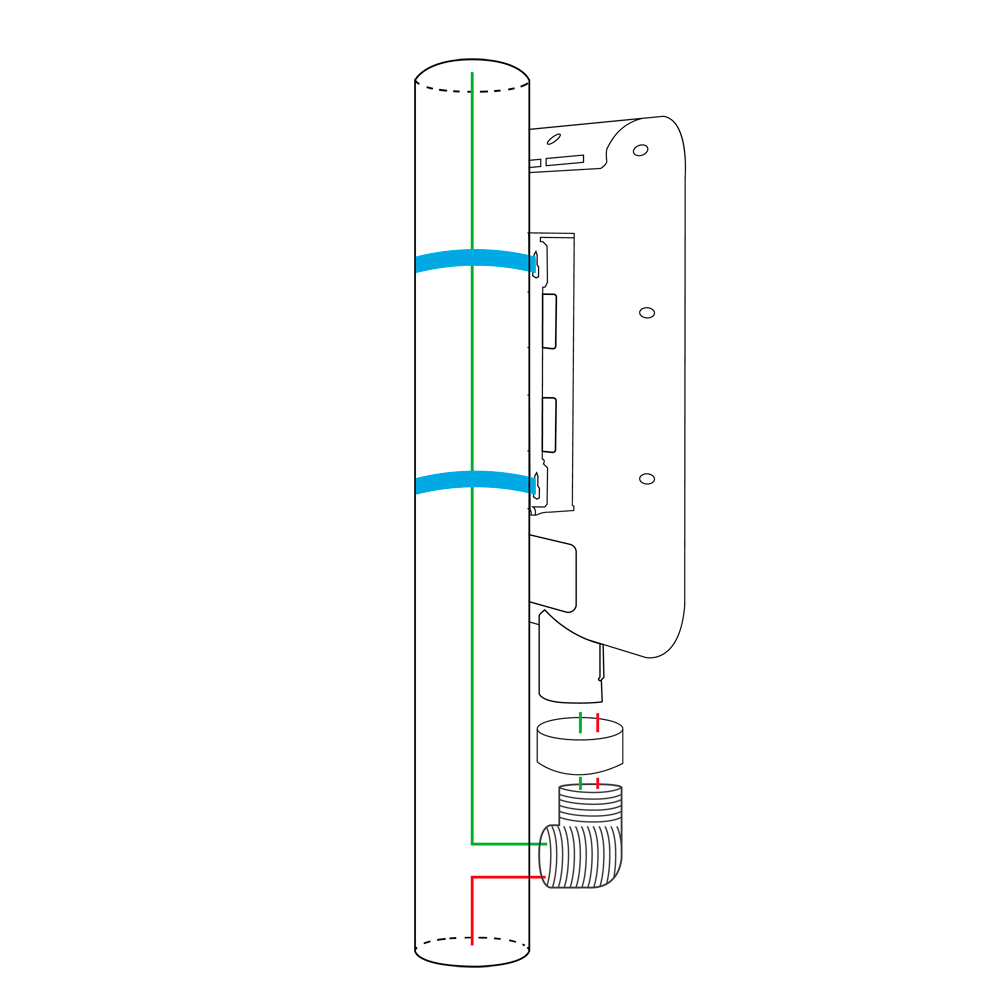

- Wall and/or Pole Mounting
- External Switch
- (1~4) Ports RJ45 100/1000 Mbps + 1 Uplink RJ45 Gigabit Port + 1 Uplink SFP Port
- 4 PoE/PoE+ ports (ports 1~4)
- Supports PoE power up to 60 W total for all ports
- Compatible with PoE IEEE802.3af/at
- IP65
Specifications
| Interface | Ports RJ45: 4 PoE+ 1 Uplink port SFP ports: 1 SFP |
| Port speed | 4x 100/1000 Mbps + 1x Uplink 10/100/1000 Mbps + 1x SFP |
| Packet Forwarding Speed | 12,96Mbps |
| Power supply | Up to 30 W per port (60 W for the complete device) |
| PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Protection | IP65 |
| Power | AC 100 V - 220 V |
| Operating temperature | -20º C ~ 60º C |
| Dimensions | 300(D) x 300(W) x 220(An)mm |
In the box
- PoE Switch
- User instructions
- Metal flange
