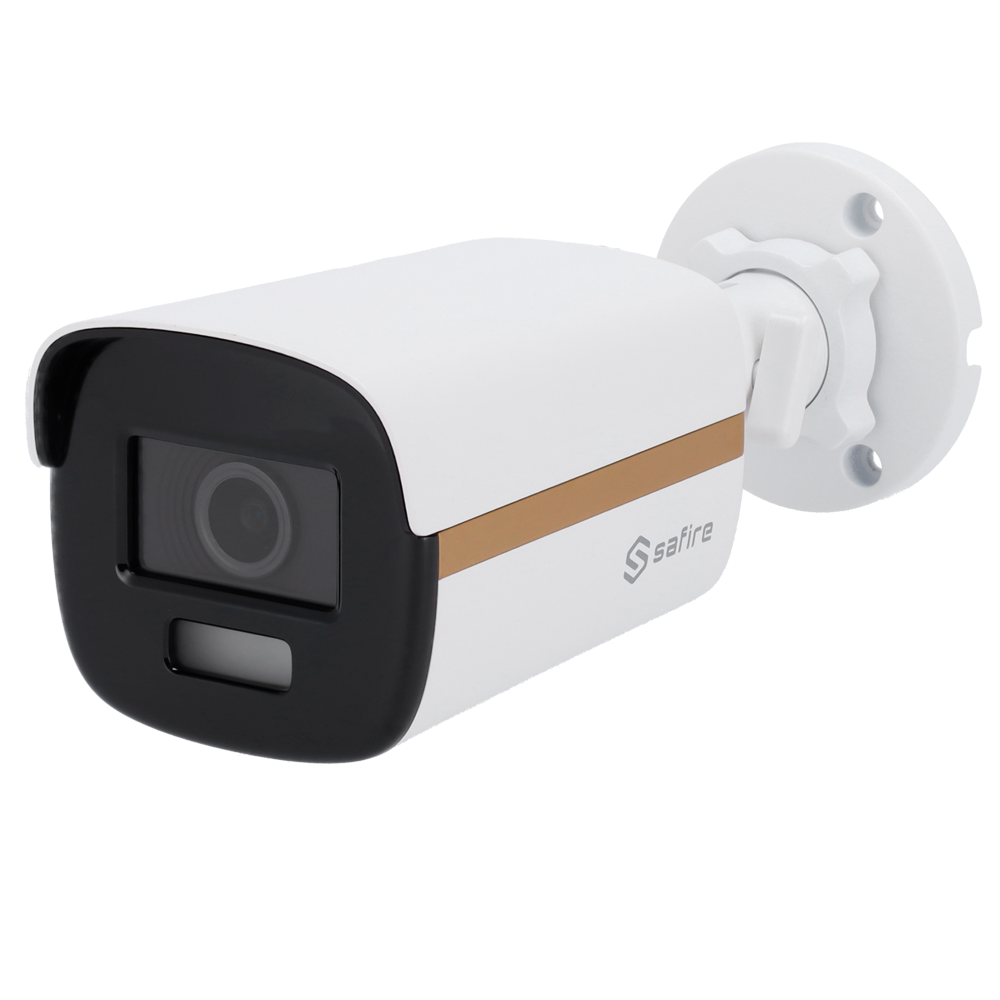

SF-B025CW-8U-POC
Ga direct naar de productinformatie
SF-B025CW-8U-POC
- Safire Bullet Camera ULTRA Range
- HDTVI output
- 8Mpx CMOS Night Color
- Lens 2.8 mm | White light range 40 m
- WDR (130 dB) | 3D DNR
- Waterproof IP67 | PoC.at
- Safire
- HDTVI Bullet Camera
- ULTRA Range
- 8Mpx CMOS Night Color
- 8Mpx (3840×2160)
- HDTVI output
- 2.8 mm Lens
- Color Image 24/7
- White light range 40 m
- IR Cut
- WDR
- 3DNR
- Coaxial cable power supply PoC.at
- Weatherproof IP67
Specifications
| Brand | Safire |
| Range | ULTRA |
| Image sensor | 8Mpx CMOS |
| Maximum resolution | 3840 (H) × 2160 (V) |
| Resolution | 8Mpx@12.5/15fps, 3K@20fps, 1080p@25fps/30fps |
| Lens | 2.8 mm |
| FOV | H: 110º, V: 59º |
| Minimum illumination | 0.0005 Lux @ (F1.0, AGC ON) 0 Lux with white light, range 40 m |
| Day / Night | Colour |

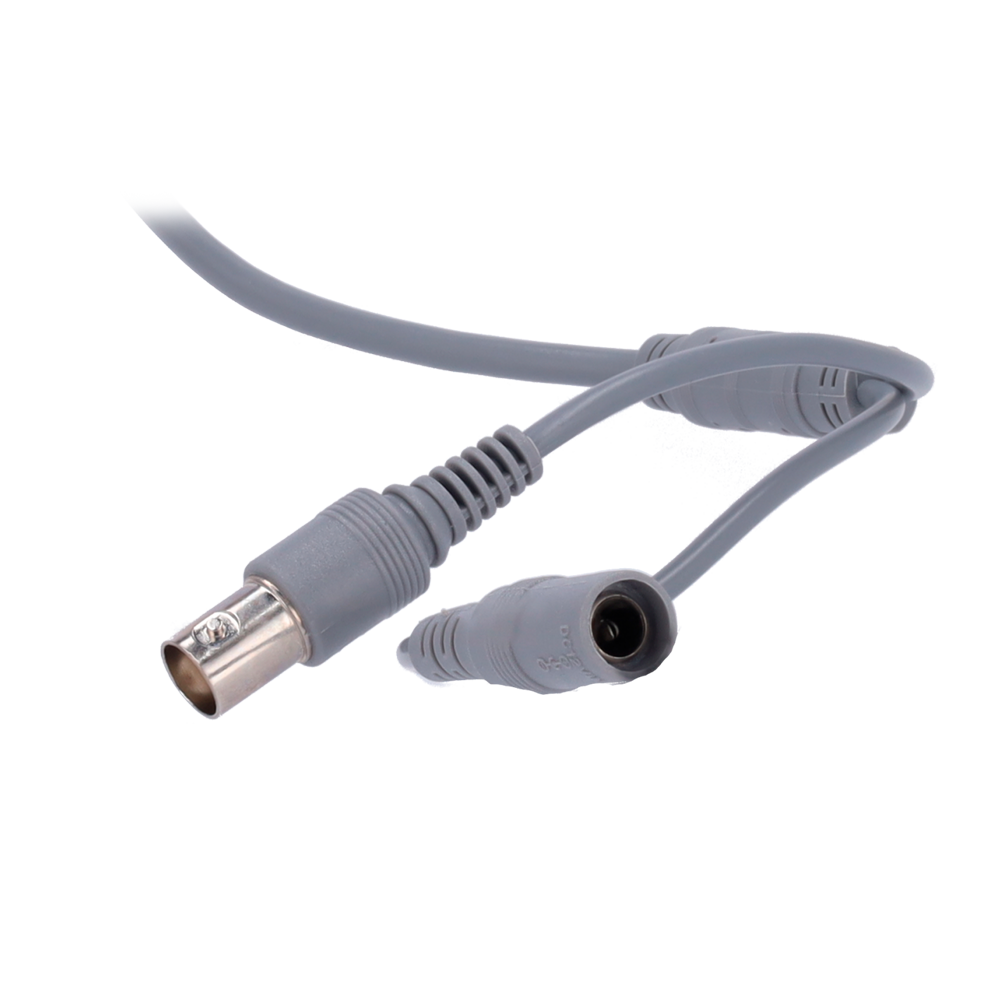

| Video output | 1 x BNC HDTVI |
| Video output switching | Does not have |
| Audio | Does not have |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | WDR (130dB), 3D DNR, BLC, HLC, HLS, Mirror, Anti-Banding, Defective Pixel Correction Smart Light, 4 Privacy Masks |
| Motion Detection | Up to 4 programmable areas |
| Lens Adjustment | 3 Axis |
| Power | DC 12 V / 425mA, 5.1W max PoC.at (Power over coaxial cable) |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metallic |
| Dimensions | 194.2 (Fo)× 78 (W)× 74.5 (H) mm |

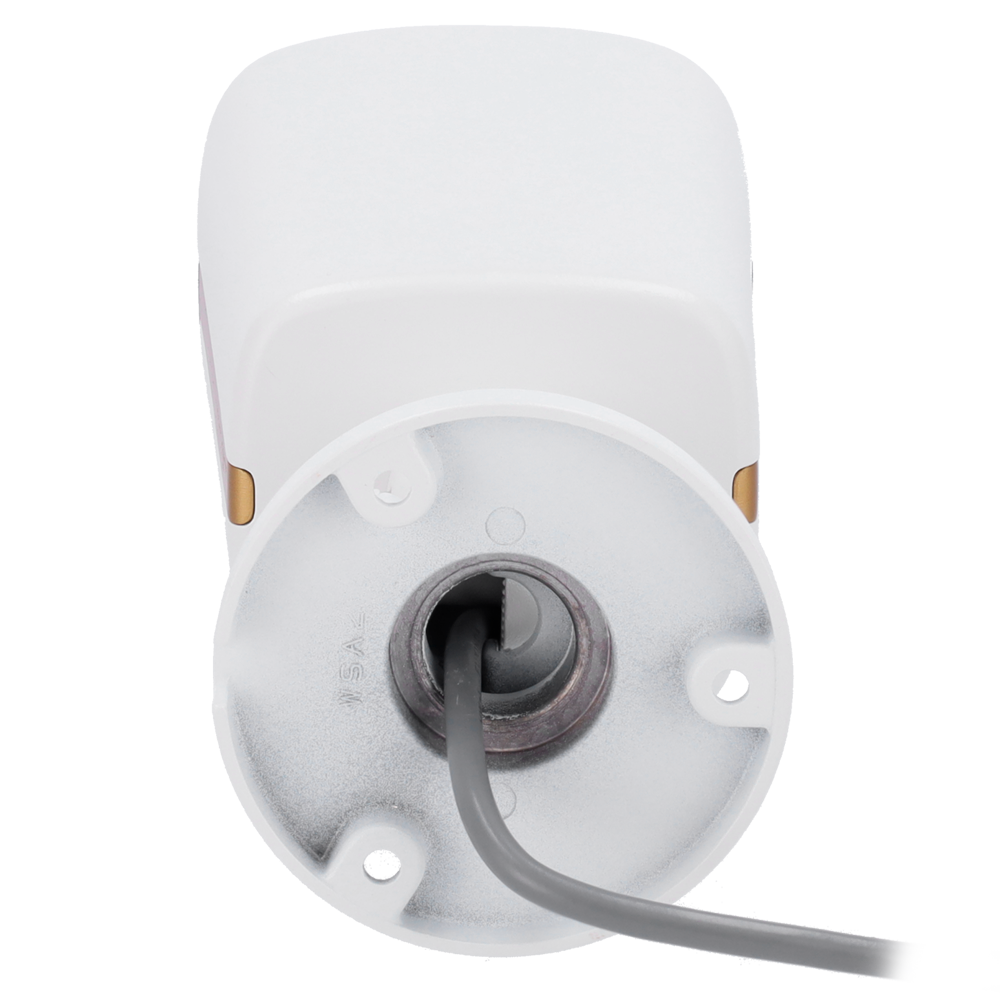

| Base diameter | 55 (Ø) mm / 3 screws |
| Weight | 566 g |
In the box
- Safire HDTVI Bullet Camera
- 3 plugs and 3 screws for mounting
- User instructions
- Allen wrench
- Installation template
