RG-EST450G

RG-EST450G

Log in voor B2B prijs
  • Reyee Wireless bridge up to 867Mpbs
  • Wireless link up to 5 km
  • Frequency 5.15 GHz 5.85 GHz
  • Proprietary Protocol based on TDMA
  • IP55, suitable for exterior
  • Base Station of 1:16 (Up to 16 CPE)

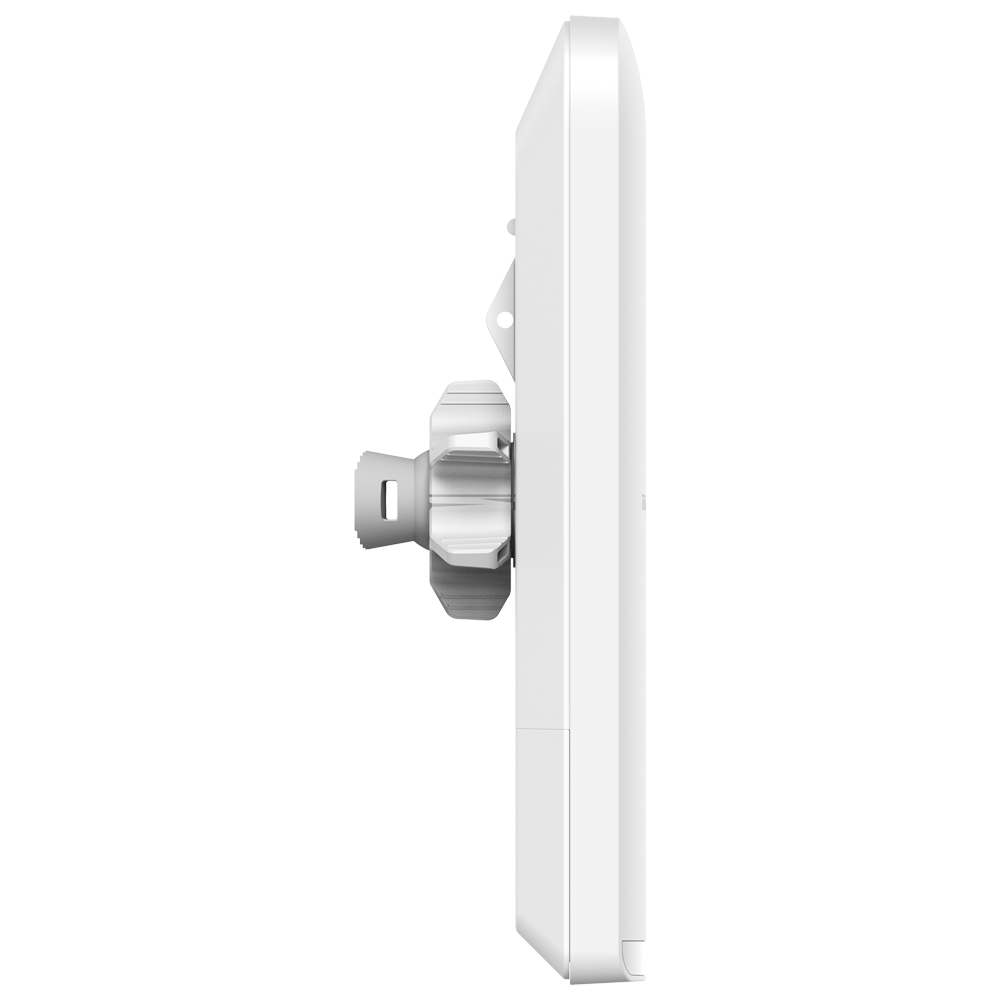

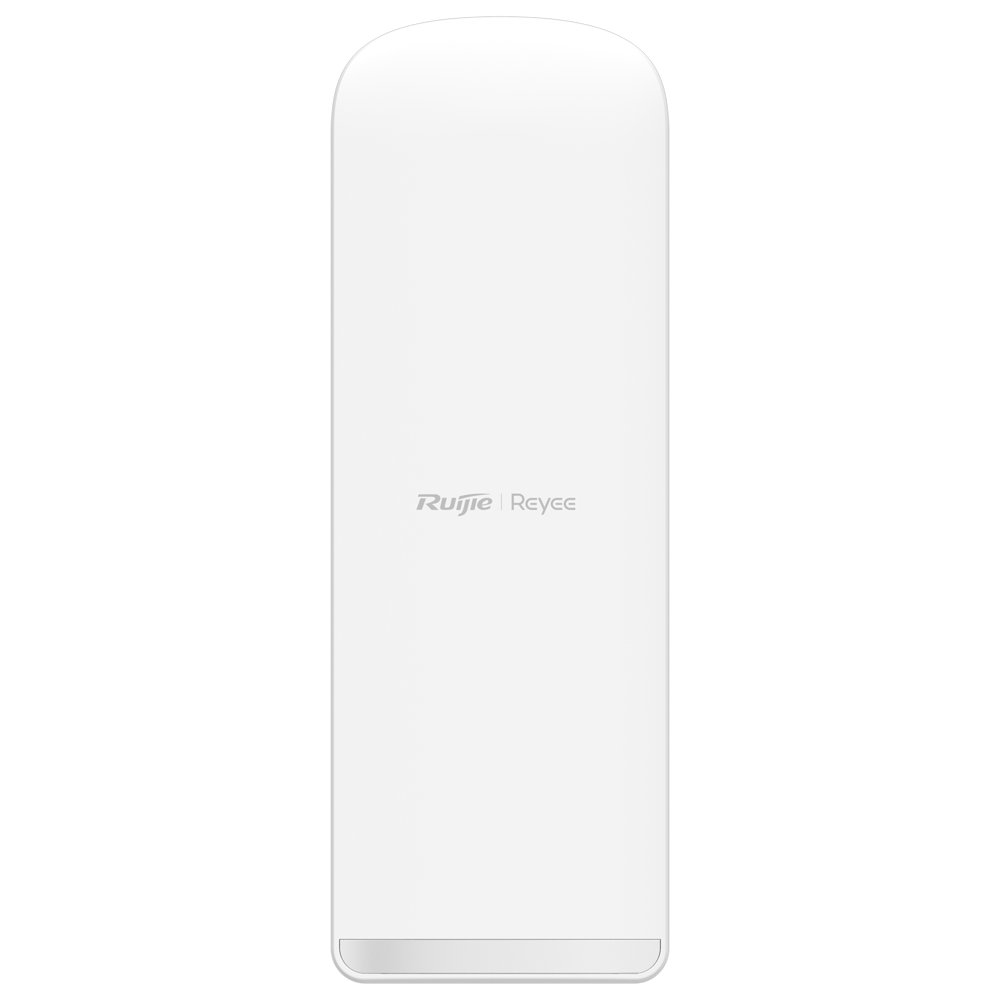

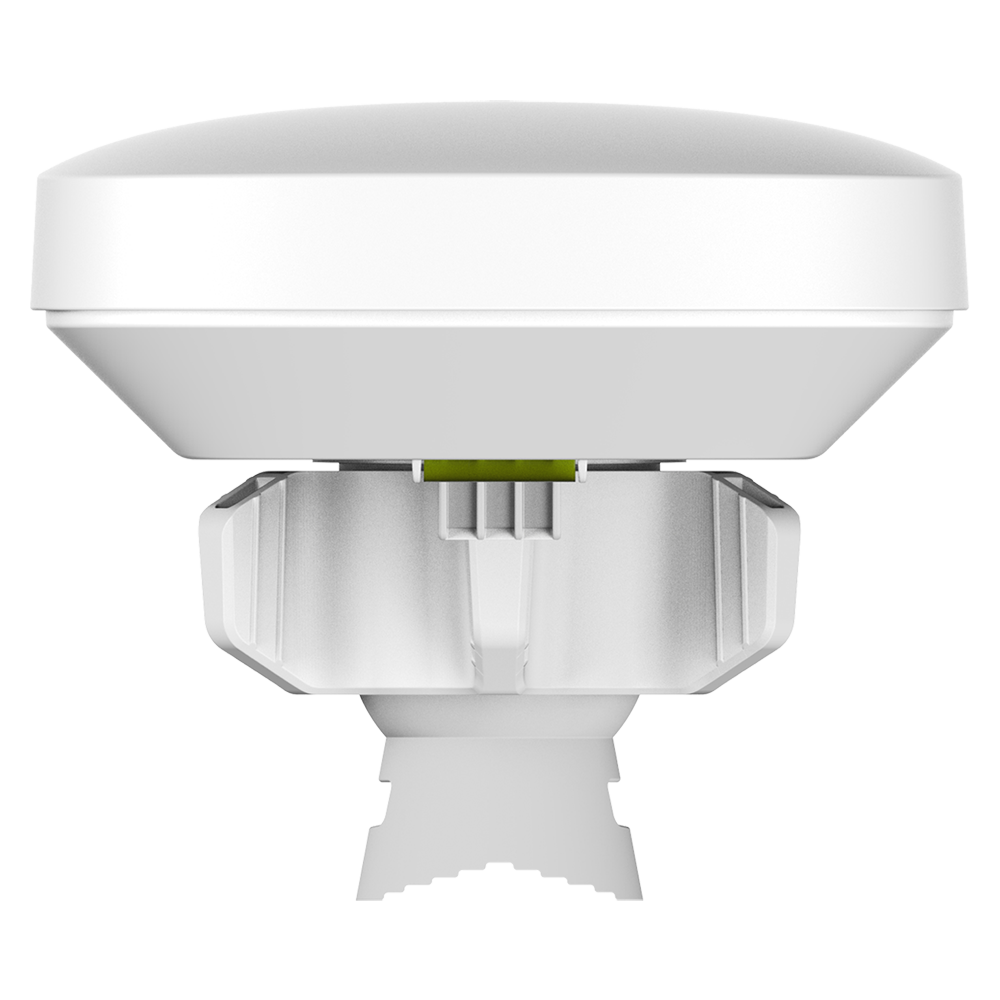

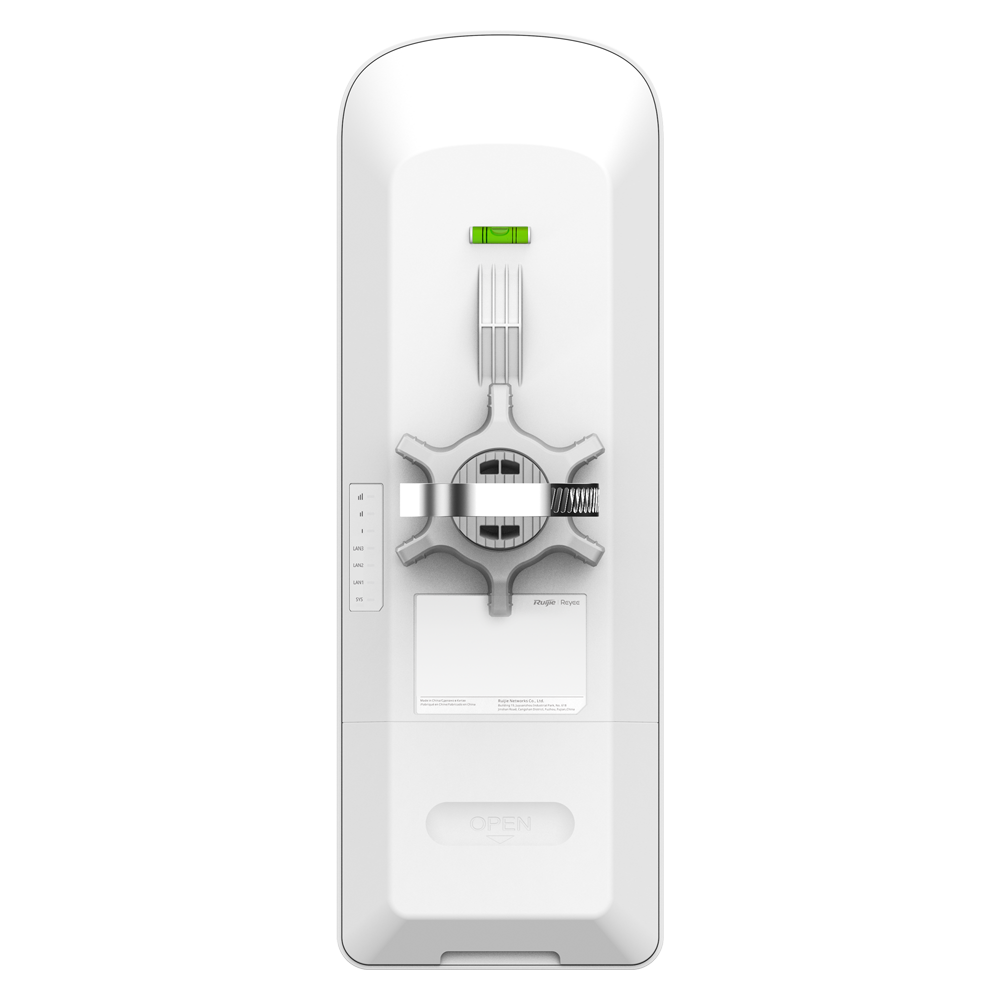

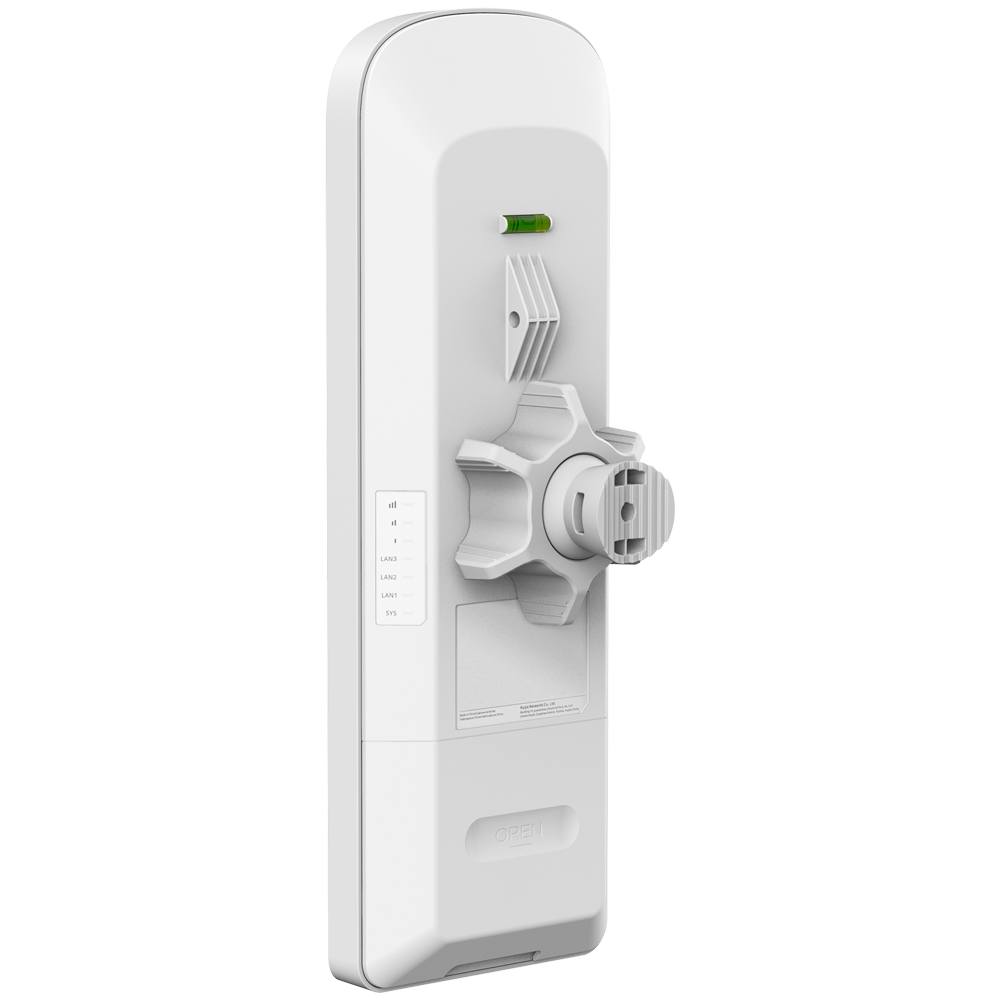

The RG-EST450G is a high-performance wireless station, designed for PTMP (point-to-multipoint) applications in the 5 GHz band, with a wide horizontal coverage of 120°. Ideal for video surveillance deployments, connections between multiple locations and demanding outdoor environments requiring high capacity and stability.

Among its main features are:

Wireless speeds up to 867 Mbps at 5 GHz and 150 Mbps at 2.4 GHz, with support for Wi-Fi 5 (802.11ac) and technologies such as 2x2 MIMO and 256-QAM modulation for higher throughput.

Coverage up to 5 km. It is capable of supporting up to 16 PTMP links, ideal for connecting multiple devices or IP cameras from a single central point.

Horizontal coverage angle of 120° and antenna gain of 15 dBi, ensuring wide and efficient coverage for remote stations.

Advanced alignment and management tools, such as spectrum scanning, network diagnostics, speed testing, and coverage visualization with AI Heatmap.

Compatibility with Ruijie's SON (Self-Organizing Network) function, which allows the device to be easily integrated with other Reyee series equipment for simplified management.

Flexible power supply via PoE 802.3af/at, Passive PoE or direct DC source, adaptable to different installation environments.

Rugged design with IP55 certification and ESD protection up to 15 kV, ideal for operation in harsh outdoor conditions.

Unlike the RG-EST350G, model, the RG-EST450G is supplied as a single unit, intended to act as a base station in multipoint topologies, so it can be paired with several compatible CPEs, such as the RG-EST350G.

Specifications

Brand Reyee
Wireless standard Proprietary Protocol
Mode of Operation Point to Point / Point - Multipoint (up to 16 CPE)
Frequencies 5.15GHz - 5.85 GHz and 2.412 GHz - 2.472 GHz (Management network)
5 GHz Channel Width Auto/20/40/80 MHz
2,4 GHz Channel Width Auto/20/40 MHz
Distance Up to 5 km in ideal conditions
TDMA Fixed Mode / Flexible Mode
Maximum transmitting power 2,4 Ghz 100 mW (20 dBm)
Maximum transmitting power 5 Ghz 400 mW (26 dBm)
Integrated antenna 15 dBi Dual directional

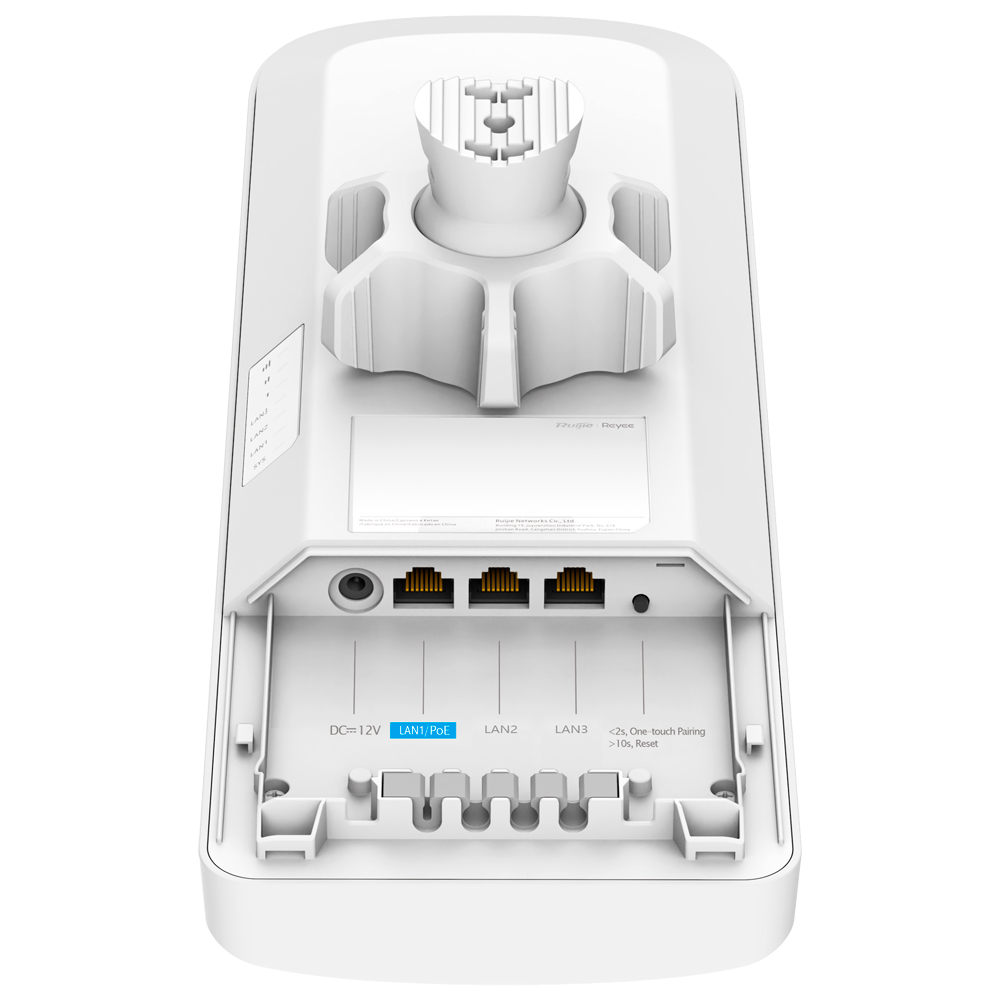

Ports 3 x 10/100/1000Base-T RJ45
Management Configuration via web interface, One-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan and Link Optimization, configuration with management radius at 2,4 Ghz
Additional functionalities Management security WPA2-PSK, Internet access from the management radio, SSID Masquerading, Spectrum Analysis, Alignment Tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, SNMP
Power 12 VDC and 24 VDC non-standard POE
PoE 802.3af/at
Overvoltage protection Common: ±4 kV Differential: ±2 kV
Electrostatic Discharge Protection Contacto=8 kV, Discharge Aérea=15 kV
Power consumption < 12 W
Operating temperature -40 °C ~ 80 °C (When using power adapter the maximum operating temperature of the device and power adapter is 60º max)
Dimensions 355 ×124 ×48 mm (Without anchor)
Weight 830 g

In the box

  • RG-EST450G
  • Passive PoE Injector
  • DC power adapter
  • Installation hardware kit
  • Instructions
