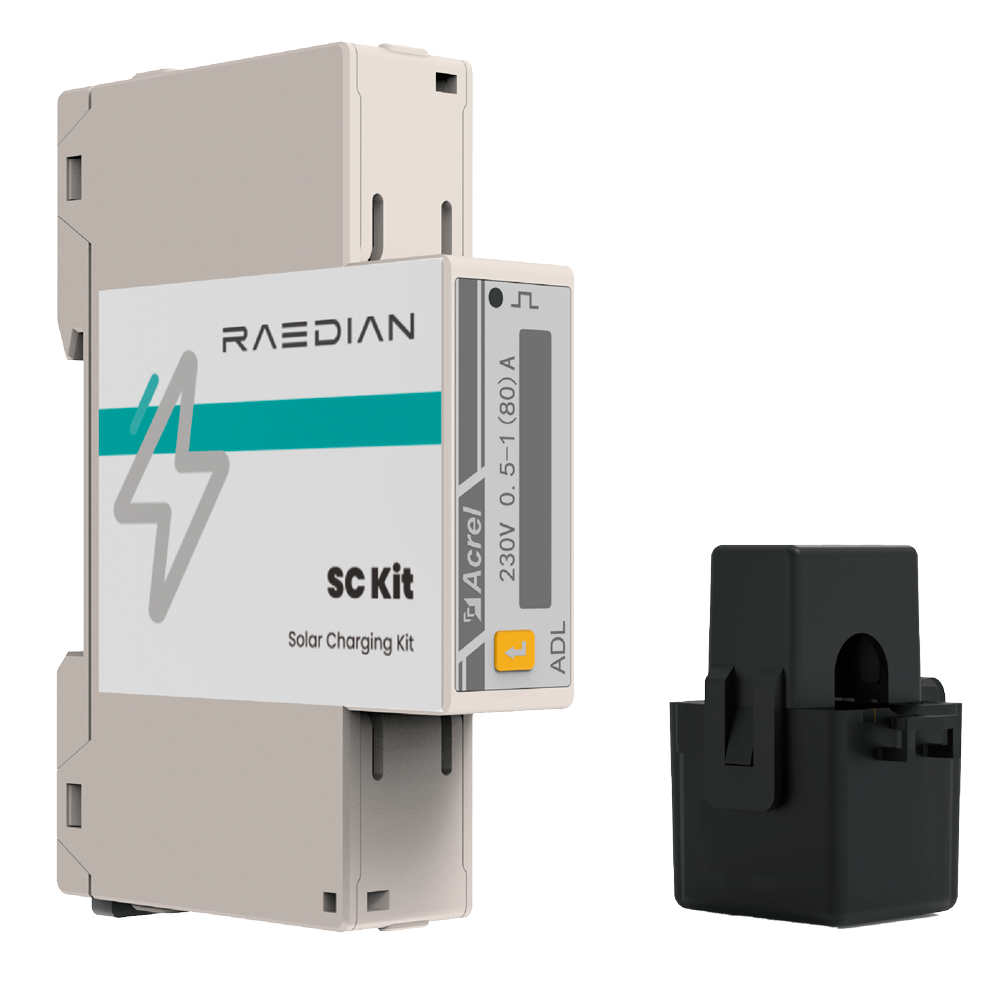

RD-SCK-1P-1CT
- Raedian Smart Meter
- Compatible with NEO
- Single-phase | Up to 80A
- Bidirectional
- DIN rail mount
- Accuracy Class I

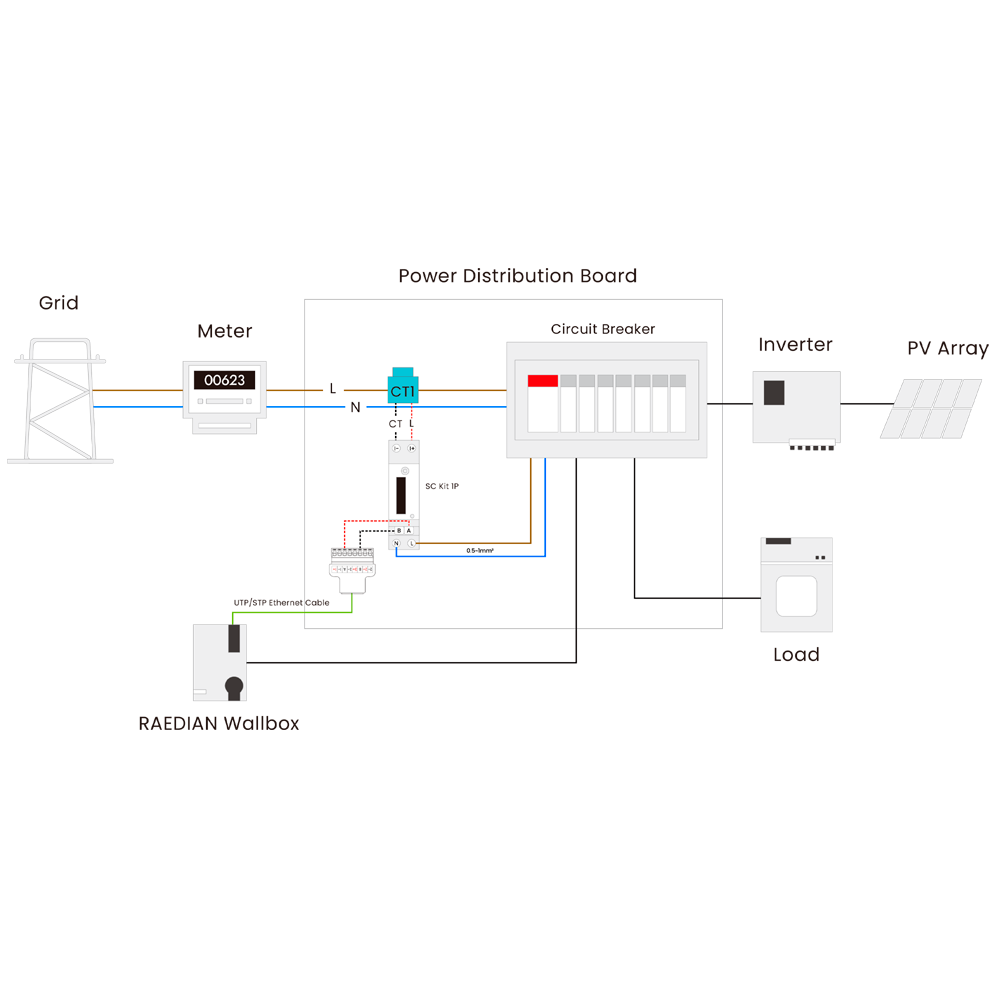

The Smart Meter RD-SCK-1P-1CT is the ideal complement to the single-phase NEO range of chargers in industrial environments. Class I, its measurement accuracy is very high and, being bidirectional, it is also capable of measuring the output of photovoltaic systems without additional clamps if necessary, so that the Solar Only mode (charging only with solar energy) can be used.
- Raedian
- Smart Meter
- Single-phase
- Bidirectional
- Compatible with NEO model
- TC of 80A included
- DIN-rail installation
- Connection RS485
- Modbus RTU protocol
- Optimum for single-phase industrial installations with photovoltaic system
- Accuracy Class I
Specifications
| Brand | RAEDIAN |
| Device type | Bidirectional Smart Meter |
| Nominal voltage | Single phase 230Vac |
| Consumption | <0.2 W |
| Medida de potencia | Activa, reactiva, aparente |
| Corriente de entrada | 80A con pinza 80A incluida |
| Frecuencia de red | 45-65 Hz |
| Clase de precisión | Clase I +-0,5% |
| Montaje | Carril DIN |
| Medición | Clase B (transformador de corriente dividido) |
| Temperatura de funcionamiento | -40 ~ 70ºC |
| Comunicación | Interfaz RS485 y protocolo Modbus RTU (1-247) |
| Tasa de baudios | 1200bps - 38400bps |
| Compatibilidad | Cargadores NEO 7,4 KW (Monofásicos) |
| Color | Blanco |
| Dimensiones | 65 (Al) x 90 (An) x 18 (Fo) mm |
| Tamaño perforación CT | 10 mm |
| Sobrecarga | x1,2 de forma continua x2 por 1s |
| Tiempo de respuesta | <100ms (tensión, corriente, potencia) <1s (energía eléctrica) |
| Temperatura de trabajo | -40ºC - 70ºC |
| Humedad relativa | <95% (sin condensación) |
| Altitud | Hasta 3000m |
In the box
- Smart Meter
- Pinza CT 80A
