RD-GEMINI-22WD-SS-M1-P0
RD-GEMINI-22WD-SS-M1-P0
- Double socket charger for electric vehicles
- Power 2x22kW / 32A / Three-phase
- Connector type 2
- Protection IP55
- Communication 4G, LAN, WiFi, BLE
- MID Meter | RFID Reader

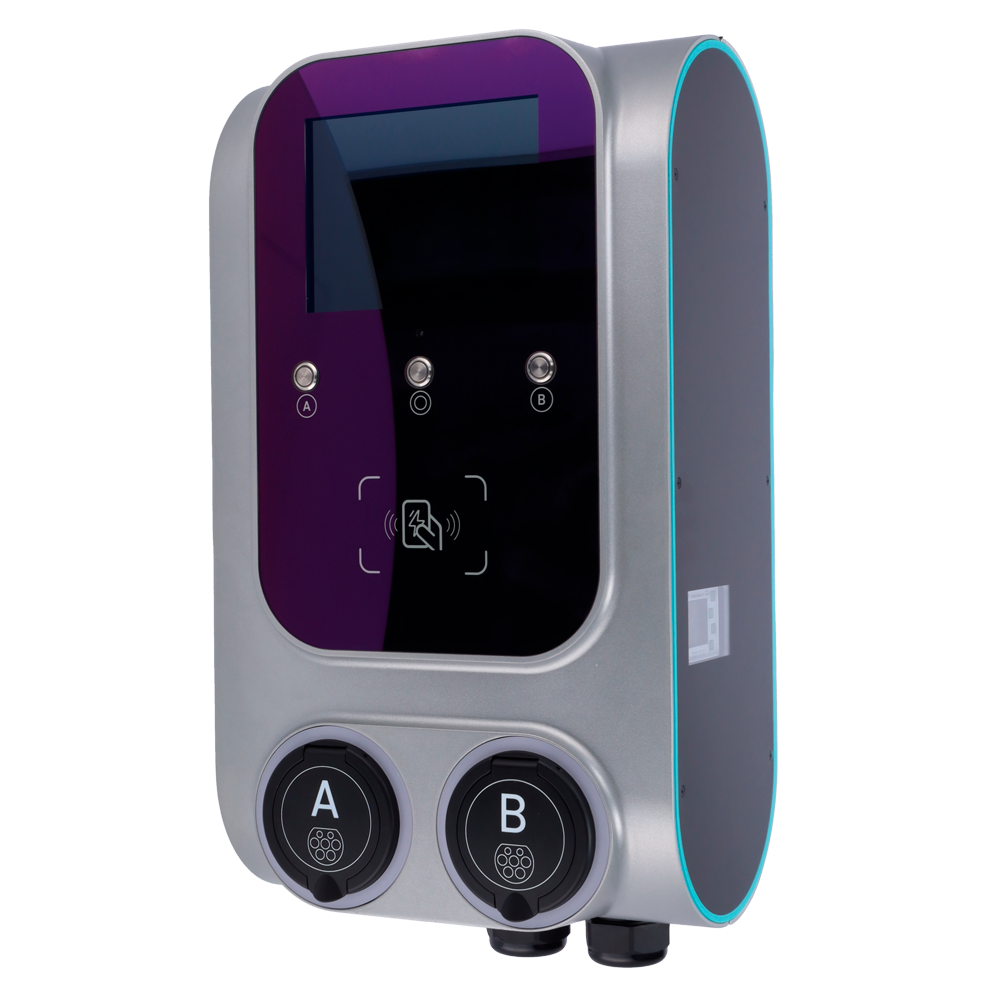

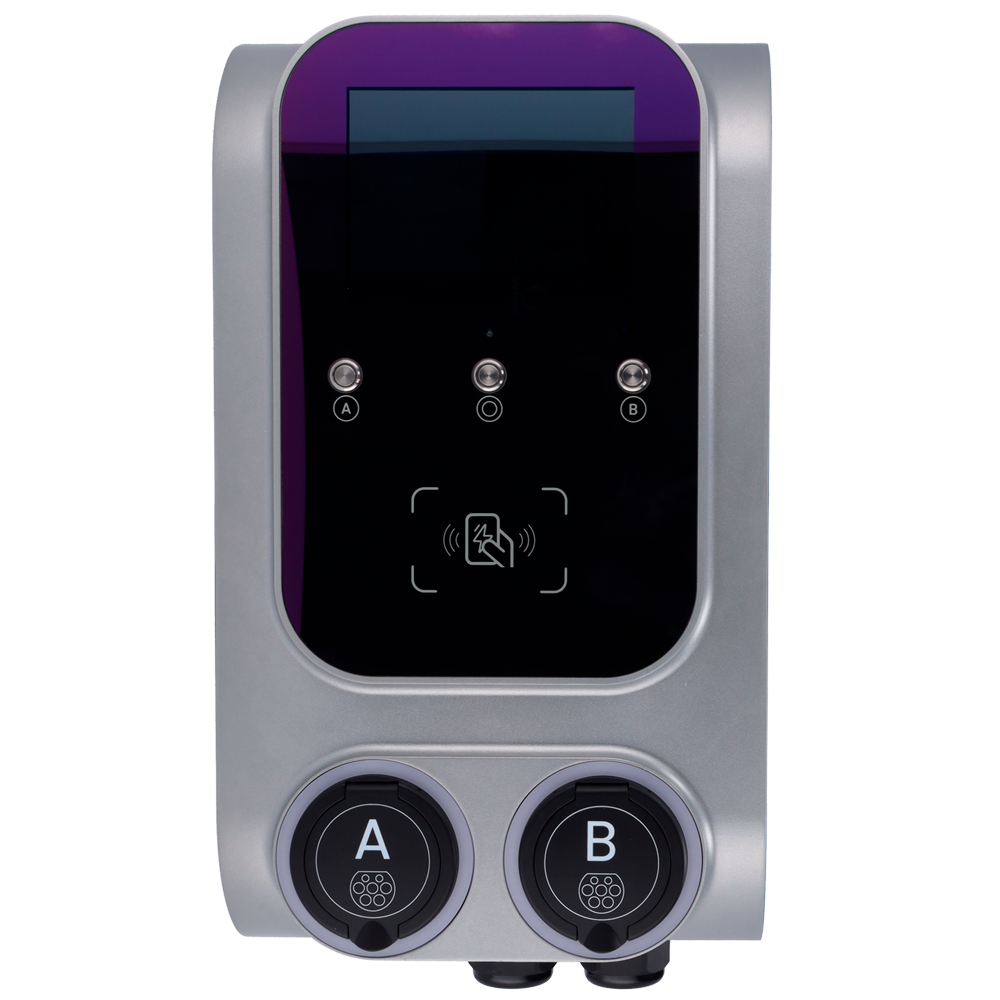

Raedian's GEMINI electric vehicle charger is an ideal solution for public environments, such as shopping centers, warehouses, offices or parking lots.
It features a sleek, vandal-resistant design, plus 2 outlets with 22 KW each, making it capable of charging two electric vehicles at high power with a single unit. You can connect to the Raedian monitoring portal with the built-in SIM, or via LAN or WiFi.
Quick to set up and can be installed on a pedestal, wall or pole. Together with other chargers, it can dynamically manage the load. In addition, it features an external advertising display.
The RD-GEMINI-22WD-SS-M1-P0 model features RFID reader for contactless payment using third-party applications. It is also equipped with a MID certified meter for reliable and safe measurement.
- Raedian
- Public charger 2 electric vehicle sockets
- Connector type 2
- Maximum power 2x22kW / 32A / Three-phase
- Degree of protection IP55
- Backend connectivity 4G/LAN
- Smartphone BT/WiFi connectivity
- Wall, pedestal or free-standing post installation
- Aluminium alloy
- Dynamic load control between several chargers
- RFID authentication
- MID certified meter
- RFID reader for payment by third-party applications
- For indoor or outdoor use
- Contactless payment
- LED display for external advertising
- RGB LED and physical buttons
Specifications
| Brand | Raedian |
| Connector | Type 2 with shutter |
| Charging mode | 3 Mode |
| Connection type | Three-phase |
| Maximum power | 2 x 22 kW |
| Maximum current | 32 A |
| Voltage range | 230V - 400V |
| Grounding | TN/TT |
| Input frequency | 50/60 Hz |
| Connectivity | WiFi 2.4 GHz BLE, 4G SIM 2x LAN |
| Authentication | RFID ISO/IEC 14443A/B 13.56MHz 7 bytes max OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD |
| HMI and indicators | RGB LED Ring Button panel of 3 pushbuttons |
| Installation | Wall, pedestal or free-standing post |
| Material | Reinforced aluminum alloy |
| Cable supplied | No |
| Working temperature | -30℃ ~ +50℃ with power reduction mechanism (1 takes 22KW or 2 takes 11KW) -30℃ ~ +40℃ with power reduction mechanism (2 sockets 22KW) |
| Relative humidity | 5 % - 95 % |
| Electrical safety class | Class I |
| Consumption in standby mode | 17.5 W |
| Degree of protection | IP55, IK10 (casing), IK08 (display) |
| Operating altitude | 2000m |
| Dimensions | 544 (H) x 315.6 (W) x 194 (D) mm |
| Weight | 19.5 kg |
| Protection | UVP, OVP, OCP, Relay Stuck, Overtemperature Residual current 6mA according to IEC 62955 |
| Meter | MID Class B Certificate |
| Load management | Dynamic load control via NEBULA portal Load management with the OCPP backend |
| Contactless Payment | EMVCo Certificate. L1 v3.0 Desfire Protocol EV2/3 ISO18092: NFC protocol |
| LED Display | Total advertising. 8 inches, 1024 x 768 mm |
In the box
- Electric vehicle charger
- Installation material
- Instruction manual
- Wall mounting plate
- 2x RFID cards
- MID Meter
