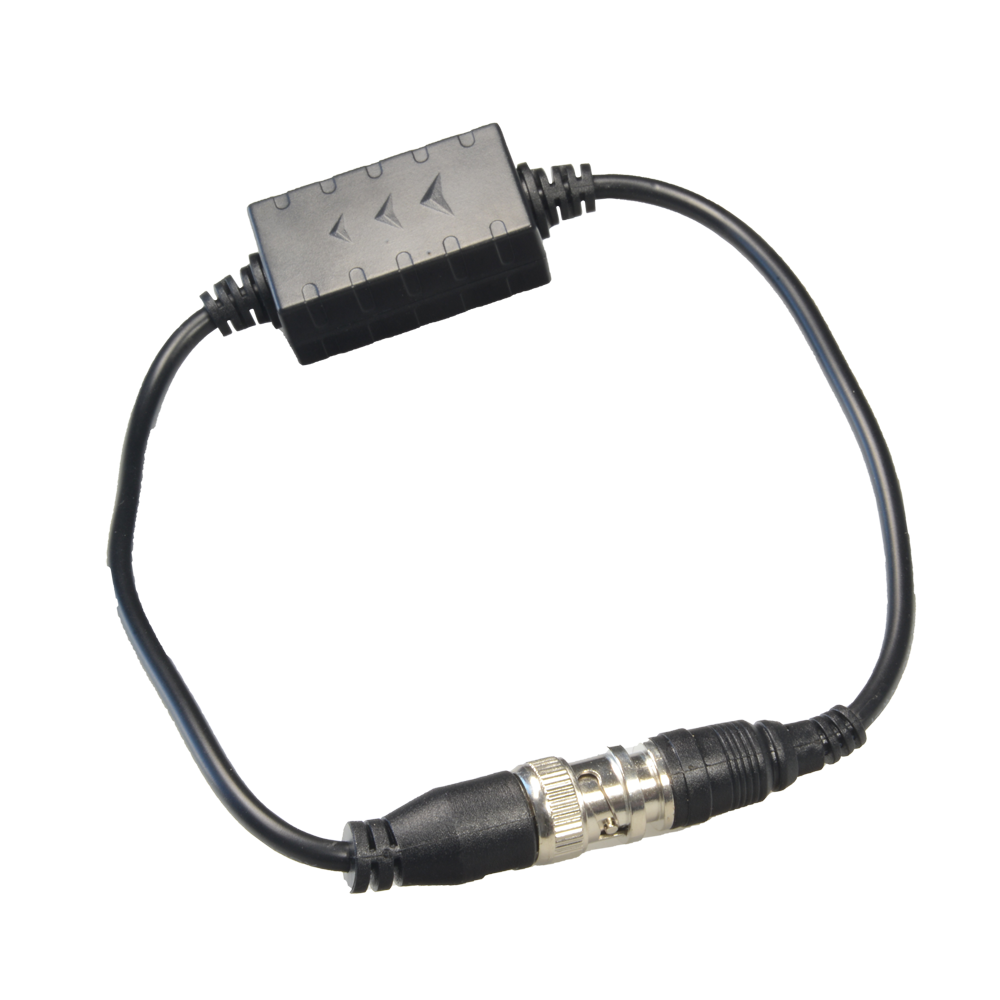

PFM791
Ga direct naar de productinformatie
PFM791
- Power supply isolator
- Optimised for HDCVI video
- Installation on coaxial cable
- Cable 400 mm long
- Passive element
- Frequency response 0-65MHz
- Ground loop isolator to eliminate interferences
- Optimised for HDCVI video
- For coaxial cable
- Passive
- No power supply required
Specifications

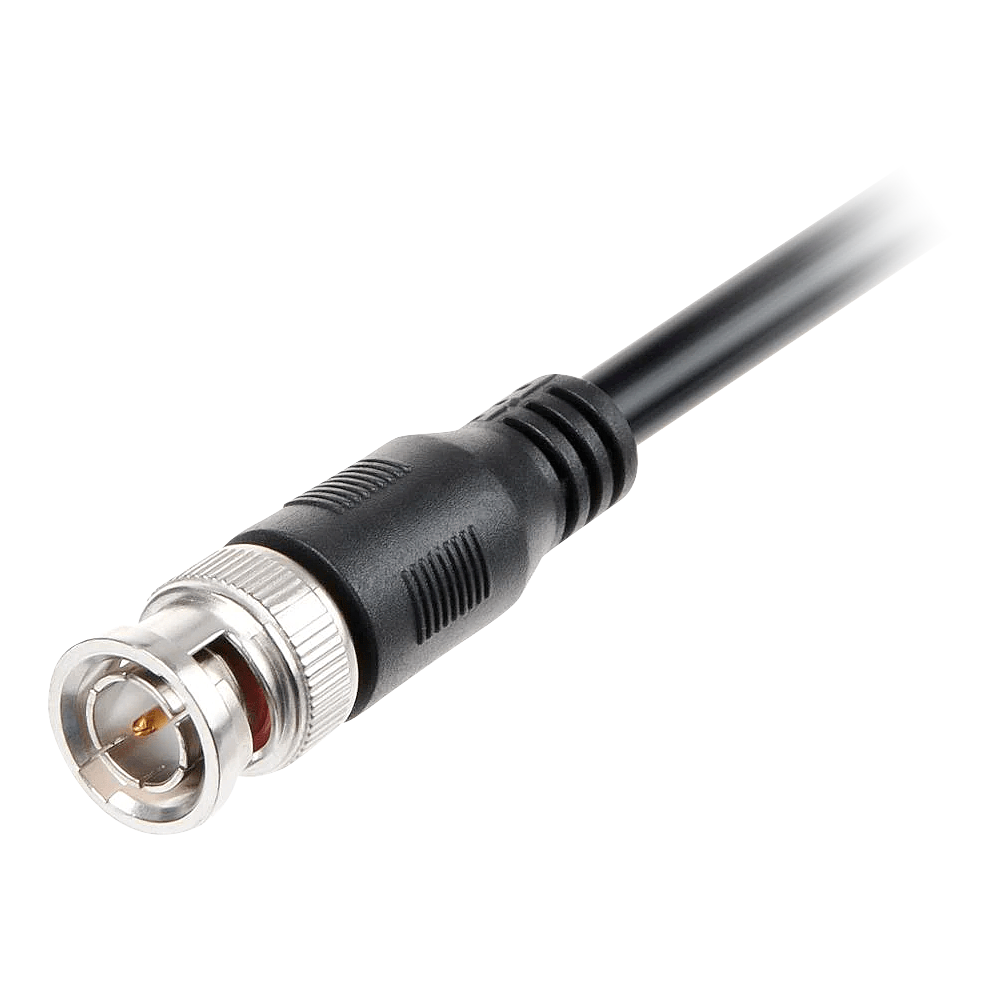

| Input connection | BNC male |

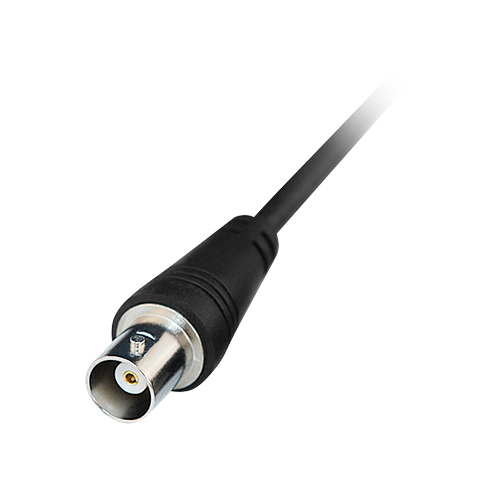

| Output connection | BNC female |
| Insertion loss | 0.5dB |
| Frequency response | 0-65MHz |
| Input / output impedance | 75Ω / 75Ω |
| Voltage isolation | 800V |
| Isolation Resistance | 100MΩ |
| Cable Length | 400 mm |
| Power | Not required (passive) |
In the box
- Ground loop protection
