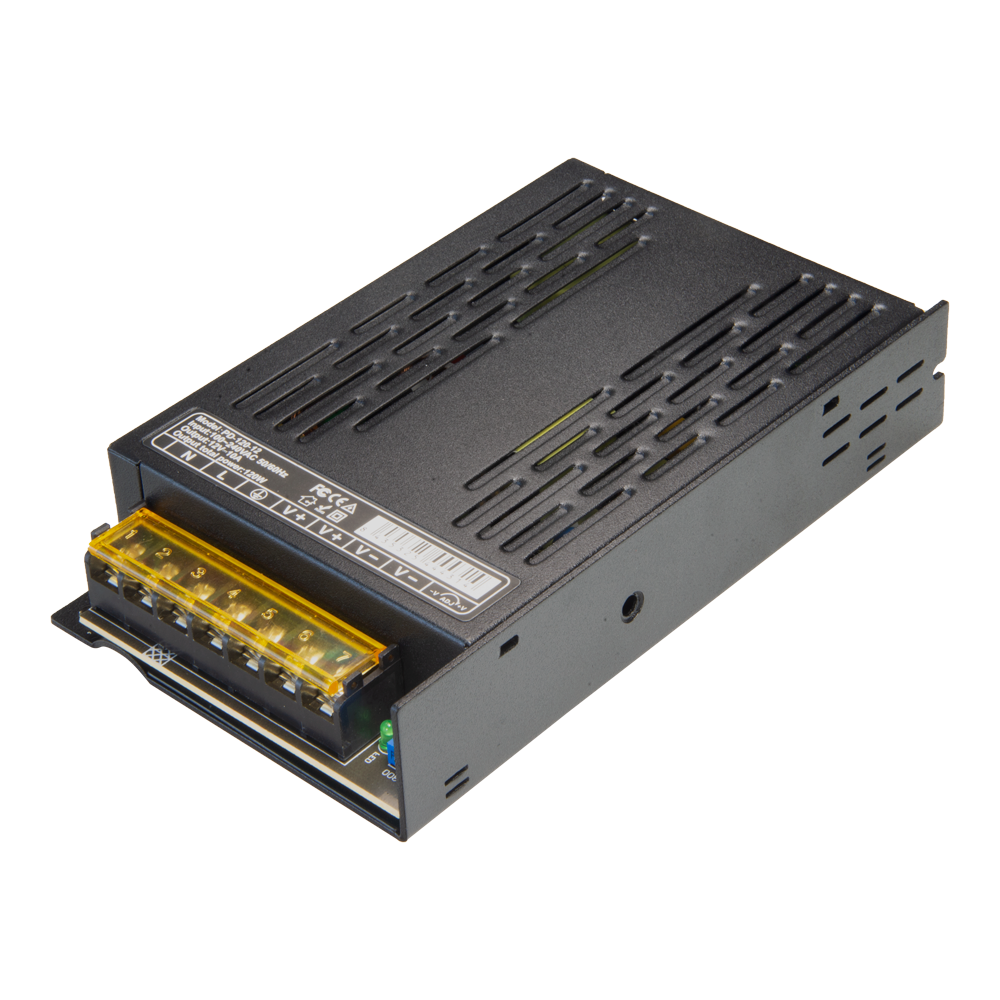

PD-120-12
Ga direct naar de productinformatie
PD-120-12
- Switching Power Supply
- AC input 100 V ~ 240 V
- 2 outputs
- DC Output 12 V / 120 W
- Adjustable output voltage 1.5V
- Metal housing
- Power Supply switchable and stabilized (Transformer)
- Output DC 12 V
- 10 A / 120 W
- 2 outputs
- Adjustable voltage range +/- 1.5 V controlled by potentiometer
- 160 (D) x 32 (H) x 97 (W) mm
- 580 g
Specifications
| Power supply input | AC 100 V - 240 V 50/60 Hz |
| Power supply outputs | 2 outputs via copper pair (clamp) |
| Output voltage | DC 10.5~13.5 V |
| Output ripple | 1% mVp-p |
| Total power | 120 W (10 A) |
| Protection | Short circuit / Over voltage / Current peaks |
| Temp. operation | -20º C ~ +60º C |
| Dimensions | 32 (H) x 97 (W) x 160 (D) mm |
| Weight | 580 g |
In the box
- Switched-mode power supply
