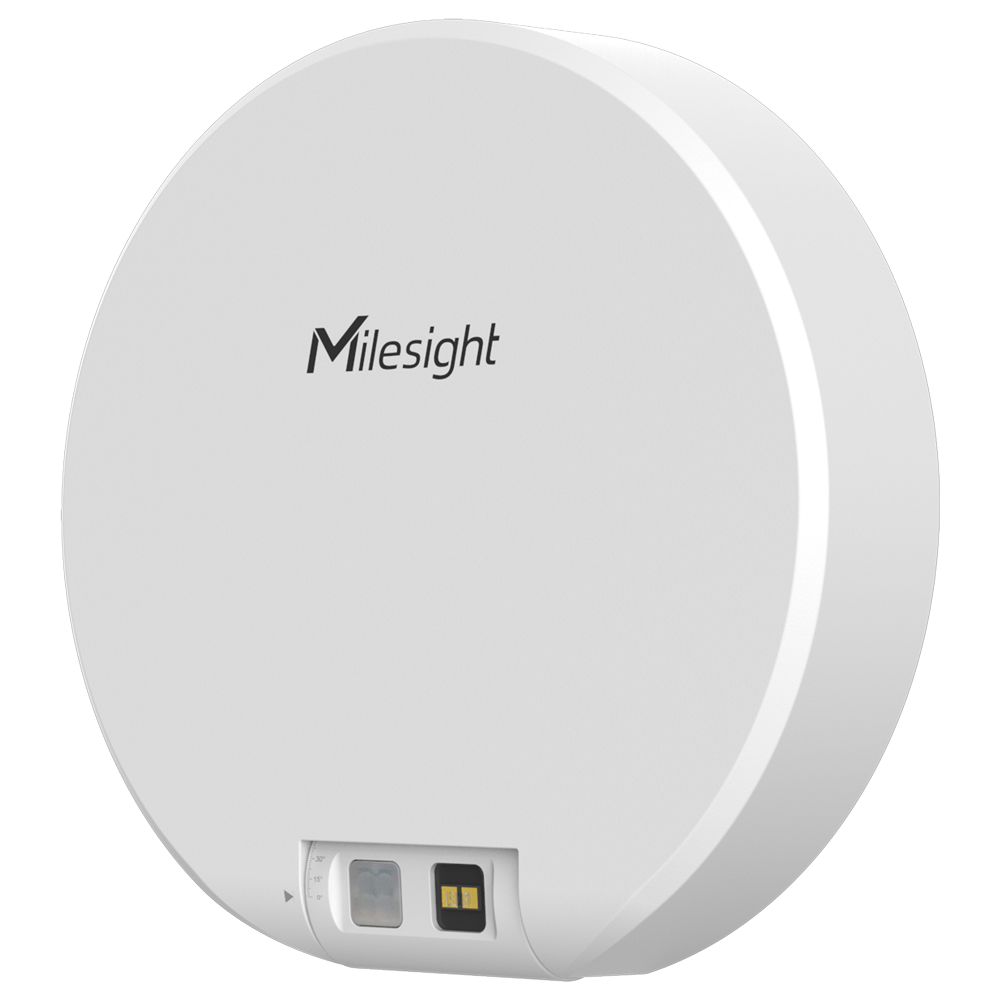

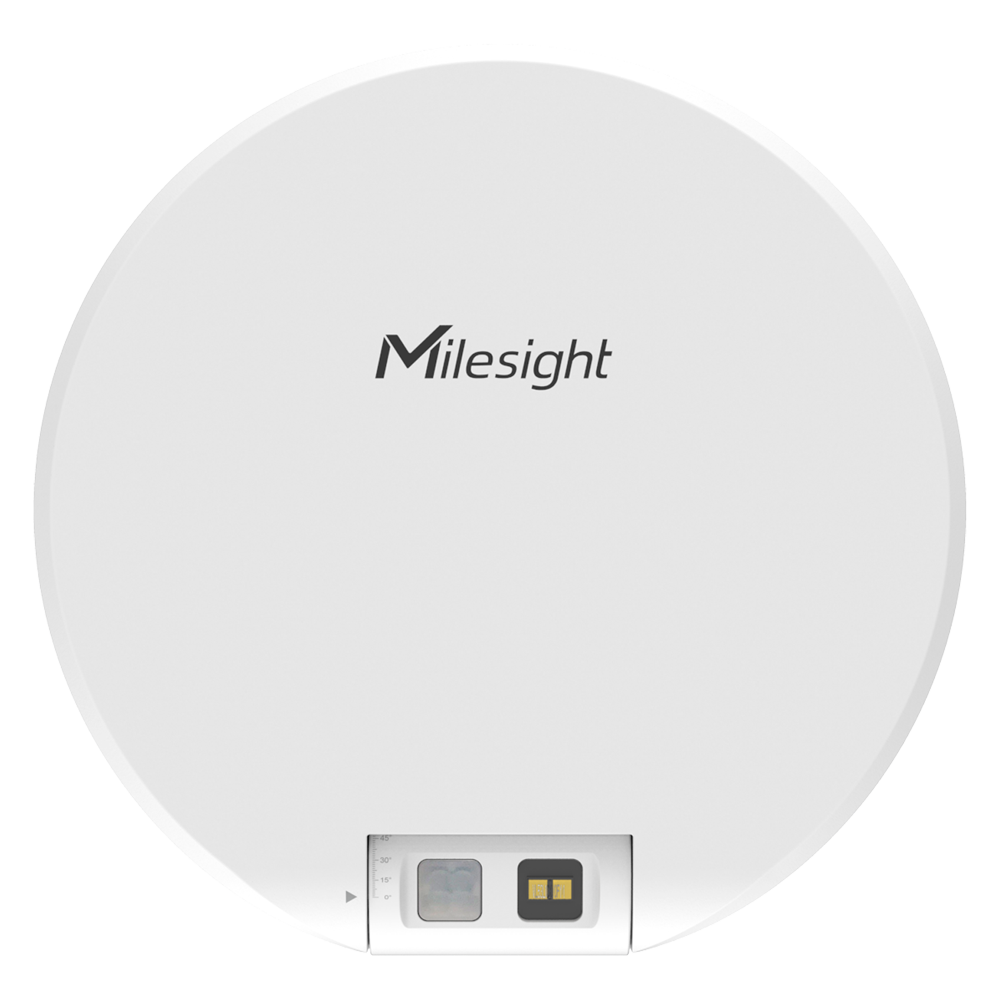

MS-VS330-868M
Ga direct naar de productinformatie
MS-VS330-868M
- LoRaWAN occupancy sensor
- Dual PIR and ToF technology
- Anonymous 100% detection
- High precision 99.5%
- Up to 15Km range with direct vision
- NFC and App configuration
- Milesight
- LoRaWan IoT occupancy sensor
- Anonymous 100% detection (GDPR compliant)
- Dual PIR and ToF technology
- High measurement accuracy 99.5%
- Adjustable detector 0~75ºC- Frequency 868MHz
- Communication range up to 15Km with direct view
- Easy configuration via NFC and smartphone APP
Specifications
| Technology | LoRaWAN® |
| Frequency Band | 868 MHz |
| Power Output | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Scope of communication | Up to 15Km range with direct vision |
| ToF sensor | FOV: 27º Detection range: 0.04~3.50m Accuracy: ± 2cm Resolution: 1mm |
| PIR sensor | Detection area: 80º Maximum distance: 2.5m |
| Sensor angle | Adjustable 0°, 15°, 30°, 45°, 60°, 75° |
| Recognition rate | 99.5% |
| Configuration | NFC via smartphone APP |
| Power | 3x 4000 mAh ER18505 Li-SOCl2 |
| Battery Life | 4 years (90 detections / 7 hours in a row per day) |
| Operating temperature | -20ºC to 60ºC (Relative humidity < 95%)) |
| Protection Grade | IP30 |
| Dimensions | Ф100 x 24 mm |
| Material | Anti-flame polycarbonate |
| Colour | White |
In the box
- Occupancy sensor
- Instructions Manual
- Mounting material
