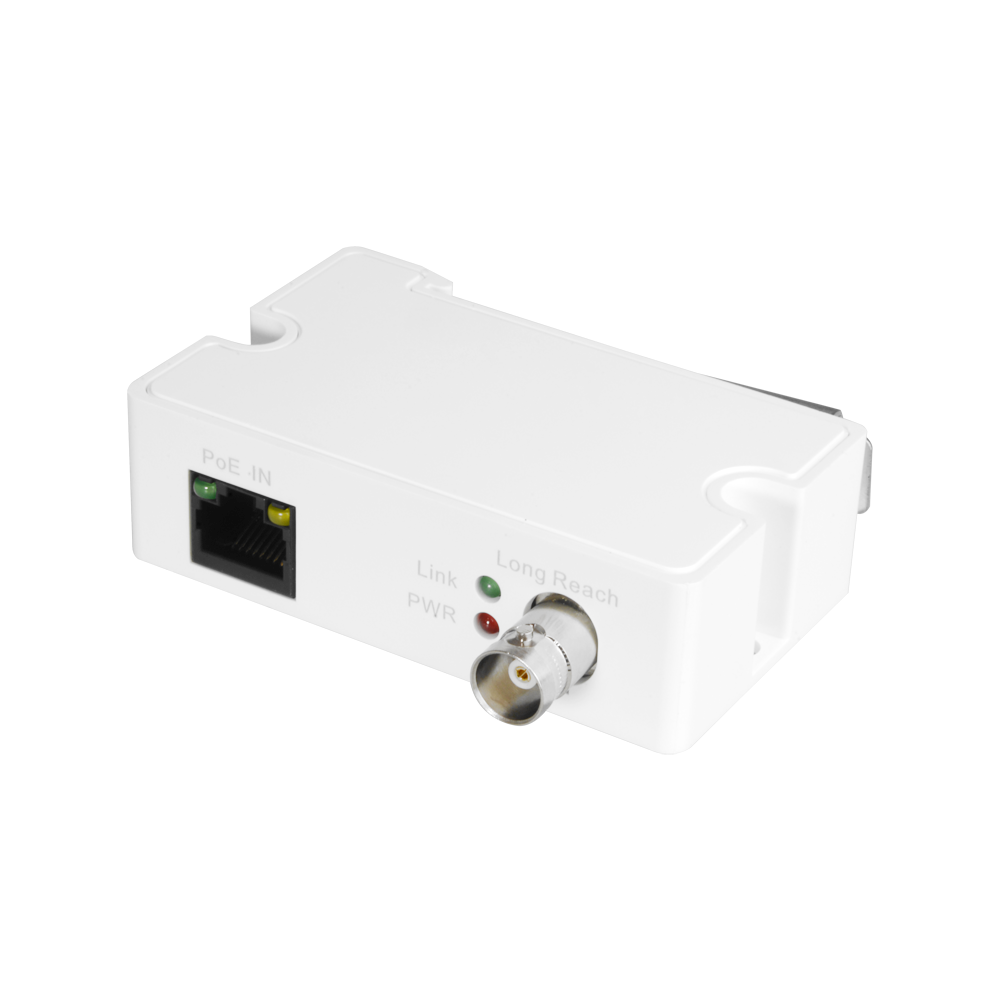

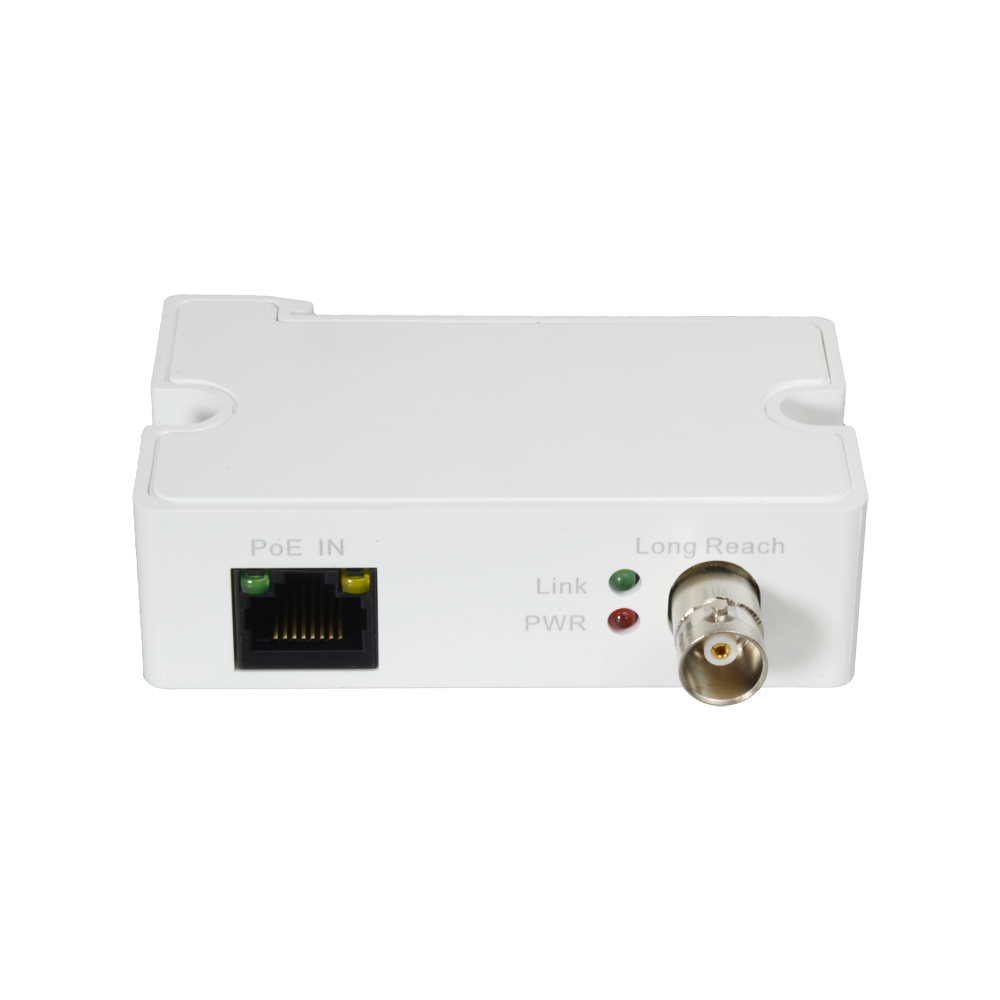

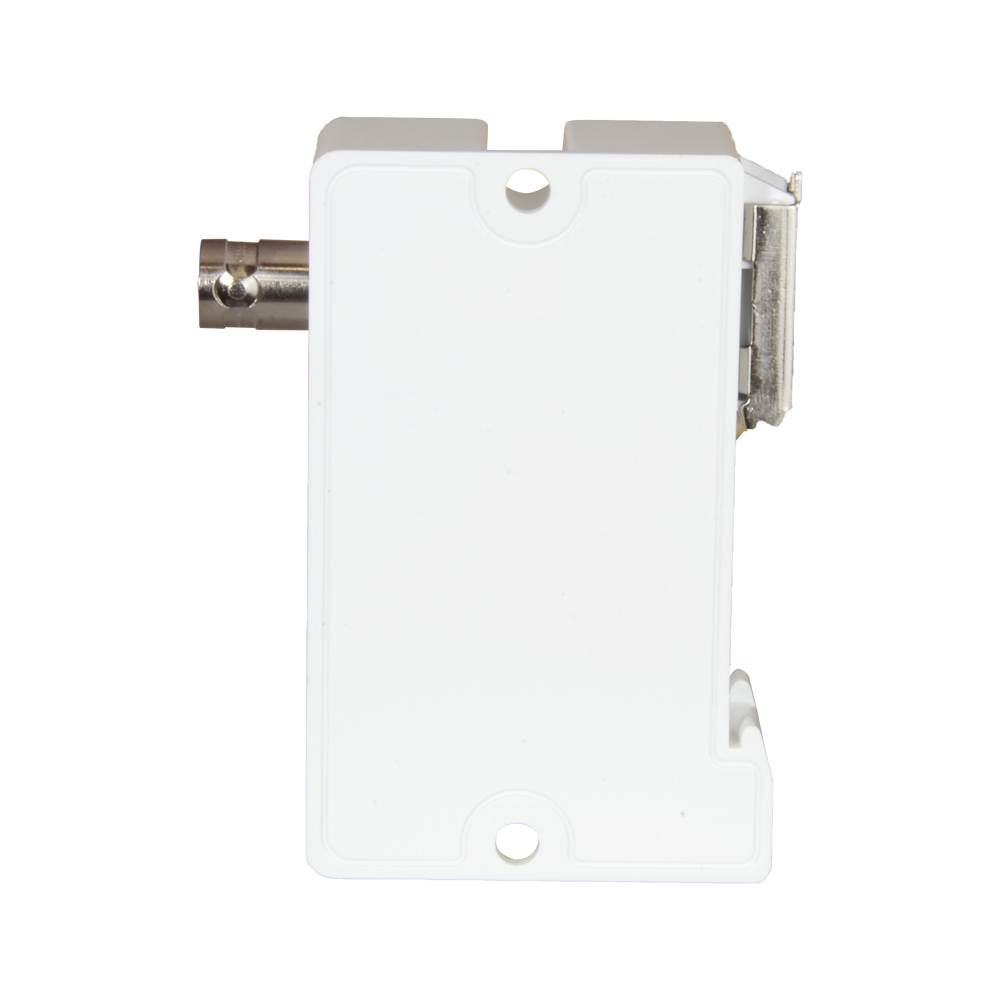

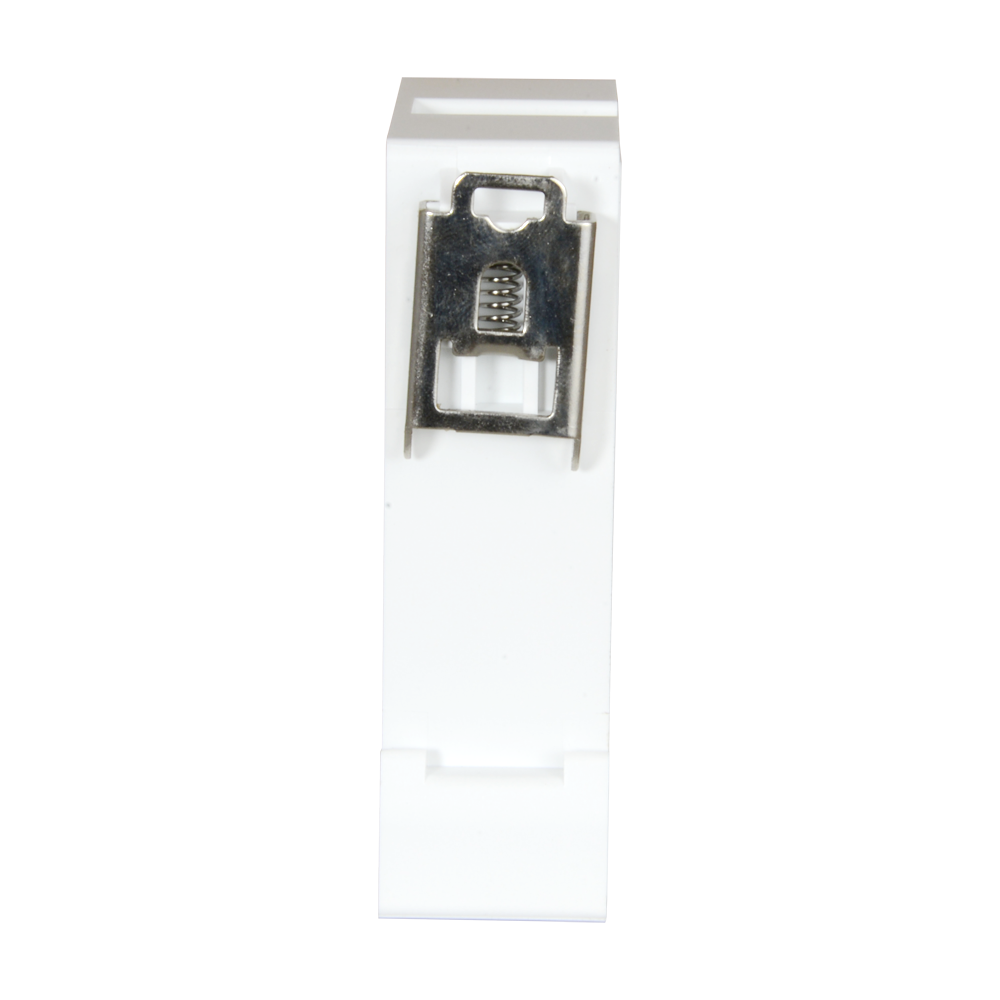

LR1002-1ET
Ga direct naar de productinformatie
LR1002-1ET
- Branded EoC extender
- Ethernet over coaxial cable
- Active | Specific ePoE
- Receiver compatible with range LR1002
- Allows transmission 1 IP channel
- Maximum distance 1000 m
- Branded
- Ethernet Extender via Coax
- Active receiver
- Converts PoE/PoE+ to ePoE
- Transmit 1 IP link(s)
- Maximum distance 1000 m at 10 Mbps or 400 m at 100 Mbps
- Supports ePoE 48V and 53V
- Compatible with Ethernet over coax LR1002
Specifications
| Connection over coaxial | Female BNC connector and RJ45 connector |
| Datarate | 100Mbps symmetrical (100Mbps upstream, 100Mbps downstream) |
| Distance over coaxial | 100 m between extenders up to 100Mbps (Up to 21W powered with 48V DC and 25.5W powered with 53V DC) 400 m between extenders up to 100Mbps (Up to 9W powered with 48V DC and 16W powered with 53V DC) 800 m between extenders up to 10Mbps (Up to 5W powered with 48V DC and 8W powered with 53V DC) 1000 m between extenders up to 10Mbps (Up to 4W powered with 48V DC and 6W powered with 53V DC) |
| Connection | Converter for PoE Cameras / Receiver |
| PoE Protocol | PoE (IEEE802.3af/at) or Hi-PoE | ePoE 48V |
| Weight | 61 g |
In the box
- EoC Extender
