KIT-PEOPLECOUNT-SF-PRO
Ga direct naar de productinformatie
KIT-PEOPLECOUNT-SF-PRO

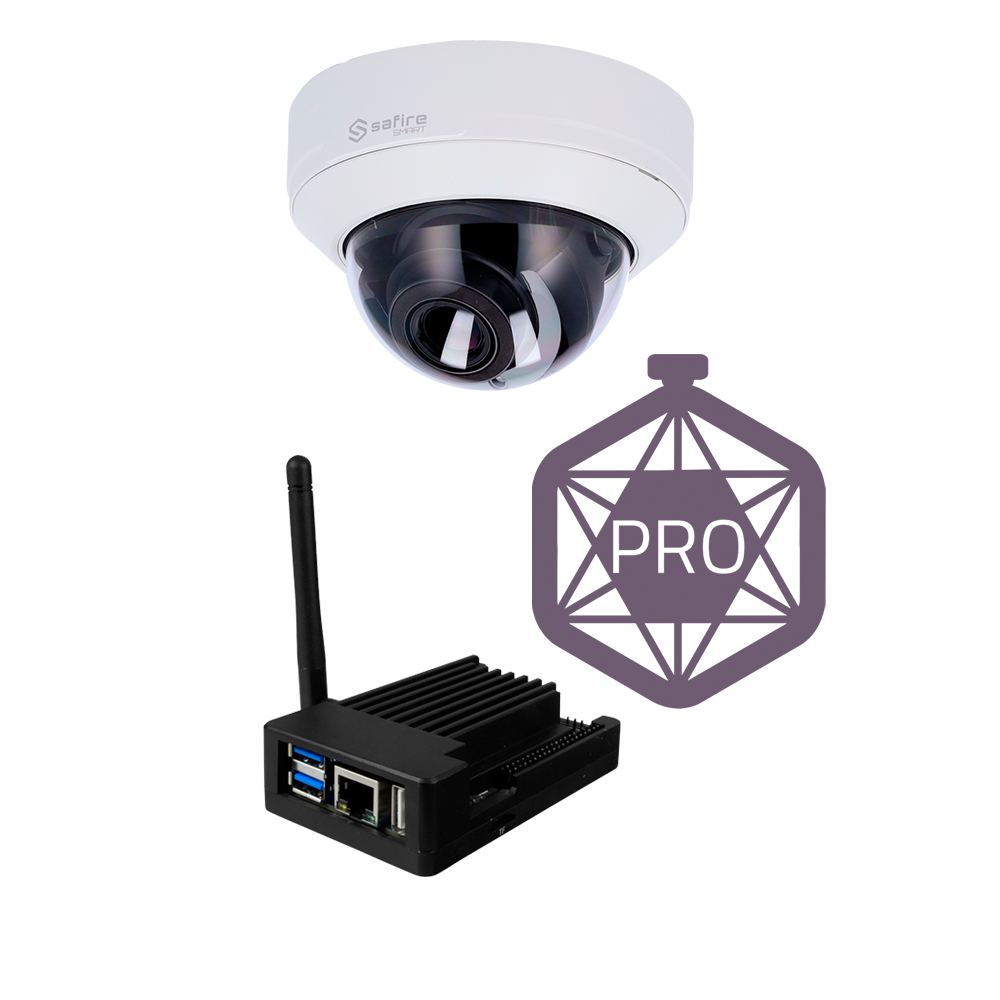

- Kit for Capacity Control PRO
- Safire Smart Camera SF-IPD540ZA-6I1
- PC with SF-SW-COUNT-MULTIROOM software(Installed)
- View from anywhere with web browser
- Customized reports
- Multichannel system up to 20 inputs/outputs
- All-in-One Capacity Control Kit
- People counting camera SF-IPD540ZA-6I1
- PC with Safire Link Multiroom Counting software installed
- System up to 20 input/output gates
- Capacity for up to 20 stays
- Daily, monthly and annual statistical reports
- Access from any web browser
- Multi-user platform with permissions
Specifications

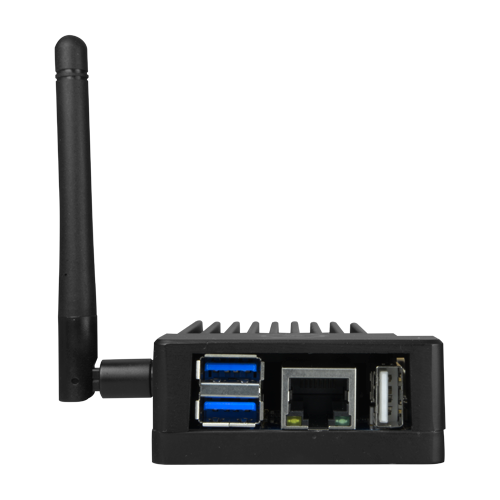

PC |
|
| CPU | 6-core |
| Memory | 4GB LPDDR4 |
| Communication | 1xGigabit Ethernet, Wifi 5 (802.11ac dual band), Bluetooth 5.0, USB 3.0, USB 2.0, USB 3.0 (Type C) |
| Audio | MIC Input / 3.5mm Jack & HDMI Output |
| Video | 1 x HDMI 2.0 (Type A) Up to 4K @ 60 FPS |
| Operating System | Linux Based |
| Power | DC 5V / 3A |
SF-SW-COUNT-MULTIROOM | |
| Type | Software |
| Quantity | Up to 100 People Counting cameras (upgradeable) and 20 rooms |
| Characteristics | Real-time capacity information, customized reports |
| Installation | Windows x64, Linux x64 and Linux arm64 |
| Expiry date | Yesngle perpetual license (can only be installed on one computer) |
| Compatibility | People Counting Cameras (Safire, Uniview, Hikvision, X-Security and Dahua) |
SF-IPD540ZA-6I1 | |
| Brand | Safire Smart |
| Range | I1 |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3296×1856) |
| Minimum illumination | Colour: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 50 m |
| Day/Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/2~1/100.000 s |
| Main Stream rate | 30 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) |
| Extra Stream rate | 30 FPS (720P, D1, VGA, 480x240) |
| Third Stream Rate | 30 FPS (D1, CIF, 480x240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 12 Mbps |
| Lens | Motorised 2.8-12 mm |
| Field Of View (FOV) | H: 108-36°, V: 57-20°, D: 129-42° |
| Range performance | W: 66 m (D), 27 m (O), 13 m (R), 7m (I) T: 204 m (D), 82 m (O), 41 m (R), 20 m (I) |
| Image improvements | WDR (120dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Si |
| Smart Features | Advanced artificial intelligence based on human, vehicle and two-wheeled vehicle classification on: Area Intrusion, Line Crossing, Entry Region, Exit Region Other smart events: dropped object, removed object, Video exceptions (change of scene, video loss, ...) |
| Audio | 1 Input / 1 Output / Built-in microphone |
| Alarms | 1 Input / 1 Relay |
| Audio Compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal memory | MicroSD card up to 256GB |
| Remote access | Web Browser, Smartphone App Safire Smart, PC Software Safire Smart VMS |
| Interoperability | ONVIF, P2P |
| 3 Axis | Yes |
| Power | DC 12 V / 10 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10 |
| Material | Metallic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 141 (Ø) x 100.2(Al) mm |
| Weight | 910 g |
In the box
- SF-IPD540ZA-6I1 IP Camera
- Mini PC
- SF-SW-COUNT-PRO
