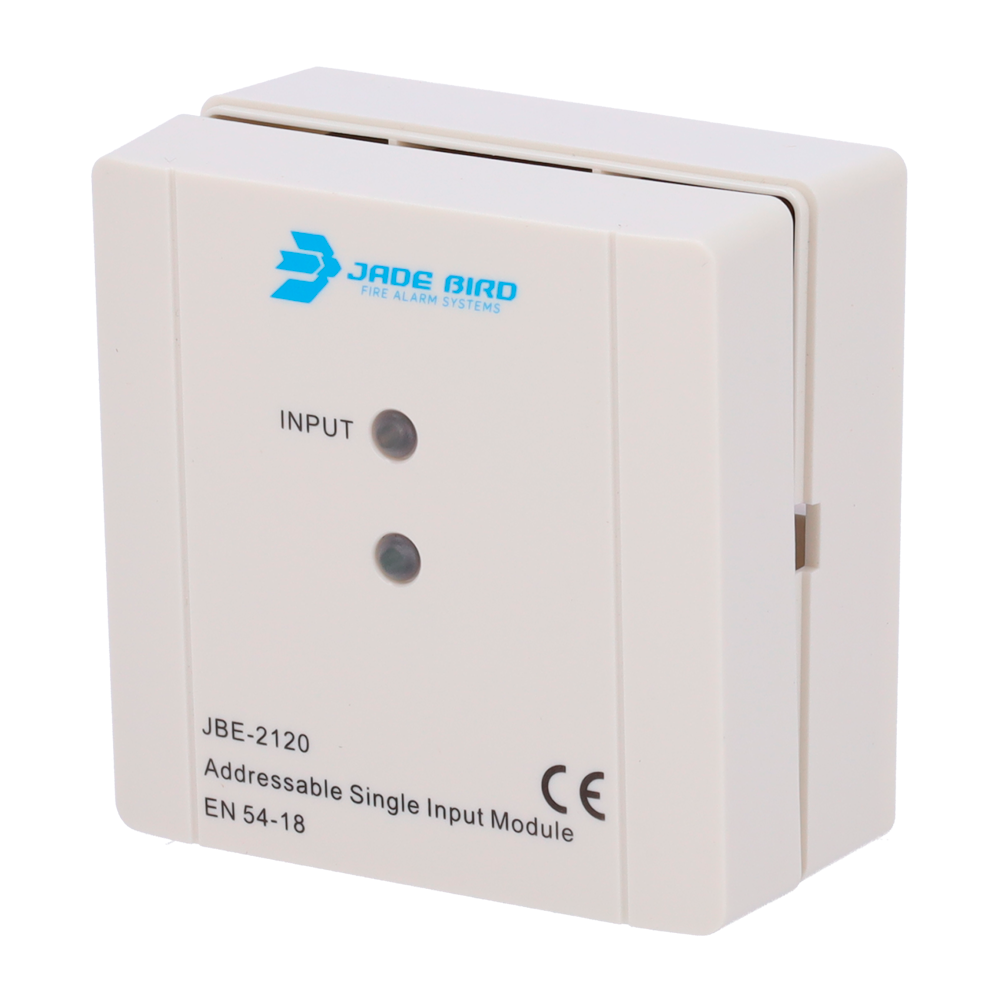

JBE-2120
- Jade Bird analog module
- 1 Supervised input
- Powered by loop
- Conductor cable up to 2.5mm2
- REOL of 10 kΩ (supplied)
- Certified EN 54-18
- Jade Bird - Modulo de 1 entrada supervisada
- Loop powered
- Without isolator

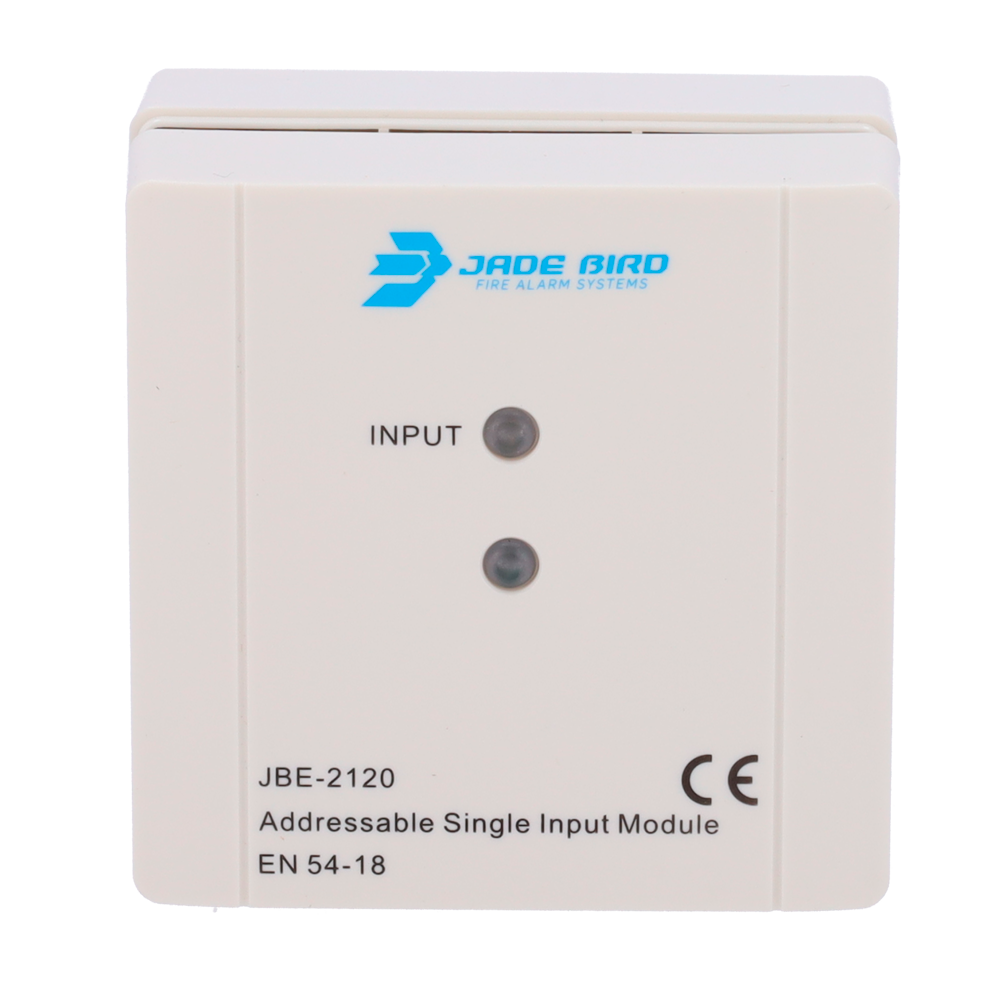

- Front LED indicator
- Address programmable by means of the JBE-AT1 tool
- Certified EN 54-18
Specifications
| Brand | Jade Bird |
| Type | Analog module 1 supervised input |
| Operating voltage | DC 16 - 30 V |
| Connection | JBE communication bus 2-hilos, without polarity |
| Wired | Twisted pair without braid 0.5 - 2.5 mm2 |
| Consumption in idle mode | ≤0.25 mA @24 V |
| Active consumption | ≤1 mA @24 V |
| EOL resistance | 10 kΩ |
| Temp. of work | 0℃ ~ +40℃ |
| Temp. storage | -20℃ ~ +60℃ |
| Environment | ≤ 95% HR (40±2℃) (no condensation or icing) |
| Address | Addressing tool JBE-AT1 |
| Address range | 1-200 |
| Led indicator Red | Rest: "Input" blinks with loop polling Malfunction: "Input" off Activation: "Input" fixed on |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP Rating | IP40 |
| Certified | EN 54-18:2005 EN 54-18:2005/AC:2007 |
In the box
- Analog module
- RFL required
