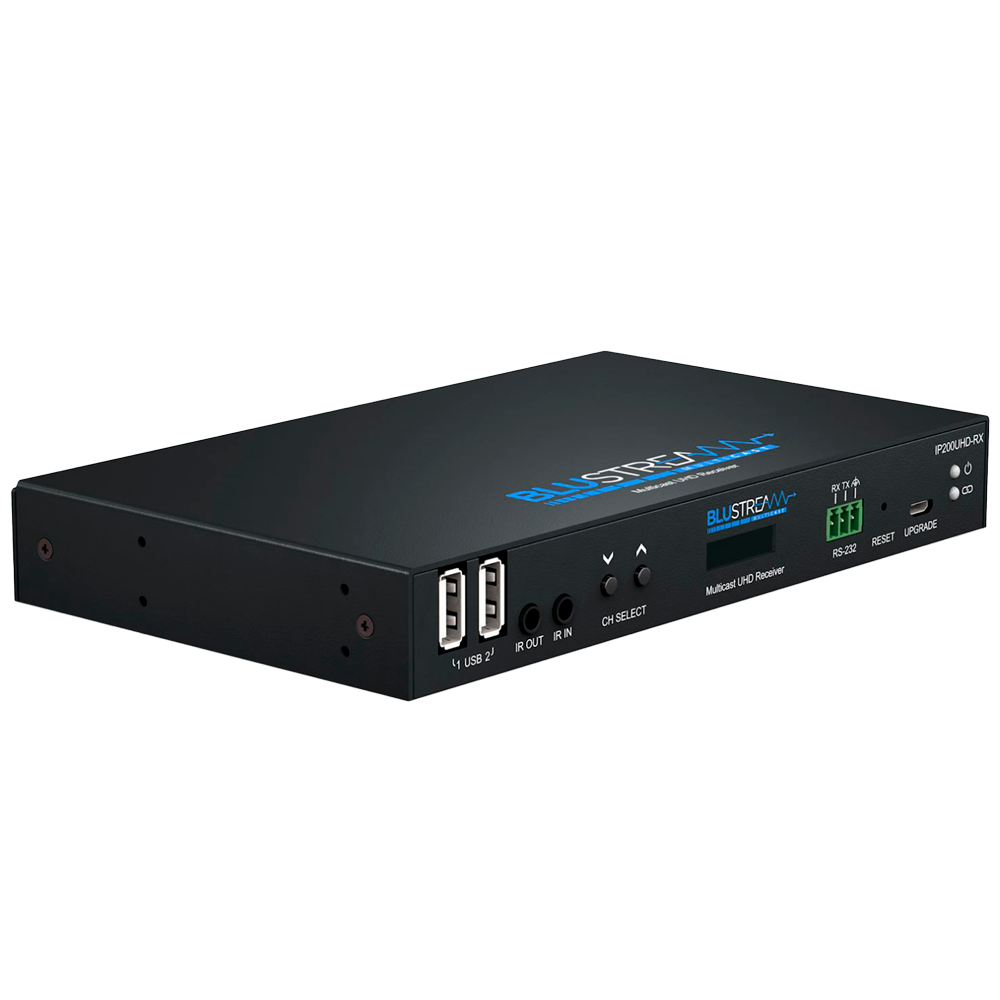

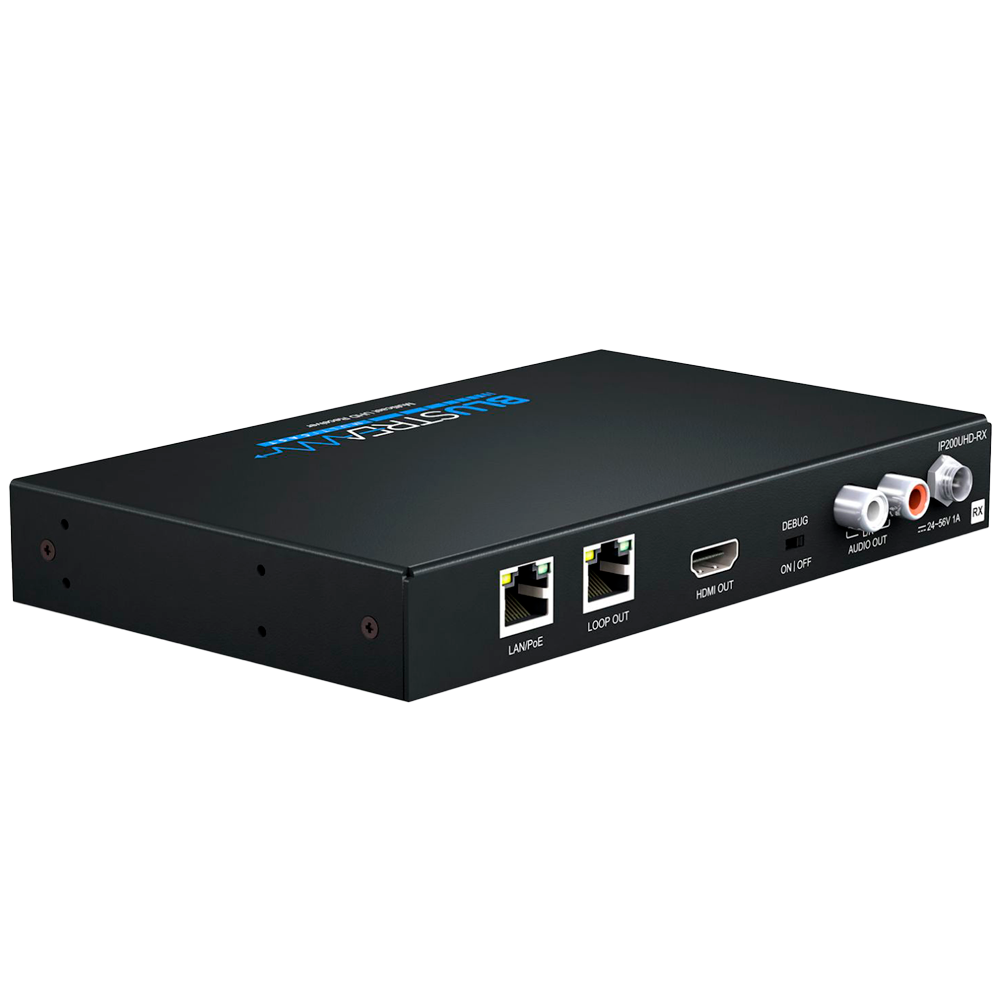

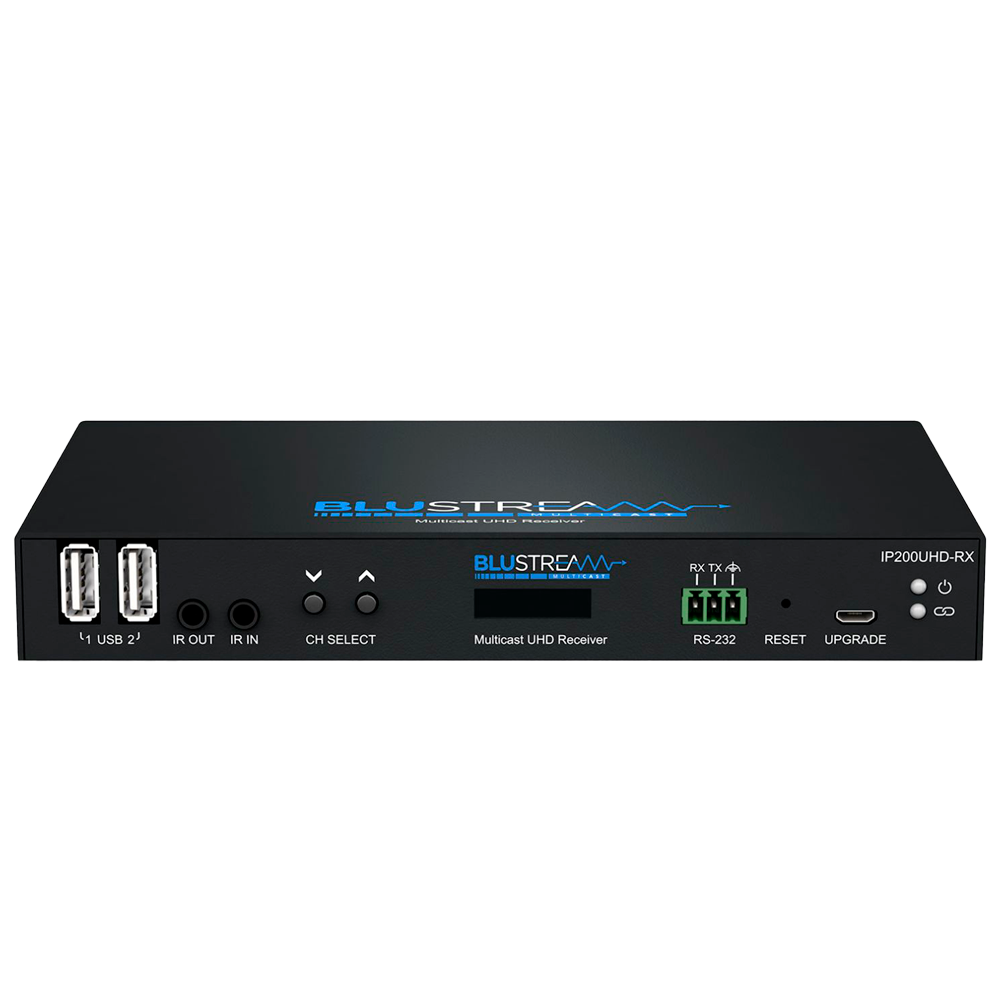

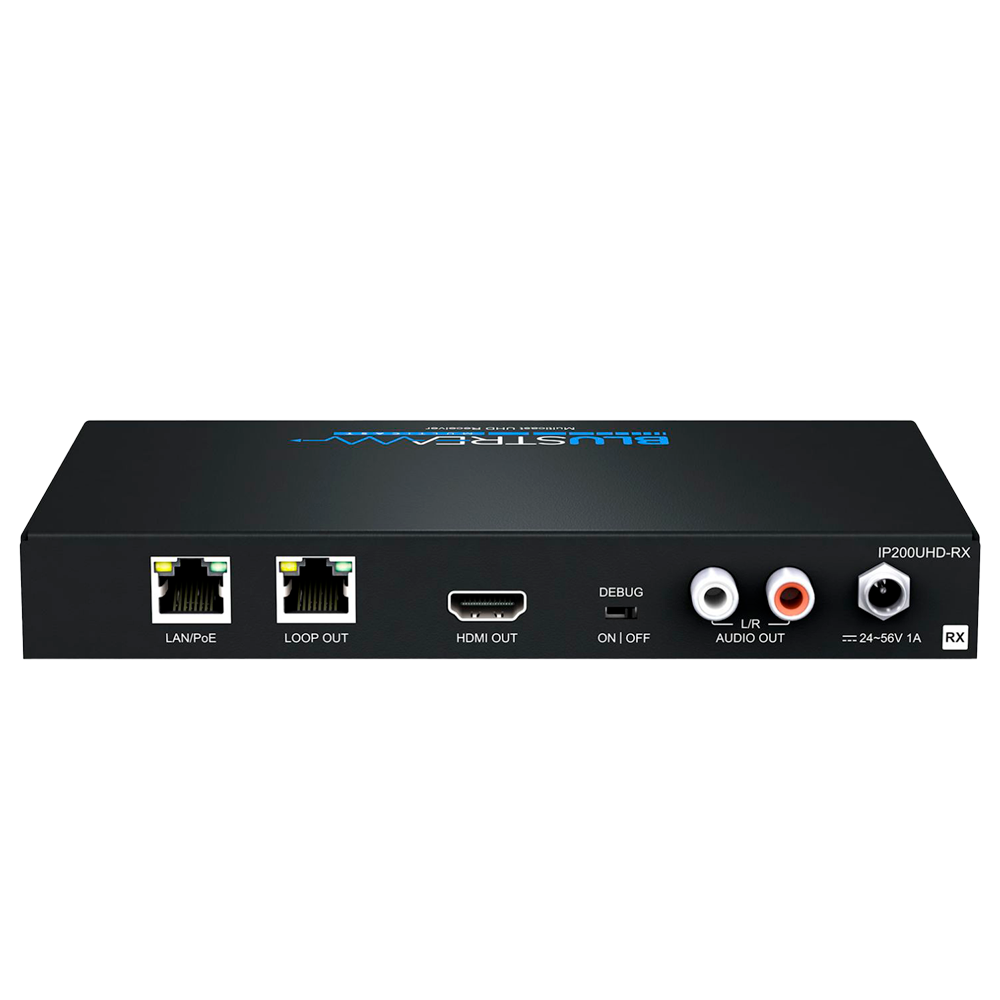

IP200UHD-RX
Ga direct naar de productinformatie
IP200UHD-RX
- Video over IP receiver
- UHD resolution
- 1 LAN entry (RJ45)
- 1 HDMI output
- KVM function
- UHD over IP video receiver over a managed network of 1Gb
- HDCP 2.2
- HDMI and bidirectional IR
- RS232
- KVM (100m)
- PoE
Specifications
| Functionalities | - Distribution matrix (requires a network switch of 1GB) - Video Wall (requires a network switch of 1GB) - HDMI Extender 1:1 (no network switch required) - HDMI Extender 1:N (no network switch required) |
| Video input | 1x LAN (RJ45) |
| Video output | 1x HDMI |
| Latency | 1 frame (16-33ms) |
| Range | 100m on CAT cable |
| Resolution | 4K@30Hz |
| EDID | HDCP 2.2 |
| Audio outputs | 2x RCA (Analog Audio L/R) |
| Ethernet port | 1x LAN (RJ45 for video extension) |
| Serial port RS232 | 1x Phoenix series connector 3 pins |
| KVM/USB port | 2x USB-A |
| IR Input | 1x 3.5mm Jack stereo |
| IR output | 1x 3.5mm Jack mono |
| PoE | - 7.0W (typical) - 8.3W (maximum load) |
| Power | 24V ~56V |
| System upgrades | 1x Micro-USB |
| Dimensions | 190mm (W) x 114mm (H) x 25mm (D) |
| Weight | 0.8kg |
| Operating temperature | 0ºC ~40ºC |
In the box
- Video transmitter IP200UHD-RX
- 1x IR Receiver
- 1x IR transmitter
- 1x Phoenix series connector 3 pins
- 1x Mounting kit
