IB-OPSi51230U16G512GW11P
Ga direct naar de productinformatie
IB-OPSi51230U16G512GW11P
- OPS (Open Pluggable Specification)
- Intel Core processor i5 12th Gen
- 16 GB RAM
- 512 GB SSD
- Windows license 11 Professional
An OPS (Open Pluggable Specification) is a computing device on which an operating system can be installed (in some cases it is already pre-installed) to connect it to an interactive monitor. This allows the display to function as a PC, offering a similar experience to that of a conventional computer, but with the advantage of touch interaction and full integration when installed in a rear slot of the monitor.
In addition, the OPS has several input ports, such as USB, which facilitate the connection of peripherals and enhance the user experience in various applications such as video conferencing.
- OPS
- Intel Core i5, 12ª generation
- Processor 1230U
- 16 GB RAM
- 512 GB SSD
- WiFi
- Ethernet
- 4K@60Hz
Specifications
| CPU | Processor 12ª Gen Intel Core i5-1230U |
| Operating System | Windows 11 PRO |
| Graph | Intel Iris Xe Graphics |
| RAM | 16 GB (LPDDR5 / 4800MHz) |
| Storage | 512 GB (Interface M.2 2280 NVMe protocol compatible) |
| Operating System | Windows 11 Pro |
| Network | WiFi: 1 x M.2 2230 for WiFi+BT Ethernet: 1 x 8111H (10M/100M/1000M) |
| Audio | Realtek ALC897 HD audio 5.1 |

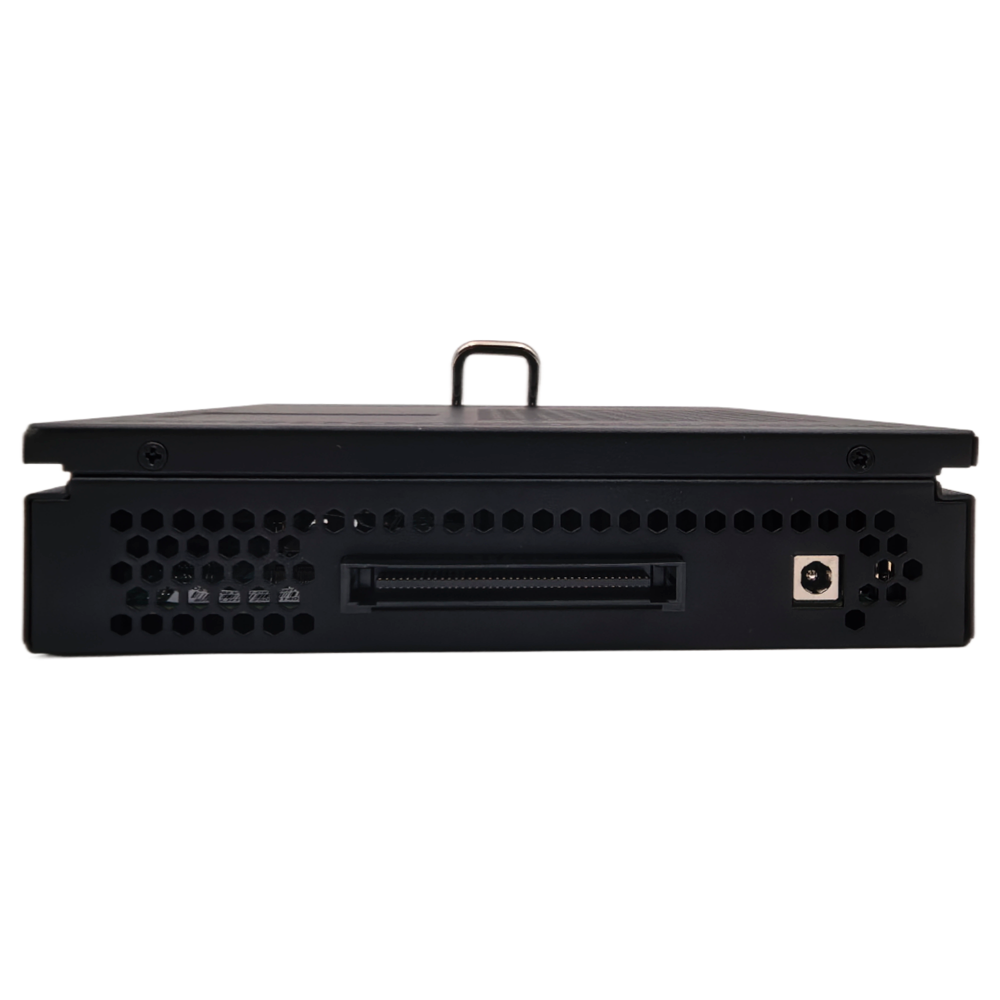

| OPS Connection | JAE 80 Pin (HDMI 2.0 OUT 4K@60Hz) |

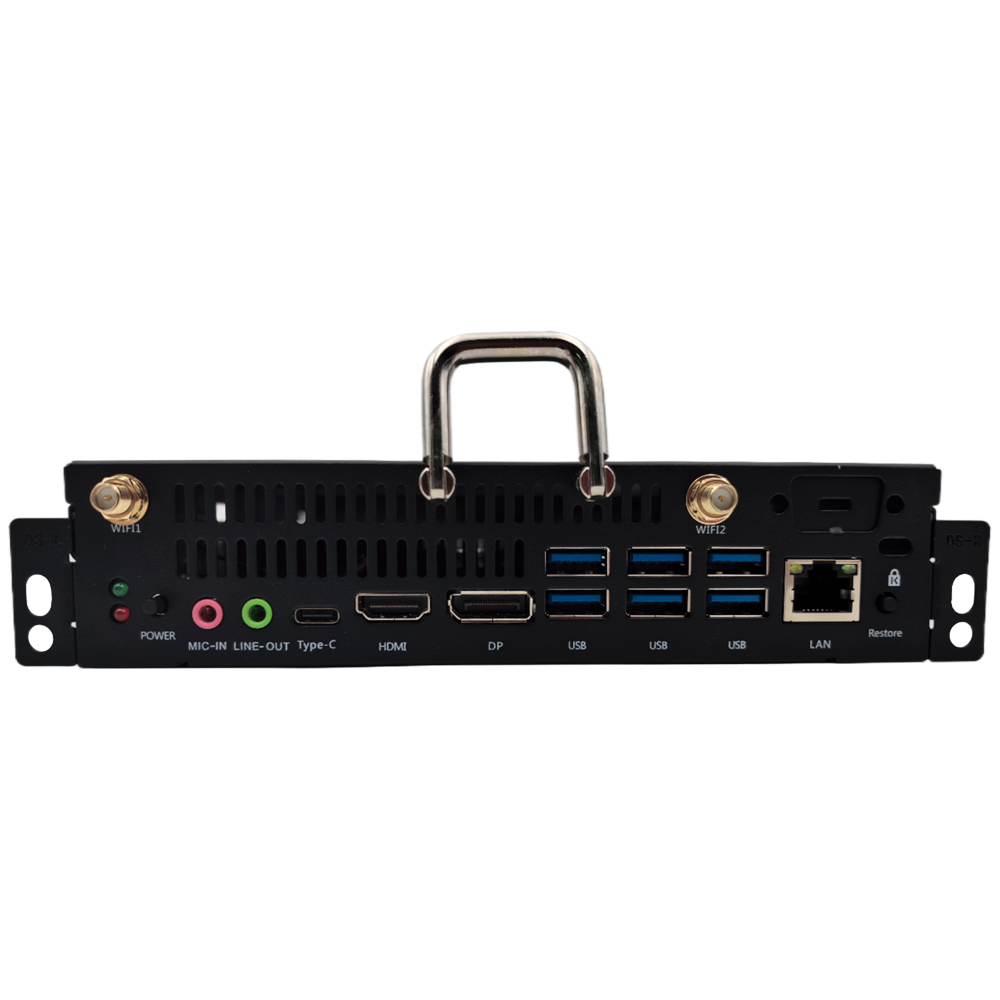

| Inputs | 6 x USB 3.2 Gen1 1 x RJ45 1 x USB-C 2.0 1 x Power 1 x MIC 2 x WiFi / BT Antenna |
| Outputs | 1 x HDMI 2.0 1 x DisplayPort 1.4 1 x LINE |
| LED indicators | 1 x SSD 1 x Power |
| Power | 19V 4.7A (60±100W) |
| Dimensions | 195mm (W) x 42mm (H) x 180mm (D) |
| Weight | 1.2Kg |
| Working conditions | - Temperature: 0ºC ~ 45ºC - Humidity: 10% ~ 95% (no condensation) |
| Storage conditions | - Temperature: -40ºC ~ 80ºC - Humidity: 10% ~ 95% (no condensation) |
In the box
- OPS
