FPU03ESM400A
Ga direct naar de productinformatie
FPU03ESM400A
- URFOG Ajax Ready
- Fog generator Modular range
- 2 integrated Ajax relays (arming and executing)
- Up to 400 m3 without visibility
- Very low energy consumption
- Leaves no trace after shooting
- URFOG
- Ajax Ready Fog Generator
- Generates 400 m3 of fog with zero visibility in 60"

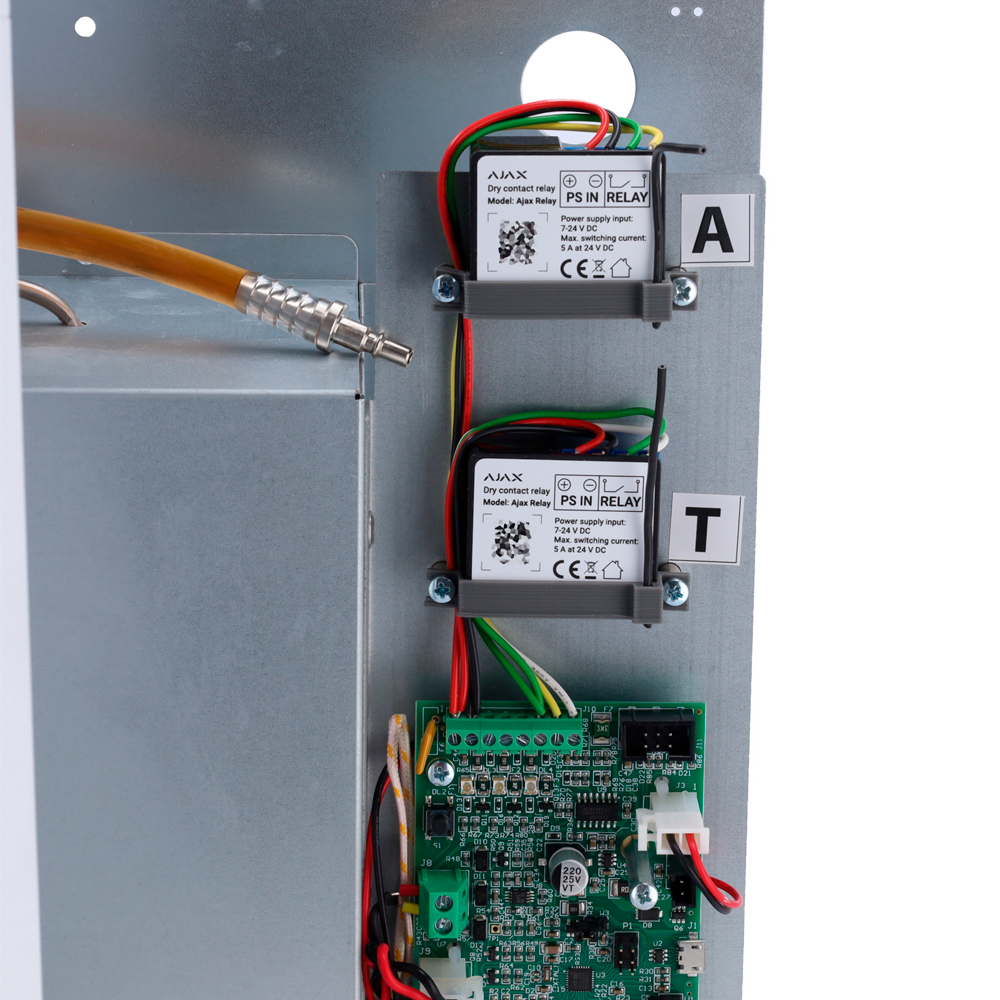

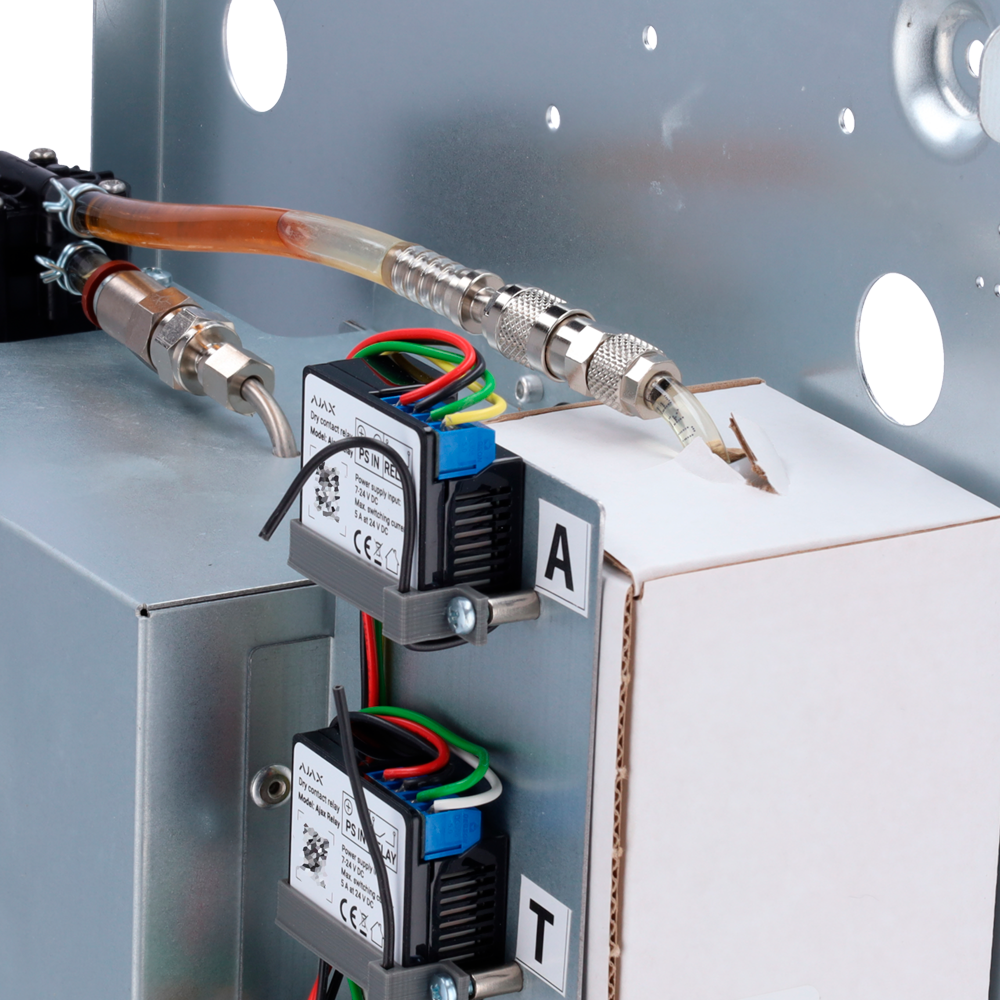

- 2 Ajax Relays (For arming and for executing) integrated in the machine
- Signal Buzzer
- LED visual signaling
- Output 12VDC 300mA for external peripherals
- Battery Back-up possibility (12VDC 2.0Ah)
- Shooting time adjustable up to 40 s
- Total launching time 1.5 min
- Total launching volume 850 m3
- Green Power technology for low consumption
- White colour
- 390 (H) x 300 (W) x 130 (D) mm
Specifications
| Brand | URFOG |
| Ajax Relays | 2 units already installed (for arming and executing) |
| Fog coverage | 1200 m3 (1 visibility meter) 400 m3 (zero visibility) |
| Fog Dispensing Time | Configurable up to 40 seconds |
| Total Despensing Time | 1.5 minutes |
| Total Quantity Dispensed | 3825 m3 (1 visibility meter) 1275 m3 (zero visibility) |
| Tank Capacity | 0.75 L |
| Refill method | Easy-to-install single-use bag |
| Heating Time (100%) | < < 60 min |
| Reaction Time | 200 ms |
| Inputs | 1 Arm Control / 1 Shot Control |
| Outputs | Failure, Liquid and 12V@0.3A |
| Power | AC 220 V |
| Nominal power consumed when armed | 280 W / 48W |
| Backup Battery | 12V/2Ah (not included) / 60' for backup operation without primary power supply |
| Dimensions | 390 (H) x 300 (W) x 130 (D) mm |
| Weight | 8.5 Kg with full tank |
| Installation type | Vertical or horizontal |
In the box
- Fog generator URFOG
- Instructions for use and assembly
- 2 ajax relays
- 1 fluid refill
