DV-MONOLITH-K-U
Ga direct naar de productinformatie
DV-MONOLITH-K-U
- Duevi low power consumption outdoor detector
- Ready to integrate third-party transmitters
- Double PIR / Detection 15 m
- Antimasking / Pet immunity
- Power supply with 2 batteries CR123A
- Outdoor use IP54 / Antivandalic IK10
- Duevi
- Outdoor detector with low consumption
- Double PIR
- Anti-masking technology
- Detection: Range 15 m / 90º
- Motion detection indicator
- Tamper-resistant opening
- Power 2 lithium CR123A batteries 3V (included)
- Ready to integrate third-party transmitters
- Outdoor use
- Degree of protection IP54, vandal resistant IK10
Specifications
| Brand | Duevi |
| Model | Monolith K |
| Type of integration | Universal |
| Technology | Double volumetric PIR |
| PIR lens | Both lenses horizontally adaptable up to 55º |
| Detection range | Configurable: 3 m to 15 m (in 6 levels) / 90º |

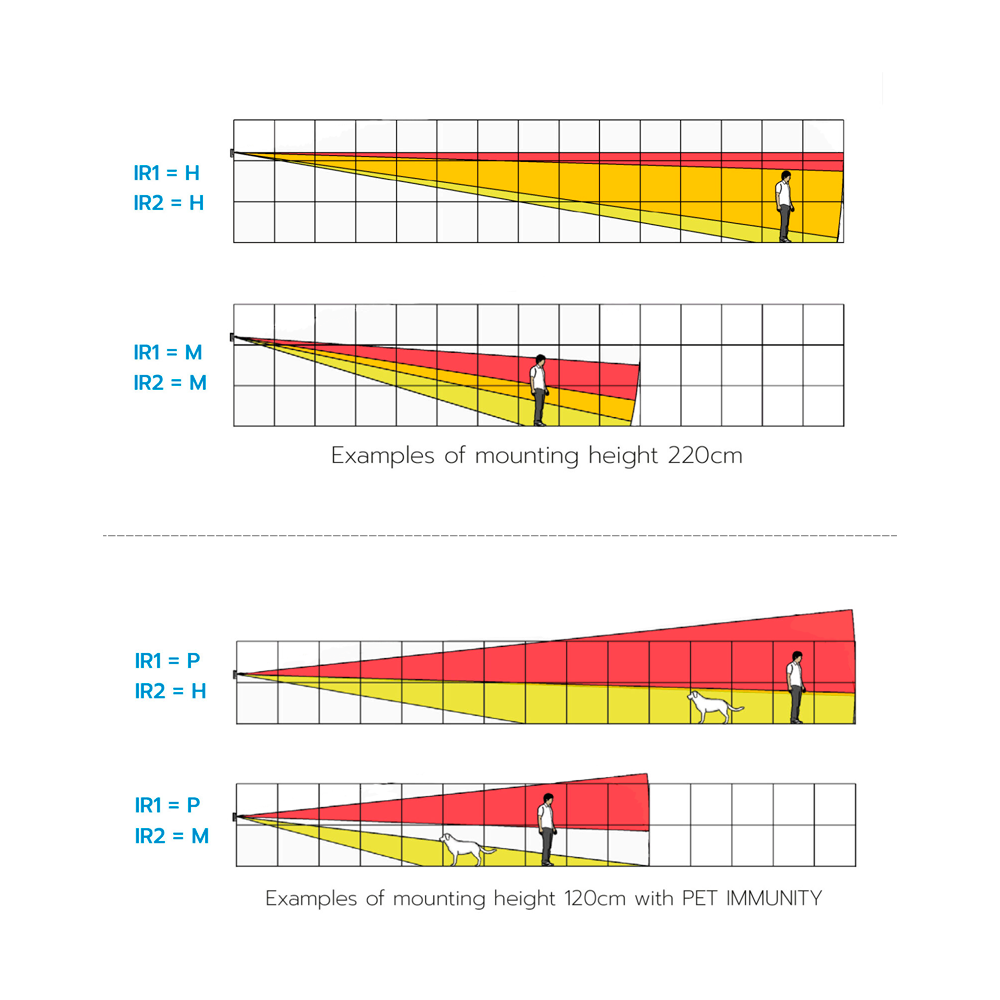

| Pet immunity | Available (installation height 1.2 ~ 1.3 m) |
| Installation height | From 1.2 m to 2.2 m |
| Masking | Available: from 0ºC, always on (through App) or disabled |
| Sensitivity | Adjustable (3 levels) |
| Tamper-resistant opening | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LEDs indication | Alarm (blue) and Walk test (red): Upper IR / green: Lower IR / blue: alarm confirmation) |
| DIP Switch configuration | 1- Walk-test (On/Off) 2- Alarm unification in one output (On/Off) |
| Configuration in detector (LEDs and buttons) | Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet immunity / Detection range (more info page). 9 manual in download section) |
| Additional configuration in App | Antimasking (from 0ºC, always on or disabled) / Antimasking sensitivity / Sleep time (On/Off/Up to 60 s) |
| Configuration by App | DV-BTLINK module required and download View Sensor App (Android) |
| Wired outputs | Alarm and Fault (tamper and antimasking) |
| Power | 2 lithium batteries CR123A 3V (included) |
| Consumption | Minimal consumption (Rest: 8 uA / Maximum: 5 mA) |
| Temp. operation | -40 ºC ~ +70 ºC |
| Degree of protection | IP54, Antivandalic IK10 |
| Dimensions | 201 (H) x 79 (W) x 106 (D) mm (transmitter spacing) |
In the box
- Duevi outdoor detector
- Rain Cover
- Mounting material
