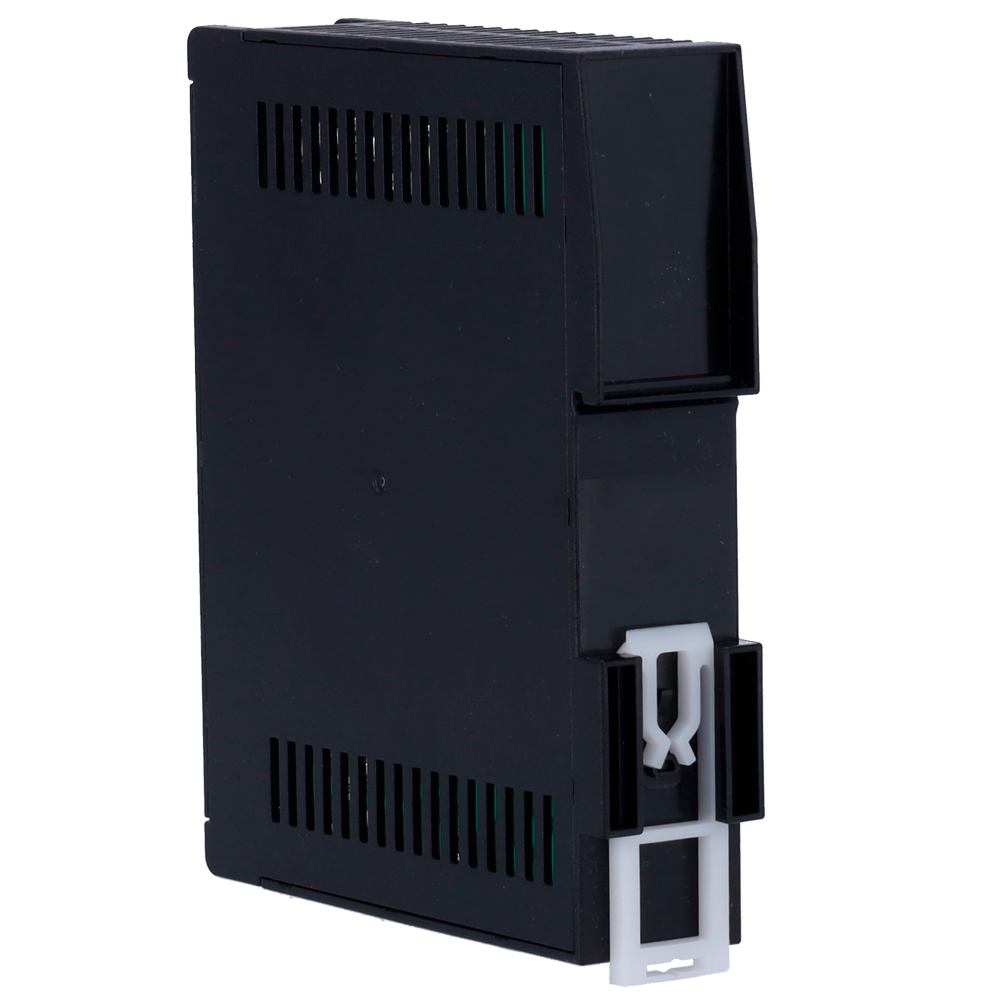

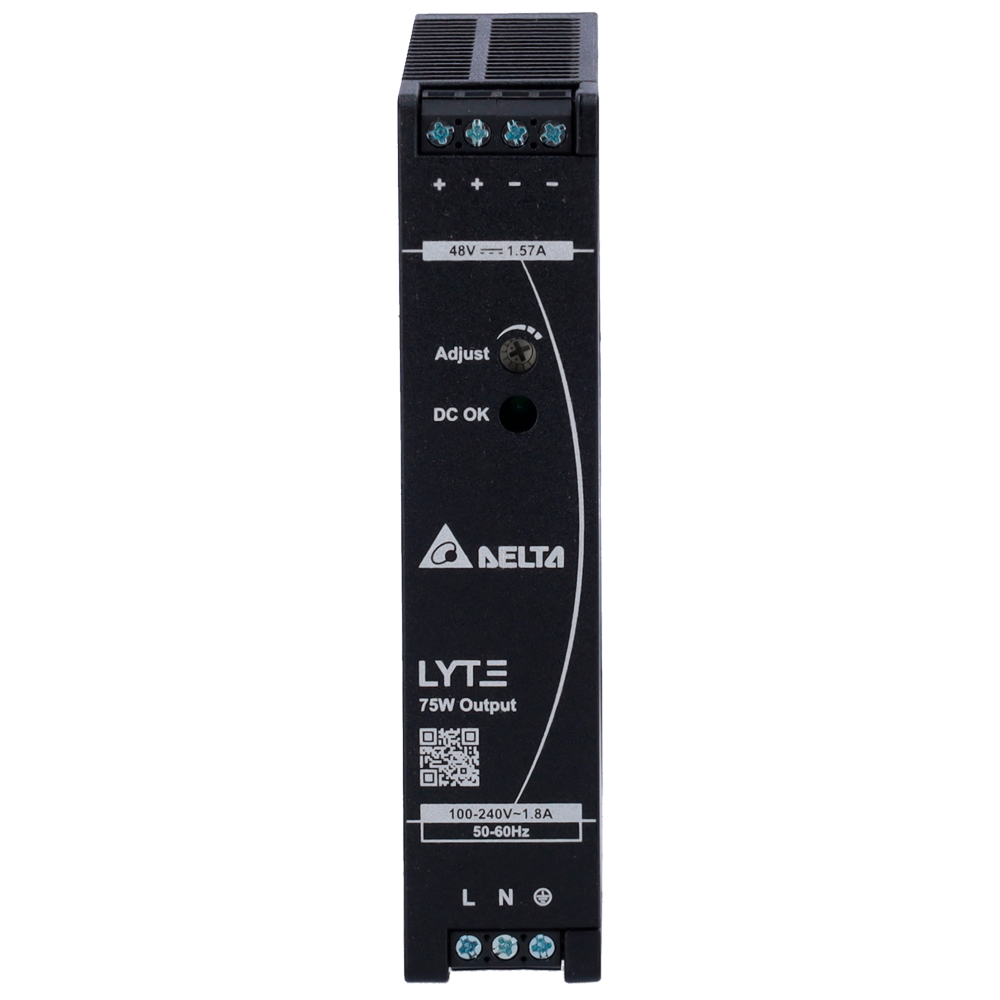

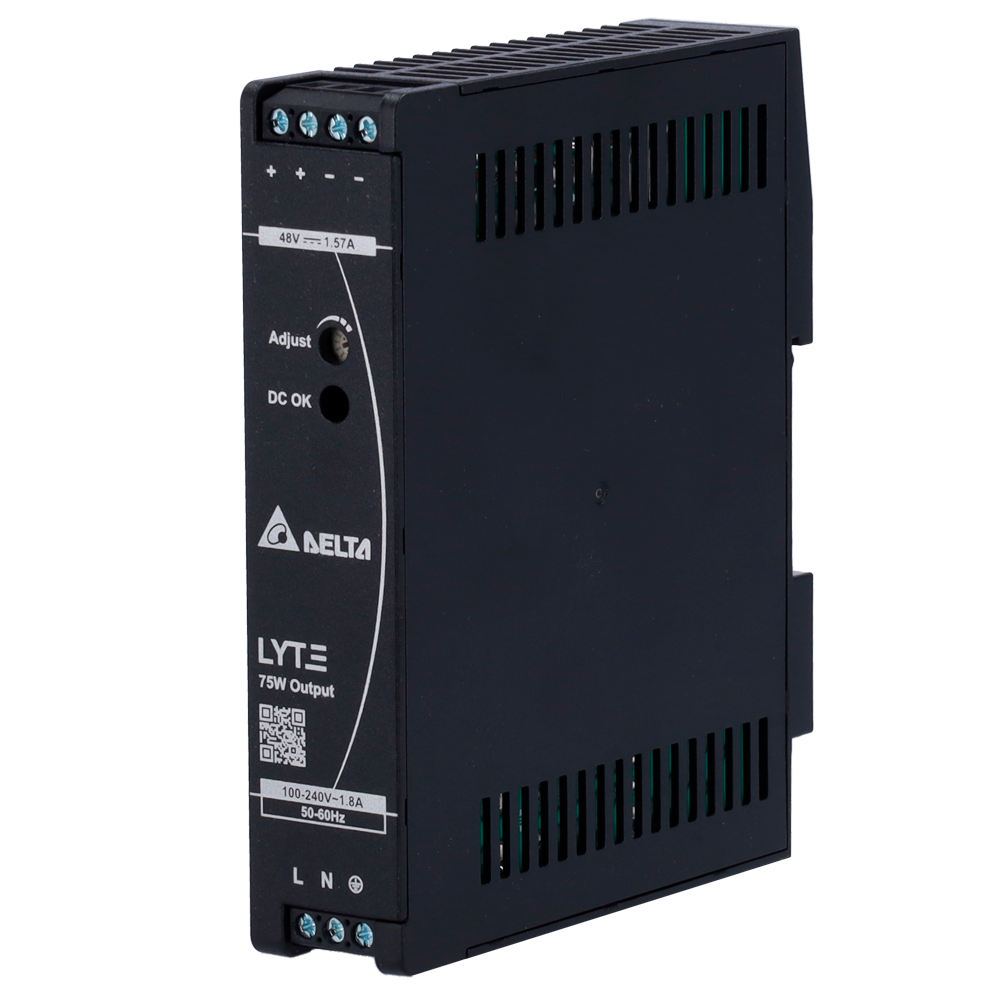

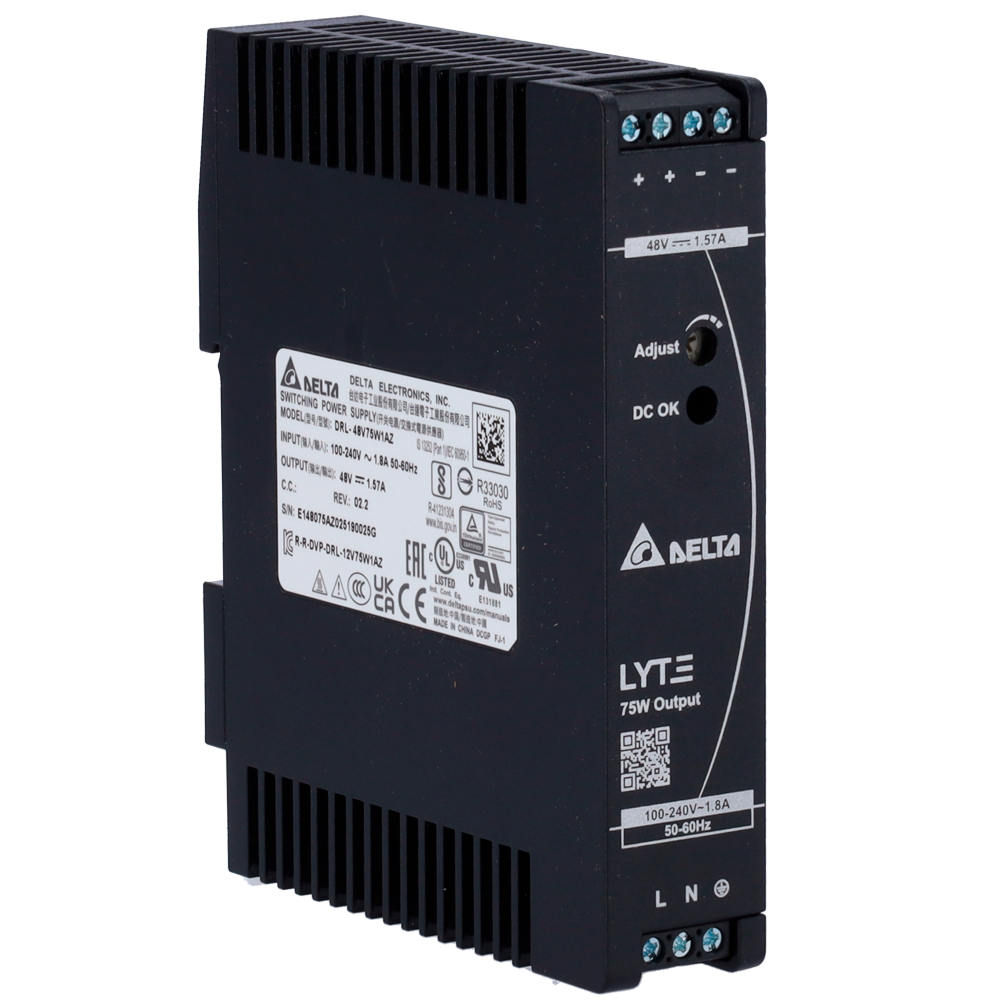

DRL-48V75W1AZ
Ga direct naar de productinformatie
DRL-48V75W1AZ
- Switching Power Supply
- DC output 48 V / 1.57 A / 75 W
- DIN rail mount
- Switching Power Supply
- Output 48 V / 1.57 A / 75 W
- Voltage range 43.2~52.8 V
- DIN rail mount
Specifications
| Power supply output | 48VDC |
| Output voltage range | 43.2 ~ 52.8V DC |
| Input voltage range | 85-264 Vac |
| Input frequency | 50/60 Hz |
| Output current | 1.57A |
| Maximum output power | 75W |
| Full load efficiency | 90% |
| Storing temperature | -40 ºC ~ +85 ºC |
| Ripple and noise | <240mVpp @ > -10°C a+70°C < 480mVpp @ ≤ -10°C to -30°C |
| Waiting time | 16ms @ 115Vac (100% of load) 60ms @ 230Vac (100% of load) |
| Working humidity | 5 to 95% |
| Dimensions | 123.6 x 27 x 102 mm |
| Weight | 220 g |
| Mounting | DIN rail |
| Input wiring | AWG 18-12 |
| Output wiring | AWG 22-12 |
In the box
- Power supply
