AJ-KEYPADOUTDOOR-B
AJ-KEYPADOUTDOOR-B
- Outdoor keypad IP66/IK08 with RFID reader
- Total or group arming/disarming
- Authentication: codes, RFID or Bluetooth reader
- Audible and LED indication
- Control of automation scenarios
- Grade 2 approved

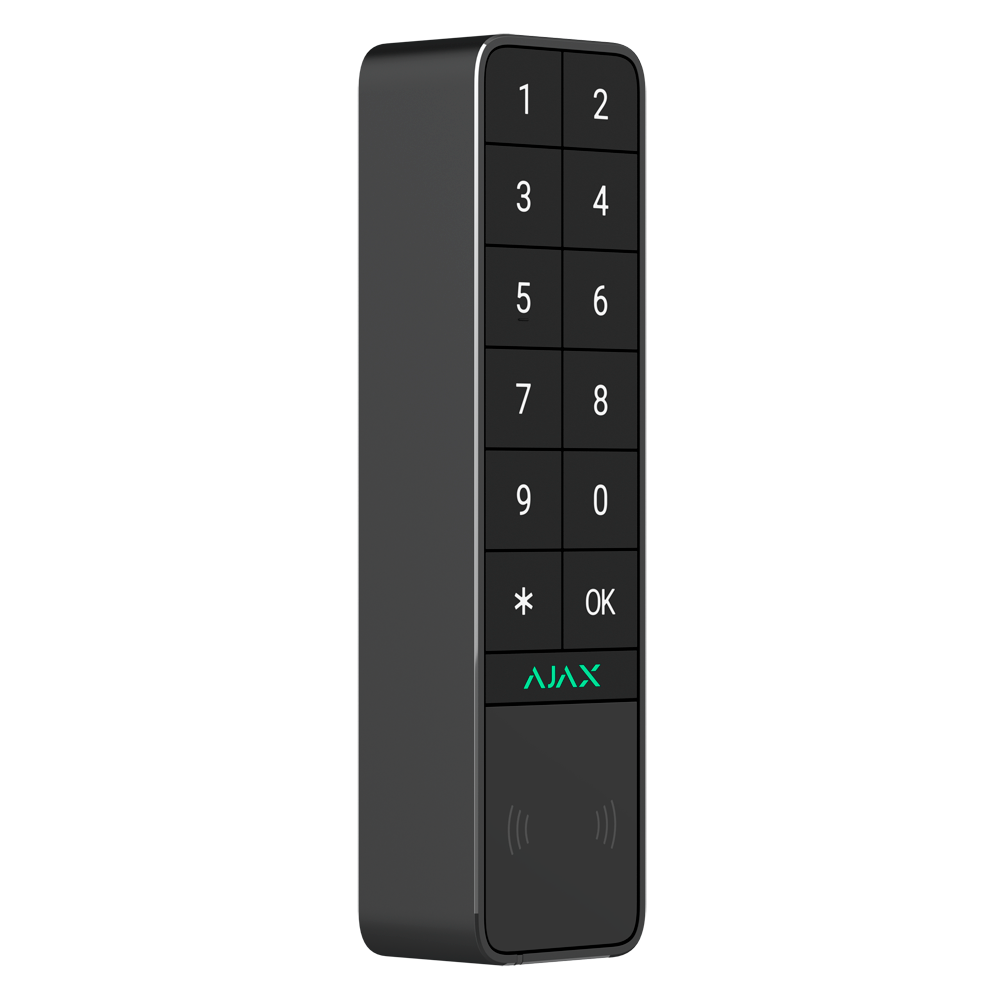

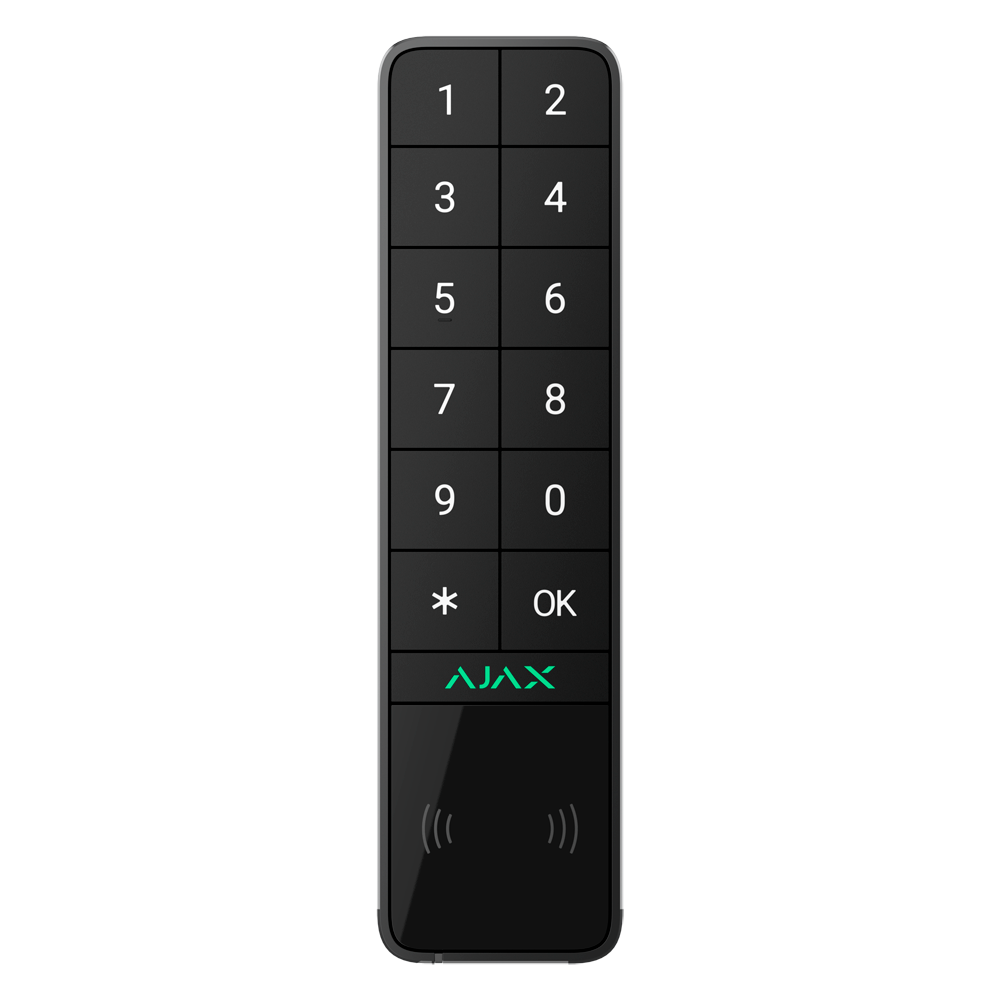

Ajax KeyPad Outdoor Jeweller is the outdoor wireless keyboard ready to work in all types of environments, as it has a stainless steel housing with IP66 and IK08 impact protection.
Enables control of the security system via RFID, access codes and smartphone, using Bluetooth Low Energy (BLE). In addition, it supports arming, partial arming, disarming and emergency modes, along with the configuration of duress codes and guest access.
OTA (Over-The-Air) updates are software updates performed wirelessly, without the need to connect the devices to a computer or cable. This allows users of Ajax systems to keep their devices up to date with the latest enhancements, bug fixes and new features without direct user intervention. Updates are managed through the Ajax app, making installation easy and ensuring that all devices within the system are kept in sync and protected.
- Ajax Jeweller
- Standalone keypad
- Jeweller Protocol (Wireless) 868 MHz Jeweller
- Grade 2 approved
- Bidirectional
- Additional power supply 12 V DC
- Tamper-resistant opening
- Allows full/partial arming/disarming by code, tags and cards
- Authentication control via codes, RFID reader or Bluetooth
- Supports access codes, duress and guests
- Buzzer 60 dB for audible notification (alarm, security mode change, entry and exit delays, chime)
- Used to protect the panel in a safe place
- LED System Status indicator
- Weatherproof IP66
- Anti-vandal IK08

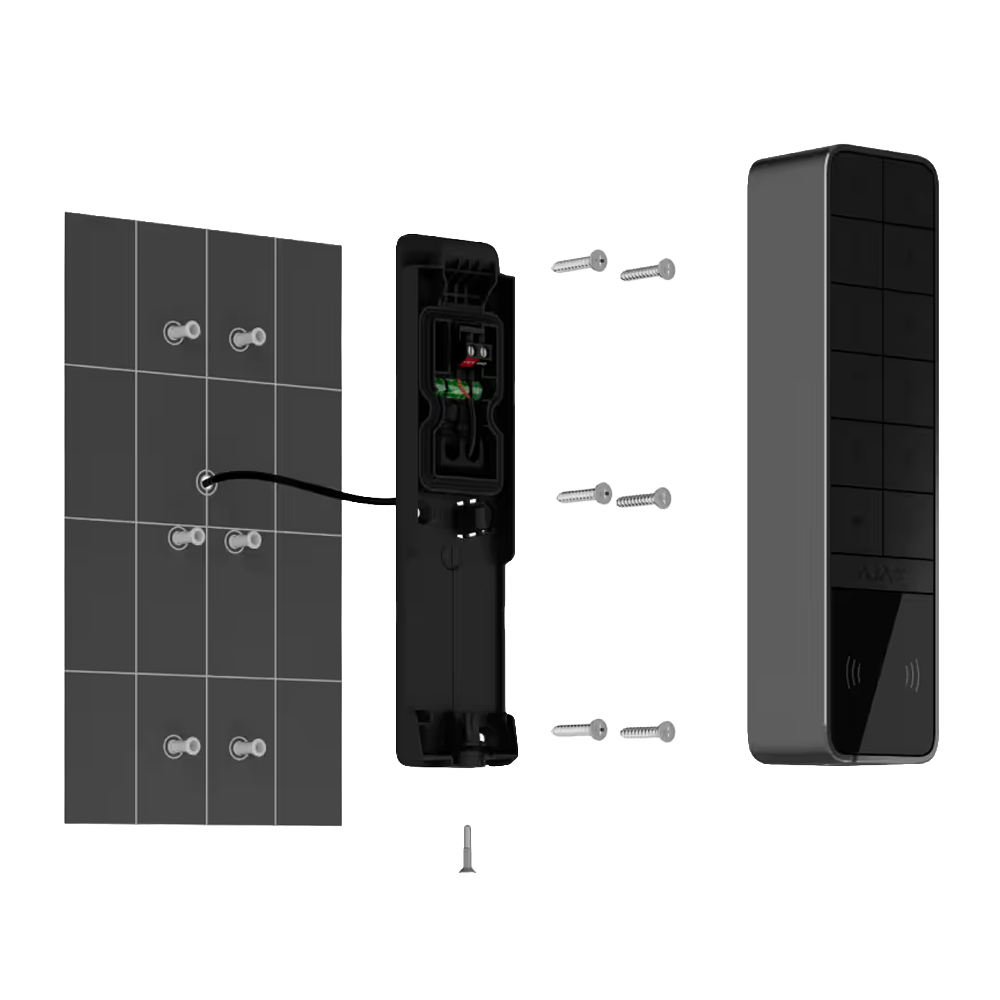

- Includes mounting bracket
- Black colour
Specifications
| Brand | Ajax Baseline Jeweller |
| Security grade | Grade 2 |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Functions | - Full arming/disarming of the system - Night mode - Group arming/disarming - Emergency button or silencing fire alarms |
| Authentication control | - Codes (keypad or user) - RFID reader for key fobs and cards Ajax - Cell phone via Bluetooth (BLE 4.2 or higher) |
| Codes | Up to 49 personal and 1 general They can be of access, coercion or guests |
| RFID Technology | Mifare DESFire® EV1, EV2, EV3 (ISO 14443-А 13,56 MHz) |
| Antisabotage | - Tamper - Fixing screw - Automatic blocking in case of unauthorized access |
| Led indicator | To indicate safety mode status |
| Power | 2 batteries CR123A 3.0 V (approximate life time 3 years) |
| Optional power supply | 10.5~14 VDC with external power supply |
| Compatibility with central panels | Hub 2, Hub 2 Plus, Hub Hybrid |
| Housing material | Stainless steel |
| Degree of protection | IP66 |
| Impact resistance | IK 08 |
| Temp. operation | From -25 º C to +60 º C |
| Operating Humidity | Up to 80% |
| Dimensions | 170 (H) x 45 (W) x 31 (D) mm |
| Weight | 258 g |
| Colour | White |
In the box
- Wireless keypad
- SmartBracket
- Installation kit
- Installation template
- Instructions Manual
