ACR205-QR-EM
- Access reader
- Access by EM and QR card
- LED and acoustic indicator
- Wiegand 26/34
- Compatible with third-party equipment
- Suitable for indoor use : Flush mounting
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.
This reader allows identification through cards or key fobs with 125 kHz RFID EM technology and QR code reading.
The connection to the controllers is made via Wiegand. This protocol allows a secure connection to the installation.
- Access reader for controller
- Access by EM and QR card
- LED indicator
- Wiegand 26/34 and USB
- Compatible with Wiegand controllers
Specifications
| Model | ACR205-QR-EM |
| Activation sensor | Infrared auto-activation |
| Identification modes | RFID EM 125 kHz and QR card |
| Read time | < 1 sec |
| Card reading distance | < 6 cm |
| QR reading distance | < 20 cm |

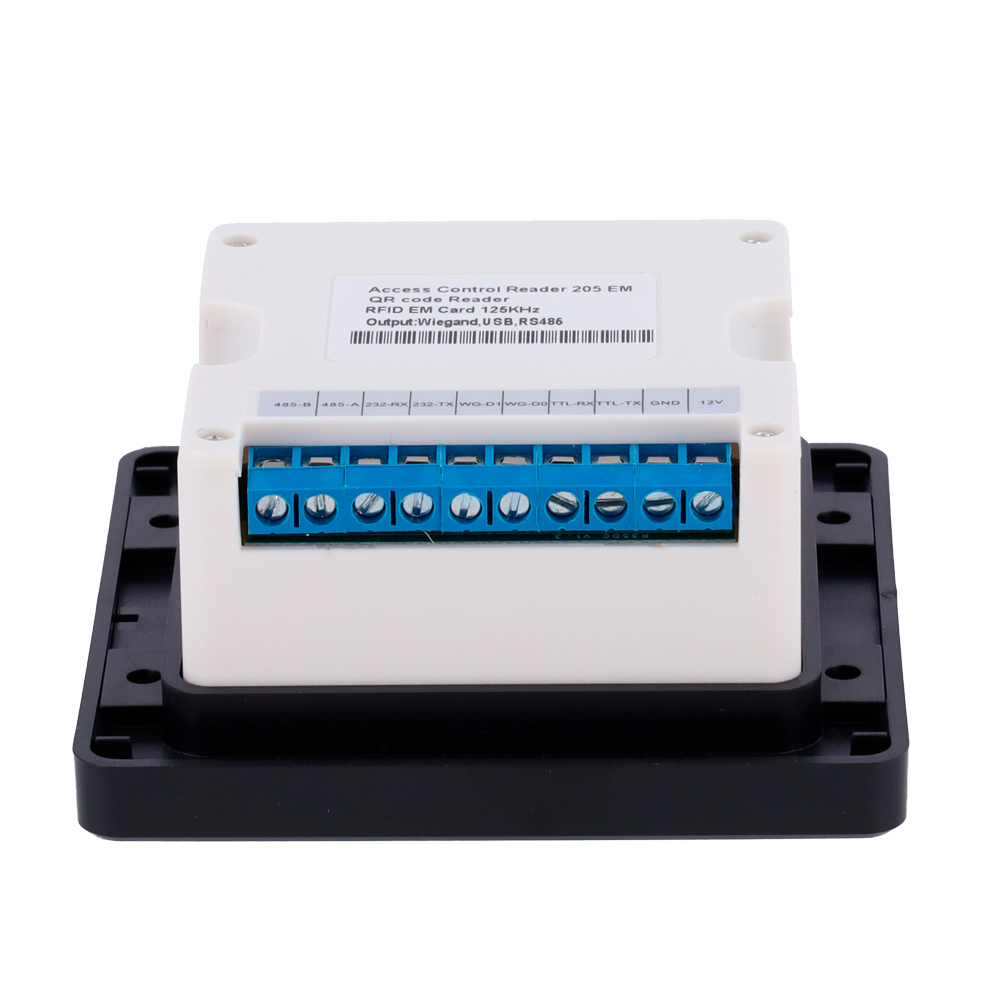

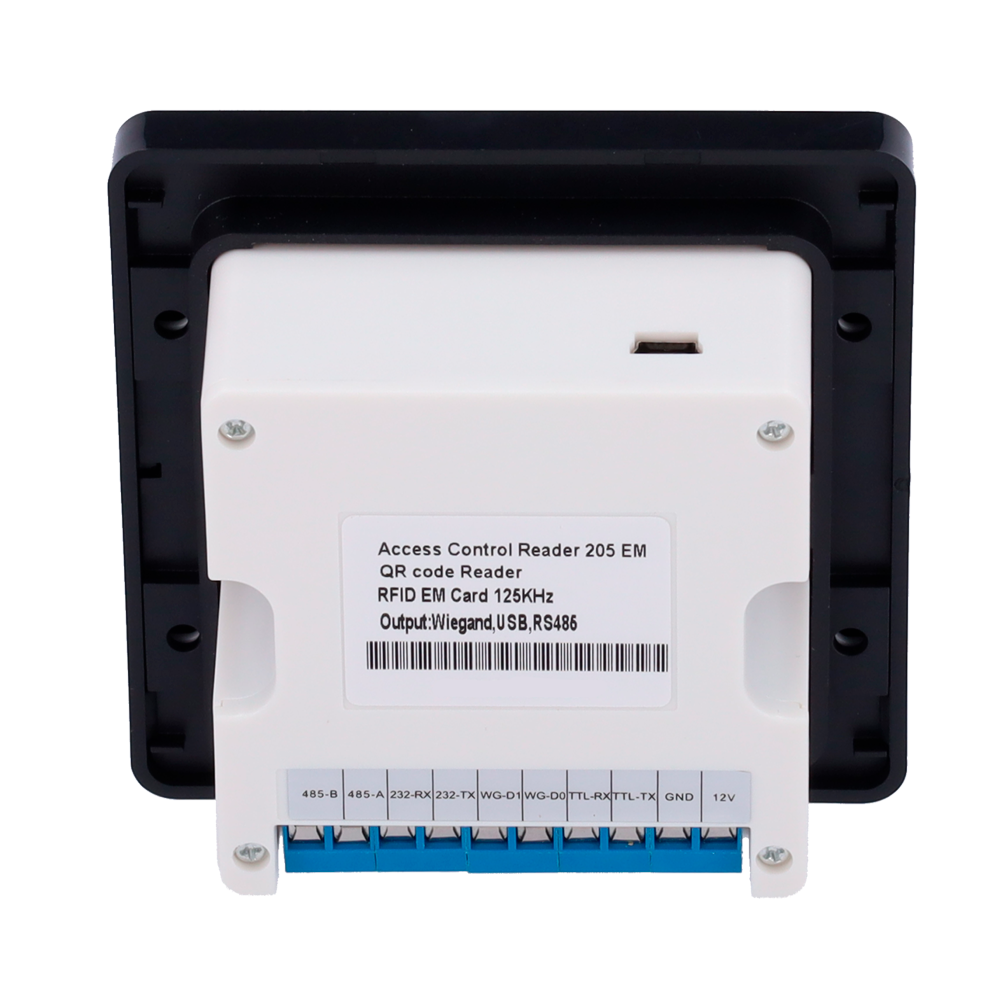

| Outputs | Wiegand 26/34, buzzer for status indication, tamper USB for configuration |
| Compatibility | Third-party access control equipment with Wiegand connection |
| Power | DC 12 V / 800 mA max. |
| Degree of protection | Interior |
| Temp. operation | -20 ºC ~ +70 ºC |
| Installation | Flush box mounting (not included) |
| Dimensions | 86 (W) x 86 (H) x 42 (D) mm |
| Weight | 150 g |
In the box
- Card reader and QR
- Mounting material
- USB Cable
