ABL100-1508A
- Infrared barrier detector
- Wired | 8 beams
- Max distance. The detection 100 m
- Easy installation with LED and buzzer
- Unique address for each tower
- Relay output NC/NO | Power supply 12~18VDC

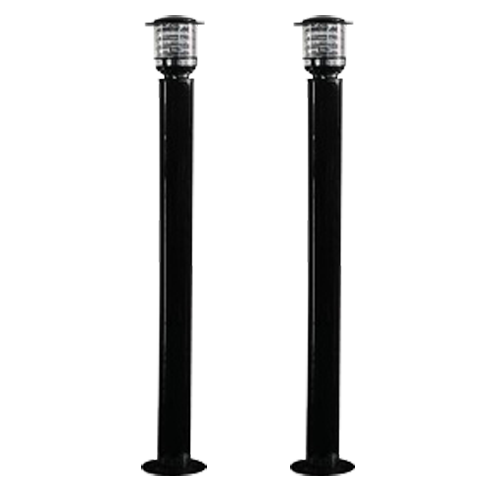

- Kit of infrared towers (emitter/receiver) of 8 beams for outdoor
- Wired
- Maximum sender / receiver detection 100 m (exterior)
- Connection of each tower: an address
- Horizontal alignment angle 180° (± 90), vertical not adjustable
- 2 work frequencies

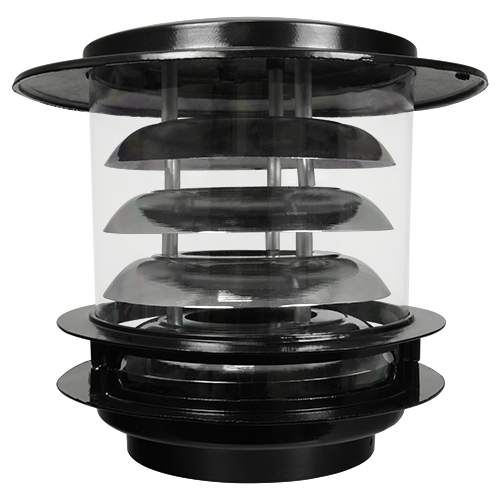

- LED light to illuminate and camouflage with garden lights (included)
- Power supply 12~18 VDC
- Highly resistant PVC tube
Specifications
| Detection range | 100 m exterior |
| Number of beams | 8 |
| Detection method | Interruption of 2 continuous beams at a time |
| Communication | One address per tower: sender or receiver |
| Sensitivity | Adjustable between L, M, H |
| Frequency channels | 2 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A) |
| Alignment angle | Horizontal 180°(±90°) |
| Adjustment method | Over LED and buzzer |
| LED light | E27 230VAC (included) |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Power | 12~18 VDC, 90 mA max. |
| Dimensions | Height: 150 cm / Diameter: 13 cm |
In the box
- Infrared towers
- Installation material
- User instructions
