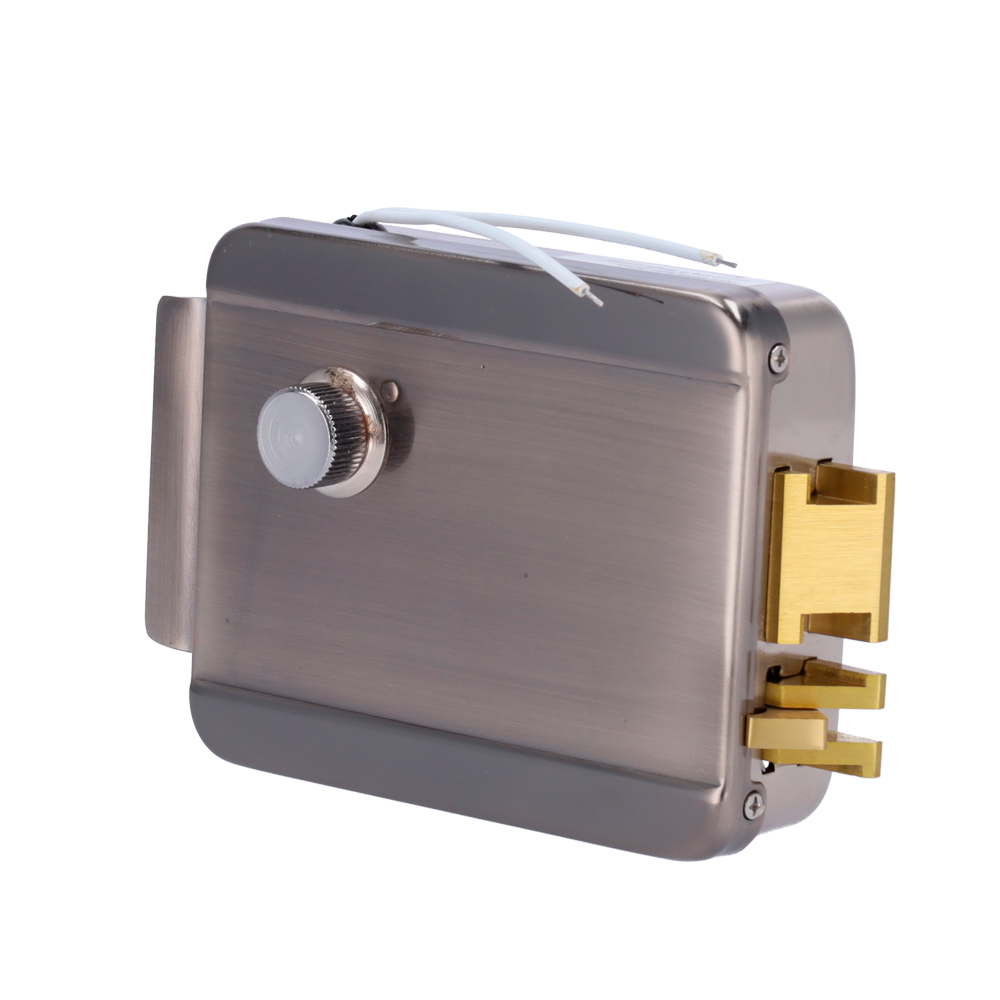

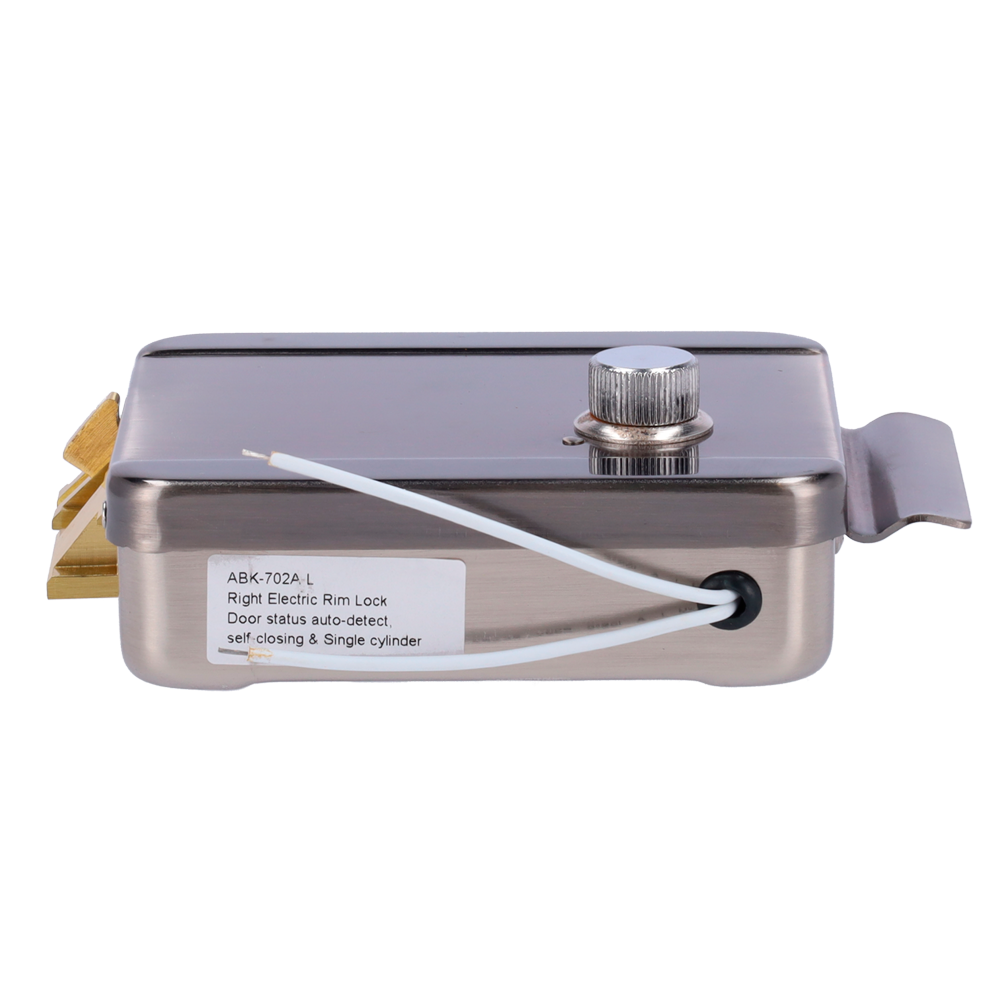

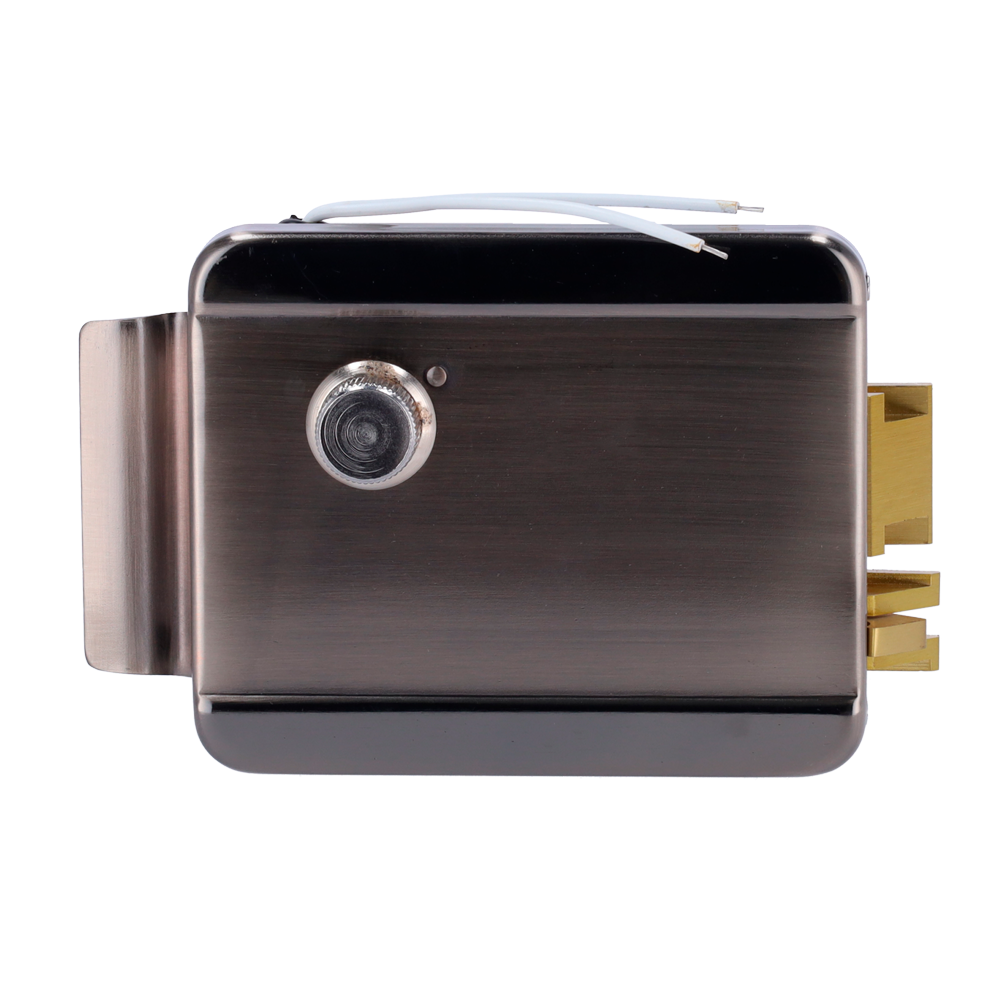

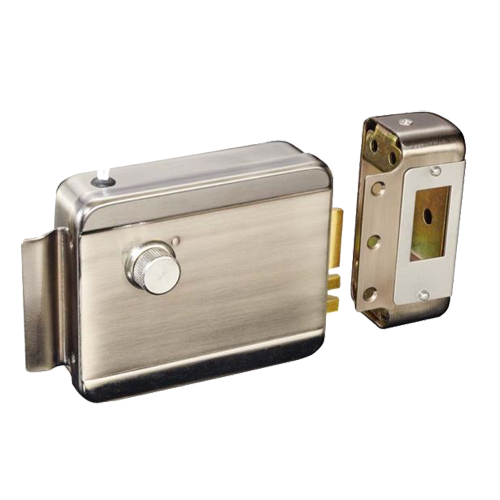

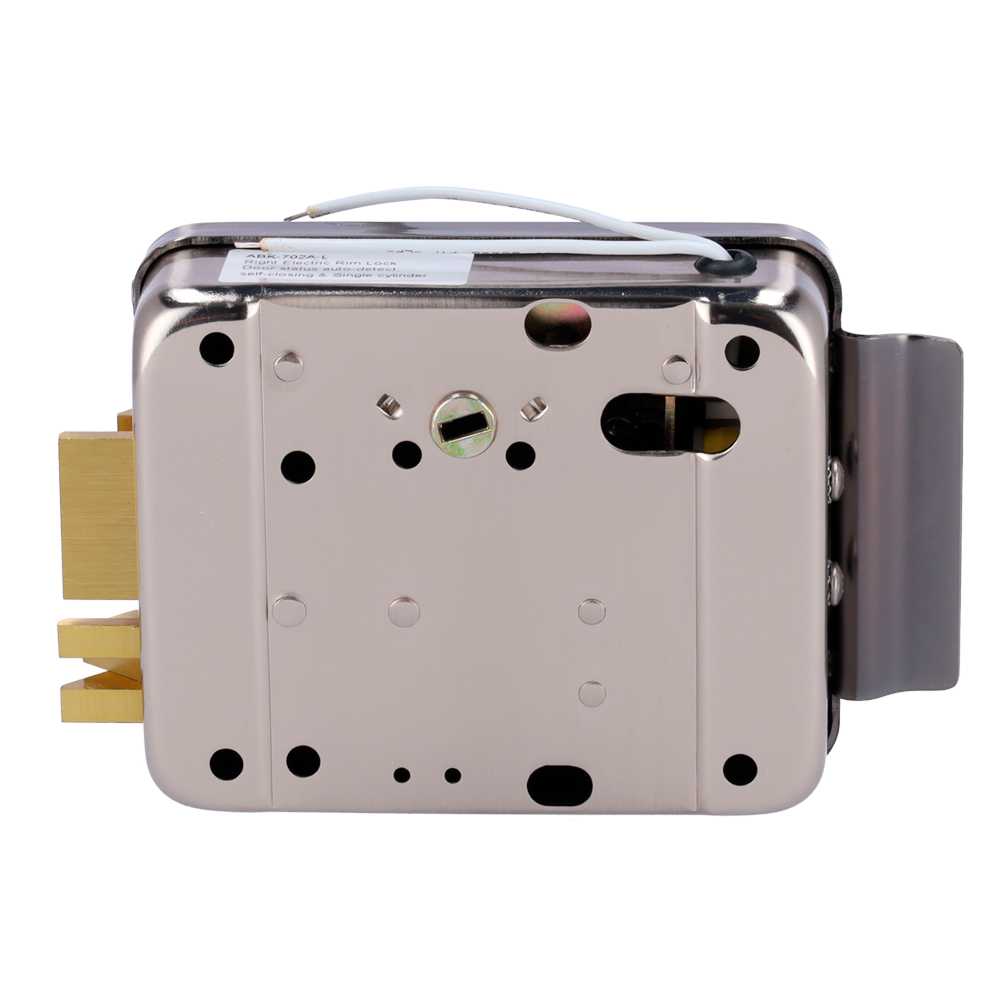

ABK-702A-L
Ga direct naar de productinformatie
ABK-702A-L
- Electromechanical surface lock
- Fail Safe (NC) opening mode
- LED status indicator
- Programmable self-closing
- Left-hand opening outwards
- Electromechanical surface-mounted security lock
- Normally closed NC (Fail Safe)
- Open door signal
- Door sensor
- Applicable for firefighting systems
- It has status LED
- Mounting on wood, metal and glass doors
- Anti-sabotage lock
- 12 VDC
- Opening to the left
Specifications
| Mounting | Surface |
| Opening mode | Fail Safe (NC) |
| Locking delay time | 9 seconds in case of no opening / in case of opening it locks in 1 second by sensor detection |
| Bolt length | 20 mm |
| Power | DC 12 V/ 1.5- 3A |
| Open sensor | Integrated LED indicator, exit indicator. |
| Plate dimensions | 34.5 (d) x 126(Al) x 102 (w) mm |
| Weight | 1.45 Kg |
| Temperature | -40º C ~ +50º C |
| Range | EasyAccess |
In the box
- Lock
- Cylinder with keys
- Electromagnetic strike with sensor
- Installation material
- Installation manual
