ZK-ZYNK-ZPAD-PLUS-RF-12-S-4G
ZK-ZYNK-ZPAD-PLUS-RF-12-S-4G
- Android time and attendance control with camera
- EM/MF/DESFire and PIN card
- 10.000 card | 200.000 records
- 7" TFT touchscreen, TCP/IP, WiFi, USB and microSD
- Soft. Attendance: ZKBioTime 8 and GoTime Cloud
- Soft. BioTime Web embedded until 50 users
A stand-alone time and attendance device is able to identify users and collect clockings made. This equipment must always have a display to show the actual time at which the workers are performing the identification.
This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz, MF of 13.56 MHz and MF DESFire of 13.56 MHz, as well as keypad for numeric codes.
Its 7" touch screen facilitates the operation and configuration of the equipment locally, both to use it autonomously without software, and to set some parameters required to connect to the software, such as network configuration.
Advanced configurable functions: relay output (to enable a siren at certain times and to indicate workers' shift changes) or function keys (to quickly select the type of clocking or the incident).
From the cloud-based GoTime Cloud software, or from the client-server-based ZKBioTime 8, software, the configuration of users, schedules and shifts is performed, as well as the management of absences and permits and the obtaining of different reports (clockings, monthly summary and overtime, among others).
- ZKTeco
- Stand-alone Android presence reader 6.0
- Identification by EM and MF cards, passwords and/or combinations

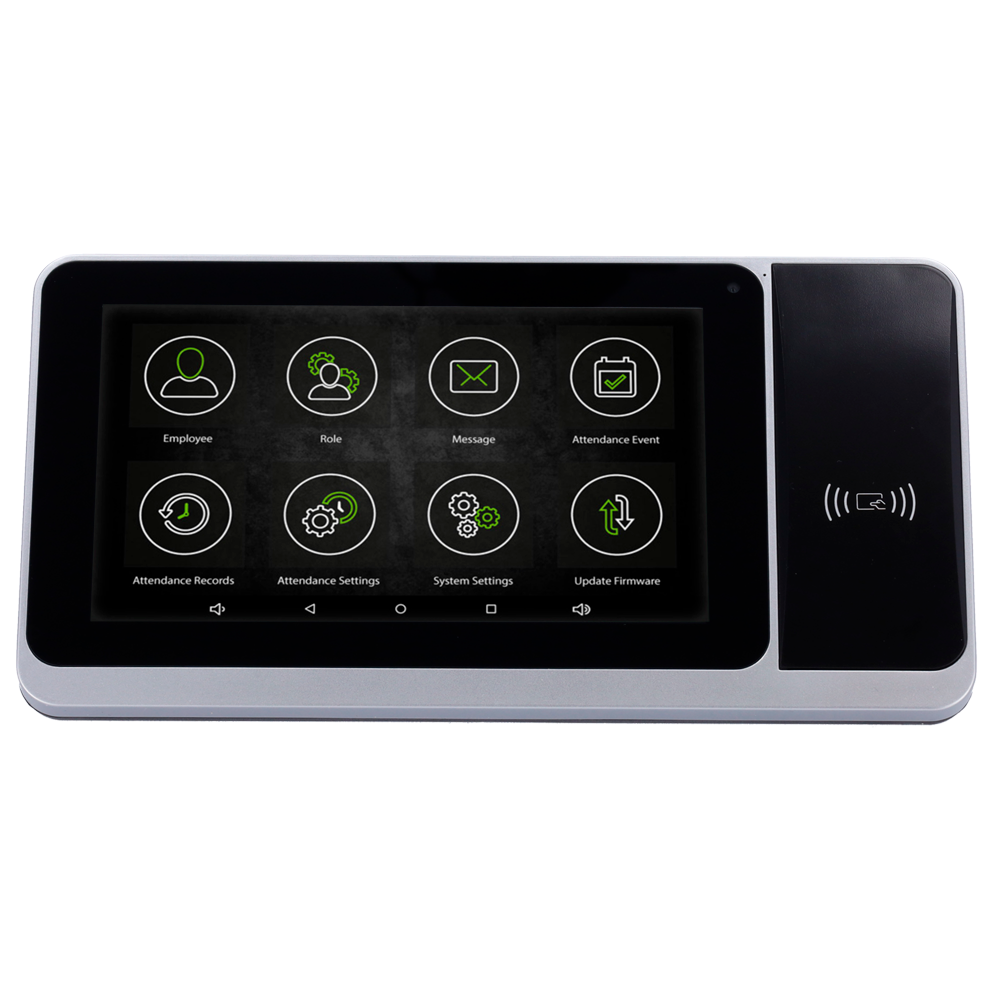

- 7" TFT capacitive touch screen Display
- Capacity for 10.000 cards & 200.000 registers
- 9 control modes of customisable time & attendance
- Work codes
- Automatic mode switching
- Voice indications
- TCP/IP, WiFi and USB Flash communication
- Control of schedules, shifts and cycles
- Personalised messages
- Backup battery included
- Integrated 2 MP Camera for user photos
- Stand-alone operation with BioTime Web embedded software up to 50 users
- Compatible with free ZKBioTime8, presence software up to 2 devices and 100 users (purchase perpetual license)
- Compatible with GoTime Cloud presence software (purchase annual license)
- Any license can be found in the Software category of the website
Specifications
| Brand | ZKTeco |
| Model | ZYNK-ZPAD-PLUS-RF-12-S-4G |
| Operating system | Android 6.0.1 |
| CPU | Quadcore Cortex-A53 1.2 GHz |
| Read time | < 1 sec |
| Time & Attendance control functions | Work codes, Customized messages, Siren calendar, Automatic mode switching, Presence control modes, Shortcut function keys, Photo capture with registration, Reports, Webserver, etc |
| Capacity | Up to 10.000 cards Up to 50 users/cards (WebServer) |
| Records | 200.000 records and 8.000 images |
| Identification modes | Card, PIN and/or combinations |
| Proximity card | RFID EM 125 kHz, MF 13.56 MHz Classic, MF DESFire EV1, MF DESFire EV2, MF Ultralight, MF Ultralight C, MF Plus X, MF Plus S and NTAG213 |
| Screen | TFT 7" capacitive color touch (800x480) |
| Communication | TCP/IP, USB, WiFi, microSD slot |
| Software | Time and Attendance Software: ZKBioTime 8.0 | GoTime Cloud Embedded Presence Software: BioTime Web up to 50 users (via Web Server) |
| Power | DC 12 V / 3 A max. | Backup battery |
| Temp. operation | -0 ºC ~ +45 ºC |
| Dimensions | 240 (W) x 130 (H) x 45 (D) mm |
| Weight | 2300 g |
In the box
- ZKTeco biometric device
- Mounting material
- User instructions
