ZK-ATLAS-100
- PoE Access Controller
- Access with card or password
- TCP/IP | Connection to slave controller

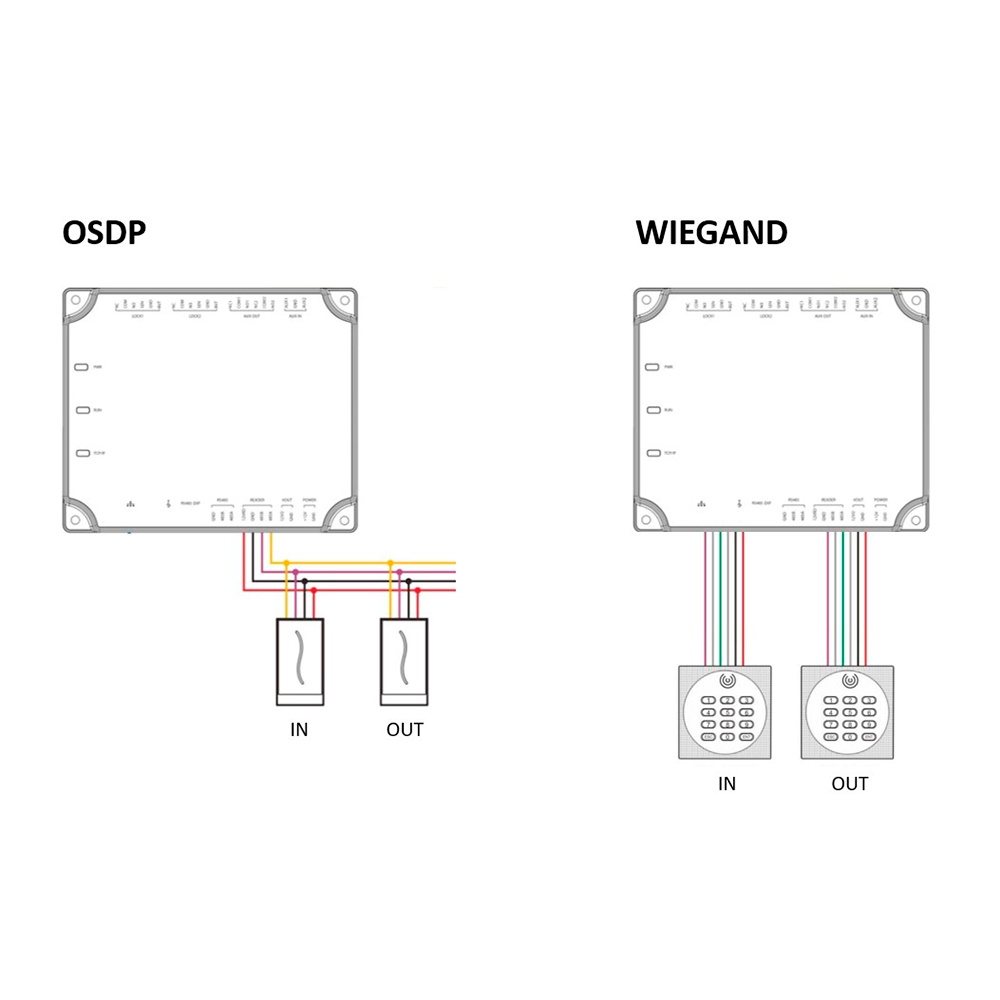

- 2 readers by Wiegand | 2 readers by OSDP
- Relay output for 1 door
- Embedded ATLAS Series software and mobile app
- ZKTeco
- RFID access control panel
- Management of 1 door
- Capacity 5.000 users and 10.000 records
- Supports up to 2 Wiegand readers or 2 OSDP readers (card reader)
- TCP/IP, Wiegand and OSDP communication
- Standard PoE power supply
- Input for 1 pushbutton, 1 door sensor and 1 auxiliary input
- 1 relay output and 1 auxiliary
- Relay configuration NO/NC
- Integrated ATLAS Series software
- Web browser access to software for access control management and reports
- ZK ATLAS mobile app for remote management of users, events, alarms and open remotely
- Connection of ATLAS slave controllers with access from a single IP to 84 gates
- Free license up to 25 gates
Specifications
| Brand | ZKTeco |
| Model | CON-ATLAS-100 |
| Capacity | Up to 5.000 users |
| Records | 10.000 registers |
| Identification modes | Card and/or password |
| Proximity card | EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication | TCP/IP | RS485 | OSDP | Wiegand |
| Baud rate | 9.600bps for OSDP |
| Outputs | 1 x relay output, 1 x auxiliary output |
| Inputs | 2 x Wiegand 26/34/37/50, 1 x door sensor, 1 x opening button, OSDP (up to 2 readers), 1 x auxiliary |
| Advanced features | Anti-passback, first card, multi-card and maps |
| Software | ATLAS Series embedded with browser-based access |
| Languages | English, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech |
| Secondary controllers | Connection of up to 20 secondary controllers via IP with a control of up to 84 doors |
| Compatible web browsers | Google Chrome, Mozilla Firefox, Microsoft Edge |
| Mobile App | ZK ATLAS for iOS and Android |
| Power | DC 12 V / 3 A max | PoE power supply standard | Locks not powered with controller |
| Temp. operation | 0º C ~ +55 C |
| Dimensions | 197 (W) x 171 (H) x 30 (D) mm |
In the box
- ZKTeco Access Controller
- Mounting material
- User instructions
