YF-280BST-LED
- Electromagnetic suction cup
- For double door
- Holding force 280 kg per suction cup
- Fail Safe (NC) opening mode
- Surface mounting
- LED, status sensor and adjustable time delay
- Electromagnetic suction cup for double door
- Fail Safe functionality / Inverted (NC)
- Linear load resistance 280 kg per suction cup
- Door lock status LED
- NO/NC/COM contact output for door lock status
- Lockout time with adjustable delay
- Surface installation
- Made of aluminum
Specifications
| Model | YF-280BST-LED |
| Door type | Double: 2 folding blades |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 280 kg (per suction cup) |
| Signaling | Door lock status LED NO/NC/COM contact output for door block status |
| Blocking time | Adjustable delay |
| Power | DC 12 V / 520 mA máx. o DC 24 V / 260 mA max. |
| Mounting | Surface |
| Protection | Interior |
| Material | Aluminium |
| Temp. operating | -10 ºC ~ +55 ºC |
| Dimensions | Maglock: 500 (W) x 49 (H) x 25 (D) mm Counterplate: 180 (W) x 38 (H) x 13 (D) mm |
| Range | EasyAccess |
In the box

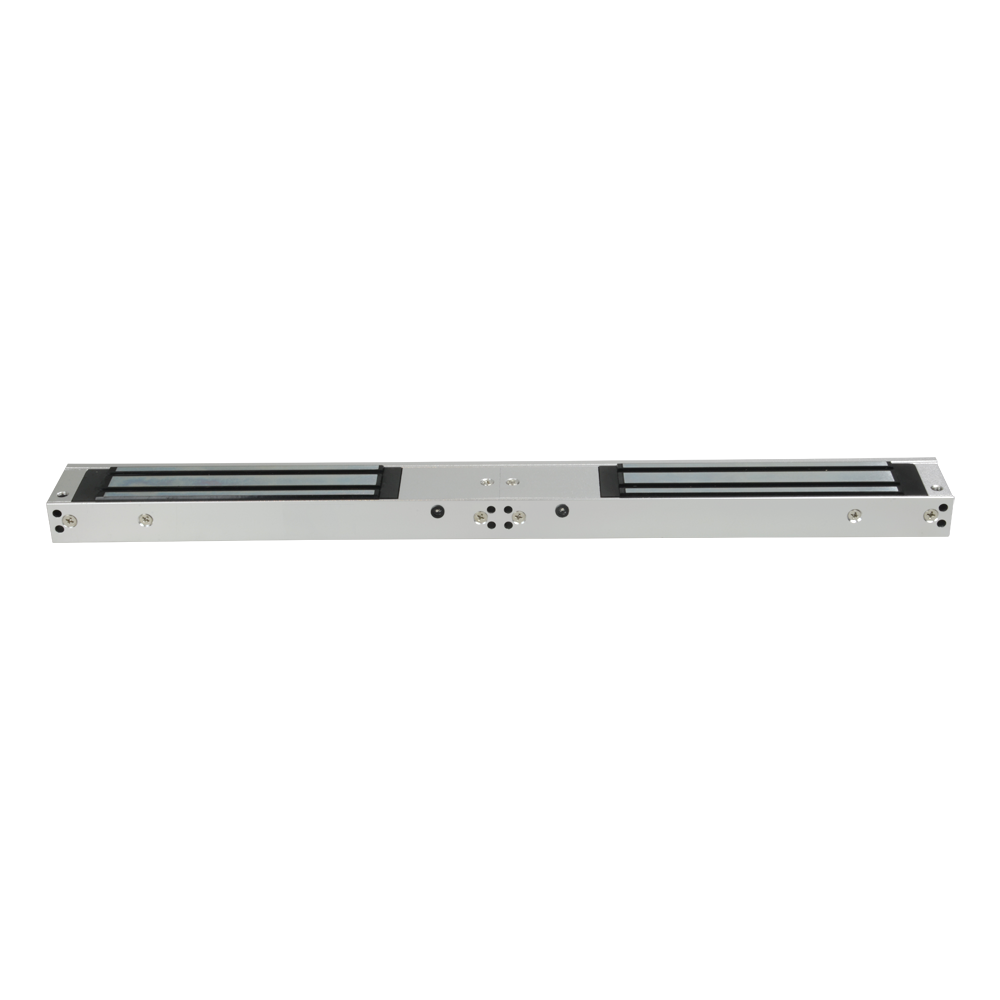

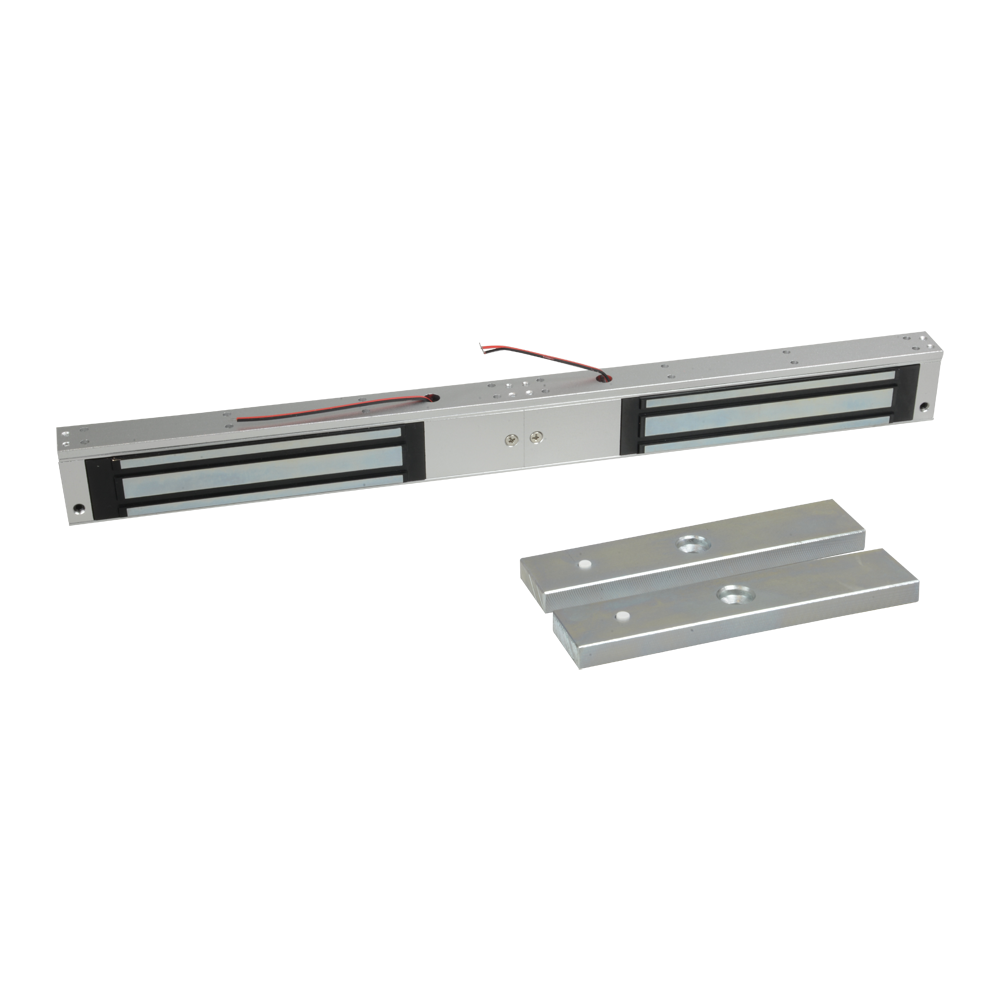

- Electromagnetic lock

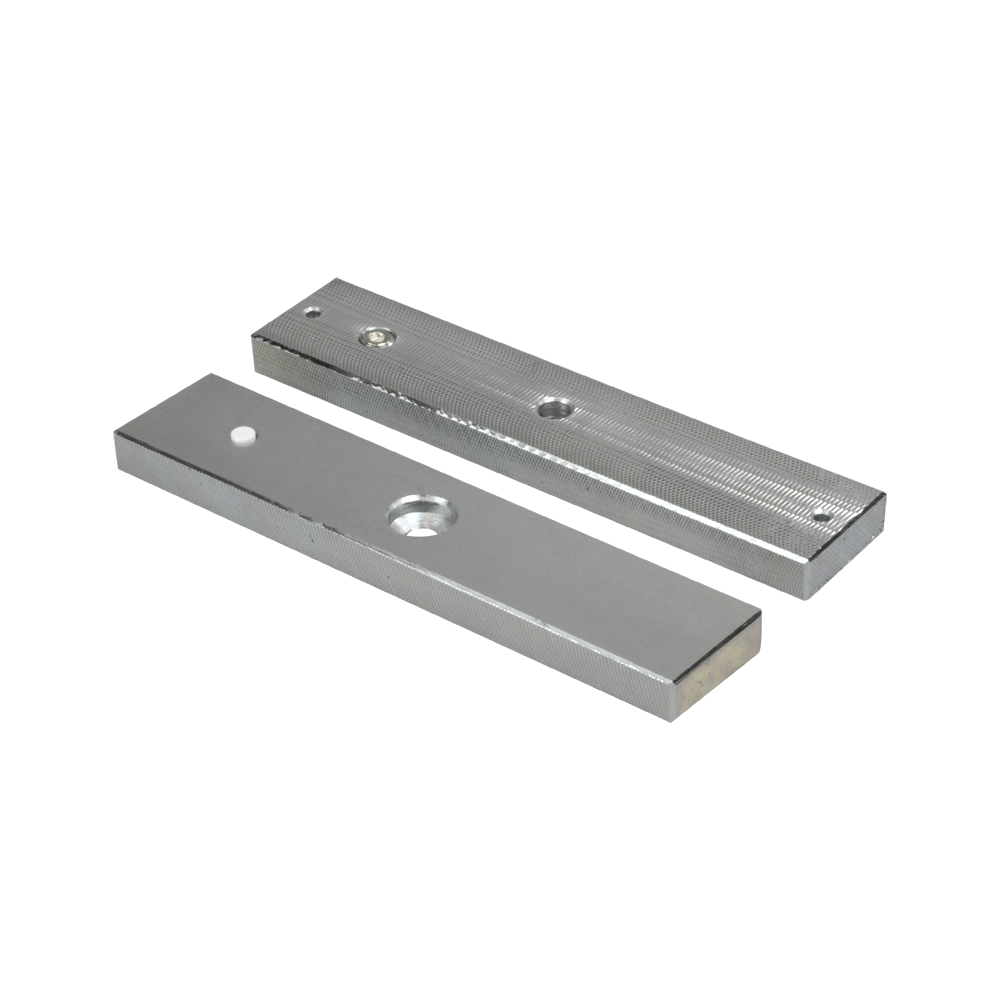

- Magnetisation plate
- Fixing plate
- Installation material
- User instructions
