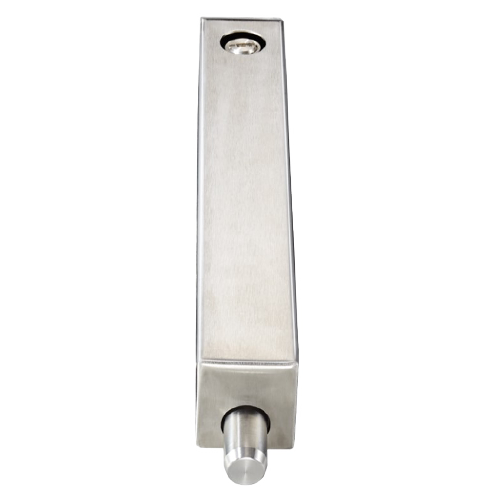

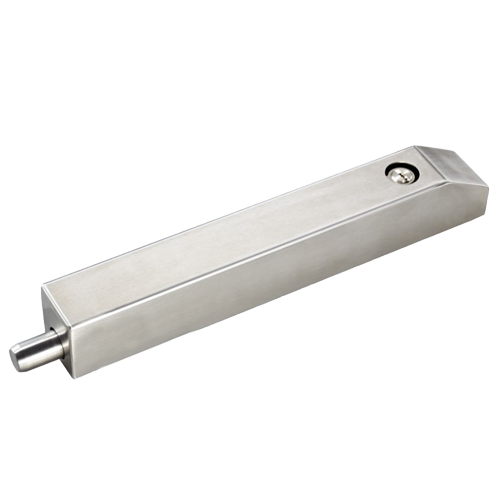

YB-900
- Electromechanical safety lock
- Fail Secure (NO) opening mode
- Holding force 2000 kg | Door sensor
- Protection IP55
- Stainless steel SUS304
- European cylinder included with keys
- Electromechanical bolt security lock
- European cylinder with keys included
- Operation NO (Fail Secure)
- Door sensor
- Mounting on wood and metal doors
- Suitable for heavy doors
- Made of stainless steel SUS304
- 12 VDC
- Protection IP55
- Horizontal or vertical installation
Specifications
| Mounting | Surface |
| Opening mode | Fail Secure (NO) |
| Type of opening | Bidirectional |
| Retention force | 2000 kg |
| Cylinder | European |
| Power | DC 12 V / 5 A max. (start) / 0.6 A max. (rest) |
| Door sensor | NC / NO / COM |
| Lock dimensions | 41 (W) x 300 (H) x 46 (Fo) mm (without bolt unfolded) |
| Pin dimensions | 29.5 (W) x 17.8 (Ø) mm |
| Temp. operating | -40º C ~ +60º C |
| Weight | 1.8 kg |
| Protection | IP55 |
| Range | EasyAccess |
In the box
- Electromechanical lock
- Installation material
- User instructions
