XTL-680021660

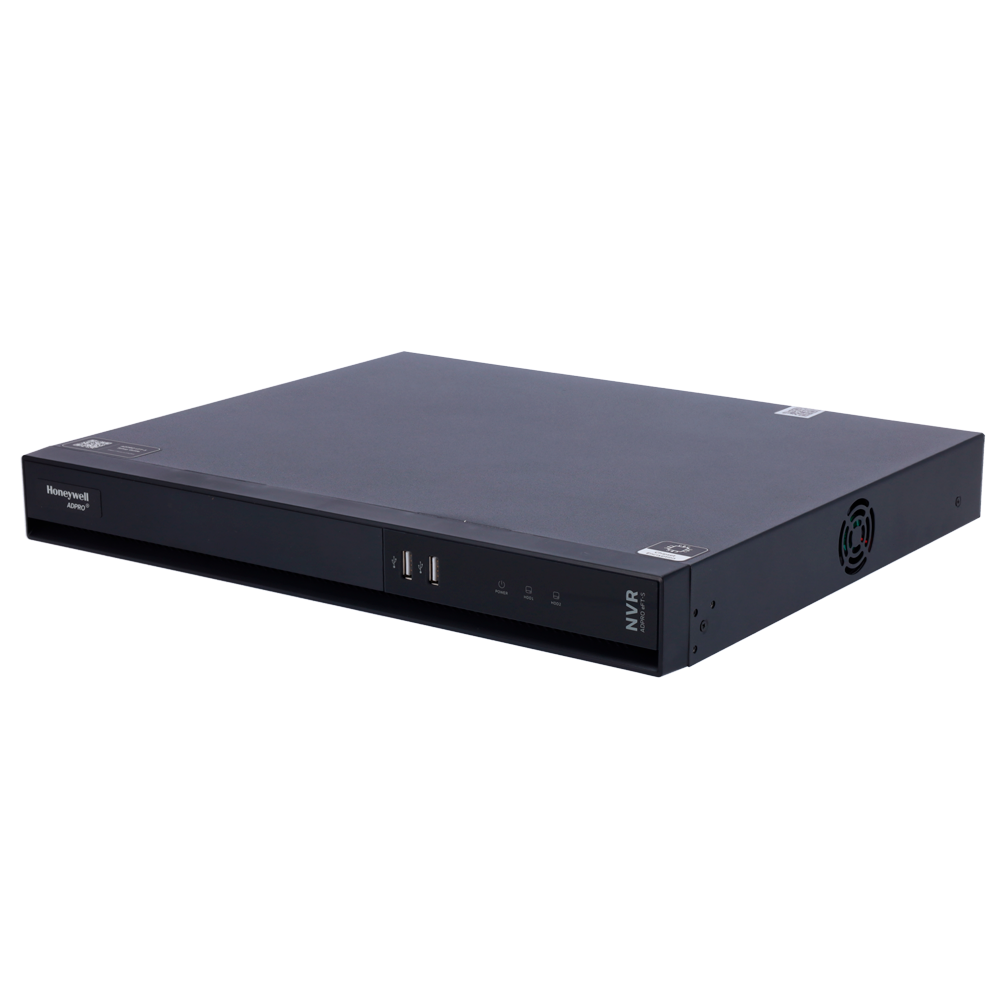

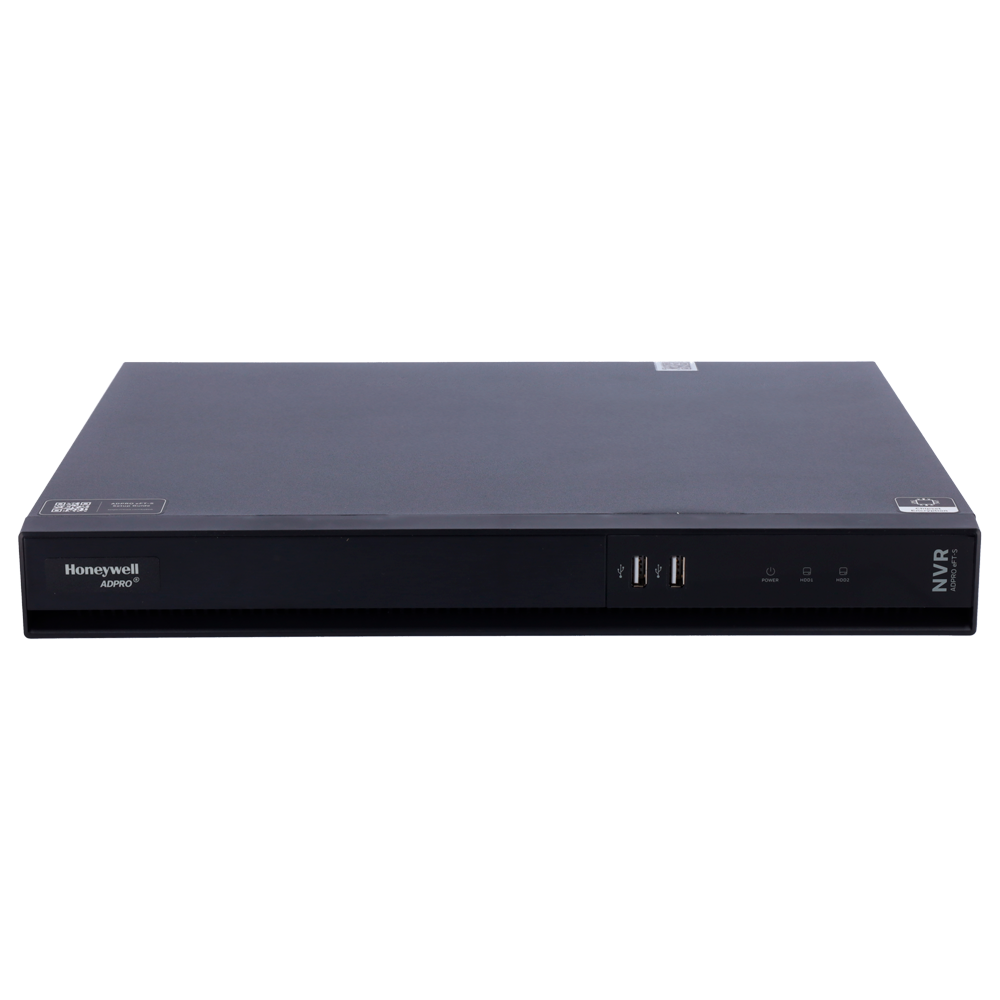

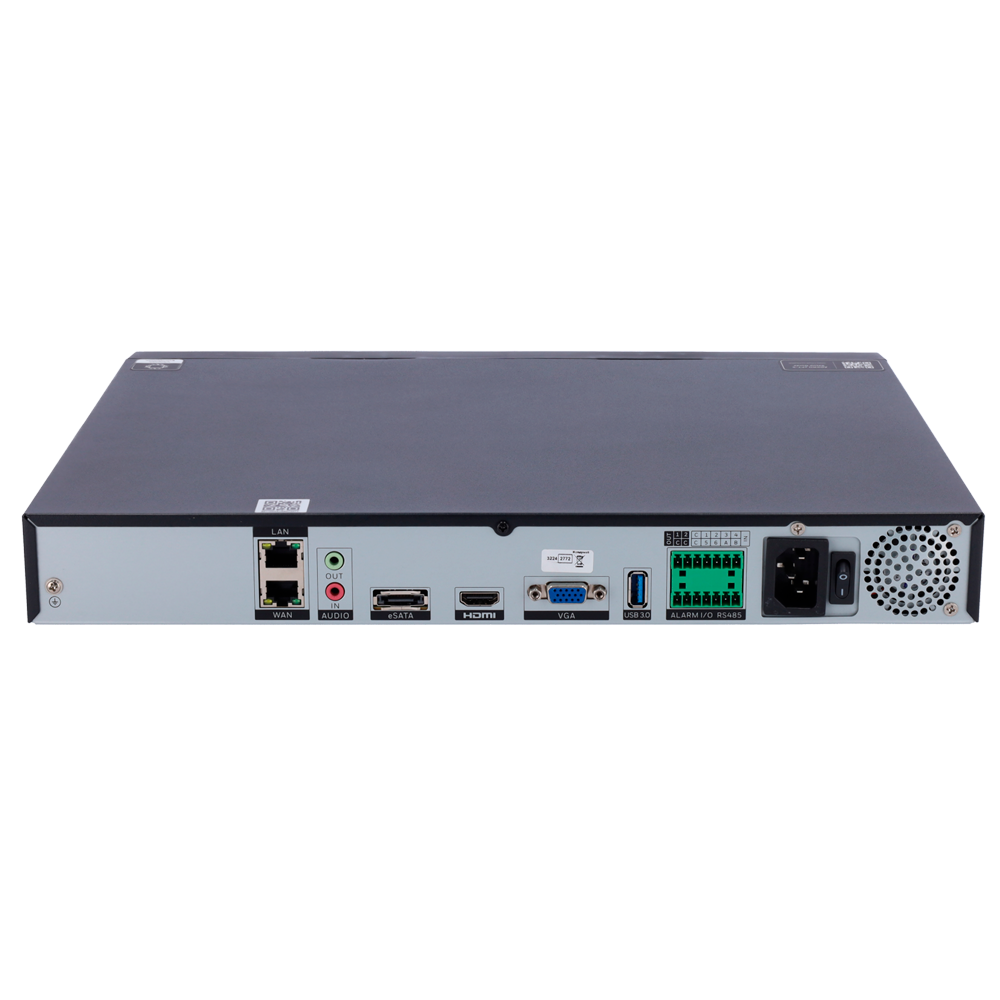

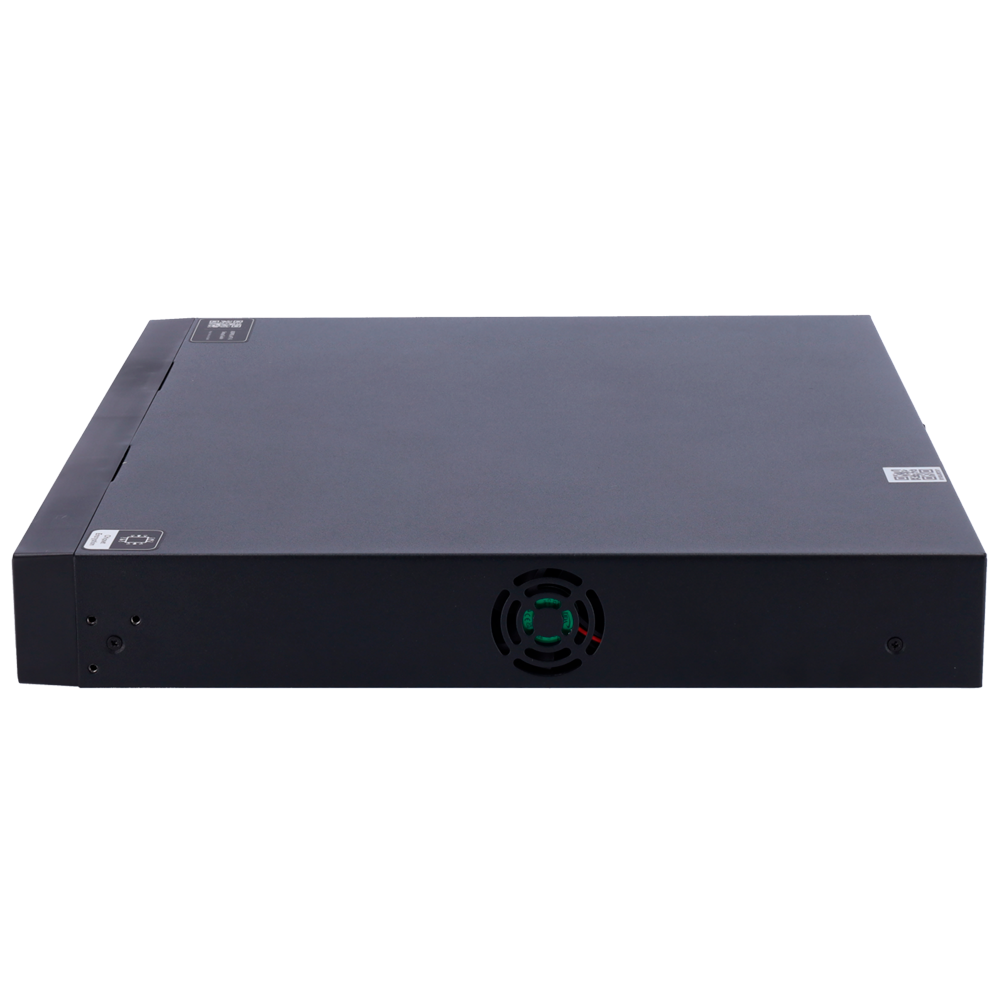

- XTRALIS ADPRO eFT-S 8IP 6TB HDD 6I/2O no PoE
- Alarms 6I/2O | Includes 8 IP video channels
- Up to 16 IP channels reaching 8 IP channels with 8 video analysis channels
- Hard Disk 6TB
- No PoE Ethernet Ports
- LoiterTrace and IntrusionTrace licenses NOT included
- XTRALIS ADPRO eFT-S 8IP 6TB HDD 6I / 2O no PoE
- Includes 8 IP video channels
- Hard disk 6TB
- 6 entradas y 2 salidas en el equipo
- without PoE ports
- Up to 16 IP channels reaching 8 IP channels with 8 video analysis channels
- LoiterTrace and IntrusionTrace licenses NOT included
- Support for all major camera brands and ONVIF S/T profile
- Video recording, video analysis and streaming (ready for complete remote monitoring)
- Expandable: up to 128 inputs and 128 outputs with Ethernet PoE modules
- Xchange Program 2 for installation and license management
Specifications
| Operating system | Operating system ADPRO® XO™ Security, based on Linux |
| Video output | HDMI (2): HDMI x 1 (4K Max), VGA x 1 (1080p) |
| Video compression | H.264/H.265 (H.265 compatible with Hikvision, Honeywell, ONVIF S/T profile and generic controller) |
| Video Resolution | Up to 4K resolution; For optimal performance, when using 4K cameras on XO devices, the number of supported cameras and analysis channels (IntrusionTrace and/or LoiterTrace) are reduced in proportion to the resolution. |
| Images/second | Full HD/1080p to 25/30 fps (PAL/NTSC) |
| Bandwidth (video) | 16 x 5 Mbps |
| Bandwidth Management | Configurable bitrate constant or variable / Configurable bandwidth limiter |
| Audio input | Audio input from compatible IP camera |
| Audio output | Analog audio output ( 3,5 mm connector) and digital audio output from IP cameras. Support for zone-specific audio |
| Built-in inputs | 6 inputs in the box |
| External inputs | Up to 128 inputs through Ethernet I/O units. |
| Relay outputs | 2 outputs in the box |
| External relay outputs | Up to 128 Relay outputs via Ethernet I/O units. |
| Web server | XO client - integrated web client application (ActiveX) |
| SATA / Max HDD Storage. | 6 TB / 2 x 10TB |
| Ethernet network | 2 x RJ45: Self-adapting Ethernet interfaces 10M/100M/1000M |
| PoE Support | No |
| Recording Type | Schedule/Detection/Event |
| IP camera integration | Driver específico según la marca, genérico o driver ONVIF Perfil S/T (Depende de la cámara) |
| Management | Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available) and iTrace app for iOS/Android |
| Power supply | 100-240 VAC 50/60Hz |
| Power consumption | Max. 180W; 15W no hard drive |
| Operating temperature | from -10°C to 55°C |
| Humidity | less than 90% relative humidity without condensation |
| Warranty | 2 years |
| Dimensions (length x width x height) | 372mm × 313,3mm × 46,5mm |
| 19" Compatible bracket | Yes |
| Video Analysis | Basic: Motion detection, Manipulation Up to 8 xTrace Analytics channels: IntrusionTrace™, LoiterTrace™ (requires optional licenses) |
In the box
- Adpro eFT-S unit
- Power supply cable
- Mouse
