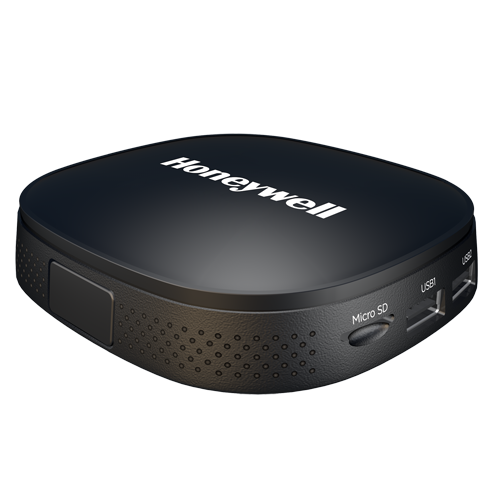

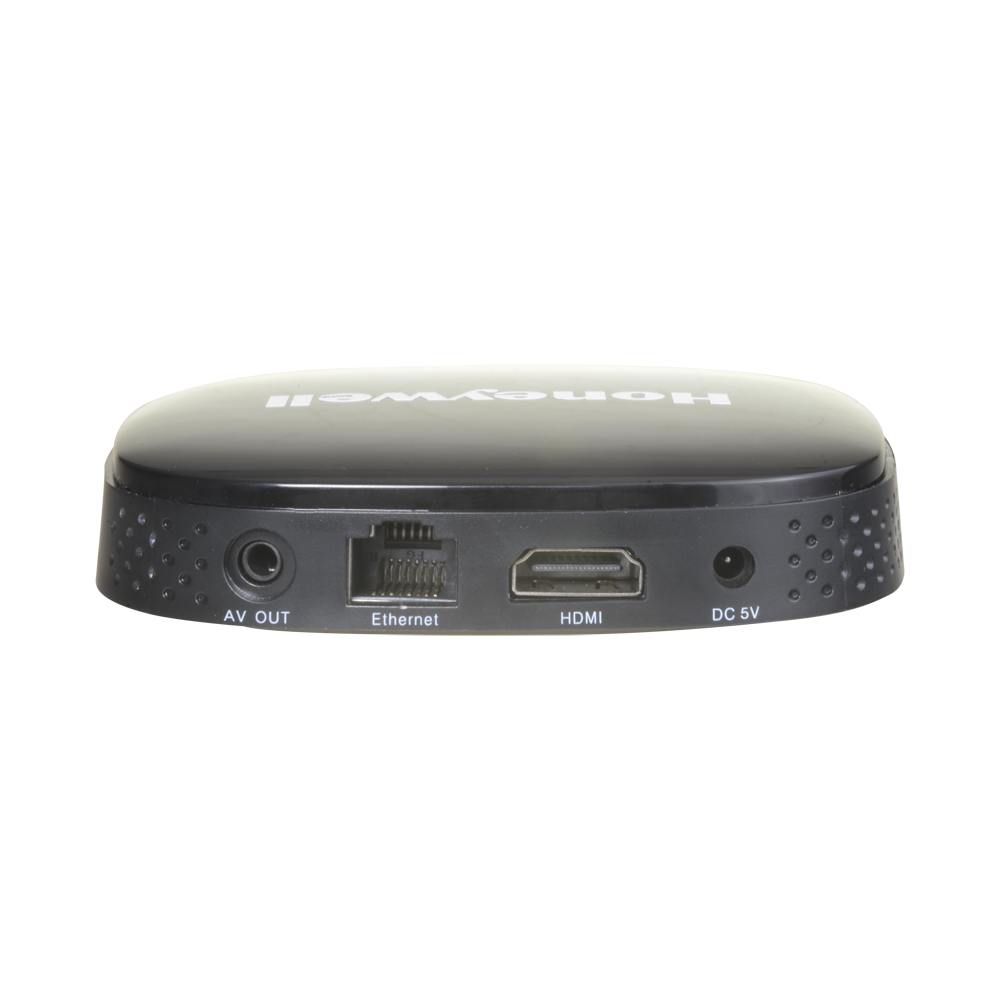

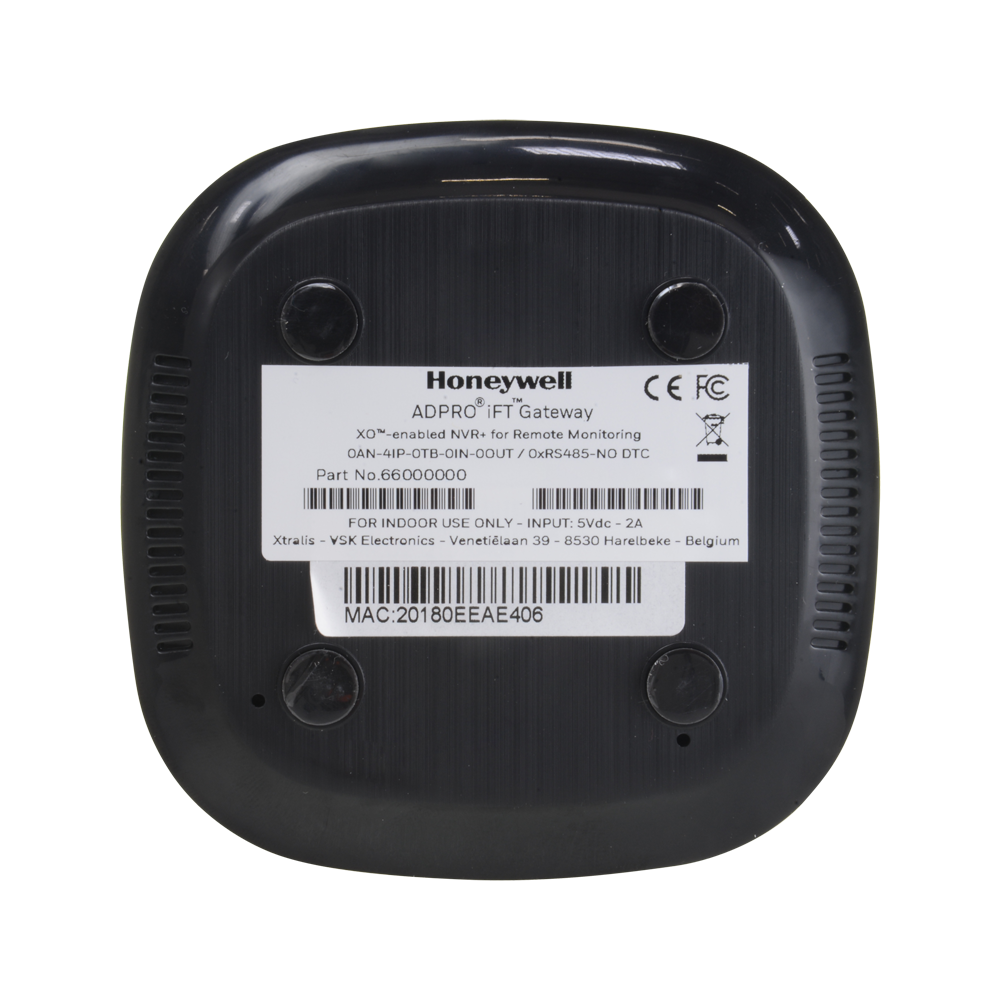

XTL-66000004
Ga direct naar de productinformatie
XTL-66000004
- XTRALIS - Adpro iFT Gateway
- 4 video analysis licenses included
- Local storage from 32GB (SD not included)
- Compatibility with the leading camera brands: Safire, Avigilon, Axis, Bosch, Hikvision, Hikvision AVE, Honeywell...
- Compatibility with ONVIF S-profile
- XTRALIS
- Adpro iFT Gateway video analysis server with remote transmission of alarms
- Up to 4 ip cameras
- 4 VA licenses included
- Local storage from 32 GB (SD not included)
Specifications
| Operating system | ADPRO® XO™ Security operating system, based on Linux |
| Video input | 4 IP cameras |
| Video output | N/A |
| Video compression | H.264 and H.265 - depends on camera |
| Resolution of video and ips | 4 channels of analysis max. 4SIF/5ips max. 1Mbps, with analysis in each channel. 4 flows max. 1920x1080/25ips max. 2Mbps. |
| Wifi | 802.11 b/g/n 2.4 Ghz Broadcom AP6212 module |
| Bandwidth Capacity | 4 streams 1920x1080/25fps max. 2Mbps |
| Bandwidth Management | Configurable constant or variable bitrate / configurable bandwidth limiter |
| Audio input | Via compatible cameras |
| Audio output | Via compatible cameras, and at local output 2V impedance 600. |
| Alarm inputs | Via XO I/O module interface USB: up to 20 Via Network I/O module with PoE: from 4 to 128 (The coltage free contact inputs depend on hardware and firmware) |
| Relay outputs | Via XO I/O module interface USB: up to 8 Via Network I/O module with PoE: From 4 to 128 |
| UBS ports | 2 |
| Web server | Adpro XO Client - configuration and management application |
| Ethernet | 10/100 BASE-T, autodetection, full duplex, RJ45 |
| Recording Type | Event recording on MicroSD card (not included), capacity from 32GB |
| IP Camera Integration | Brand-specific driver, generic or with ONVIF S-profile driver (dependening on the camera) |
| Management | Client interface (Adpro XO Client), ADPRO Video Central Platinum, third-party software (SDK available) and iTrace App for iOS/Android |
| Power supply | DC 5V/2A supplied via universal power supply 120/240 VAC |
| Operating temperature | 0 at 70 °C Storage temperature: -10 to 70ºC |
| Humidity | 5–90 % Non-condensing |
| Warranty | Up to 2 years. No substitution in advance. |
| Dimensions (W x H x L) | 101.6 x 101.6 x 23.6 mm |
| Video Analysis | IntrusionTrace/LoiterTrace. Advanced camera sabotage. Motion Detection |
| Mobile Apps | Adpro iTrace |
| Licenses | Includes 4 video analytics channels (IntrusionTrace, LoiterTrace) |
In the box
- Adpro iFT Gateway with 4 VA included
- Power supply
