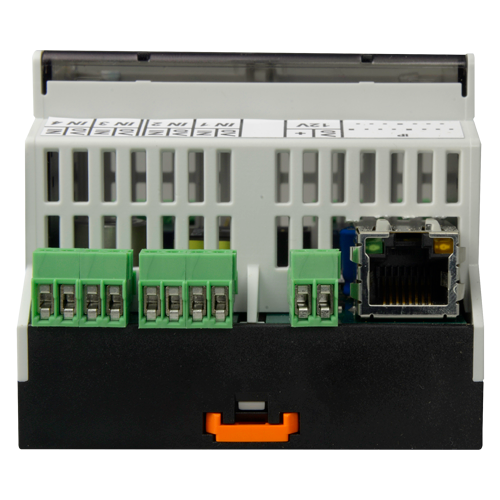

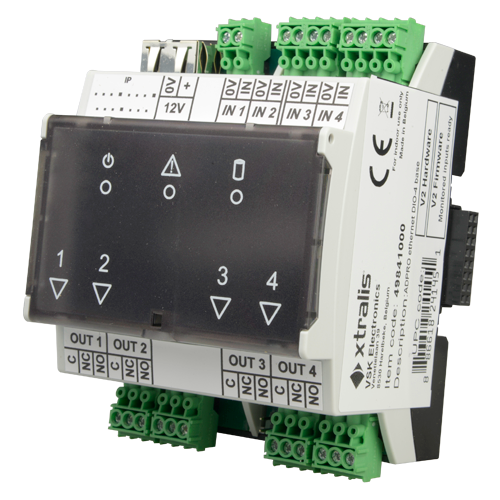

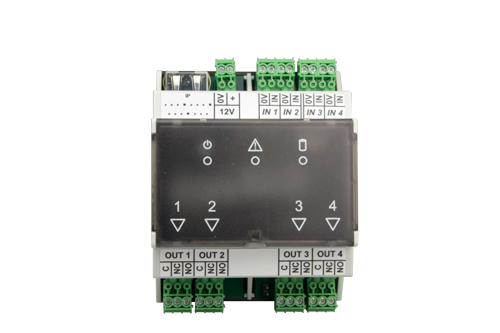

XTL-49841000
- XTRALIS Ethernet PoE I/O Module
- 4 voltage-free contact inputs
- 4 relay outputs
- 3 LED indicators
- DIN rail mounting
- Supports slave modules
- Module with LED indicators, contact inputs and relay outputs, FastTrace compatible 2 Series, iFT Series, iFT Gateway.
- The analytical system controls the I/O units via the Ethernet network (10 Mbps).
- The module has 4 voltage-free contact inputs (default = NO).
- 4 relay outputs (voltage free switchover contacts) each with status LED.
- 3 LED indicators for system status (red = recording; yellow = fault; green = power supply).
- Mounted on DIN rail
- Extendible with up to three extension units. Extension units are powered from the base unit. Each extension unit offers 4 additional monitors or contact inputs and 4 relay outputs.
- Powered by a local adapter (12 VDC; min 350 mA) or by a PoE switch or injector
Specifications
Power: |
|
| Inputs | 4 voltage free contact inputs, NO or NC (NO by default) |
| Outputs | 4 relay outputs: NC/NA, 30vdc @1A |
| Dimensions | 72mm x 89.7 mm x 62.2 mm |
| Operating temperature | 0-40 °C |
| Relative humidity | 20-93% (non condensing) |
In the box
- In/Out Module
