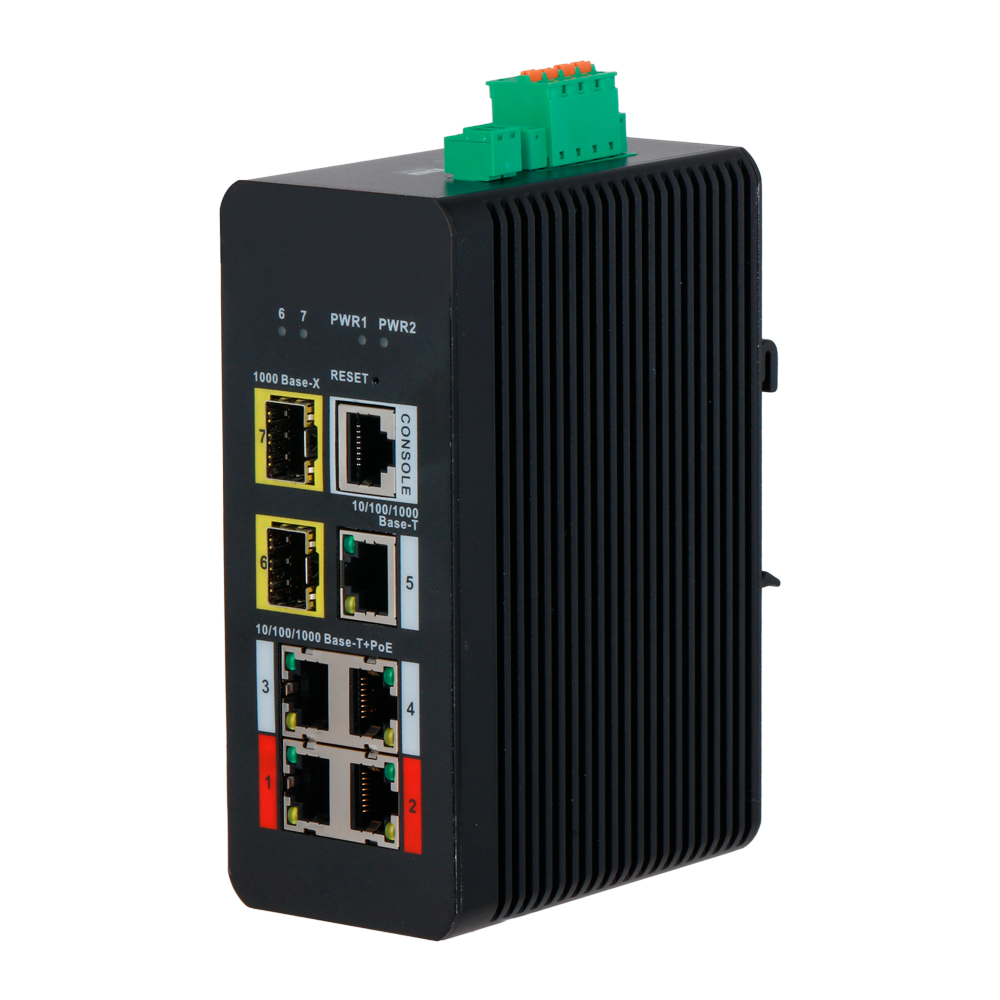

XS-SWI0704HIPOE-MGF-120-DIN
Ga direct naar de productinformatie
XS-SWI0704HIPOE-MGF-120-DIN
- X-Security PoE Switch DIN Rail
- 4 PoE ports RJ45 + 1 port RJ45 + 2 SFP
- Speed 10/100/1000Mbps
- 90W ports 1-2 / 30W ports 3-4 / Maximum 120W
- PoE/PoE+/Hi-PoE / Up to 250m / PoE Watchdog
- VLAN/STP/RSTP/ERPS/LACP/StaticLAG/IGMP Snooping
- X-Security
- Industrial Managable Switch

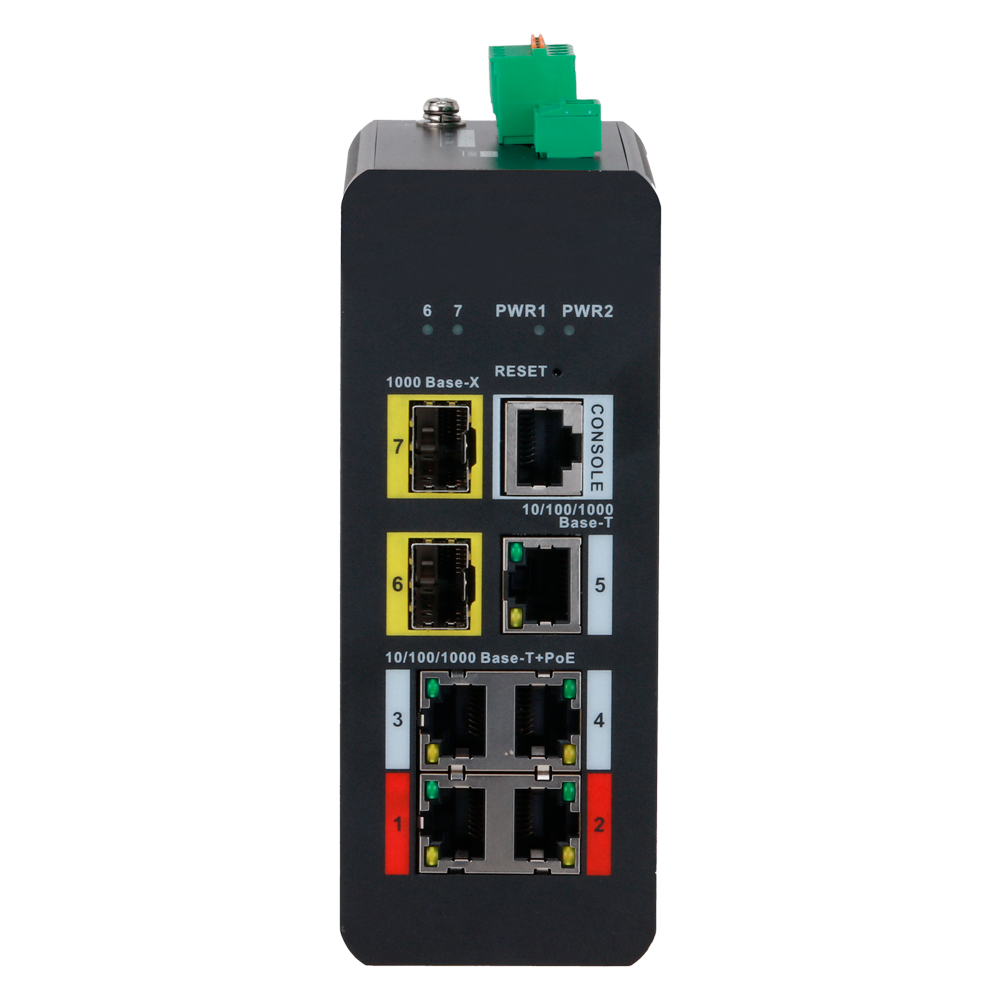

- 4 RJ45 Gigabit PoE ports + 1 RJ45 Uplink Gigabit port + 2 Gigabit SFP ports
- Up to 90W on port 1-2 and up to 30W on ports 3-4
- Supports PoE power supply up up 120W in total for all ports
- PoE Extended up to 250 meters
- PoE Watchdog
- Compatible with PoE IEEE802.3af/at , Hi-PoE and IEEE 802.3bt

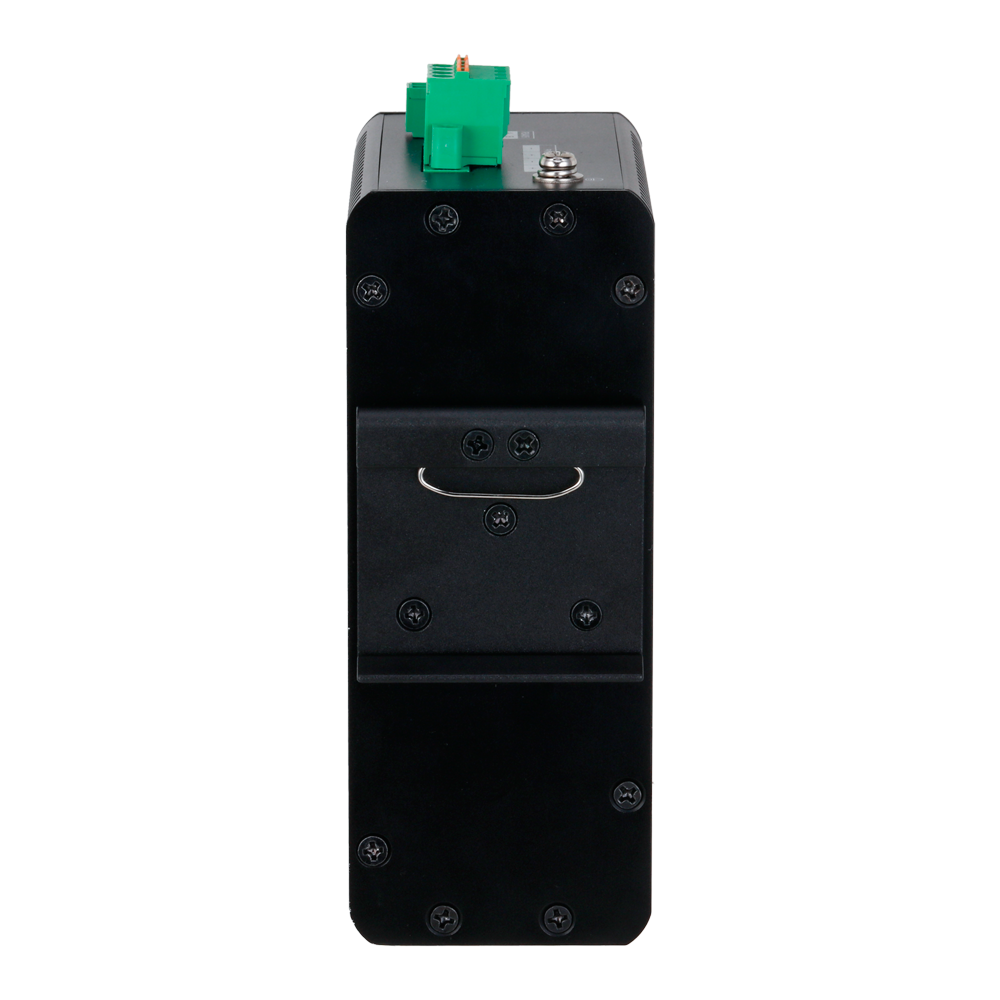

- DIN rail mount
Specifications
| Interface | 4 PoE ports RJ45 + 1 Uplink port RJ45 + 2 fiber SFP ports + 1 Console port |
| Port speed | 5x 10/100/1000Mbps + 2 x 1000Mbps Base-X |
| Power supply | Up to 90W on 1-2 ports and up to a maximum of 30W between 3-4 (120 W ports for the entire device) |
| PoE features | According to standard: IEEE 802.3af PoE / IEEE 802.3at PoE+ / IEEE802.3bt Hi-PoE Up to 120W of Total PoE Power PoE Watchdog, the switch automatically detects if the PoE-powered device is not operational. PoE Extended Up to 250m to 10Mbps |
| VLAN | 4K 10 VLAN Interface |
| DHCP | Customer Server DHCP Snooping |
| Security Functions | IEEE 802.1X ACL |
| Redundancy | STP RSTP ERPS |
| Management Protocols | Web CLI Telnet SNMP V1/V2/V3 |
| Power | DC 53V (power supply not included) Redundant source: Two power supplies can be connected to the device |
| Installation | DIN rail |
| Maximum Consumption | 120W |
| Operating temperature | -40º C ~ 75º C |
| Dimensions | 94,4 x 53,5 x 135 mm |
| Weight | 0,65Kg |
| Installation | Tabletop and DIN Rail |
In the box
- X-Security PoE Switch
- User instructions
- DIN rail anchor kit
