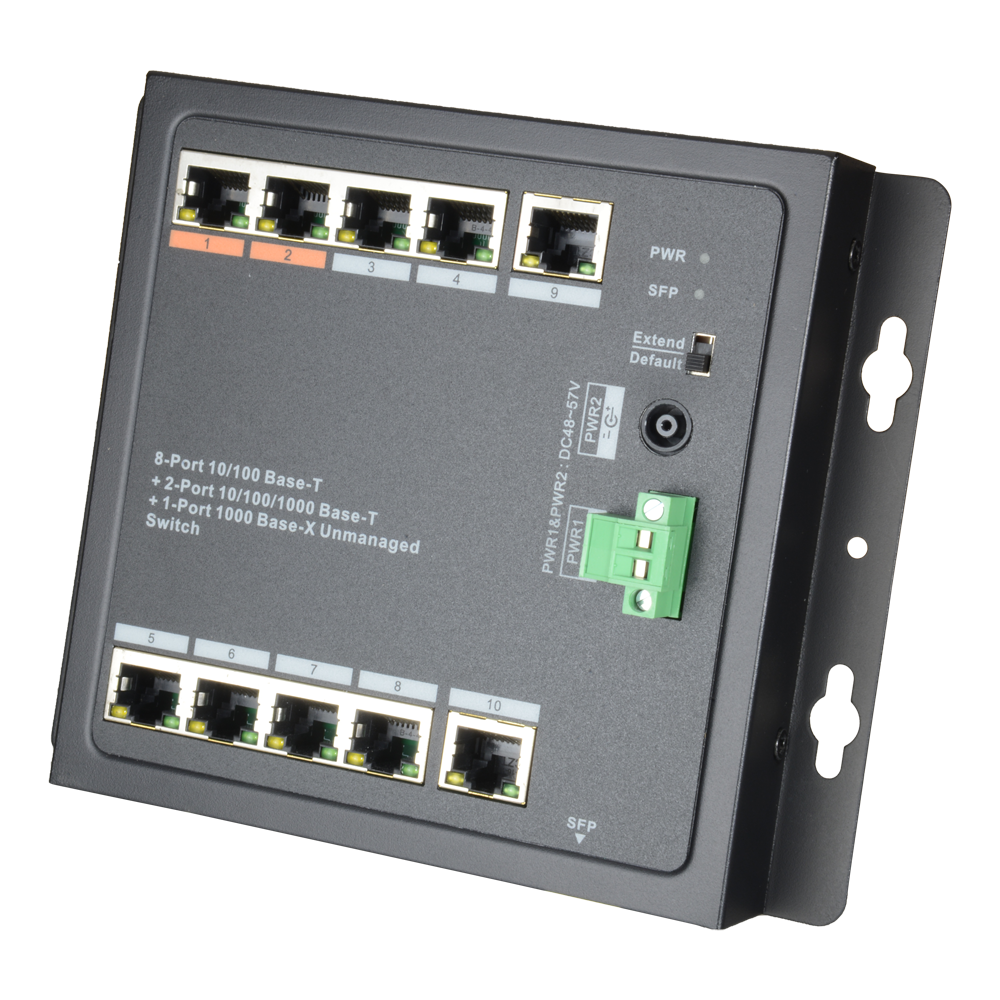

XS-SW1108HIPOE-96DIN
Ga direct naar de productinformatie
XS-SW1108HIPOE-96DIN
- X-Security HiPoE Switch
- 8 PoE ports + 2 Uplink (RJ45) + 1 Uplink (SFP)
- 8x 10/100Mbps + 2x 10/100/1000Mbps + 1 SFP Giga
- 2 Hi-PoE + Ports 6 PoE+ Ports
- Maximum consumption 96 W
- Wall installation
- X-Security
- HiPoE Switch
- 6 PoE+ ports RJ45 10/100/1000 Mbps
- 2 Hi-PoE Ports
- 2 ports RJ45 10/100 Mbps uplink + 1 SFP Gigabit uplink port
- Total 96 W
- Plug & Play
- Energy Saving Technology
- DIN rail mount
Specifications
| Interface | 8 PoE ports RJ45 + 2 ports | Port speed |
8 x 10/100 Mbps RJ45 |
2 x 10/100/1000 Mbps RJ45 1 x 10/100/1000 Mbps SFP Power supply |
Up to 60 W (Hi-POE) on the 1 port and 2 (96 W for the entire device) |
Up to 30W on 3~8 (96 W ports for the whole device) PoE features |
Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE |
Installation |
On the wall |
Power |
DC 48 V - 57 V |
Operating temperature |
-30º C ~ 65º C |
Dimensions |
25 (D) x 130 (H) x 158 (W) mm |
Extended PoE |
Up to 250m only on 1-4 ports |
|
In the box
- X-Security PoE Switch
- AC/DC Power adaptor
- User instructions
