XS-SW0604-96-DIN-HIPOE
- X-Security Manageable PoE Switch
- 4 x FE PoE + 2 GE SFP
- PoE 802.3af/at/bt / Maximum 90W
- Poe Extended, Poe Watchdog
- VLAN/STP/RSTP/SNMP/Loop Detection

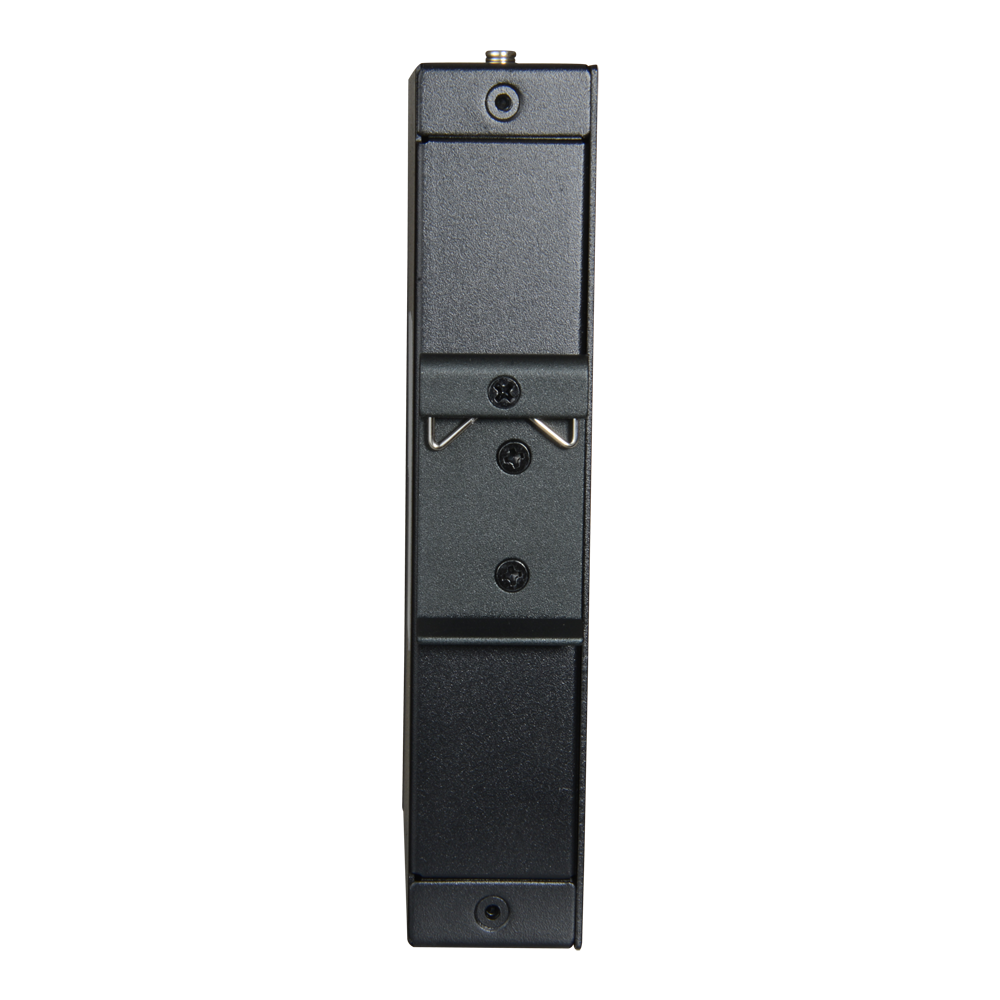

- DIN rail mount
- X-Security
- Manageable desktop switch
- 4 ports RJ45 10/100 Mbps Hi-PoE + 2 ports Gigabit SFP
- Supports PoE power supply up up 90W in total for all ports
- Up to 60W in port 4 and up to 30W in ports 1, 2 and 3
- Compatible with PoE IEEE802.3af/at and Hi-PoE
- Poe Extended, Poe Watchdog
- VLAN/STP/RSTP/SNMP/Loop Detection
Specifications

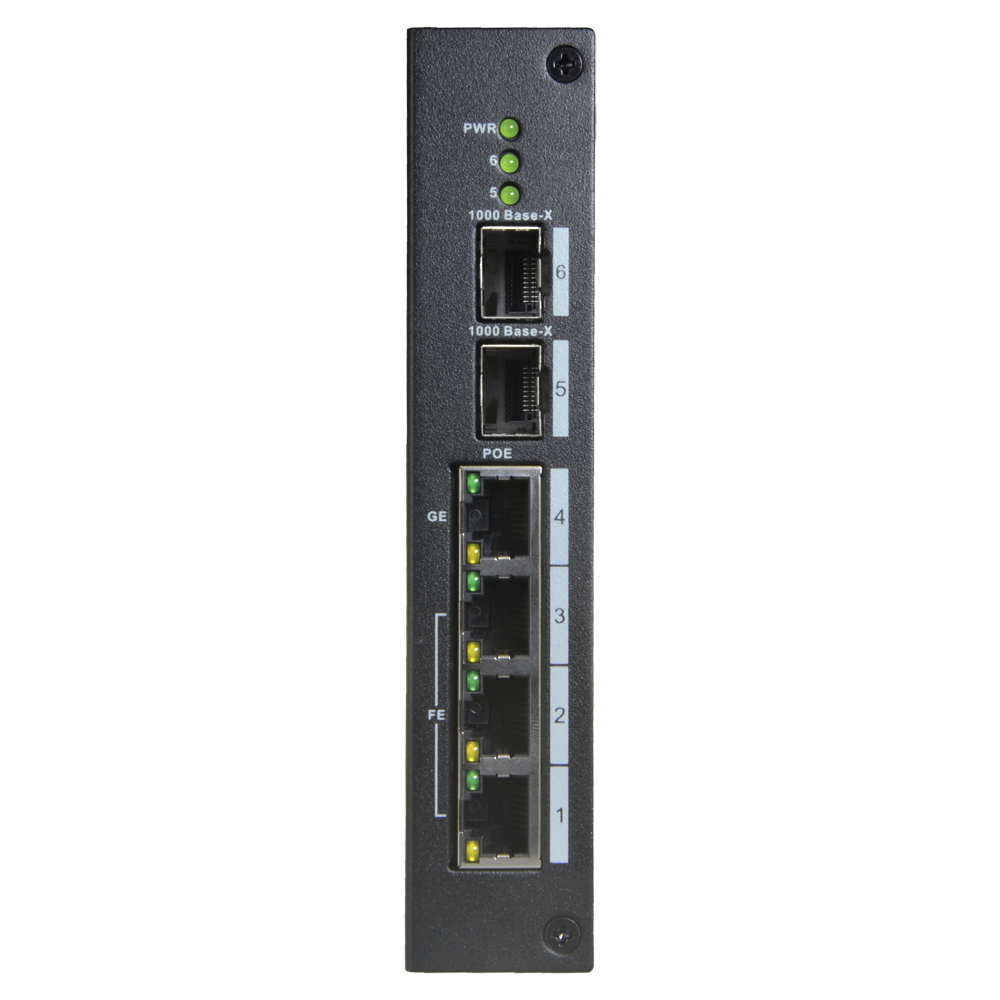

| Interface | 4 PoE ports RJ45 + 2 SFP fiber ports |
| Port speed | 4 x 10/100 Mbps + 2 x 1000 Mbps Base-X ( SFP ) |
| Power supply | Up to 60W (Hi-POE) in port 4 and up to 30W in ports 1 to 3 (90 W in total for the switch) |
| PoE features | Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Network Protocols | VLAN/STP/RSTP/SNMP/Loop Detection/Extended PoE/Poe Watchdog |
| Installation | DIN rail |

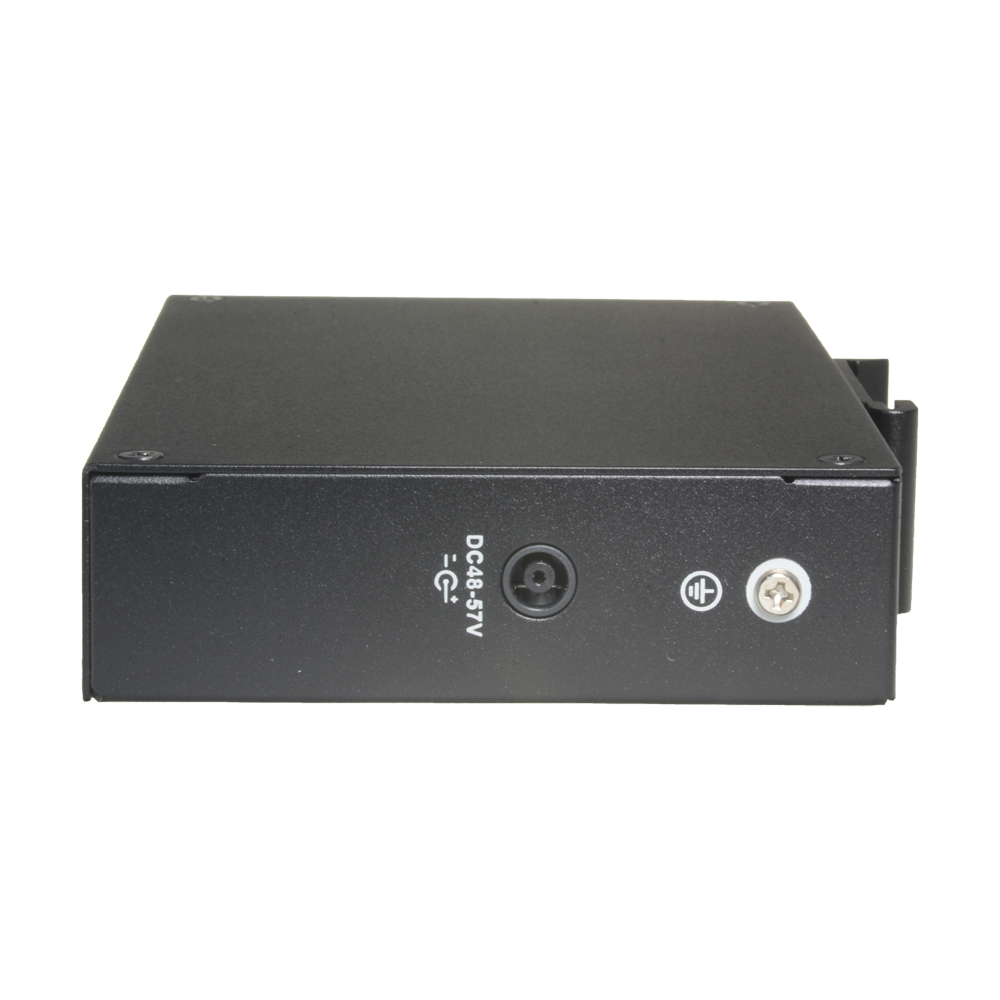

| Power | DC 48 V - 57 V |
| Operating temperature | -10º C ~ 55º C |
| Dimensions | 85 (D) x 26 (H) x 130 (W) mm |
In the box
- X-Security PoE Switch
- AC/DC Power adaptor
- User instructions
