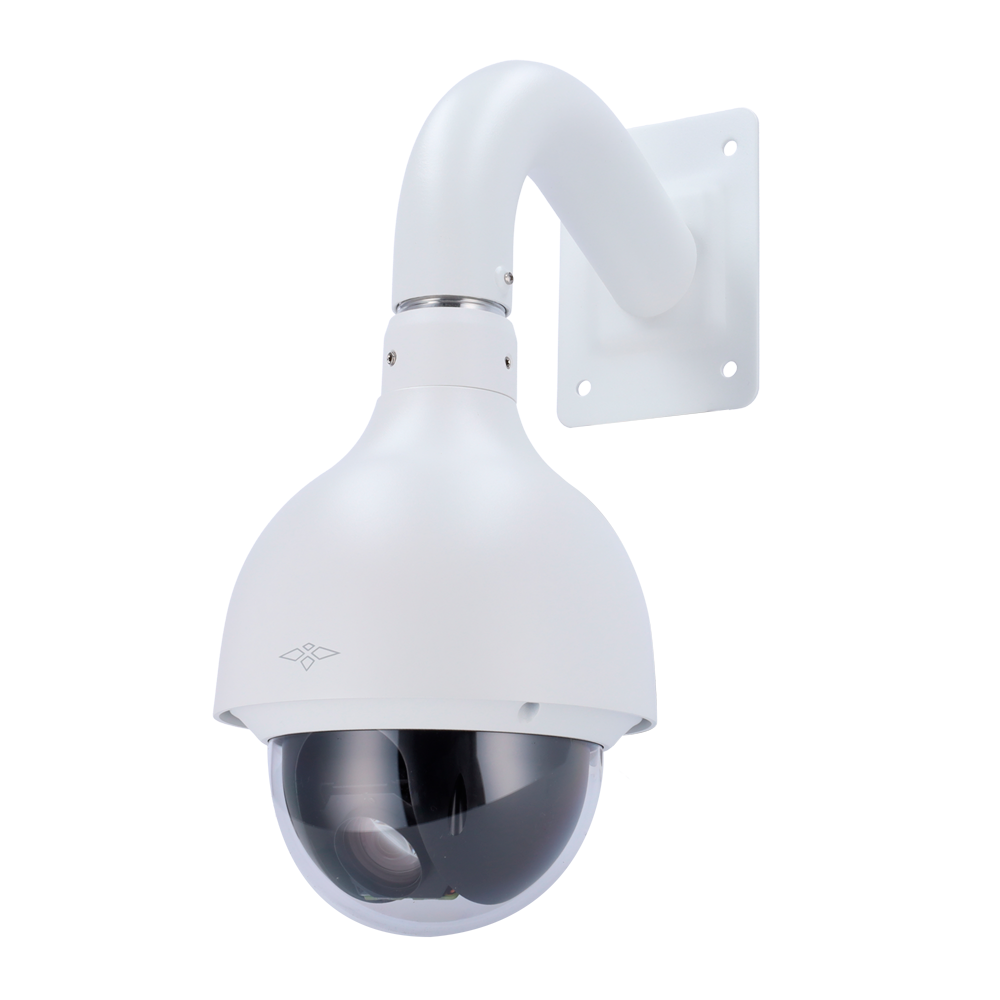

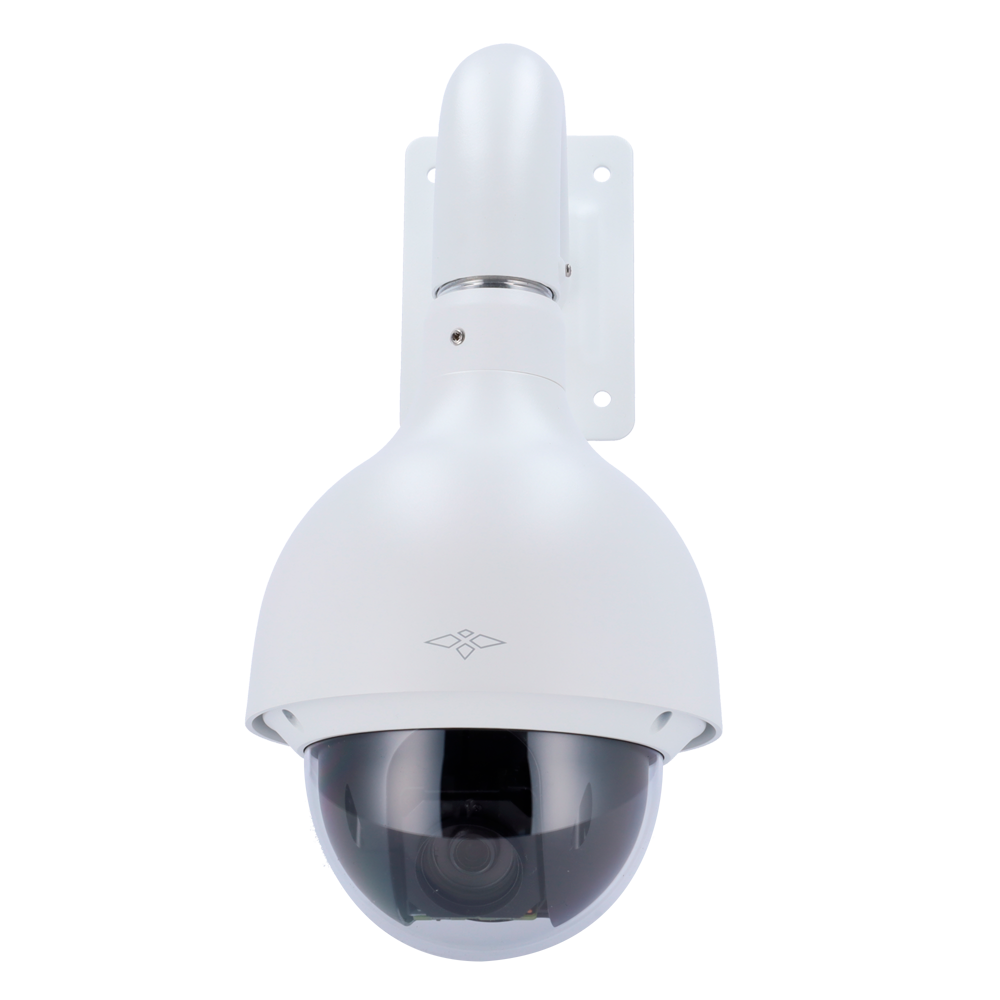

XS-SD50225DB-HNY
- X-Security
- 2 Megapixel PTZ IP Camera
- Perimeter Protection | Face Detection
- Compression H.265+ / H.264+
- Varifocal lens 4.8-120 mm | 25X Zoom
- IP67 | IK10 | TVS 6000 V
- X-Security
- PTZ IP Camera
- Starlight
- Wizsense
- 25X Optical zoom
- 1/2.8" Sony STARVIS CMOS
- 2 Megapixel (1920 × 1080)
- 4,8~120 mm Varifocal lens
- 0.005 Lux
- H.265+/H.265/H.264+/H.264/MJPEG
- WizSense, false alarm filter for vehicles and people
- IVS (Perimeter Protection)
- Facial Detection
- RJ-45 10/100 BaseT
- PoE+ 802.3at
- Weatherproof IP67, IK10
- Alarms
- Recording to micro SD card up to 512 GB
- ONVIF Compatible
- Wall bracket included
Specifications
| Brand | X-Security |
| Image sensor | 1/2.8” Sony Starvis CMOS Starlight |
| Resolution | 1080p(1920x1080), 720p(1280x720), 1,3Mpx (1280x960), D1(704x576), CIF(352x288) |
| Compression | H.265 / H264 / MJPEG (video), G711a / G771u / AAC (audio) |
| Main Stream rate | 1080p / 720p / 1,3 Mpx (1~50fps) |
| Extra Stream rate | 2º:D1/CIF, 3º:1080p/720p/1,3Mpx/D1/CIF (1 ~ 25 FPS) |
| Bitrate | 448 Kbps ~ 8 Mbps |
| Lens | Varifocal 4.8 ~ 120 mm (Optical zoom 25X) Auto Iris, Auto Focus |
| Digital zoom | 25 X |
| Image improvements | WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask |
| Minimum illumination | 0.005 Lux (colour) / 0.0005 Lux (B/N) |
| Day / Night | Removable mechanical ICR filter |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS software, mobile application and NVR |
| Memory | Slot for Micro SD card (Max 128 GB) |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: 0°~90° auto flip 180° |
| Manual speed | Horizontal: 0.1°~350° /s, Vertical: 0.1°~250° /s |
| Speed between Presets | Horizontal: 500° /s, Vertical: 500° /s |
| Preset positions | 300, 5 auto pattern, 8 auto tour, 5 auto scan |
| Auto Tracking | Simple, multiple and panoramic scene |
| IVS functions | Tripwire; intrusion; cross-fence detection; loitering detection; abandoned/lost object; fast motion; parking detection; people gathering; vehicle/human alarm classification |
| Face detection | Supports face detection, face bounding box, snapshot capture and facial image enhancement. Face cropping is also offered, where you can crop one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are: capture in real time, and quality first. |
| SMD | Integrated |
| Communication | CGI; Dahua SDK; API; SDK; ONVIF (S&G&T Profile) |
| Alarms | 2 inputs / 1 relay NO/NC |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Power | 24 VCC/2,5 A, PoE+(802.3at) |
| Degree of protection | IP67, IK10, TVS 6000 V lightning proof; over voltage protection; transient voltage protection |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 253 mm (H) x 186,2 (Ø) mm |
| Weight | 2500 g |
In the box
- IP motorised dome camera
- Power Supply 24 VCC/2,5 A
- CD with software and instructions
- User instructions
- Wall mount bracket PFB300S
- Bracket thread PFA110
